830nm 1W 9mm TO-5 NIR Laser Diode

If you have any questions, please contact us by mail. We will reply to you within 48 hours.

Product Details

This NIR diode comes with an 830nm wavelength and super-high power. For 830nm, 1W output is rare. This model has passed strict performance tests and aging tests, which can guarantee 100% brand new and high quality.

Specifications

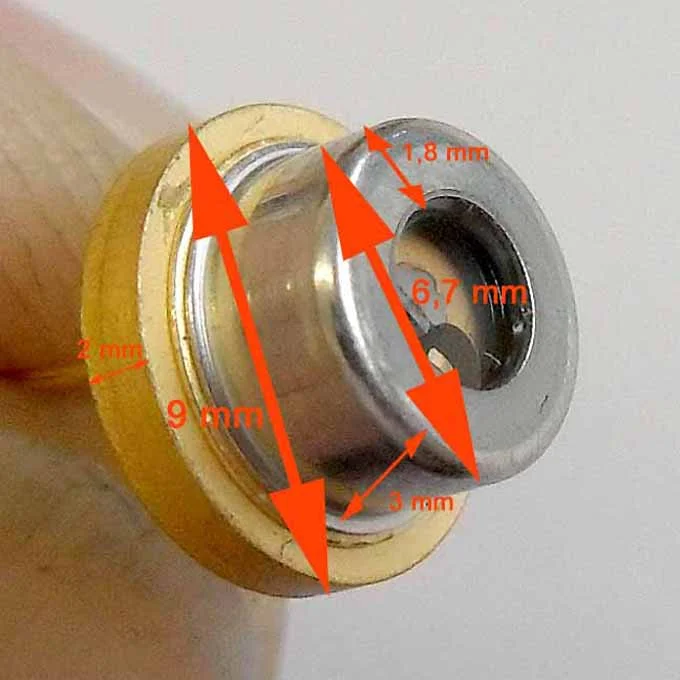

• Package type: TO-5 Φ9.0mm
• Wavelength: 830nm (NIR)
• Spectral width: 2.5nm
• Output power: 1W
• Emitter area: 50
• Threshold current(Typ.): 1.2A
• Operating voltage: 1.8V
• Recommended operation temperature: 25℃

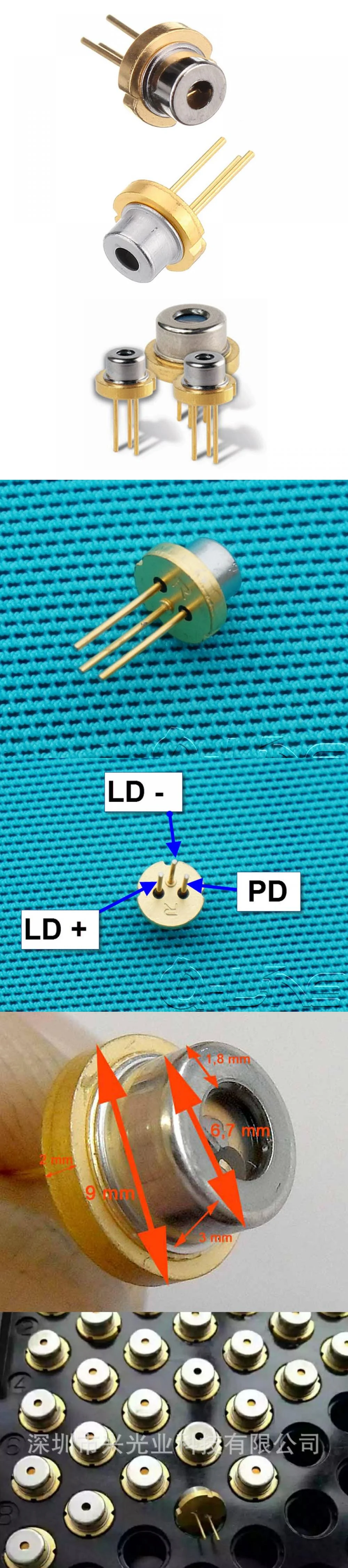

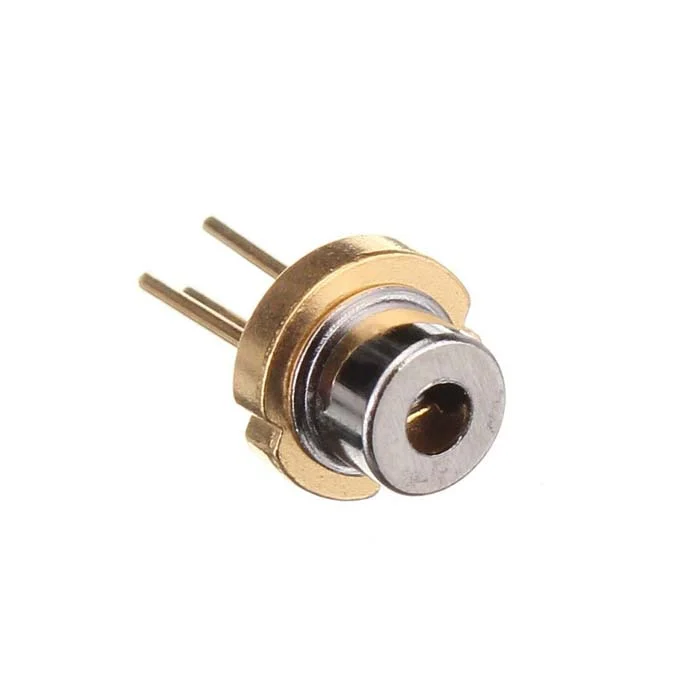

830nm Laser Diode
