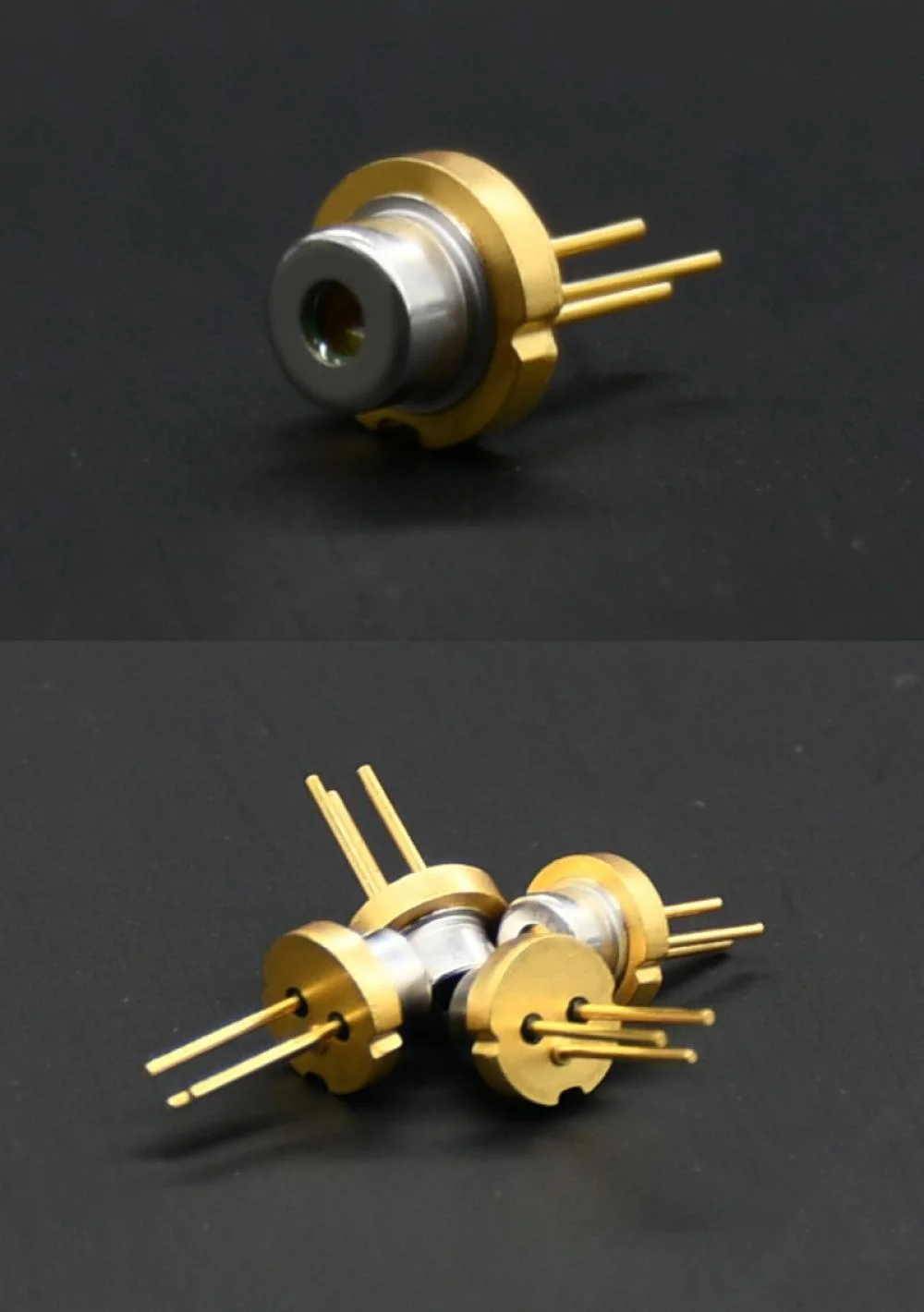

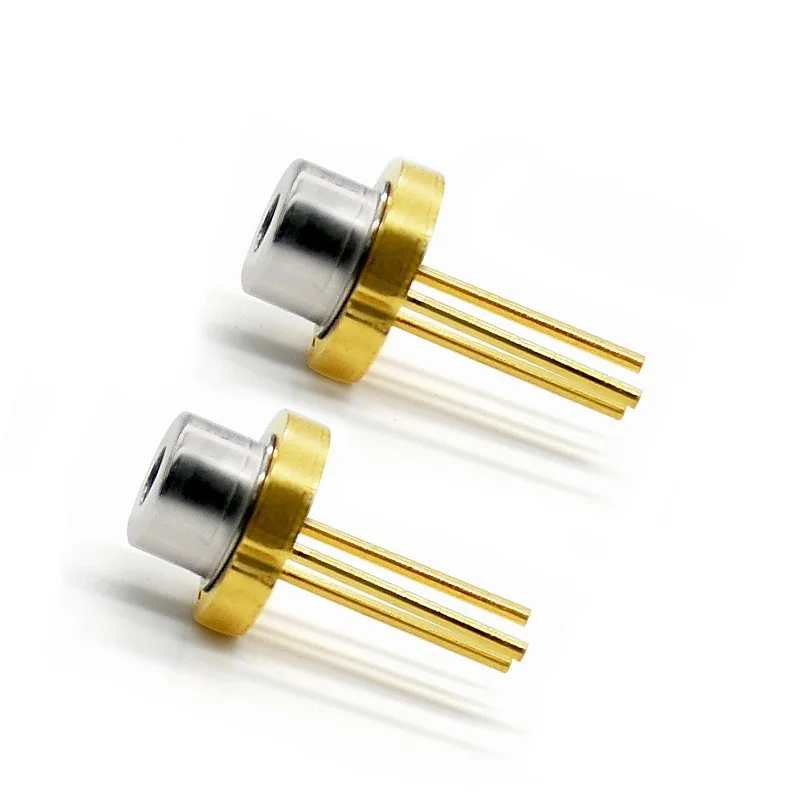

850nm 2.3W Pulsed Laser Diode for Medical Treatment

This pulsed near-infrared laser diode is ideal for medical treatment. It has a standard 850nm wavelength, and an output power of 2.3W. If you are looking for wholesale 850nm diodes for medical purposes, this model is a perfect choice.

Specifications
Wavelength: 850nm
Output power: 2.3W
Laser type: near-infrared
Operating current: 2500 - 3600 mA
Operating voltage: 1.7 - 2.2 V
Threshold current: 200 mA
Operating temperature: +5° ~ +60°C
Storage temperature: -40° ~ +60°C
Certification: RoHS, CE, ISO
Useful life: > 10000 hours

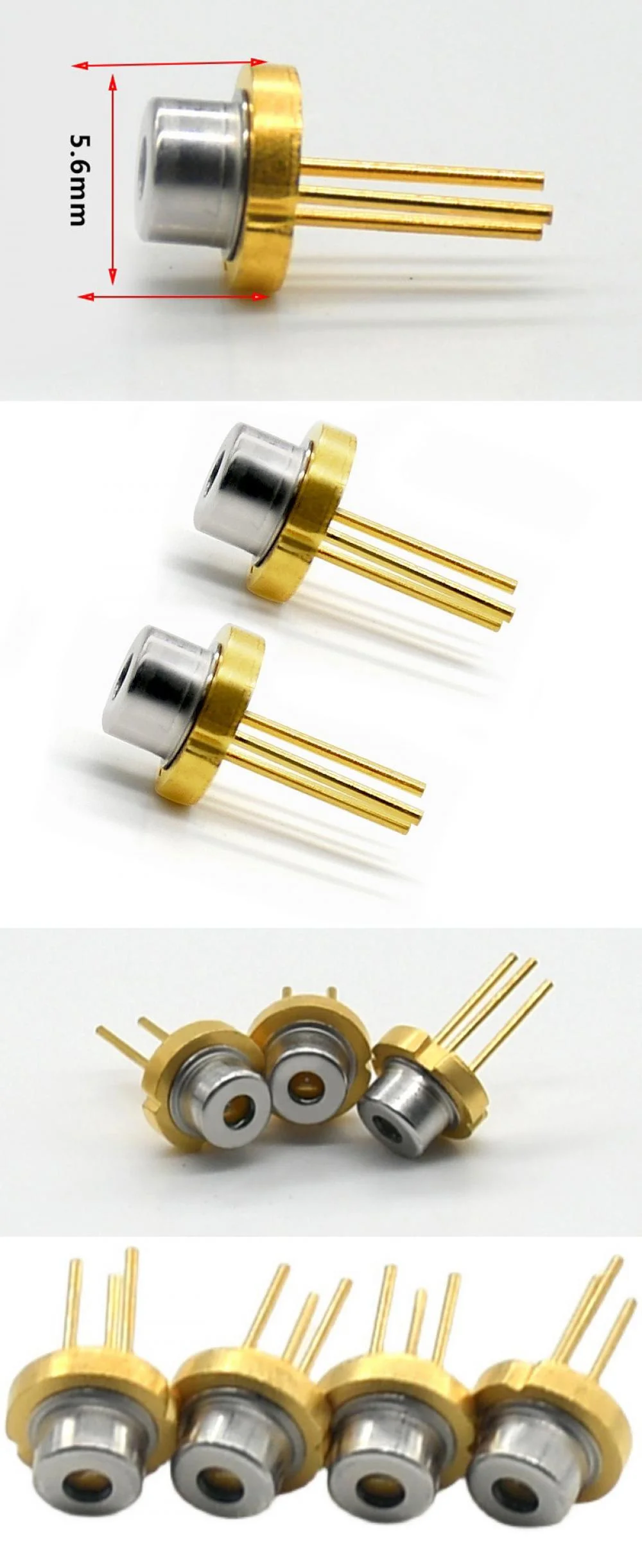

Diameter: TO18-5.6mm

Precautions for using laser diodes:
1. The laser diode needs to be used with the driver circuit board.
2. If the diode works continuously for a long time, a cooling system must be installed.
3. To prevent static electricity from burning the product, please wear electrostatic gloves when assembling.
4. When welding, the temperature of the soldering iron should not be higher than 300 degrees, and the duration of each soldering point should be within five seconds.
5. Due to the special nature of laser diodes, they cannot be returned or exchanged after use.
