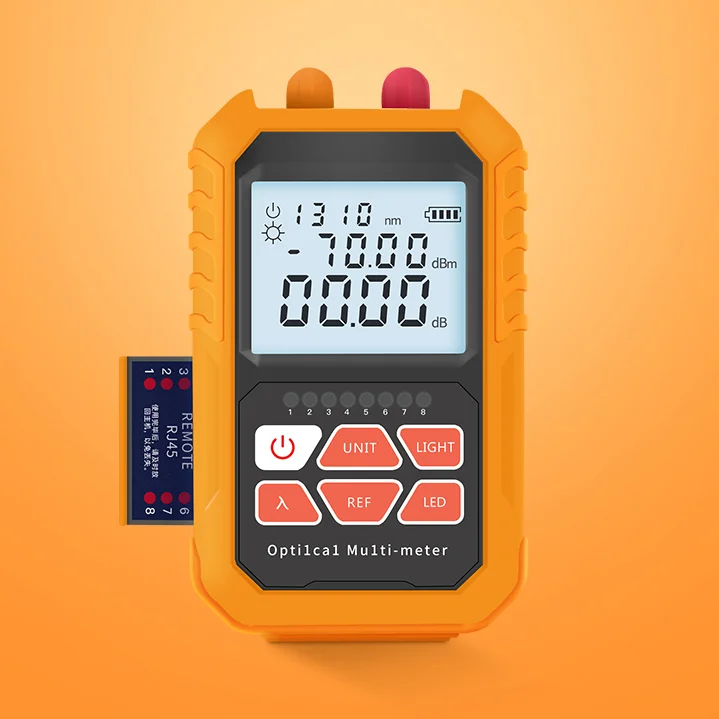

High-Precision Fiber Optic Laser Tester with Optical Power Meter

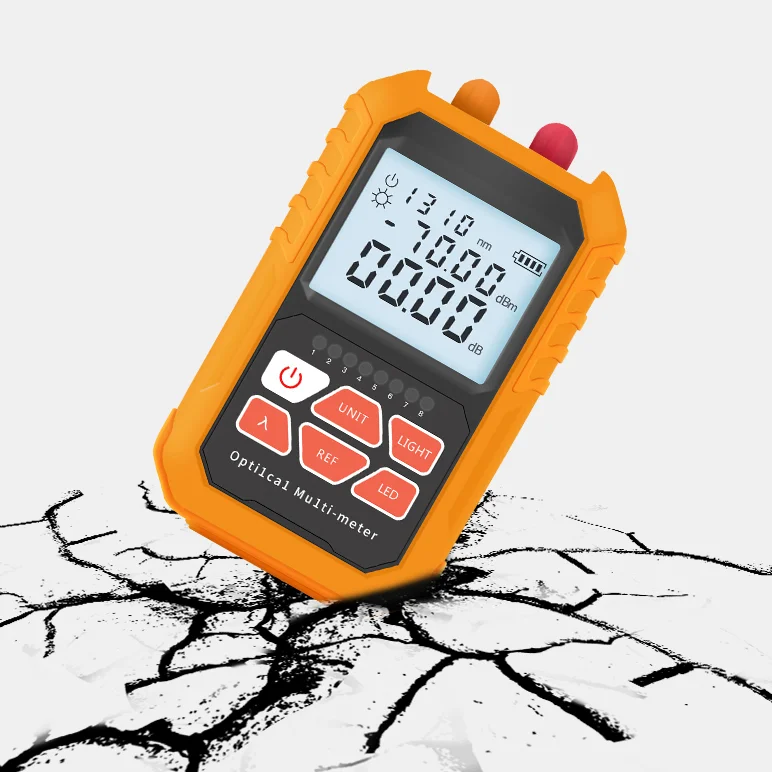

This fiber laser pointer has high precision, integrates an optical power meter, and the error is less than 0.02dB (can be calibrated manually). It comes with LED lighting for testing in dark environments. The product housing is sturdy, which has been tested against drops. This model supports three fiber optic interfaces: FC, SC, and ST. The package includes an extra ceramic core, and you can replace it. If you have any questions, please contact us via email. We will reply to you as soon as possible.

Multiple functions are available: data saving, wavelength memory function, identification of fiber transmission comments, intelligent standby mode, optional 6 test wavelengths, two data unit displays, and DIY self-calibration. Battery version / chargeable version is optional - you can choose according to your needs.

Specifications
Laser power: 5mW (not rechargeable), 15mW (USB rechargeable)
Output distance: 5km (not rechargeable), 15km (USB rechargeable)
Output wavelength: 650 nm
Wavelength range: 800-1700nm
Connector: FC/SC/ST
Detector type: Ingaas
Measuring range: -70db, +3db / -50db, +20db
Standard wavelength: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm
Display resolution: linear display 0.1%, logarithmic display 0.01dBm
Automatic shutdown time: 10 minutes

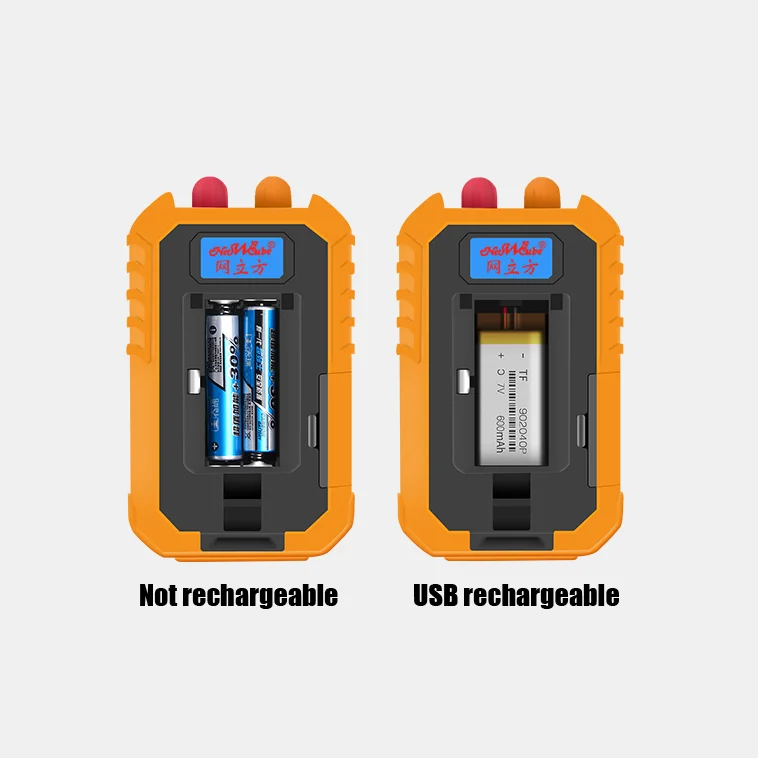

Power supply: inbuilt lithium battery / 2 x AAA batteries
Battery life: > 48 hours
Operating temperature: -10℃～+60℃
Storage temperature: -25℃～+70℃

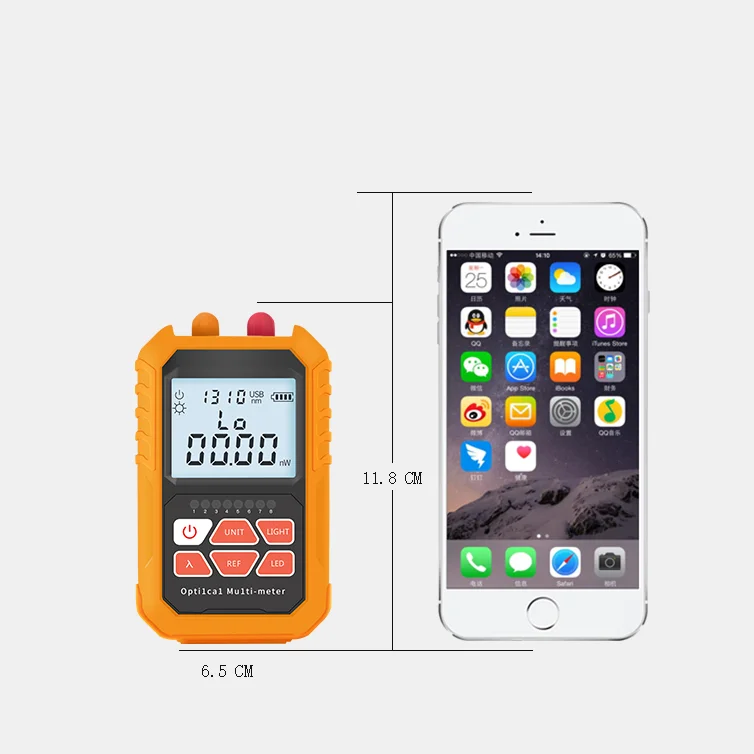

Dimensions: 118 x 68 x 30 mm
Net weight: 130 g

Packing List
• 1 x Fiber Optic Laser Tester
• 1 x AAA batteries / USB charging cable
• 1 x Replaceable Ceramic Core
• 1 x Lanyard
• 1 x Network Test Port
• 1 x Instruction Manual, Warranty Card
• 1 x Storage Box
