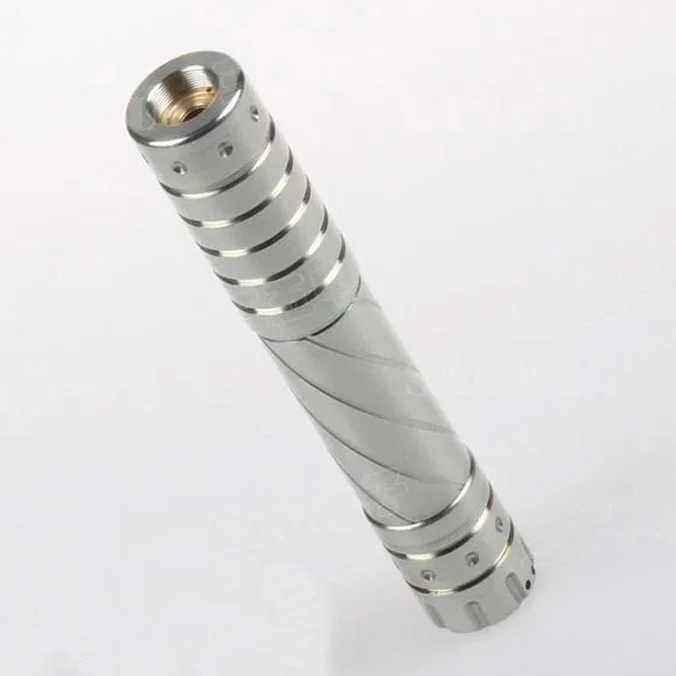

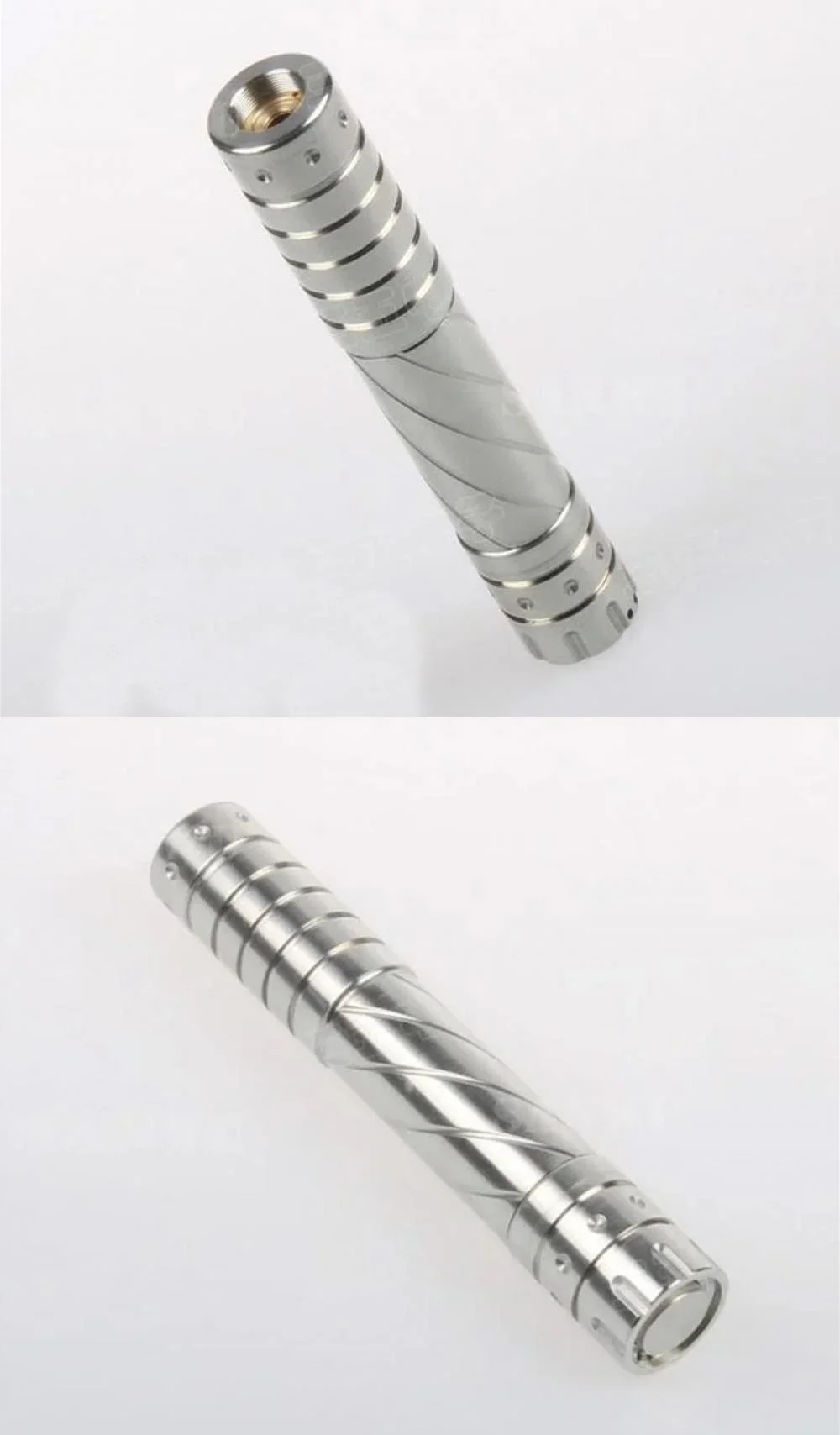

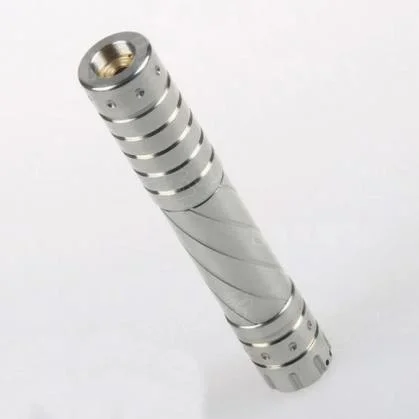

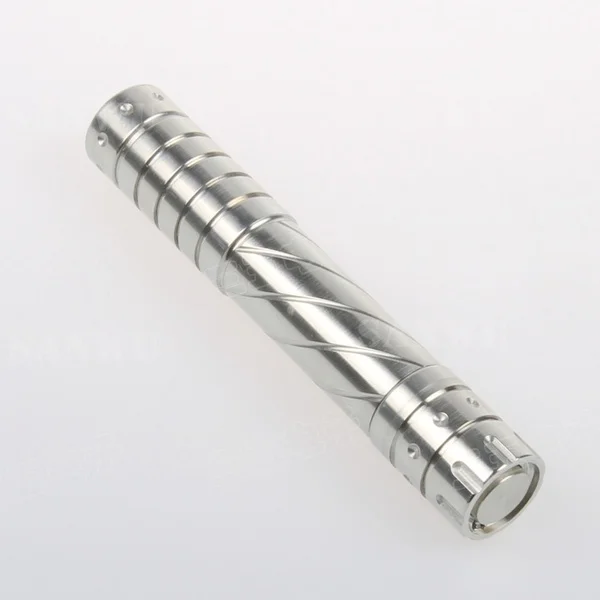

Powerful 635nm 800mW Red Laser Pointer with Accessories

This red laser pointer is one of our OEM products (Sanwu). It comes with high power, circuit protection, overheating protection, adjustable focus, waterproof design, rugged housing, and FDA&CE certifications. All accessories and essential functions are available. We are a global laser manufacturer, and you can get the lowest price from us. If you need to make customizations for different wavelengths and powers, please contact us via email.

Specifications
• Wavelength: 635nm (red)
• Output power: 300mW / 800mW
• Laser divergence: < 1.5mRad, < 2.5mRad
• Housing material: copper alloy
• Multi-mode (optional): low power, half power, strobe, high power, SOS
• Protection: PCB protection, reverse polarity protection
• Waterproof rating: IPX5
• Power supply: 1 x 14500 battery
• Operating voltage: DC 3.7V
• Gross weight: 596 g

Tips for Use

How to turn on the laser
Insert the battery with the positive side going in first, then screw on the base cap and press the bottom switch to power the red laser.

Divergence angle
The higher the power, the larger the divergence angle. If you need a lower divergence angle (< 1.5mRad), choose the 300mW version. If you need the higher power, the 800mW version is better.

Adjustable focus
This 635nm red laser pointer has a fully adjustable focus. Please rotate the top of the laser to adjust the beam focus.

Multiple operation modes (optional)
If you choose the multimode, this red laser pointer will start with the operation mode that was used in the last operation. You can half-press the button once to enter the next operational mode. Here is the cycle of five unique operational modes: low power > half power > strobe > full power > emergency SOS, and back to low power. In addition, you can lock the laser pointer by half-pressing the switch three times within two seconds. If you need to unlock the laser, please half-press the switch five times within two seconds.

Battery protection
Our powerful lasers come with various battery protection: overcharge protection, overcharge protection and reverse polarity protection.

What's in the standard package?
• 1 x 635nm Red Laser Pointer
• 1 x Laser Safety Goggles
• 1 x 14500 Lithium Battery
• 1 x Battery Charger
• 1 x Warranty Card
