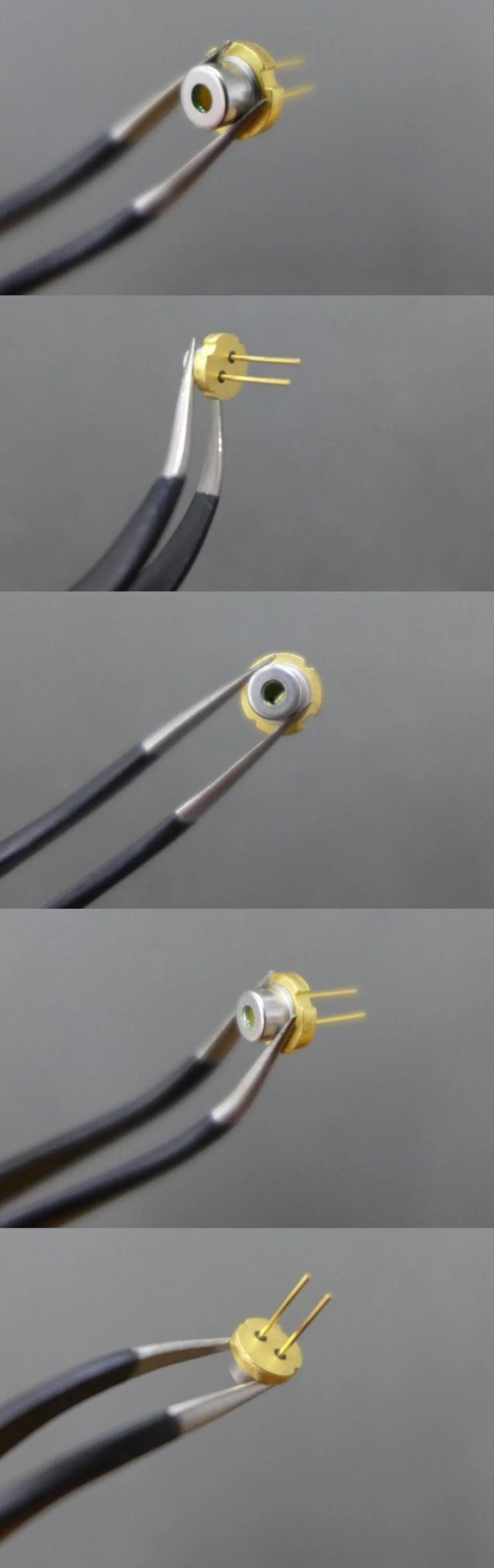

405nm 1000mW Violet Laser Diode

Super Powerful 405nm 1000mW Violet Laser Diode 5.6mm

For product customization and wholesale, please contact us via info@lasersea.com.

Price: $89.63

Quantity:

Product Details

Wavelength: 405nm
Maximum output power: 1000mW(1W)
Working current: I < 500mA
Working voltage: < 6V
Sealed size: TO18(5.6mm)
Operating temperature: -10℃ to +60℃
Storage temperature: -40℃ to +85℃
Working life: more than 10000 hours

405nm 1000mW Violet Laser Diode

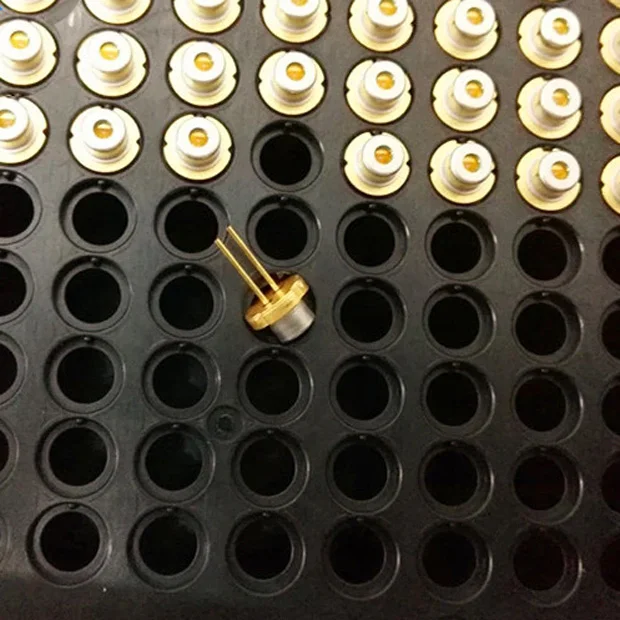

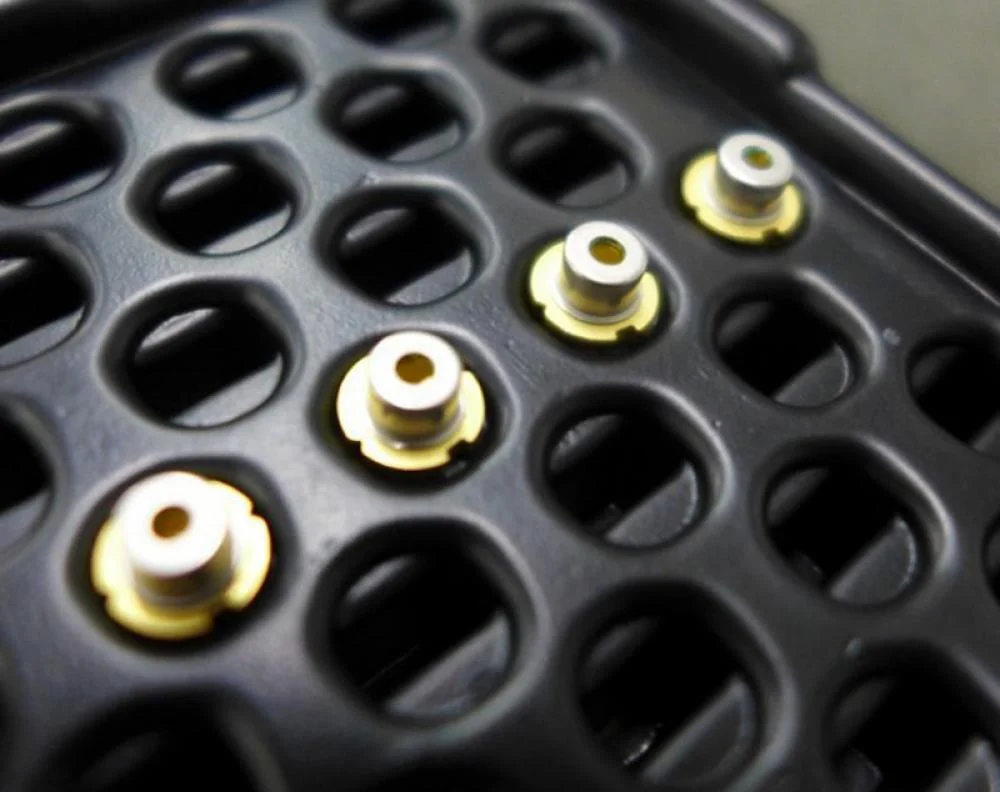

405nm 1000mW Laser Diode

Notes
1. This 405nm laser diode is super powerful, so please do not make the laser beam into the eyes, which can cause damage.
2. Please use a suitable LD power driver. The instant reverse current can not exceed 25uA, the reverse voltage cannot exceed 2V, or the LD will be damaged.
3. Please install the LD well before connecting to the power. The initial input voltage should be zero.
4. Please store or use the LD under a dry and airflow environment.
5. Working under high temperatures will increase the threshold current, decrease the efficiency conversion, and speed up the aging of the LD.
