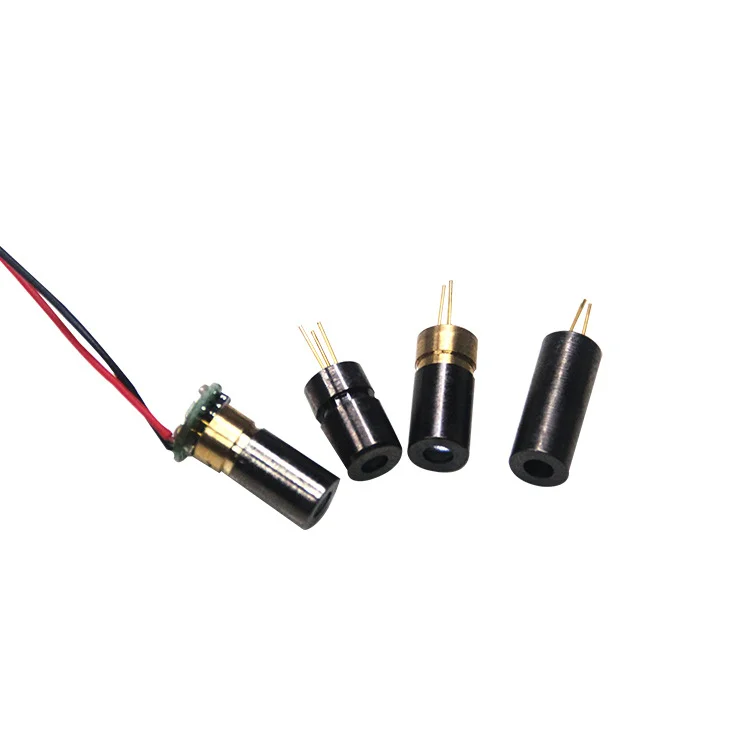

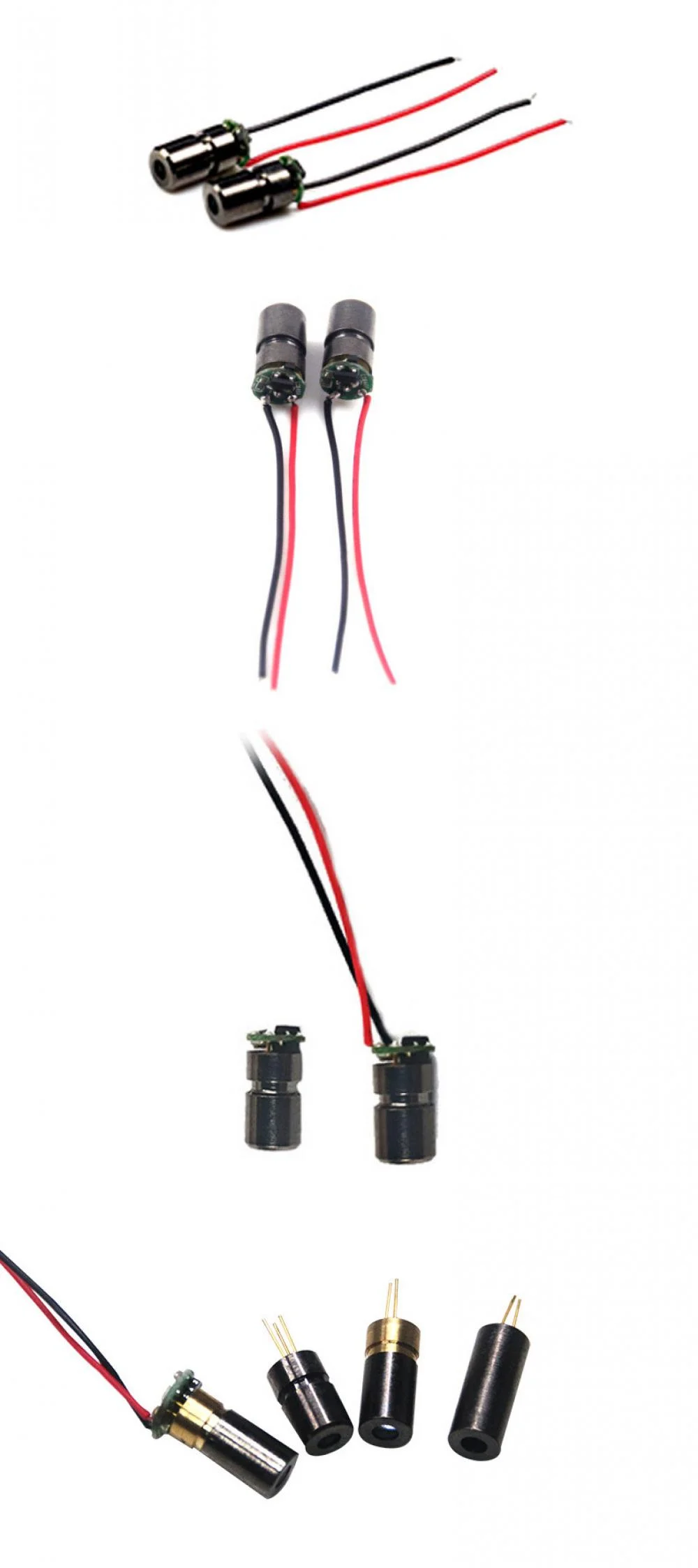

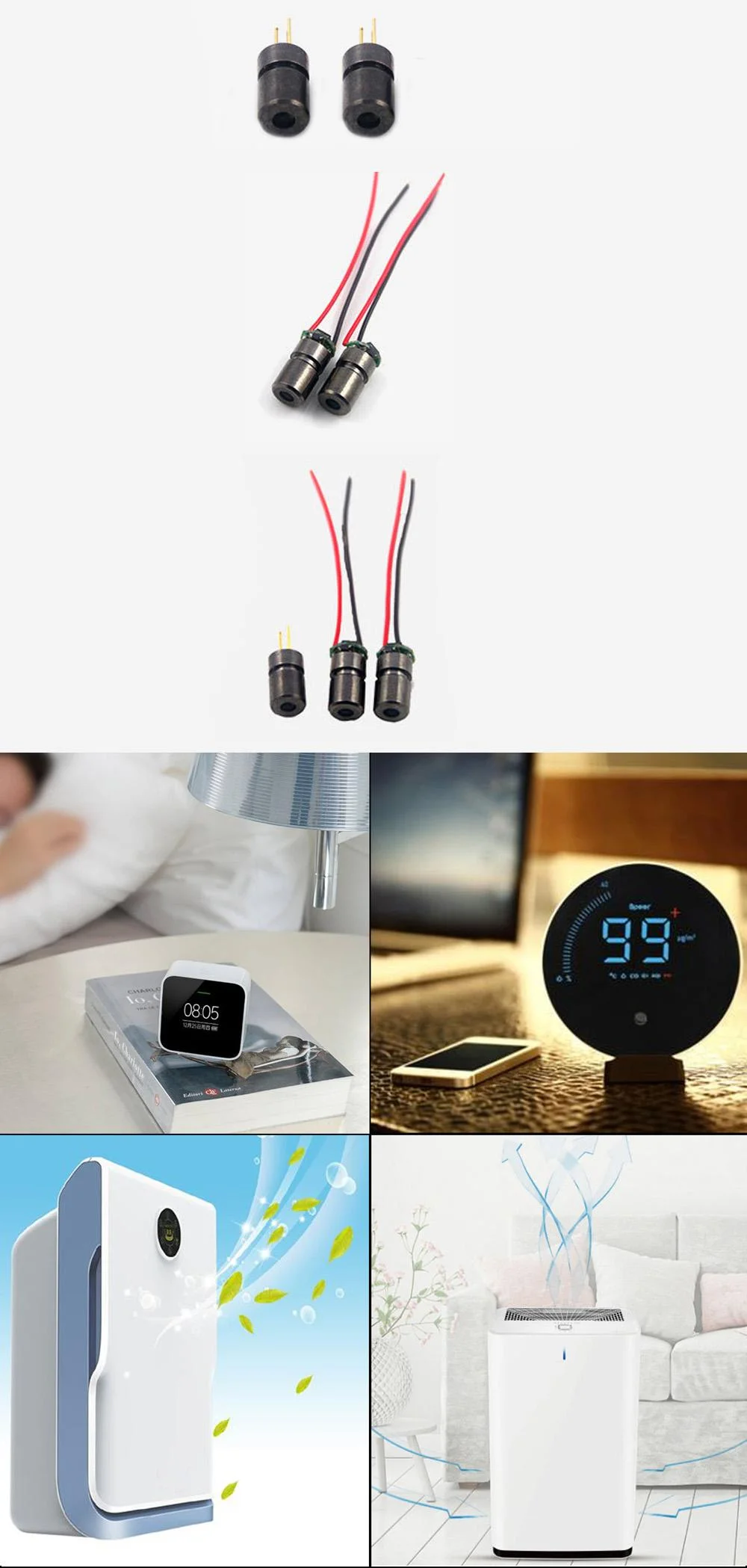

650nm 5mW Red Laser Module for PM2.5 Dust Detection

This red laser module can be used as a sensor for air quality detection. It adopts an imported optical lens, with a bright laser spot. Structural composition: 650nm laser part + lens + lens seat + tower spring + structural metal tube + APC circuit board + lead. The smaller the power, the more accurate the detection. For PM2.5 dust detection, we strongly recommend this 650nm 5mW laser module.

Specifications
• Output wavelength: 650nm ±5nm
• Output power: 5mW
• Laser shape: dot
• Laser spot size: 50CM≤2mm
• Dimensions: Φ6 x 10.5 mm
• Materials: aluminum 6061
• Optical lens: Φ5 Acrylic
• Operating voltage: 2.1-2.5V
• Operating current: 18-25mA
• Threshold current: 12-25mA
• Monitoring current: 0.05-0.5mA
• Laser diode reverse voltage: 2V
• Photo diode reverse voltage: 30V
• Electric power: 0.037-0.062W
• Working mode: continuous
• Useful life: 10000 hours
• Enclosure polarity: positive electrode
• Working temperature: -10°C ~ +40°C
• Storage temperature: -15°C ~ +85°C
• Net weight: 1.5 g
