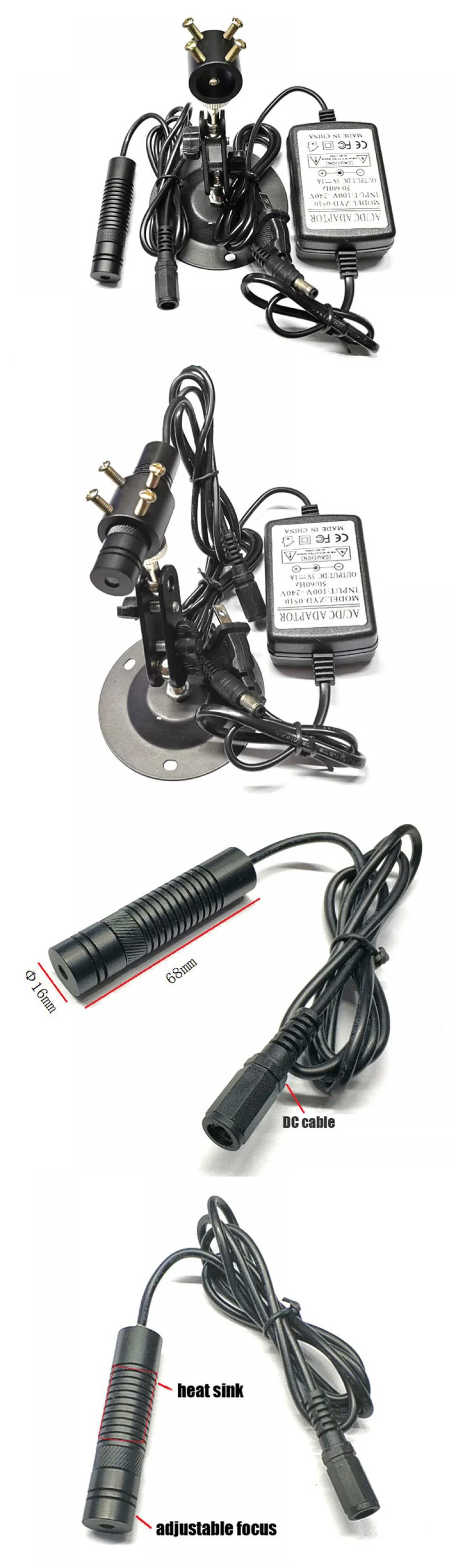

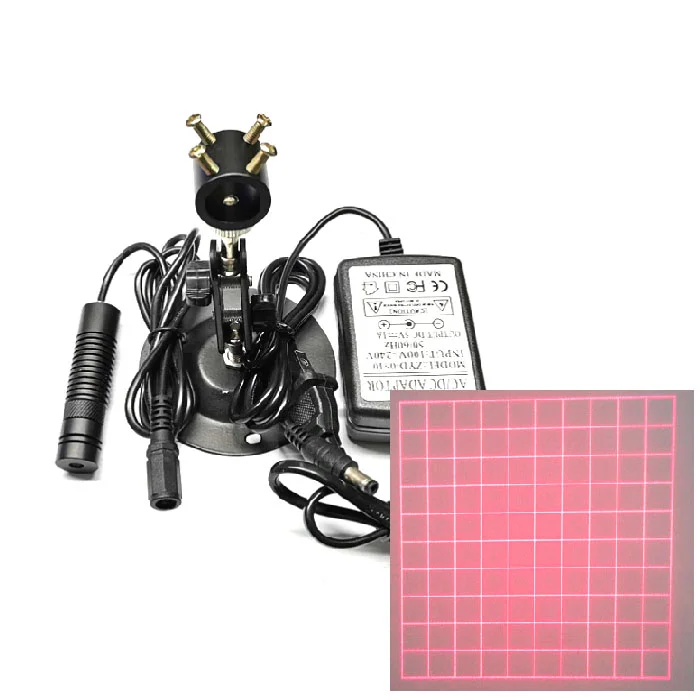

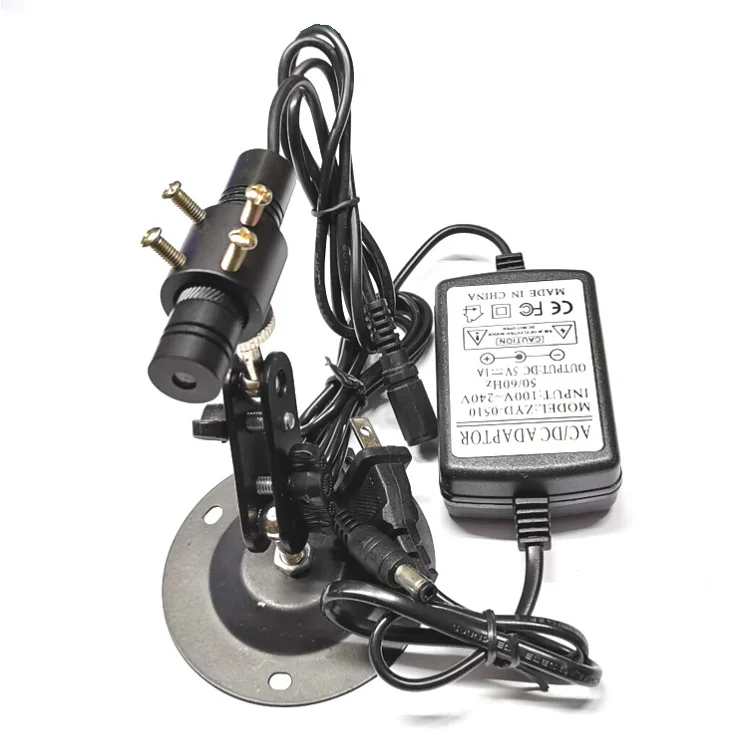

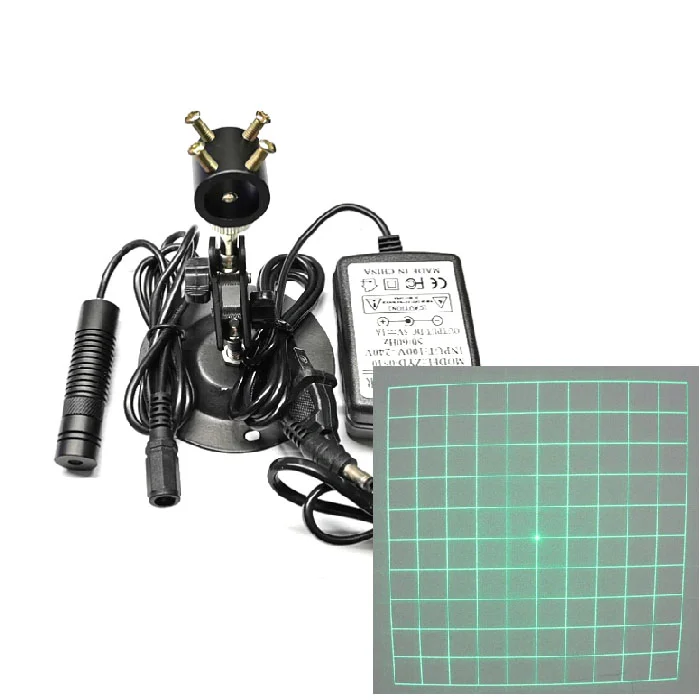

Grid Green/Red Laser Module for 3D Modeling

Product Details

This laser module can project high-precision grid green/red light for 3D modelling. It uses high-quality materials and the best structural, which is suitable for construction, manufacturing, auto repair, installation, 3D modelling, etc. It can improve work efficiency and accuracy. If you're looking for a customizable grid green/red laser module, this will be a good choice. For any questions, please contact us via email. We will reply to you as soon as possible.

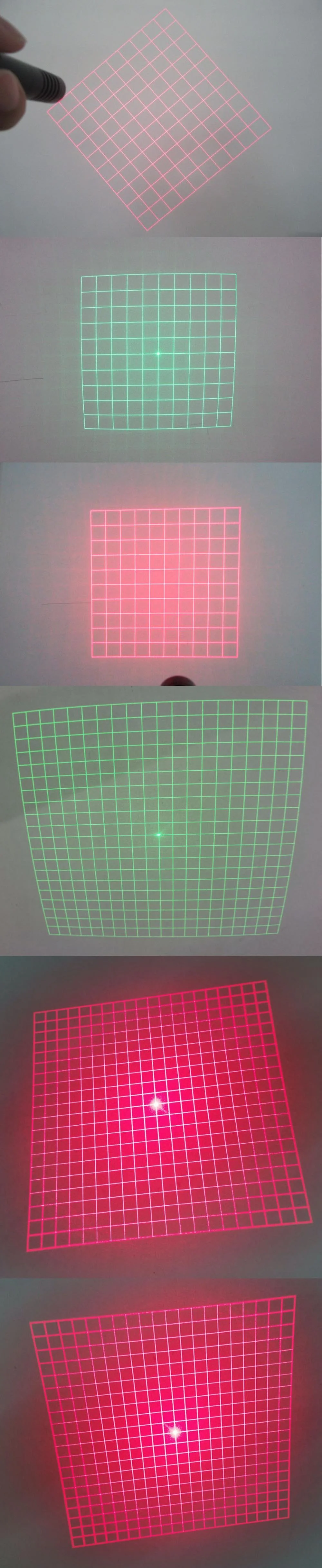

Square width of the outer border
1) For the 10x10 version, the width at a distance of 1 meter is 76.5 cm.
2) For the 20x20 version, the width at a distance of 1 meter is 100 cm (the width at a distance of 0.5 meter is 50 cm).

Specifications
• Wavelength: 660nm / 520nm
• Power: 150mW (660nm), 50mW (520nm)
• Laser type: grid laser
• Number of grids: 10x10 / 20x20 (8x8 and 50x50 are customizable)
• Operating voltage: 5V (3-24V is customizable)
• Operating current: < 250mA
• Operating temperature: -10°C ~ 50°C
• Storage temperature: -40°C ~ 80°C
• Circuit mode: CW
• Wavelength drift (nn/°C): 0.25nn
• Divergence angle: 39.62°

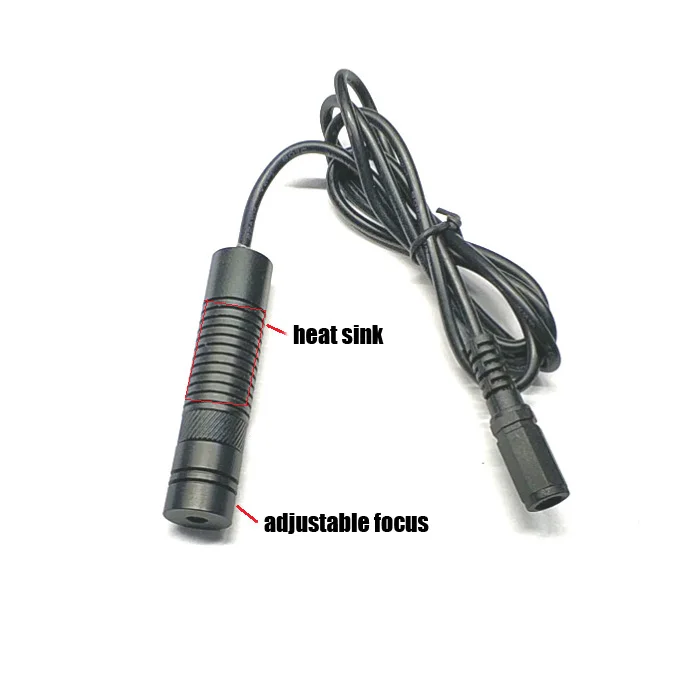

• Adjustable line width: available
• Lens material: glass optical mirror + grating film
• Useful life: > 10000 hours

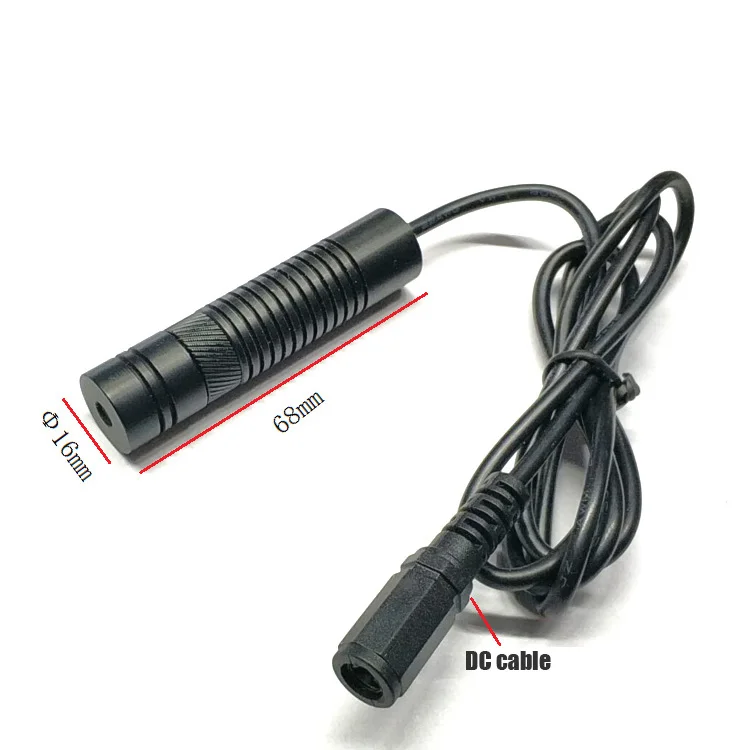

• Dimensions: ⌀16 x 68 mm
