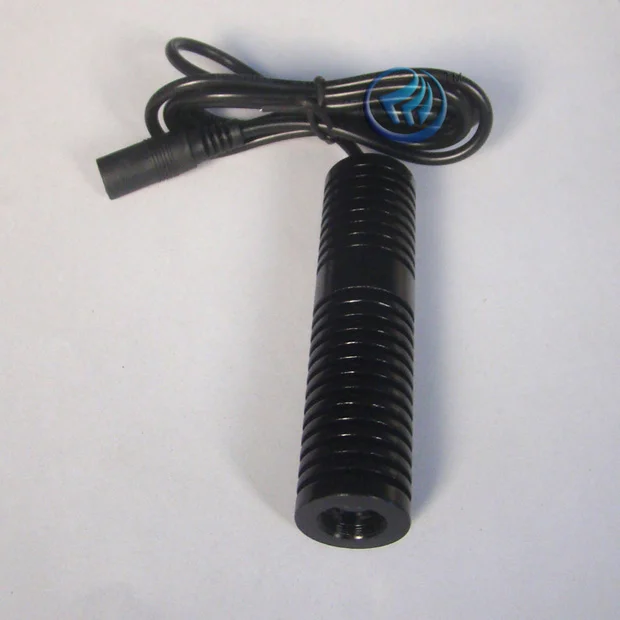

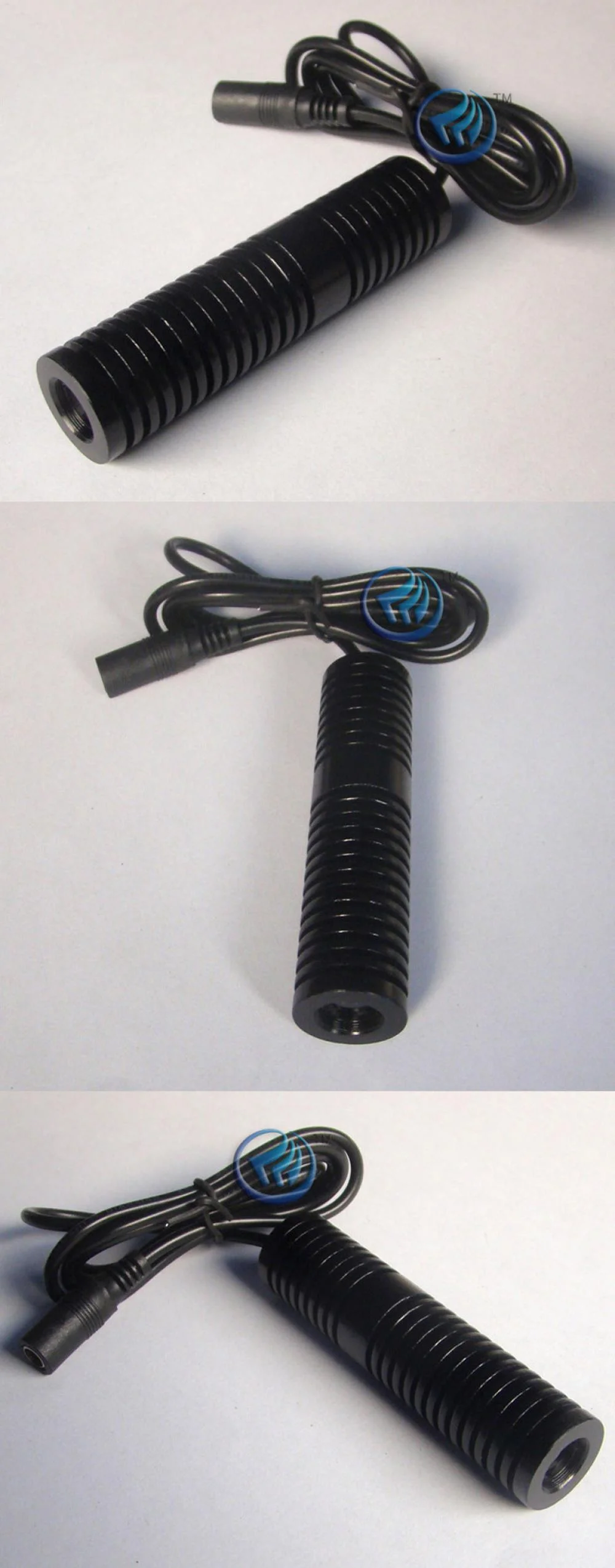

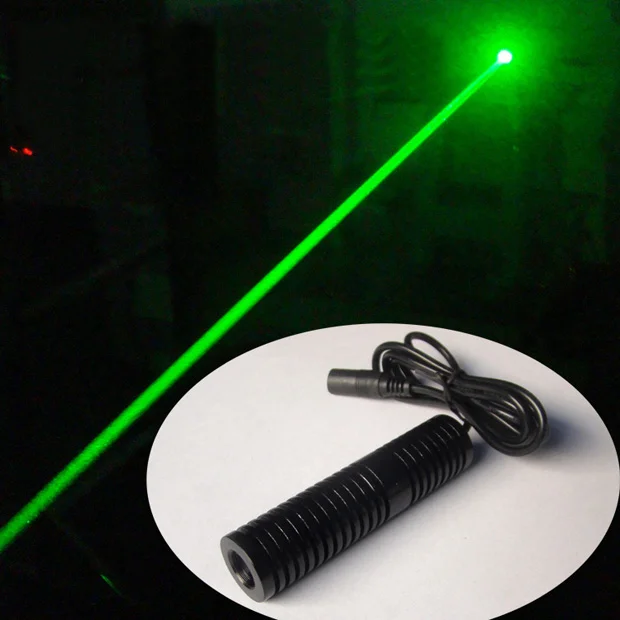

Powerful Green Laser Module 3V/24V 532nm 100mW-200mW with Thick Beam

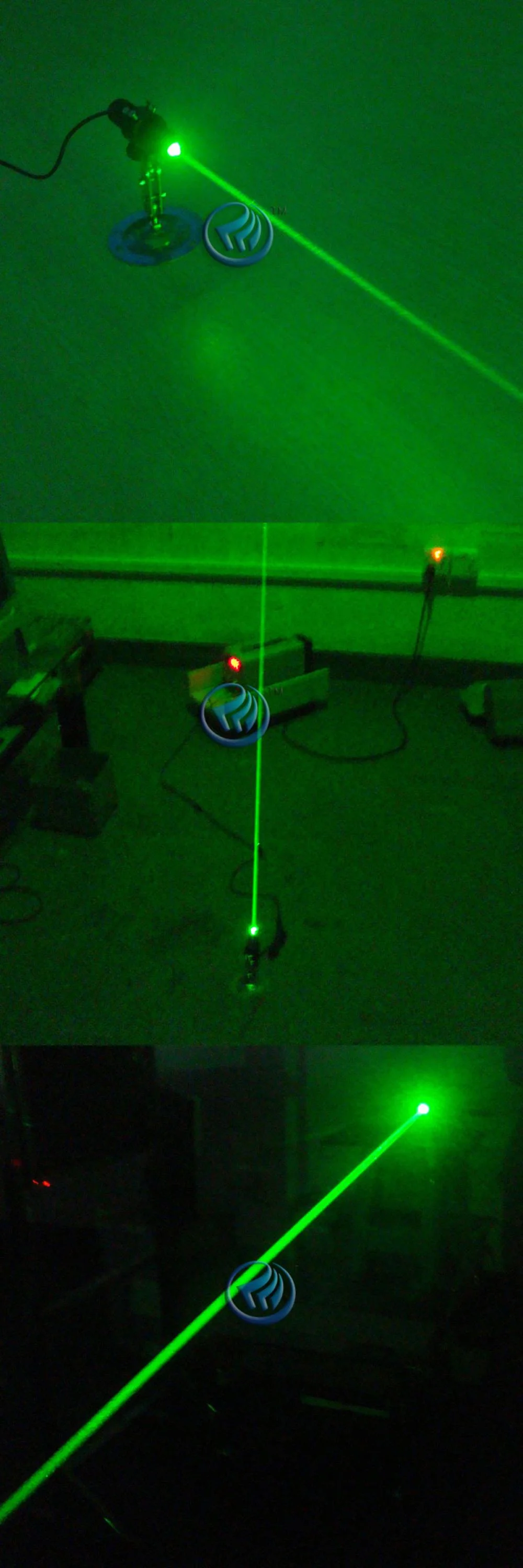

This product is designed for the escape room game system according to an OEM customer's needs. It can work continuously for a long time, and you don't need to worry about overheating or overvoltage. Its 532nm green laser beam is relatively thick and visible during the day. With the focus ring, you can change the beam diameter of long-distance, and the spot is a circular dot (the maximum distance is up to 10km). This powerful 532nm laser module can meet most professional applications, such as room escape, laser mesh, scientific experiments, etc.

We can make laser modules and optical systems according to customer requirements. If you have any questions, please contact us via email.

Specifications
• Dimensions: Φ22×90mm
• Materials: copper + aluminum
• Surface treatment/color: oxidized black
• Useful life: > 6000 hours (continuous output)
• Output wavelength: 532nm ±5nm
• Output optical power: 100mW / 200mW
• Beam distance: 500-10000 meters
• Beam shape/size: round dot, 8mm at laser outlet
• Adjustable focus: yes (with focus ring)
• Circuit Control: ACC line
• Operating voltage: DC=2.8~3.7V (with external 3V DC power supply), or DC=4.5~25V (24V is recommended)
• Operating current: I < 450mA
• Operating temperature: -10 ° C ~ +50 ° C
• Laser calss: class IIIB

Precaution: don't make the laser beam into the eyes! (the 100-200mW power can cause damage)

Packing List
1 x 532nm Green Laser Module
1 x 3V Power Adapter
1 x Laser Safety Goggles
