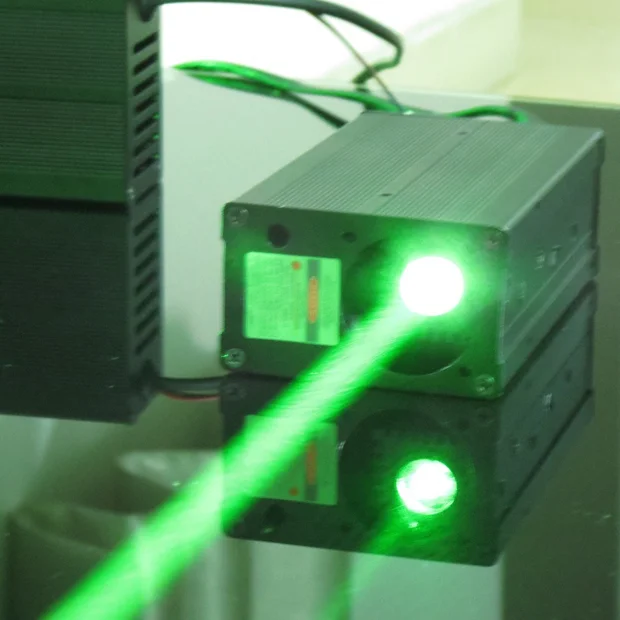

532nm 200mW Thick Beam Green Laser Module for Stage

As we all know, a green laser module usually emits a thin laser beam, with a fan-shaped emission angle and long-range. But this product is different from normal modules, it adopts the beam expander in the state of parallel light, the diameter of its green laser beam is about 12 - 16 mm. If the output power is not enough, the visual effect of this thick beam will be blurred, so we recommend using a 200mW green laser module.

This product is an industrial-grade laser, it can work continuously and be used as the stage laser light. We always strive to provide reliable laser technology and design different laser modules to meet customer demands.

Specifications
• Wavelength: 532nm (green)
• Output power: 200-220 mW
• Beam diameter: 12-16 mm
• Housing material: aeronautical aluminum
• Output mode: CW (It can work continuously)
• Cooling method: forced air cooling
• Reverse polarity protection: automatic positive and negative identification
• Control circuit: constant current
• Modulation frequency: TTL 10-20kHz
• Modulated voltage: 0-5V
• Input voltage: 220V AC
• Operating current: I < 800mA
• Operating temperature: -10 ℃ - 45 ℃

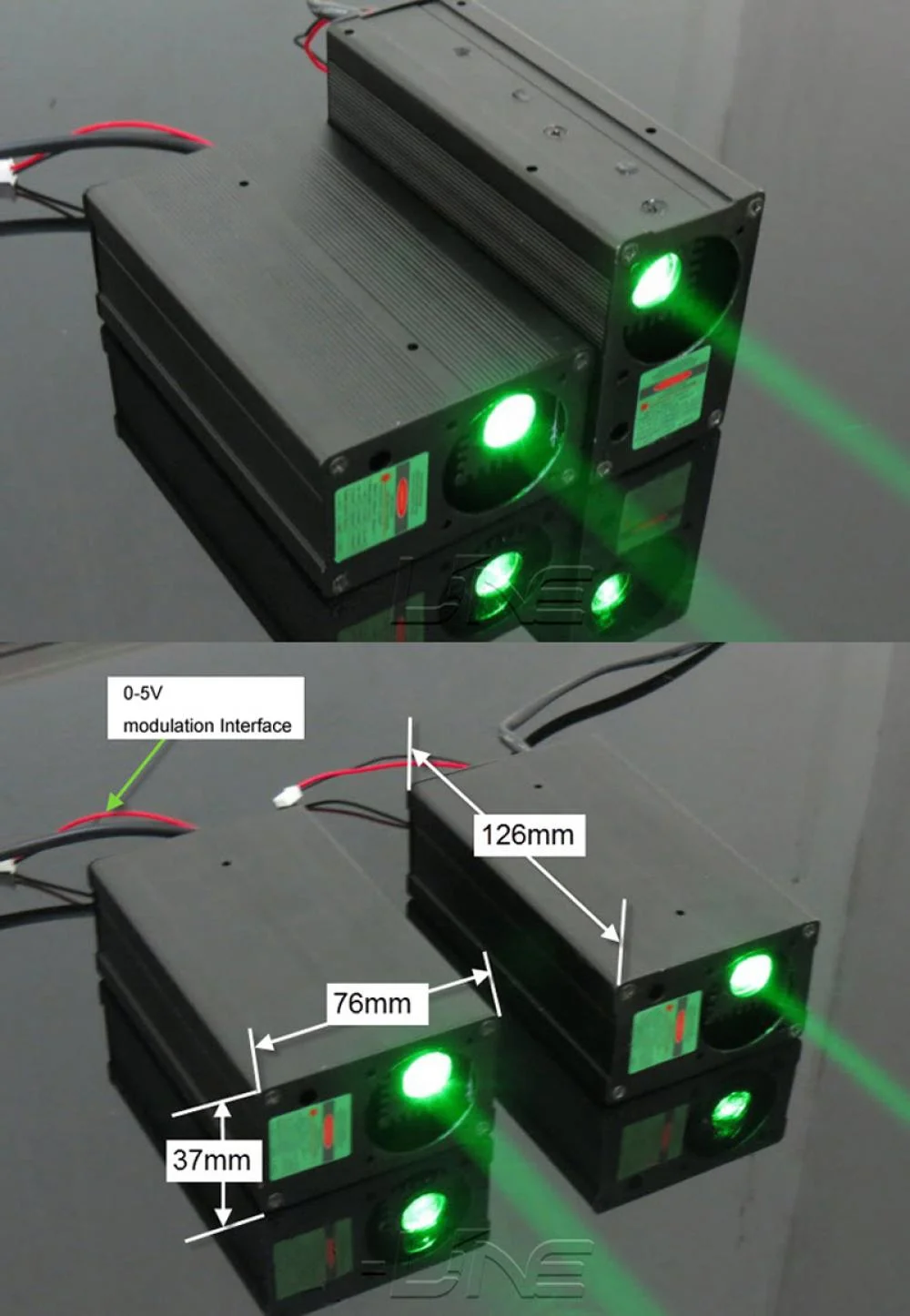

• Dimensions: 36mm x 78mm x 126mm

Tips: the power supply has been integrated into this laser module. Please plug in the standard 220V power socket, and then this module will be able to emit the laser beam.
