High-Power RGB Laser Module

High-Power 6W (6000mW) RGB Laser Module for Stage

For product customization, wholesale and other questions, please contact us by email. We will reply to you within 48 hours.

Price: $347.63

Quantity:

Product Details

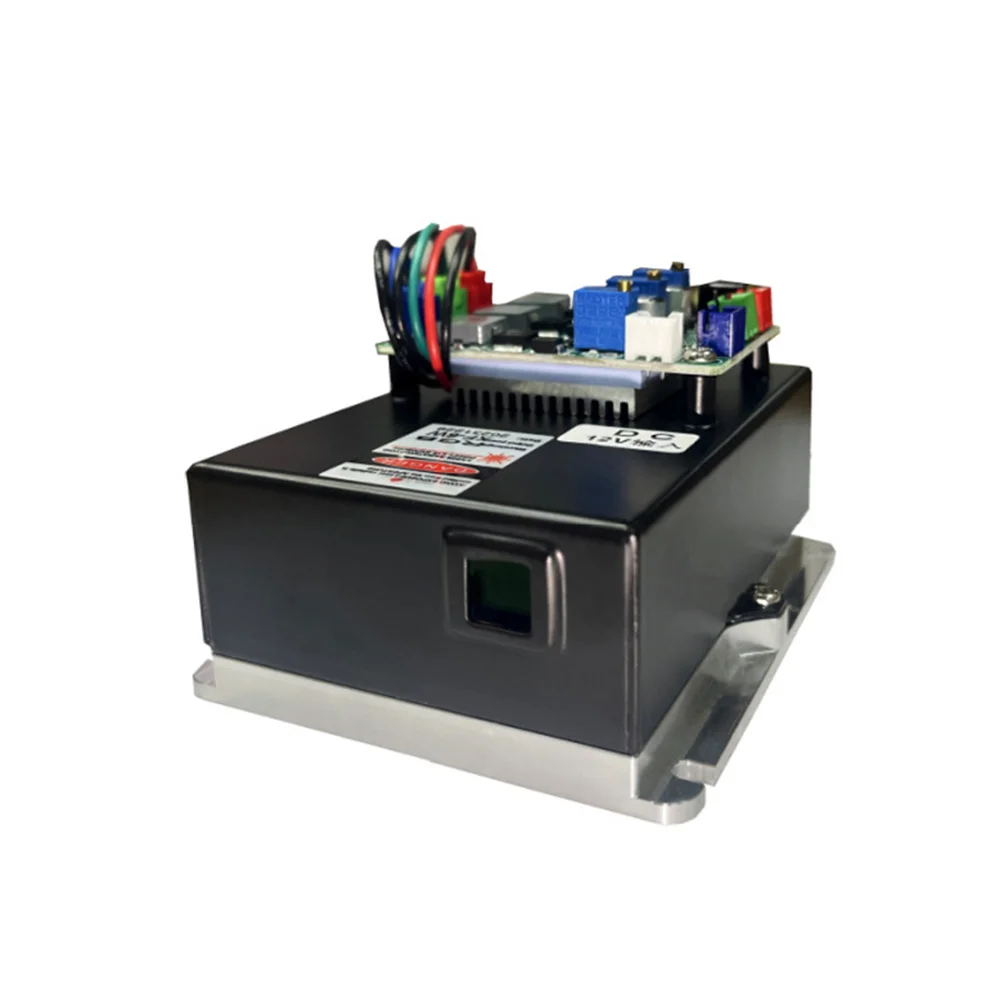

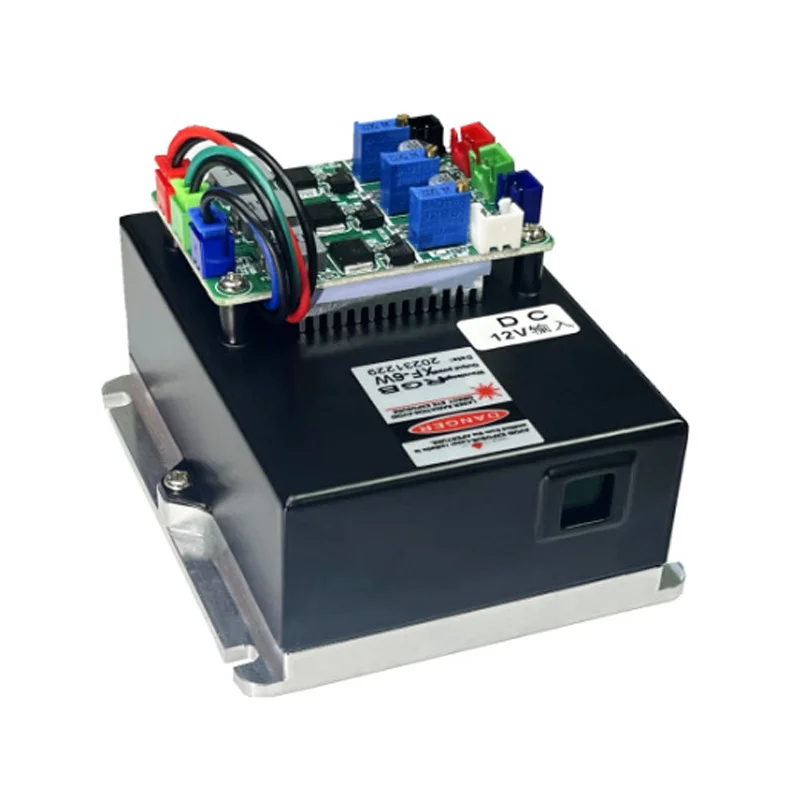

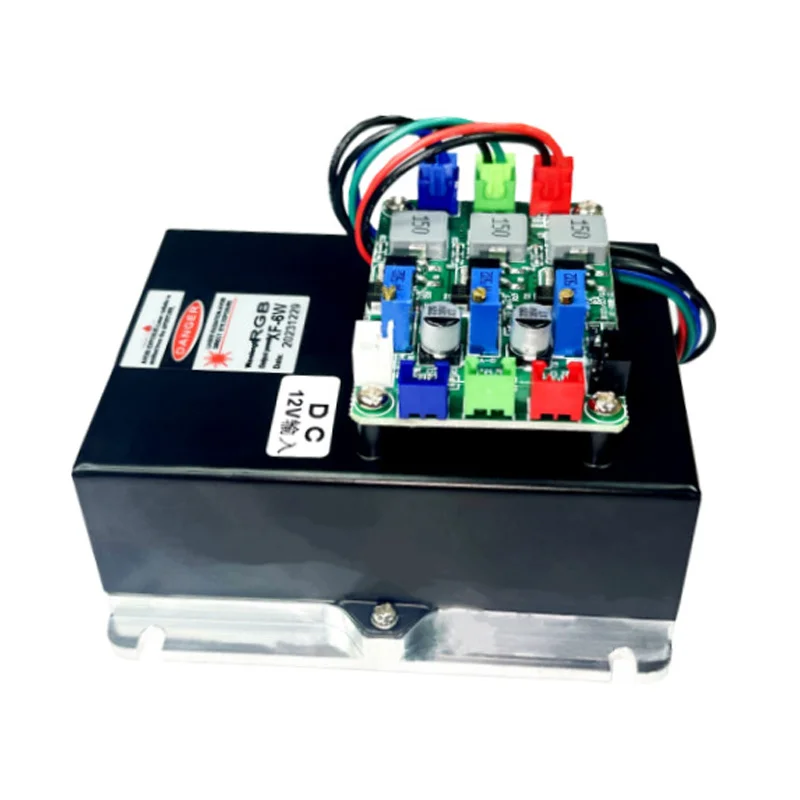

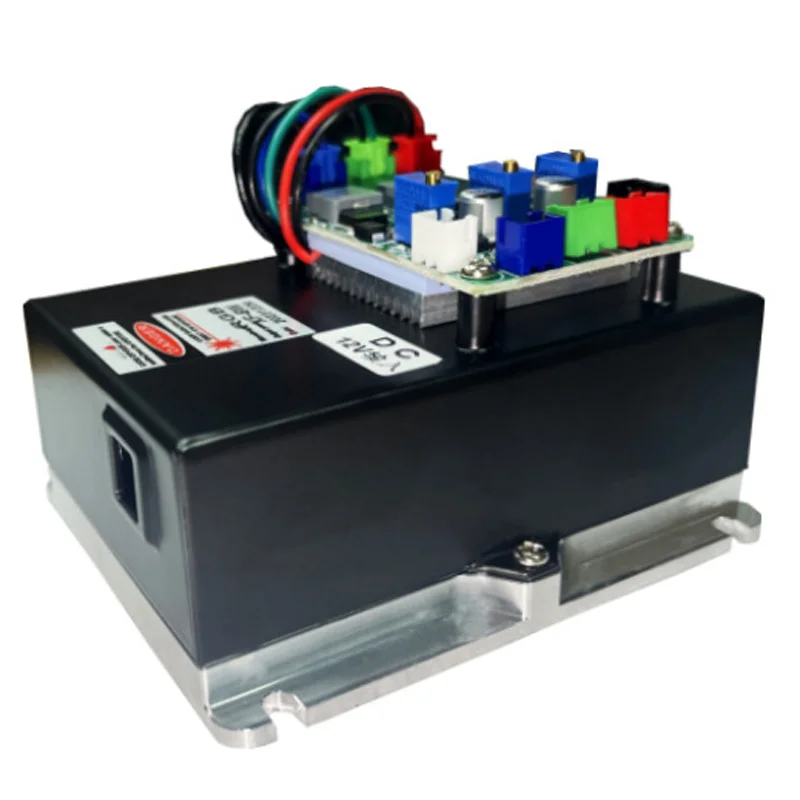

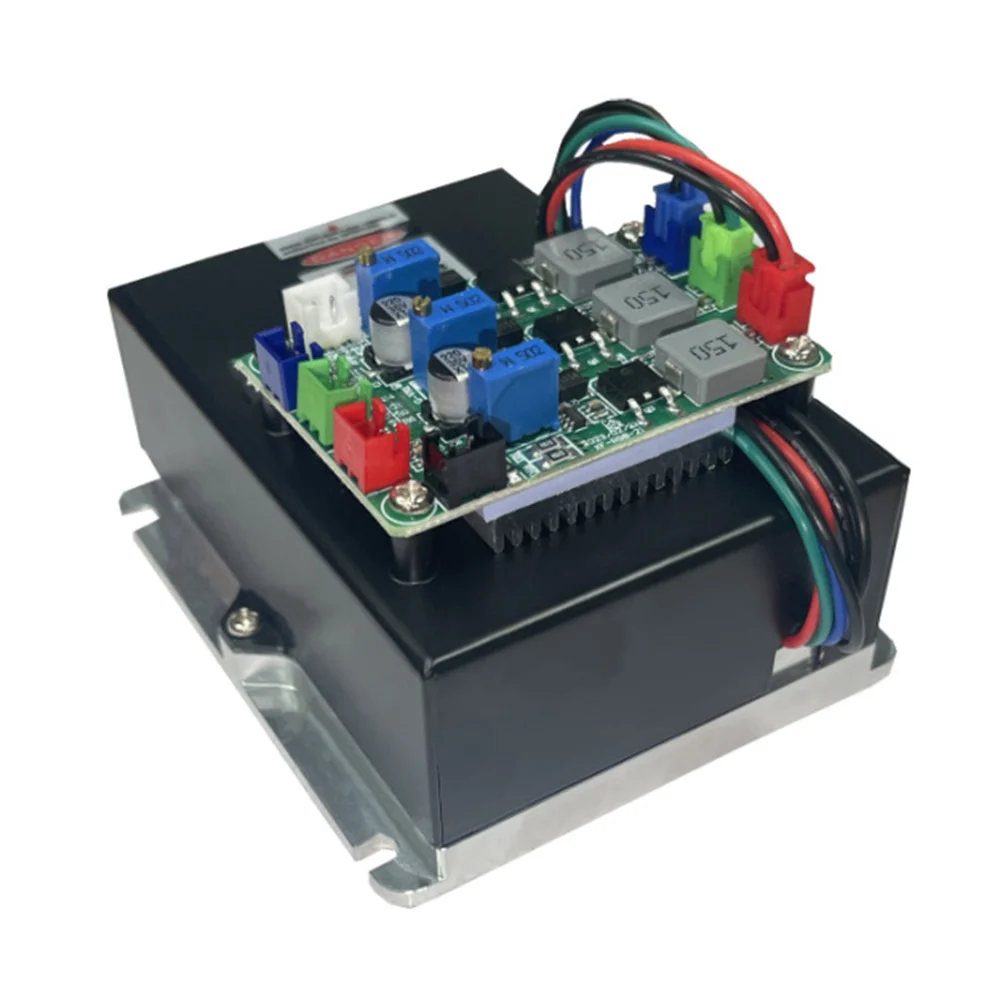

This RGB laser module is high-power and stable. It has circuit optimization, TTL modulation, and heat dissipation. The total laser output is up to 6000mW: 3500mW for blue laser, 1000mW for green laser, and 1500mW for red laser. The laser spot is small and has good collimation. If you are looking for a high-power RGB laser module, this model is a recommended choice.

Tips for Purchasing
1) We send the white light version of RGB by default.
2) If you need a specific beam effect, we recommend modulating it by PWM/TTL (you can change the red/green/blue lasers to combine different beam effects).
3) We can customize a specific beam effect for you before shipping (please send us the effect picture via email). The product customization requires additional fees.
4) The best working temperature of this product is 11℃ ~ 35℃, and the suitable temperature is -20 ~ 50℃. When working above 50℃, a ventilation and cooling system must be installed. If you need the laser to work continuously 24 hours a day, please install an external cooling fan.

Specifications
Wavelength: 520nm (green) / 638nm (red) / 450nm (blue)
Power configuration: > 6W (6000mW)
Power fluctuation range: ±20mW
Light spot mode: multi-mode
Divergence angle: < 8mrad

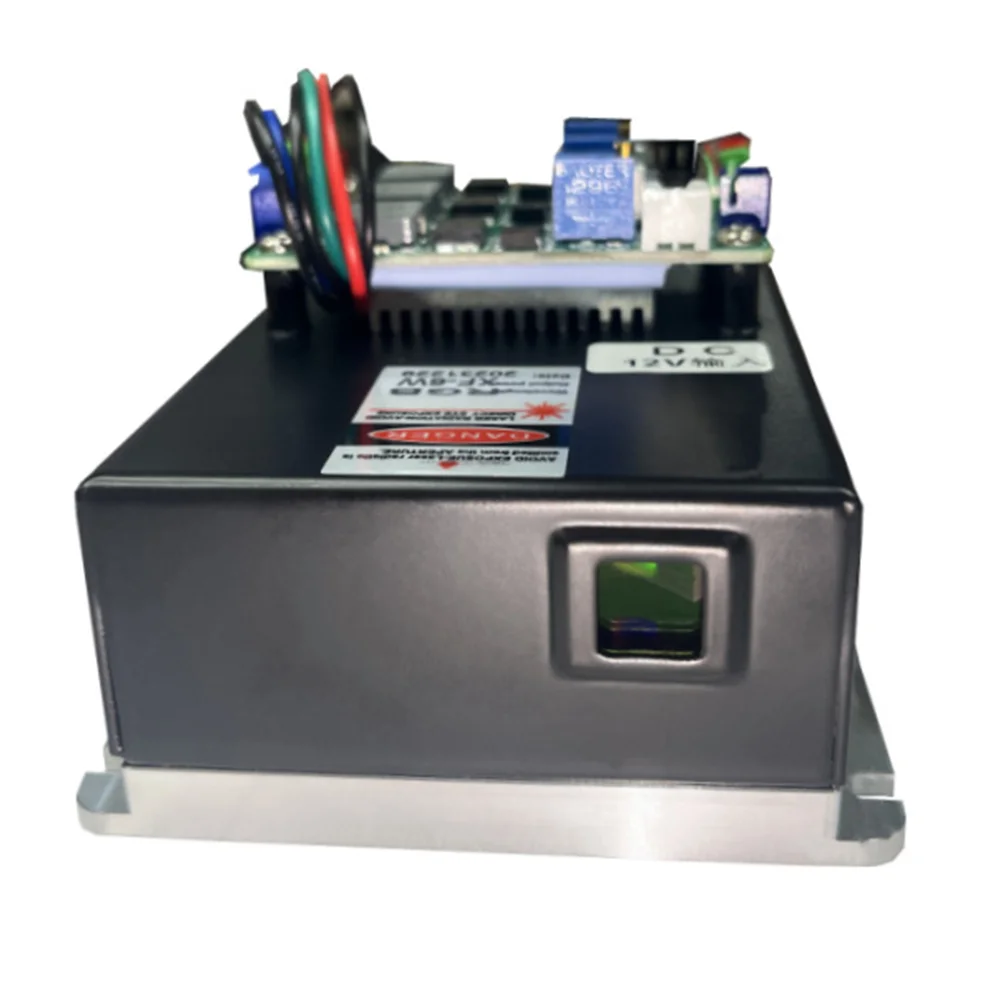

Laser spot size at the light outlet: 4.0 x 6.0 mm
Input voltage/current: DC 12V (4A), total power 48W

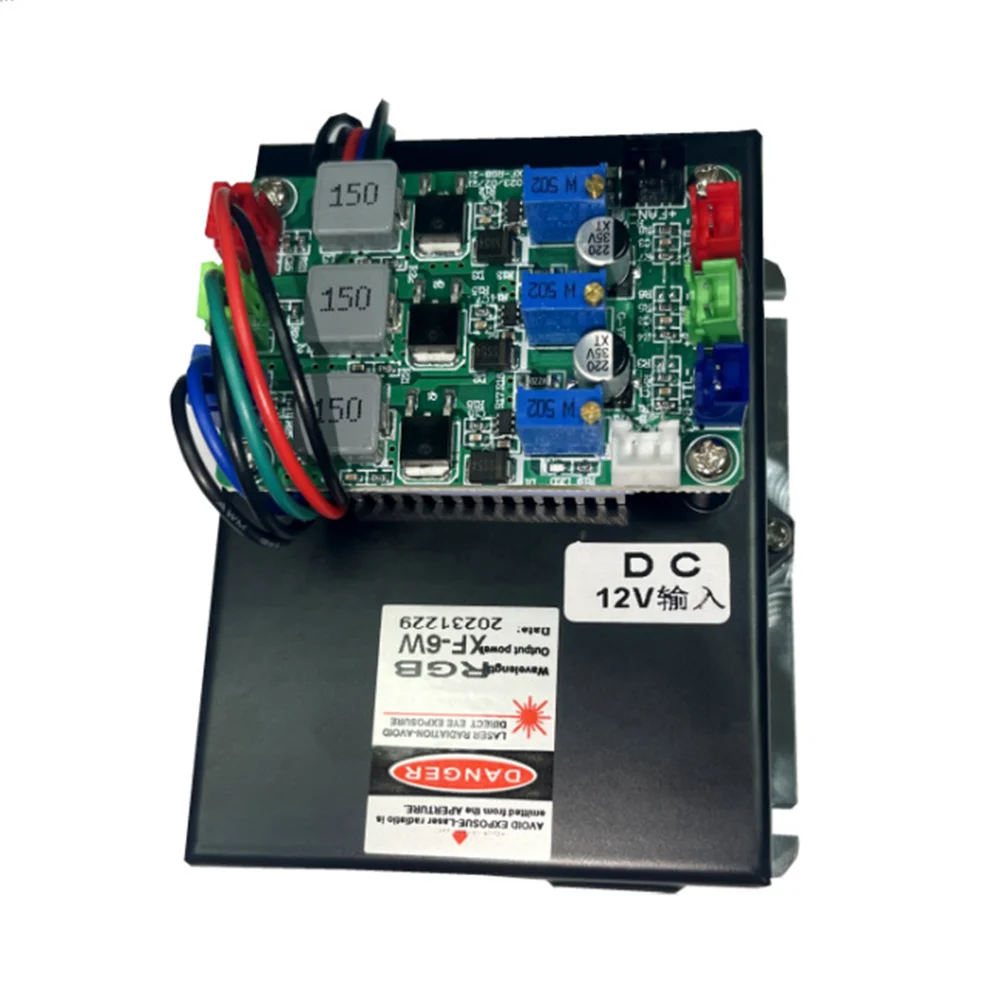

Driver board input wiring status: wire length 250mm, red wire positive, black wire negative
Modulation frequency: 0~20KHZ, PWM/TTL
Working life: 10000~12000 hours
Working temperature: -20 ~ +50℃
Applications: stage lighting, laser shows, laser experiments, etc.

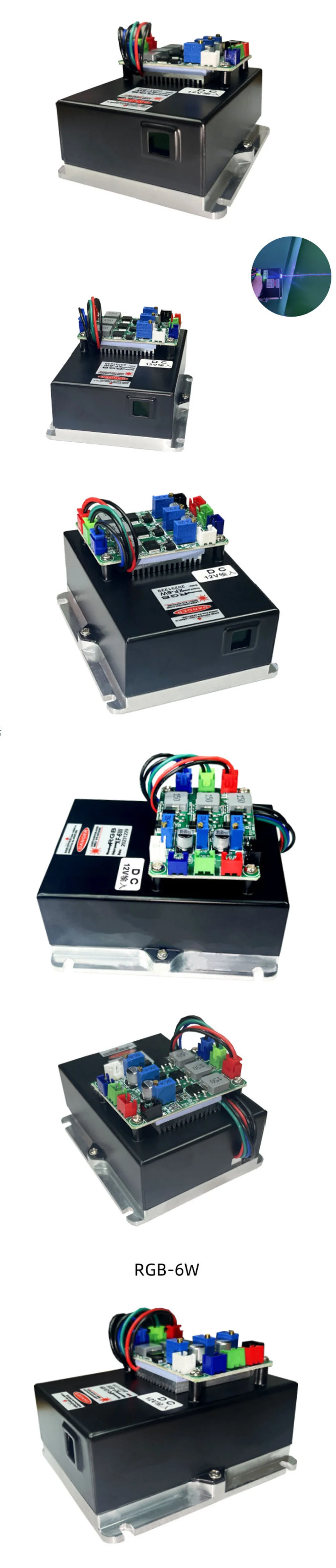

6W RGB Laser Module
