Powerful 500mW RGB White Laser Module with Cooling Fan

This product is our newly developed laser module. It has passed repeated tests to achieve the best output effect.

Product Details

The technical difficulty of this model is not high theoretically, but the process is cumbersome to modulate the beam intensity and color purity for the powerful combined light. The RGB white laser with cooling fan is very rare on the market, and we are the only manufacturer providing these products online.

Specifications
• Wavelength: 450/658/532 nm
• Diode power: 200mW (green) / 150mW (blue) / 250mW (red)
• Combined light power: 400-500mW
• Output mode: CW (It can work continuously)

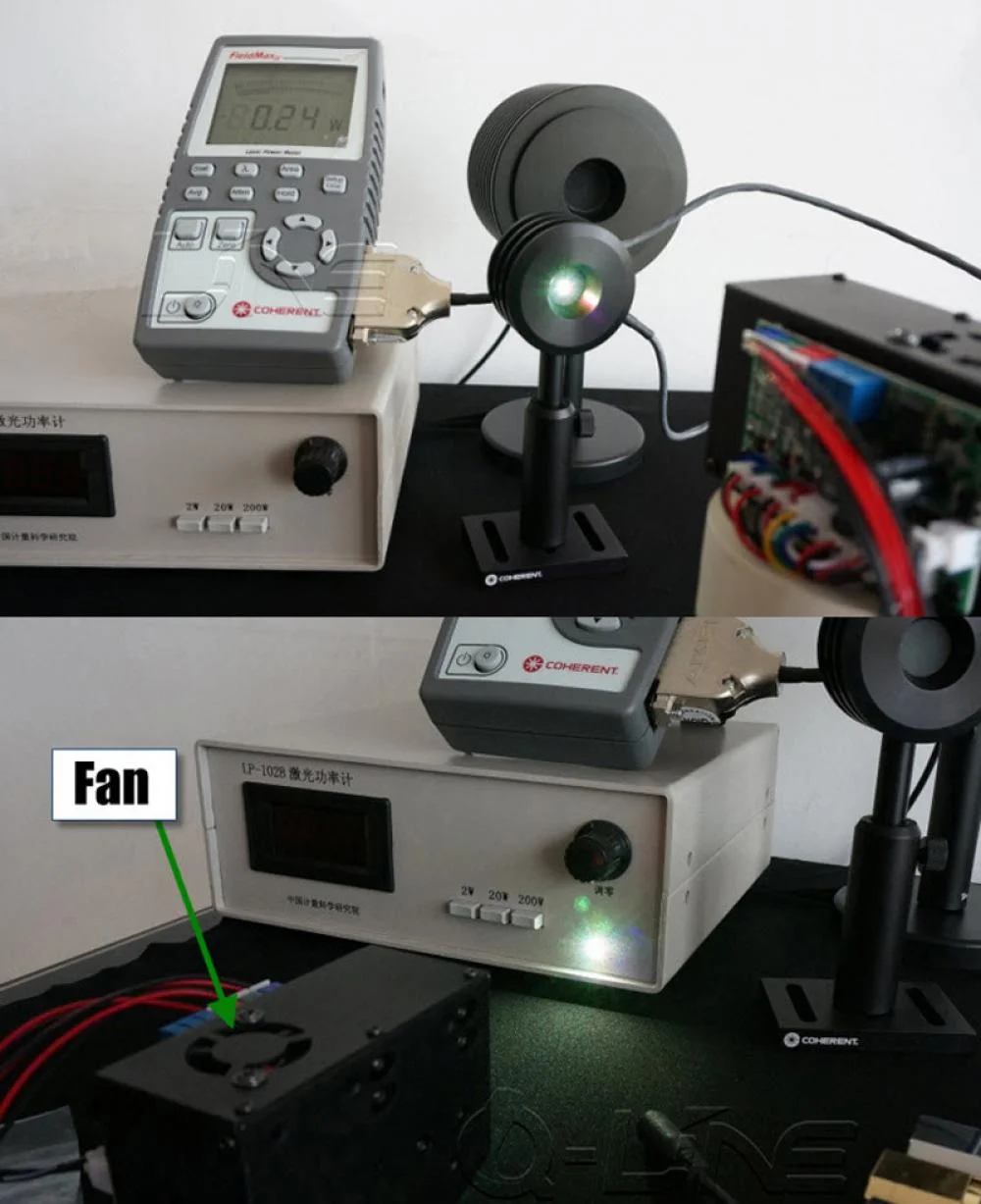

• Cooling method: forced air cooling (cooling fans)
• Control circuit: constant current
• Reverse polarity protection: available
• Modulation frequency: 0-20kHz
• Operating voltage: DC = 12V
• Operating current: I <1.5A
• Operating temperature: -10 ℃ - 40 ℃

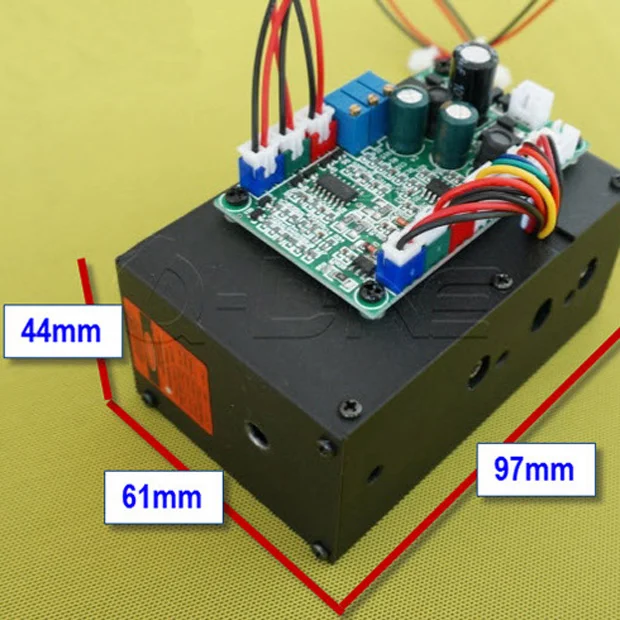

• Module dimensions: 44 x 61 x 97 mm
• Dimensions of the circuit board: 23 x 42.5 x 70.5 mm

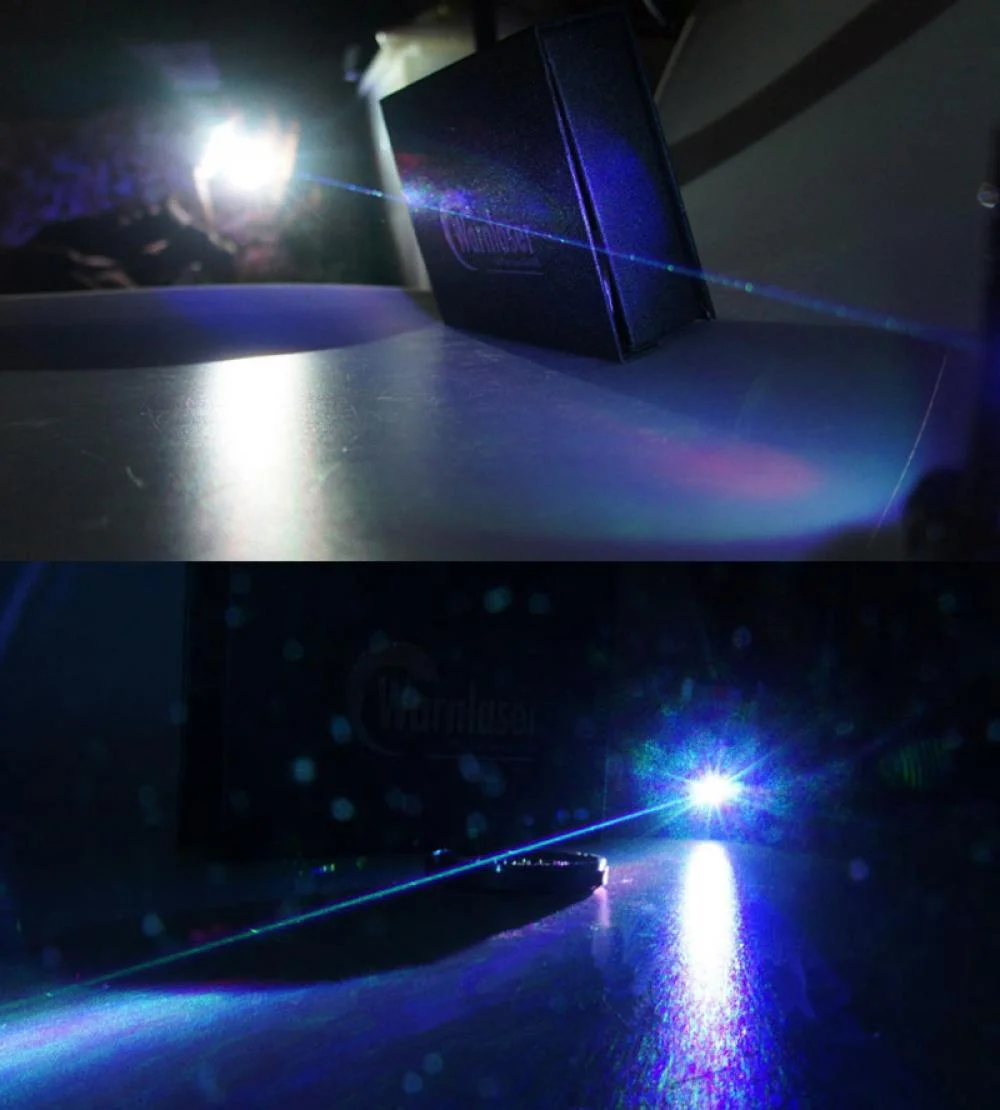

RGB White Laser Module
