RGB Laser Module

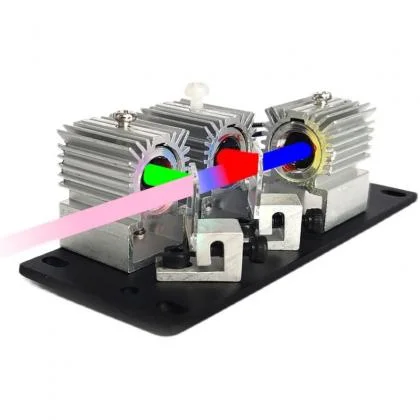

Combined RGB White Light Laser Module 300mW 12V

This product is our newly developed laser module. It has passed repeated tests to achieve the best output effect.

Price: $59.63

Quantity:

Product Details

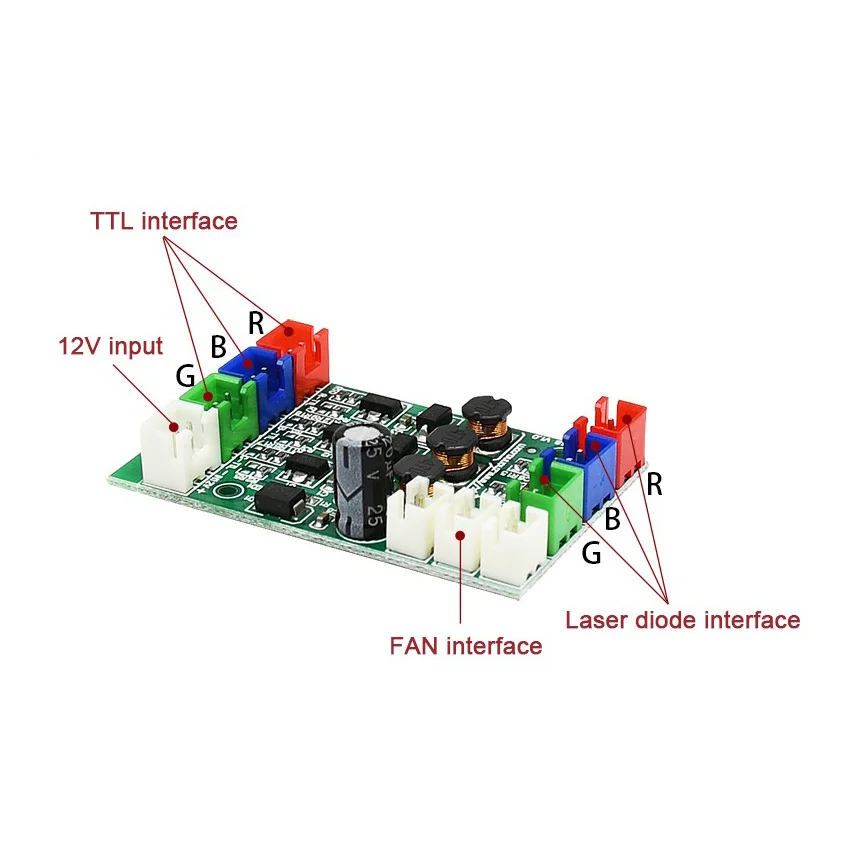

This combined white laser is one of our OEM products, with low price and high power. It uses an external circuit board, cooling fan, and TTL control. It is suitable for indoor use, such as KTV, bars, stages, etc. If you are looking for a cheap RGB white light laser module, this model will be a good choice.

Specifications
• Wavelength: 450nm, 660nm, 520nm
• Output band: visible light
• Power: 130mW(450nm), 120mW(660nm), 50mW(520nm)
• Laser spot shape: point-like
• Focal length: fixed
Working current: < 300mA-1.8A
• Laser class: class 3B
• Operating temperature: -10°C ~ +50°C
• Overall dimensions: 42.6x33x63mm
• Storage temperature: -20°C~+80°C
• Power supply size: 60x43x20mm, 80x57x26mm
• Service life: > 8000 hours
• Material: aviation aluminum alloy
• Wiring mode: red positive, black negative
• Cord length: 30cm
• Operation mode: continuous laser (TTL 0-5V, 0-50KHZ)
• Product weight: 200g

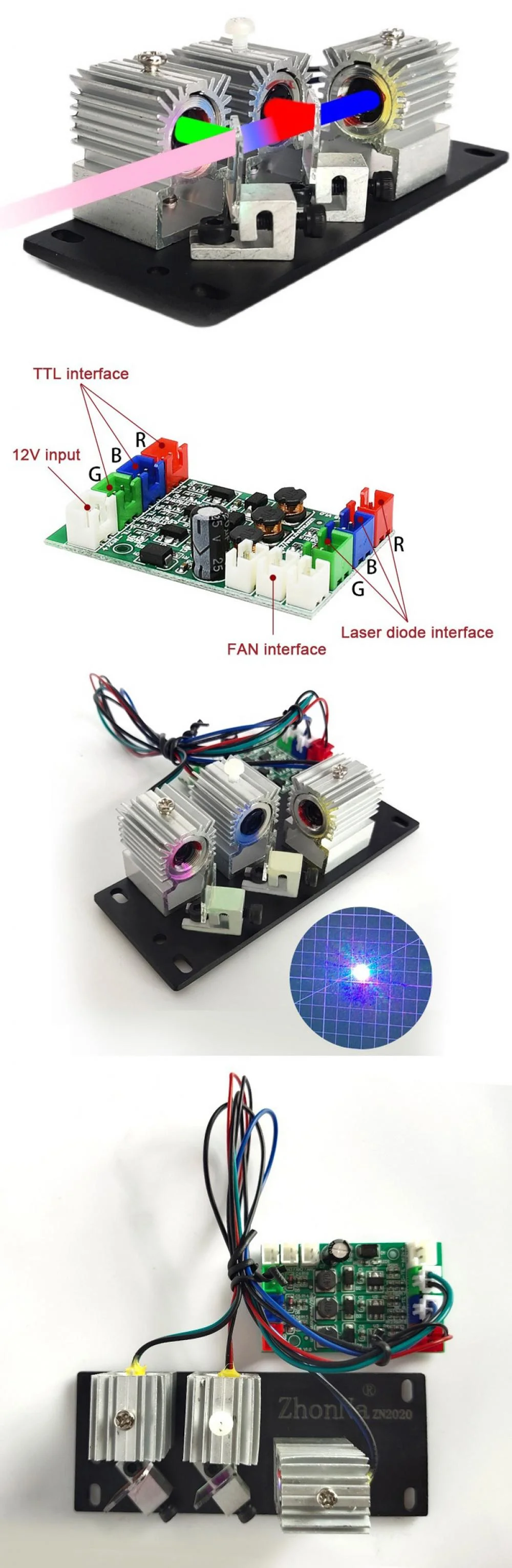

RGB White Light Laser Module
