Cross+Circle Green/Red/Blue Laser Module for Laser Positioning

This high-precision laser module is a customized product for our customers, with a unique pattern design: cross + circle. It uses the best materials and reliable construction, effectively increasing durability and stability. The red/green/blue lasers are optional - you can choose according to your needs. This model can be used for laser positioning, industrial automation, robotics, laser measurement, etc.

Tips
1) The circle diameter at a distance of 0.5 meters is about 55cm.
2) The circle diameter at a distance of 1 meter is about 110cm.
3) For blue/red lasers, we recommend that the maximum working distance should not exceed 1 meter.
4) If you need a longer working distance, please choose the green laser (about 3 meters).

Specifications
• Wavelength: 660nm / 520nm / 450nm
• Power: 100mW (660nm), 50mW (520nm), 80mW (450nm)
• Laser type: cross+circle
• Line width: adjustable
• Operating voltage: 3-7V (3-24V is customizable)
• Operating current: < 180mA
• Circuit control: ACC (constant current)
• Wavelength drift (nn/°C): 0.25nn
• Divergence angle: < 15°
• Lens material: glass optical mirror + DOE
• Operating temperature: -10°C ~ 50°C
• Storage temperature: -40°C ~ 85°C
• Useful life: > 8000 hours

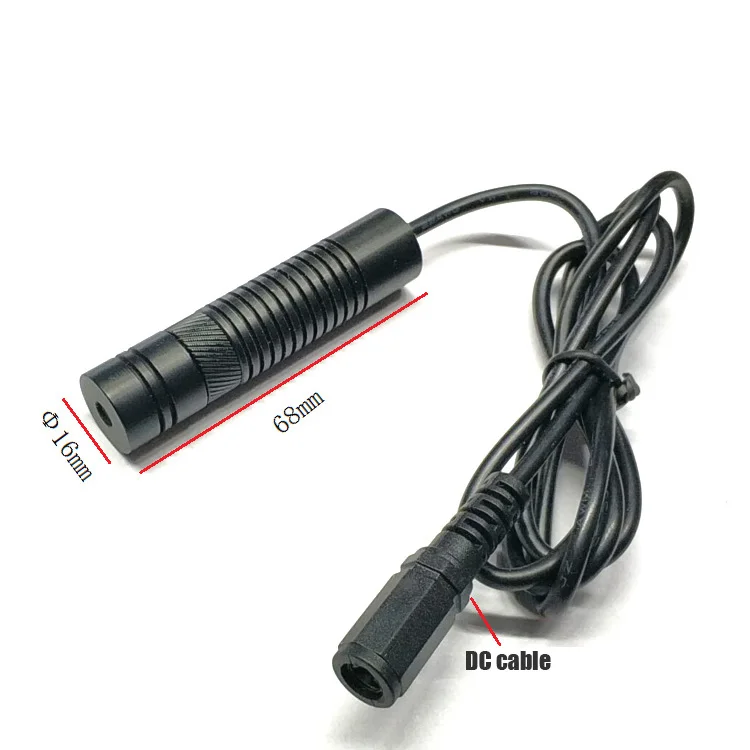

• Dimensions: ⌀16 x 68 mm

Packing List

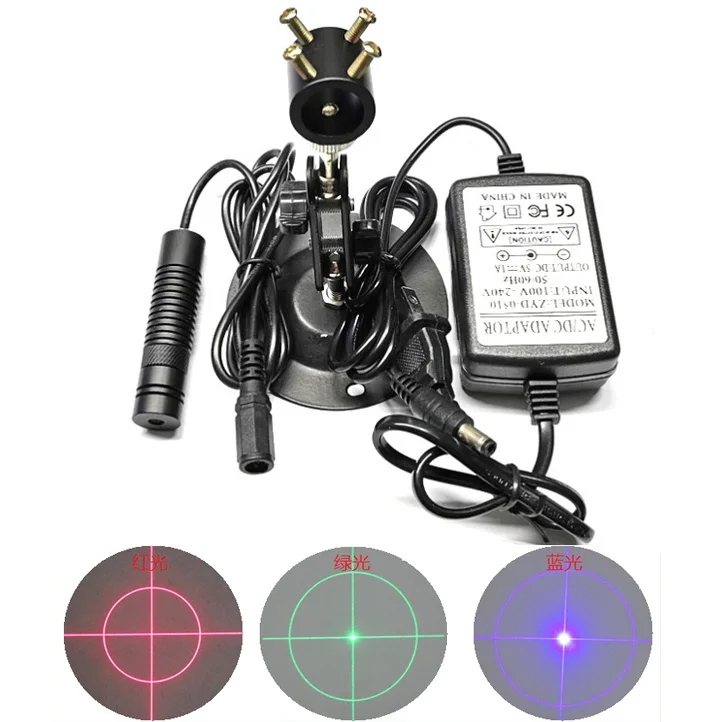

• 1 x Cross+Circle Green/Red/Blue Laser Module

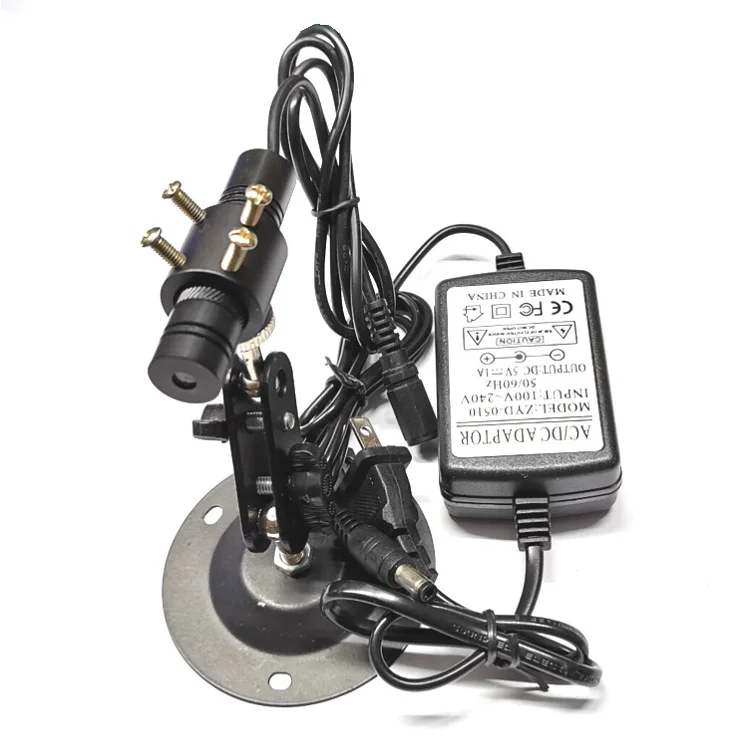

• 1 x Adjustable Mounting Bracket
• 1 x Power Adapter
