Green/Red Circle+Dot Laser Module with Bracket and Adapter

This circle + dot laser module is one of our OEM products. It is high-precision and stable. It can be used for military and industrial processing, greatly improving work efficiency and processing accuracy. The green/red laser can work continuously. The package includes an adapter and a bracket, making this laser module easy to install and use.

Tips
1) The green circle diameter at a distance of 0.5 meters is about 55cm. The red circle diameter at a distance of 0.5 meters is about 80cm.
2) The green circle diameter at a distance of 1 meter is about 110cm. The red circle diameter at a distance of 1 meter is about 160cm.
3) We recommend that the maximum working distance should not exceed 2 meters.
4) If you need a longer working distance or other laser shapes, please see the related products below.

Specifications
• Wavelength: 660nm / 520nm
• Power: 100mW (660nm), 50mW (520nm)
• Laser type: circle + dot

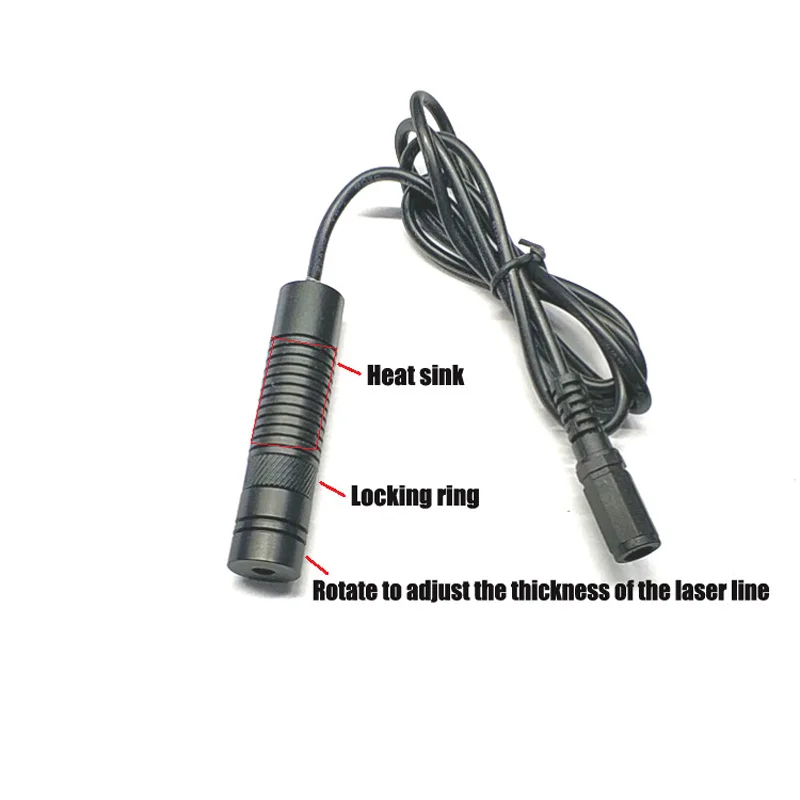

• Line width: adjustable
• Housing material: aluminum alloy
• Operating voltage: 5V (3-24V is customizable)
• Operating current: < 200mA
• Laser class: class 3 laser
• Circuit mode: CW
• Circuit control: ACC (constant current)
• Operating temperature: -10°C ~ +50°C
• Storage temperature: -40°C ~ +85°C
• Lens material: glass optical lens + DOE
• Wire length: 1m DC cable
• Useful life: > 8000 hours

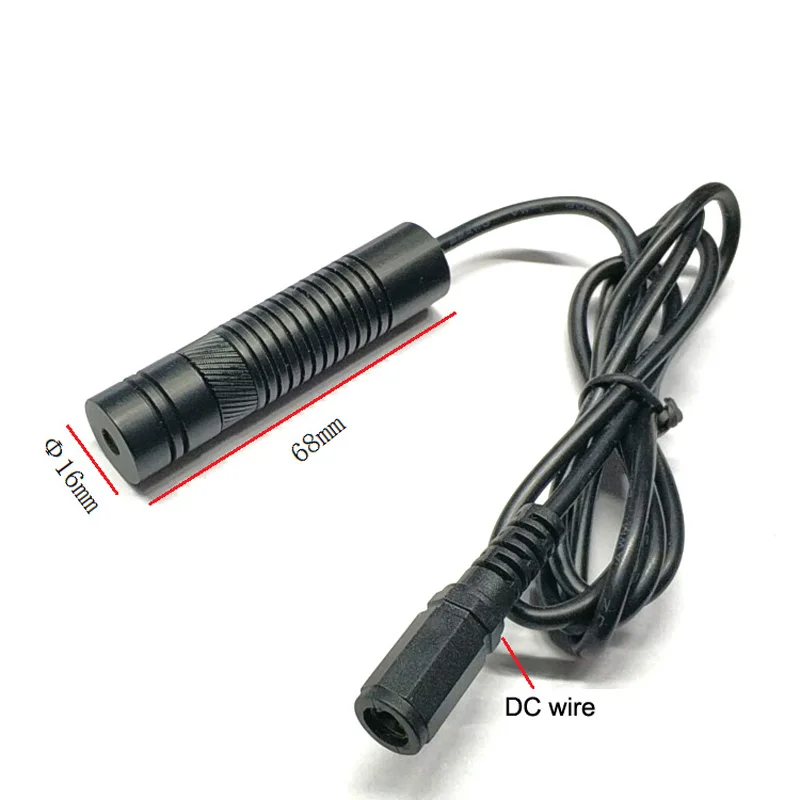

• Dimensions: ⌀16 x 68 mm

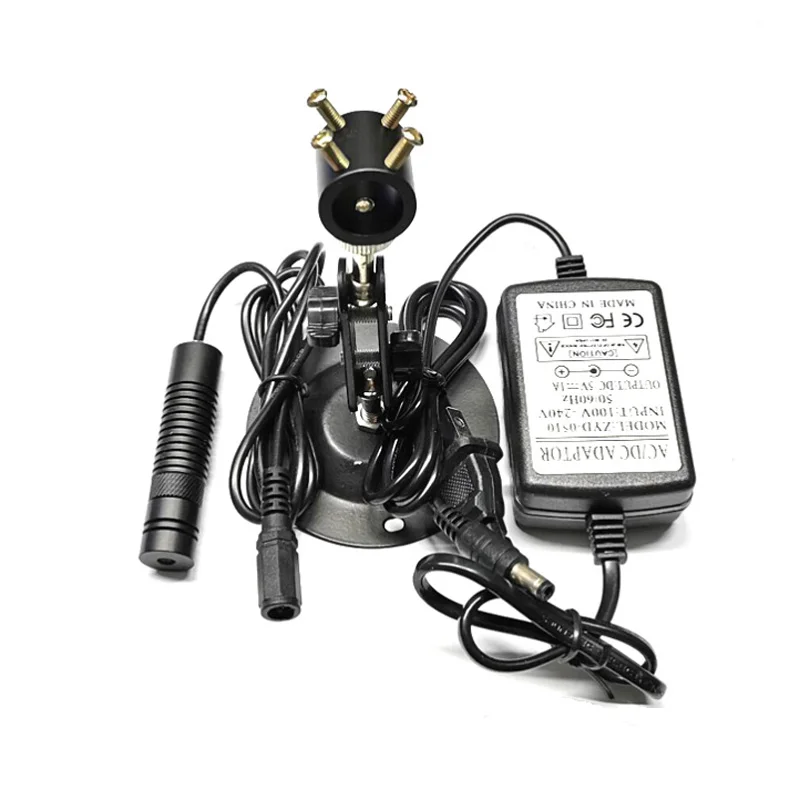

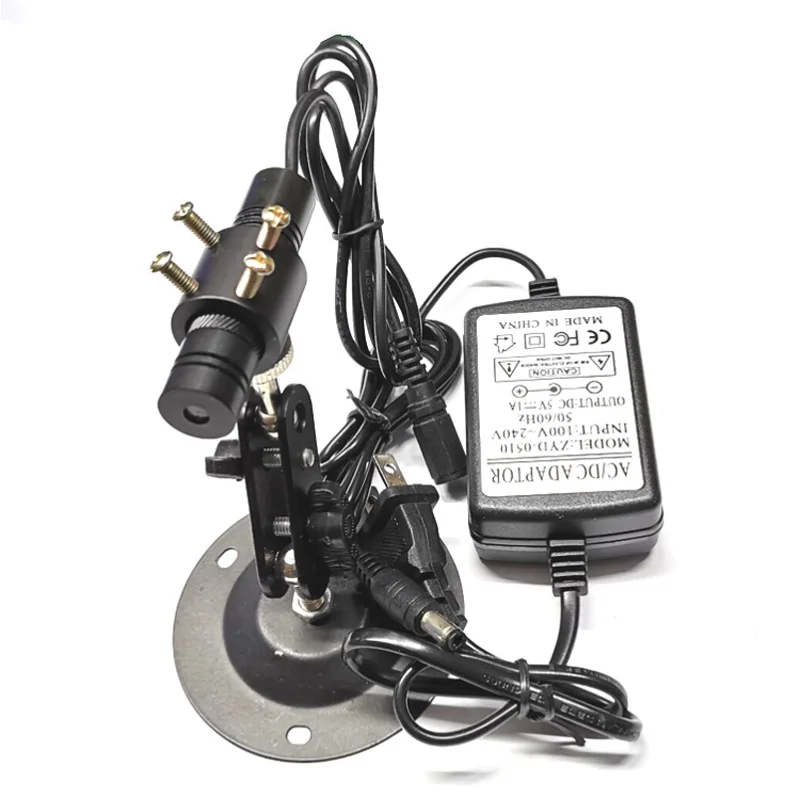

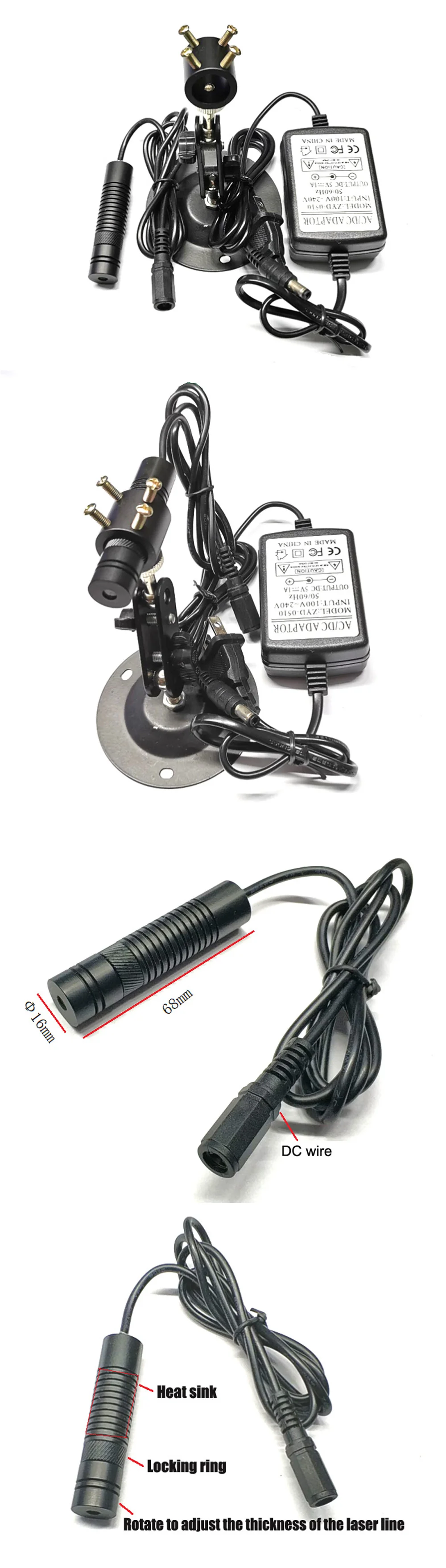

Package Contents
• 1 x Green/Red Circle + Dot Laser Module
• 1 x Adjustable Mounting Bracket
• 1 x 5V Power Adapter
