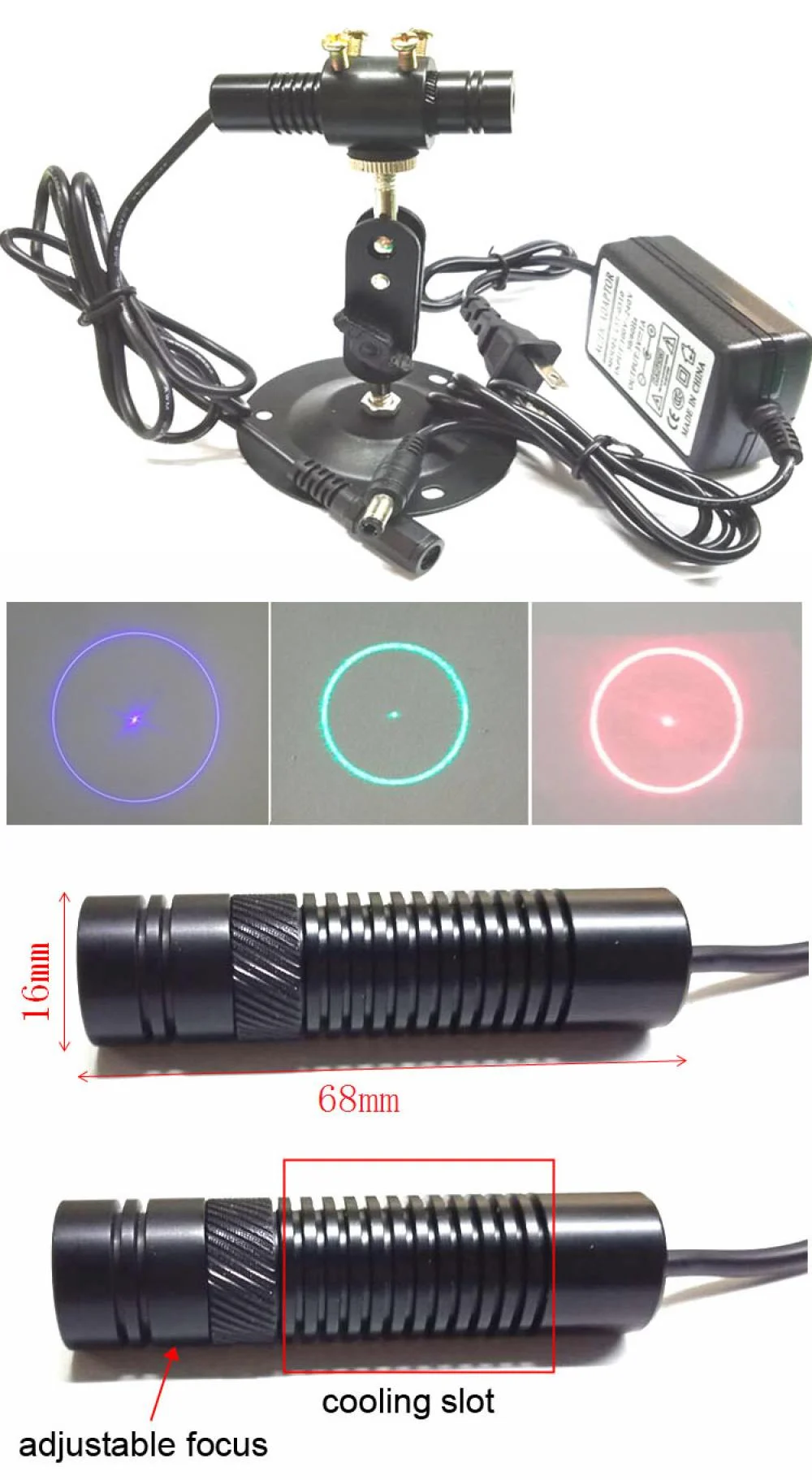

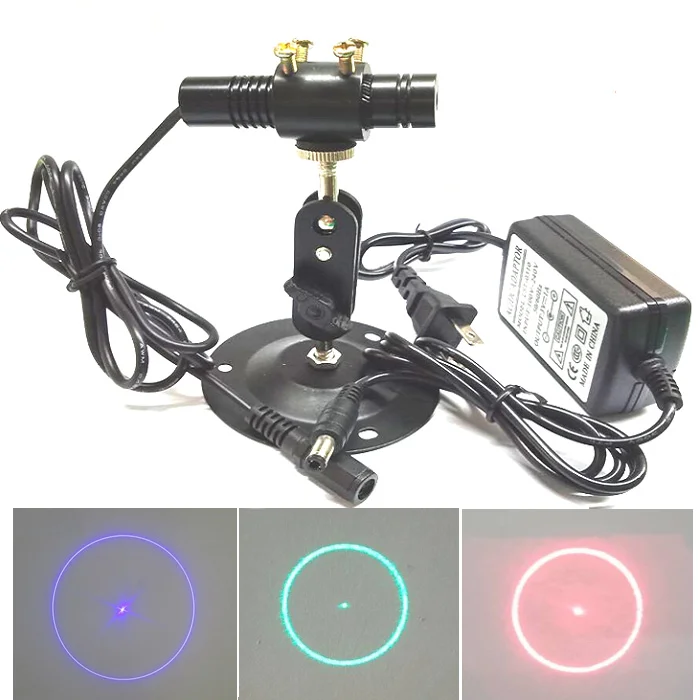

Green/Red/Blue Circle Laser Module with Adapter

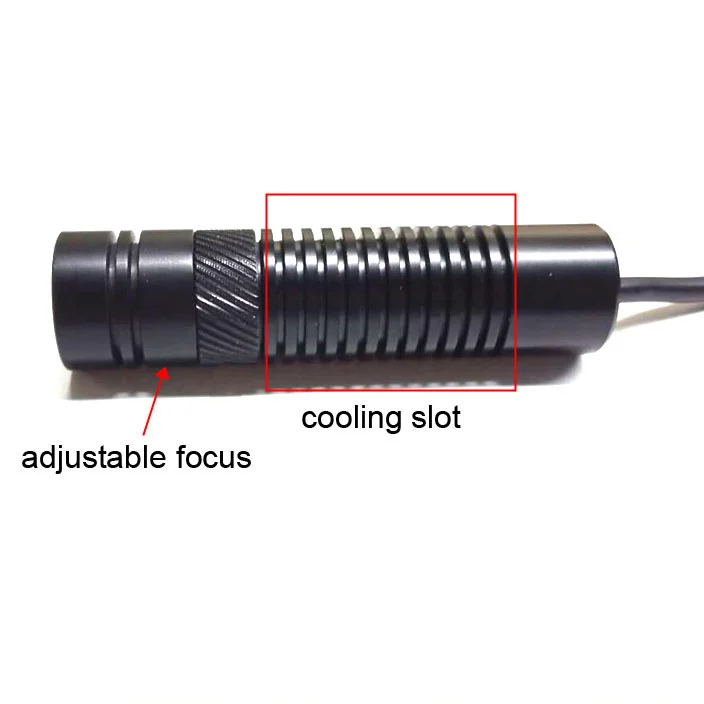

This circle laser module is one of our OEM products. It has a heat sink device, which can increase the effective heat dissipation of the diode and prolong the service life. This price includes an adapter and a bracket, making it easy to install and use. This model has a compact design, good stability, high durability, and high precision. It can work continuously 24 hours daily, and you don't need to worry about overheating.

Tips
1) The circle diameter at a distance of 0.5 meters is about 2cm.
2) The circle diameter at a distance of 1 meter is about 4cm.
3) If you need other laser shapes and operating distances, please see the related products below.

Specifications
• Wavelength: 660nm / 520nm / 450nm
• Power: 100mW (660nm), 30mW (505nm), 80mW (450nm)
• Laser type: circle + dot
• Line width: adjustable
• Operating voltage: 3-5V (3-24V is customizable)
• Operating current: < 280mA
• Circuit control: ACC (constant current)
• Operating temperature: -10°C ~ 50°C
• Storage temperature: -40°C ~ 85°C
• Useful life: > 8000 hours

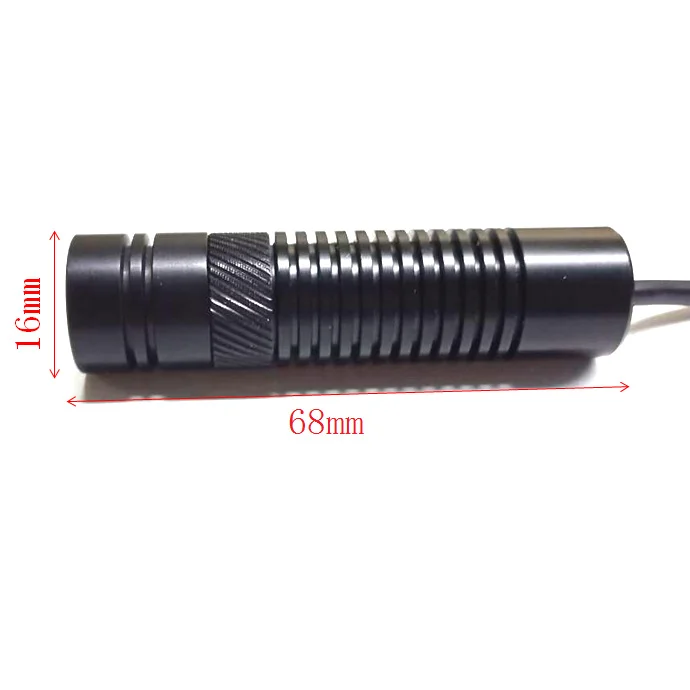

• Dimensions: ⌀16 x 68 mm

Packing List
• 1 x Green/Red/Blue Circle Laser Module
• 1 x Adjustable Mounting Bracket
• 1 x Power Adapter
