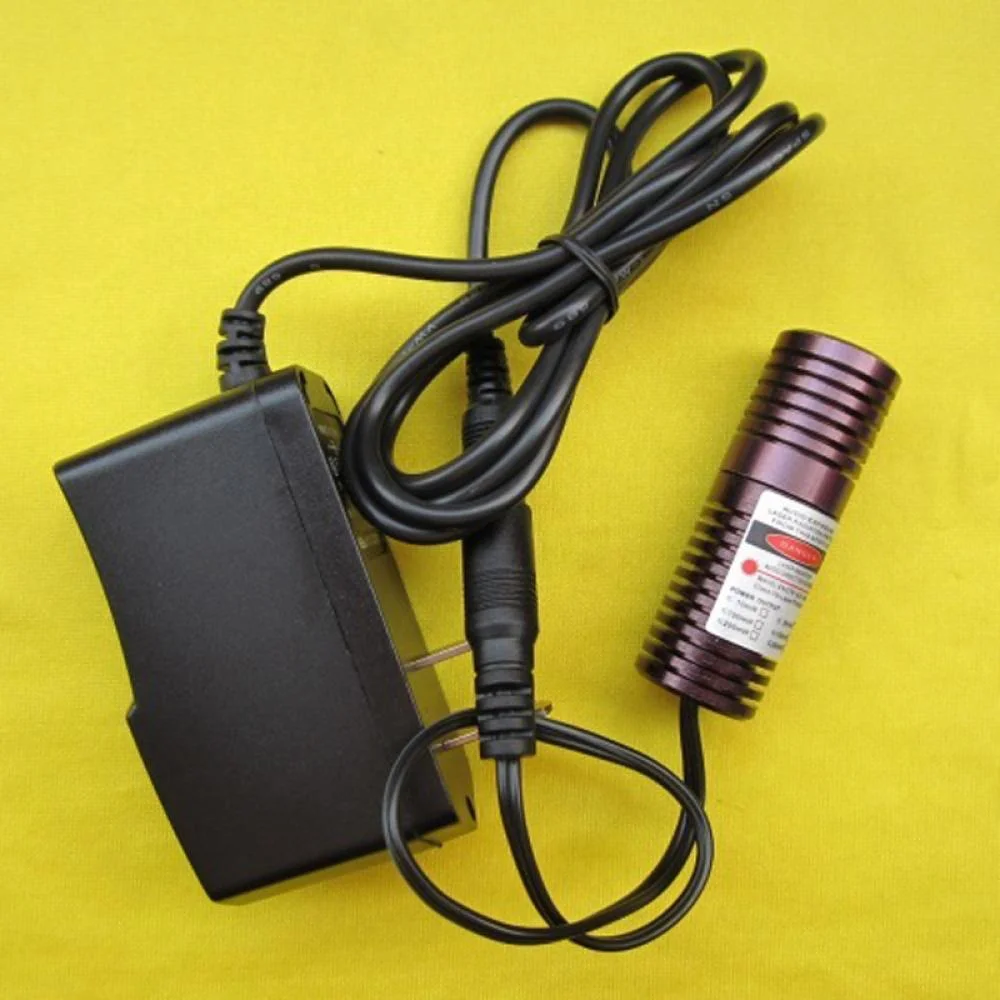

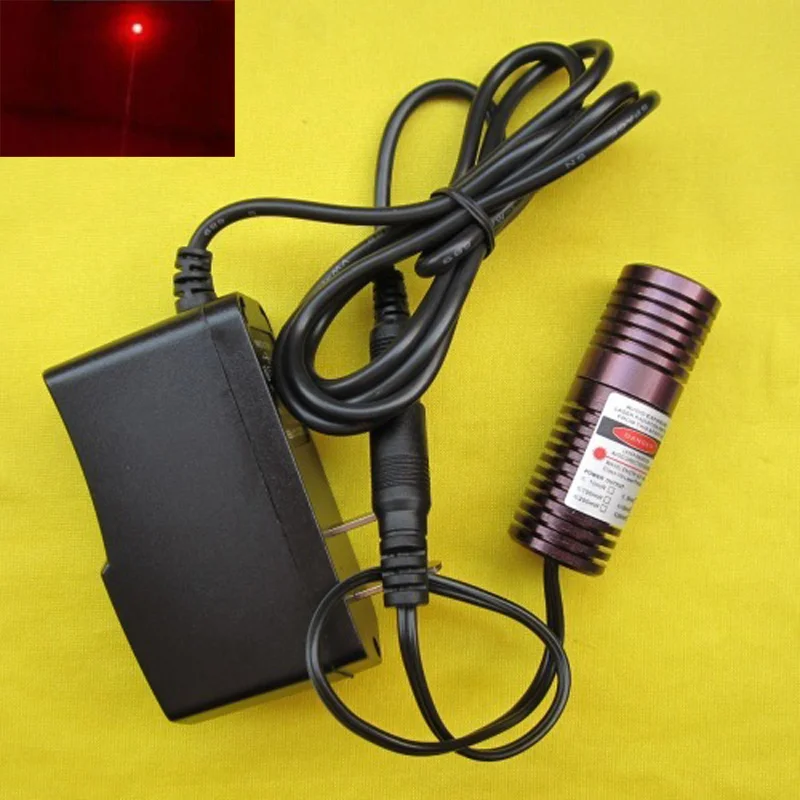

660nm 200mW Dot/Line/Cross Red Laser Module with Adapter

This red laser module adopts the 660nm wavelength and 200mW power. Dot/line/cross is optional, with a 5V power adapter. Unlike many cheap laser modules on the market, this product has good stability and high durability, which can work continuously for a long time.

Specifications
• Laser type: dot/line/cross
• Dimensions: φ14.5*45mm
• Output wavelength: 660nm±10nm
• Output power: 200-230mW
• Housing material: aluminum
• Surface treatment: anodized black
• Circuit control: ACC line
• Reverse polarity protection: yes
• Working voltage: DC=3-5V
• Working current: I<320mA
• Warm-up time: none
• Working temperature: -10℃～+40℃
• Storage temperature: +10℃～+40℃
• Structure: laser + lens + heat dissipation housing
• Length of power cord: 100cm
• Note: red is positive, black is negative

Notice
The input voltage is 3-5V. Overvoltage will cause instantaneous damage to the circuit and module.
