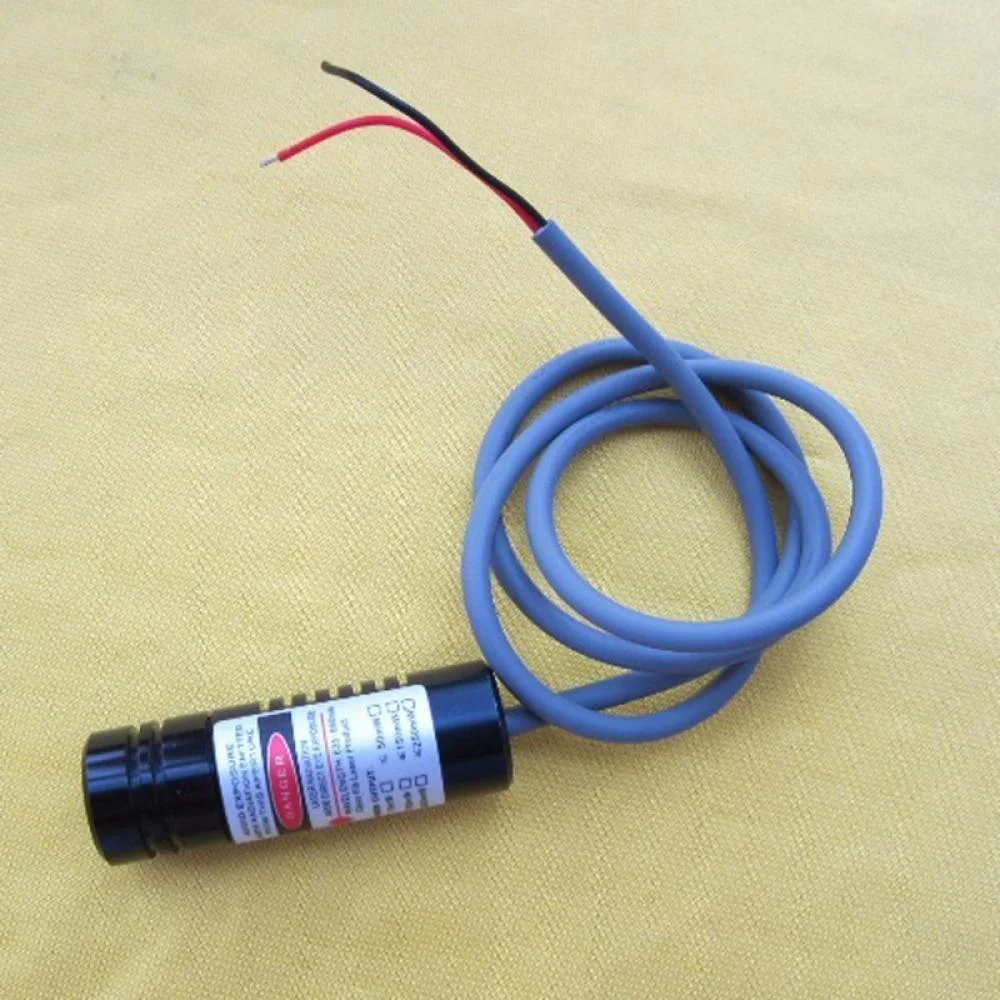

660nm 200mW Red Laser Module Dot/Line/Cross 3-5V

This laser module has a standard 660nm wavelength and 3-5V operating voltage. The output power is more than 200mW, and it can work continuously with a cooling system. Dot/line/cross is optional - you can choose according to your needs. If you are looking for a stable and powerful red laser module, this will be a good choice.

Specifications
• Laser type: dot/line/cross
• Output wavelength: 660nm±10nm
• Output power: 200-230mW
• Circuit control: ACC line
• Surface treatment: anodized black
• Housing material: aviation aluminium
• Reverse polarity protection: yes
• Working voltage: DC=3-5V
• Working current: I<320mA
• Warm-up time: none
• Working temperature: -10℃～+40℃
• Storage temperature: +10℃～+40℃
• Structure: laser part + lens + heat dissipation housing
• Dimensions: φ14.5*45mm
• Power cord length: 50cm
• Note: red is positive, black is negative
