Affordable Red Line Laser Module 650nm 1-200mW

This module has optional power, low price, and high stability. It has passed the aging test, quality inspection, and CE/FDA certifications. If you are looking for a 650nm red line laser module, this will be an affordable good choice. For product customizations, please contact us via info@lasersea.com. We will reply to you as soon as possible.

Buying Tips
1) The default operating voltage is 3V. 5V/12V/24V is customizable.
2) The module size can be customized: Φ9×26mm, Φ10×22mm, Φ10×30mm, Φ12×30mm, Φ12×50mm (size customization is free). We will send Φ10×30mm by default.

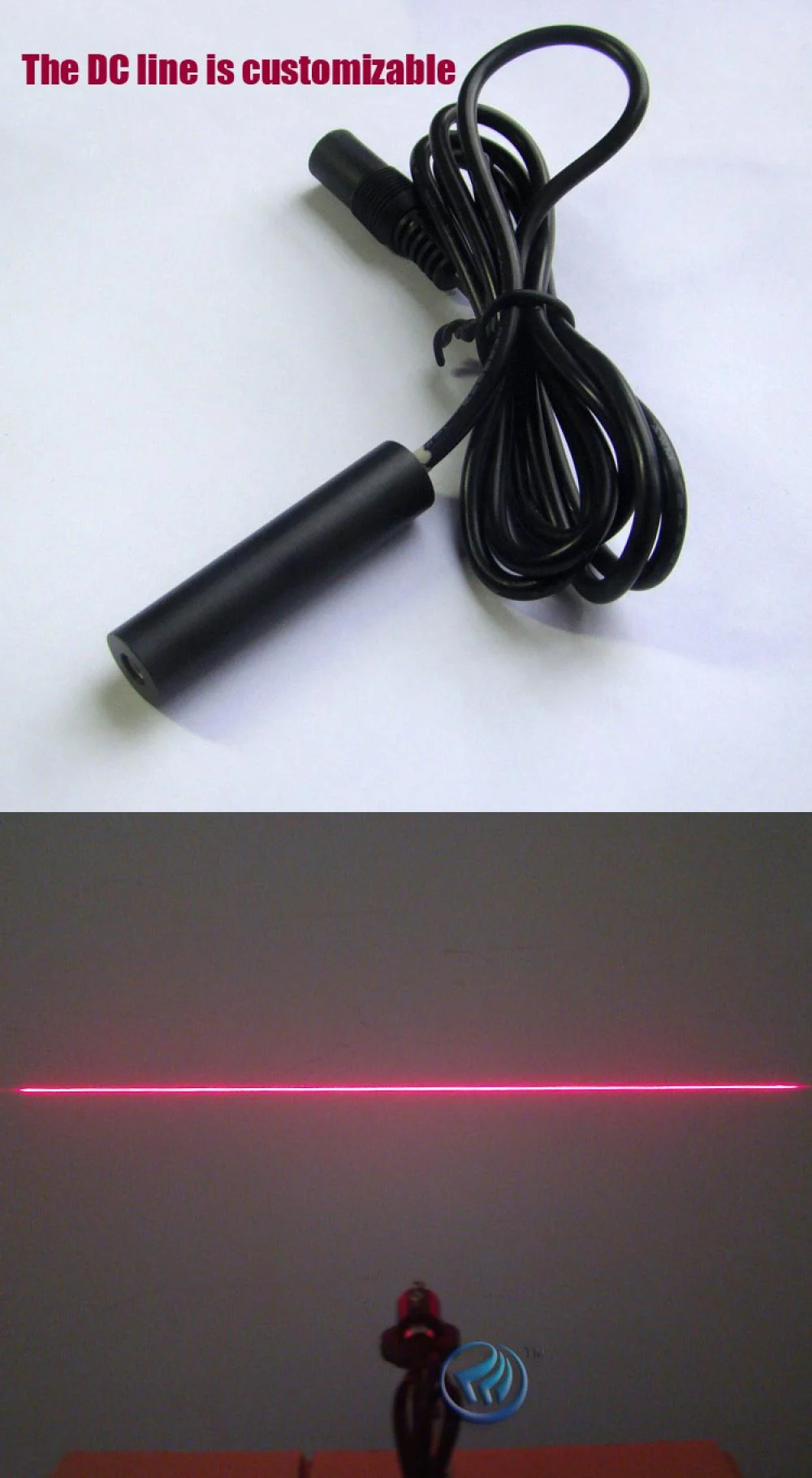

3) The DC line is customizable.

Specifications
• Wavelength: 650nm
• Laser shape: line
• Dimensions: Φ10 x 30 mm
• Power: 1mW/5mW/10mW/30mW/50mW/100mW/200mW
• Focus: adjustable/fixed (optional)
• Useful life: > 8000 hours (continuous output)
• Housing material: copper + aluminum
• Circuit control: APC line
• Operating voltage: DC= 3V (2 x AAA batteries)
• Operating temperature: -10℃～＋50℃
• Storage temperature: -40℃～＋80℃
