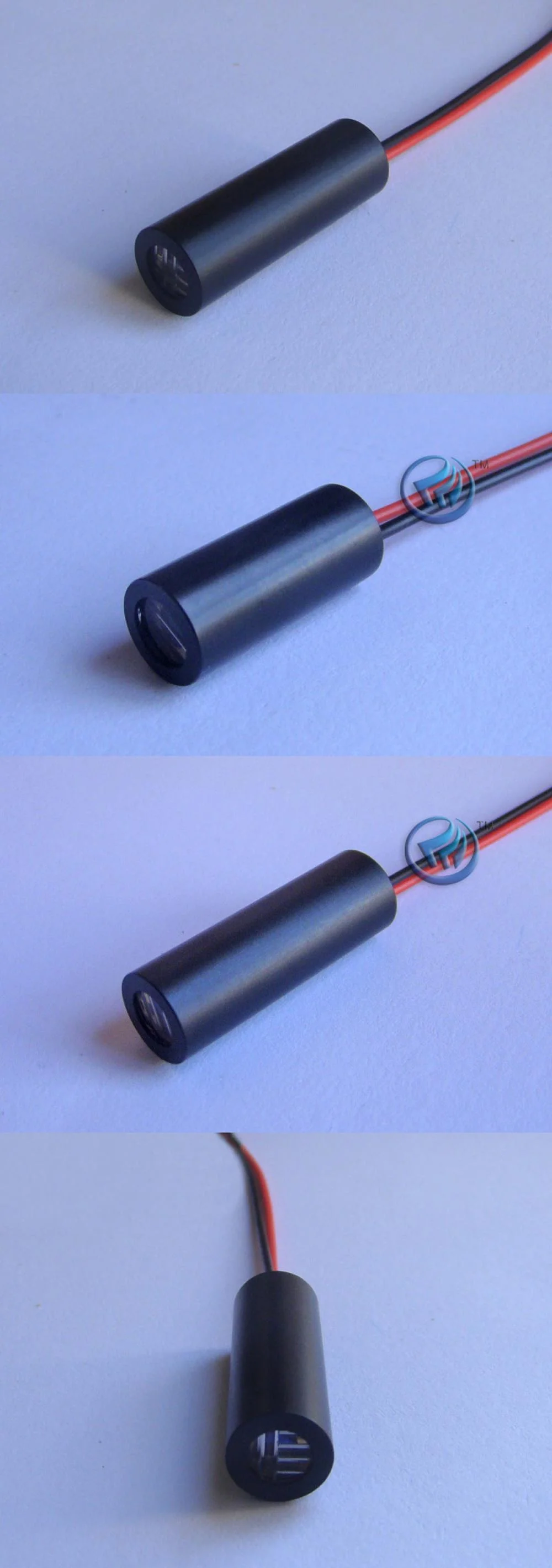

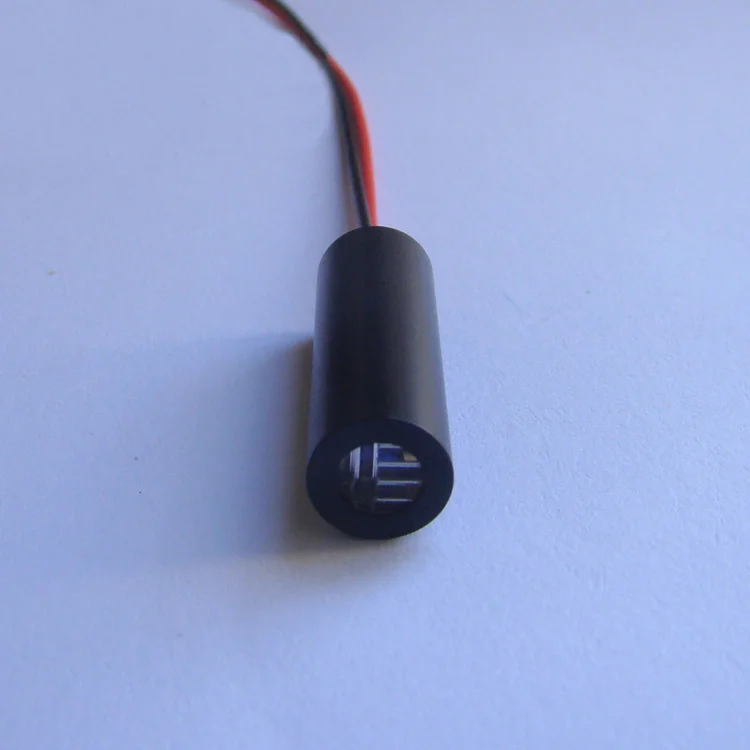

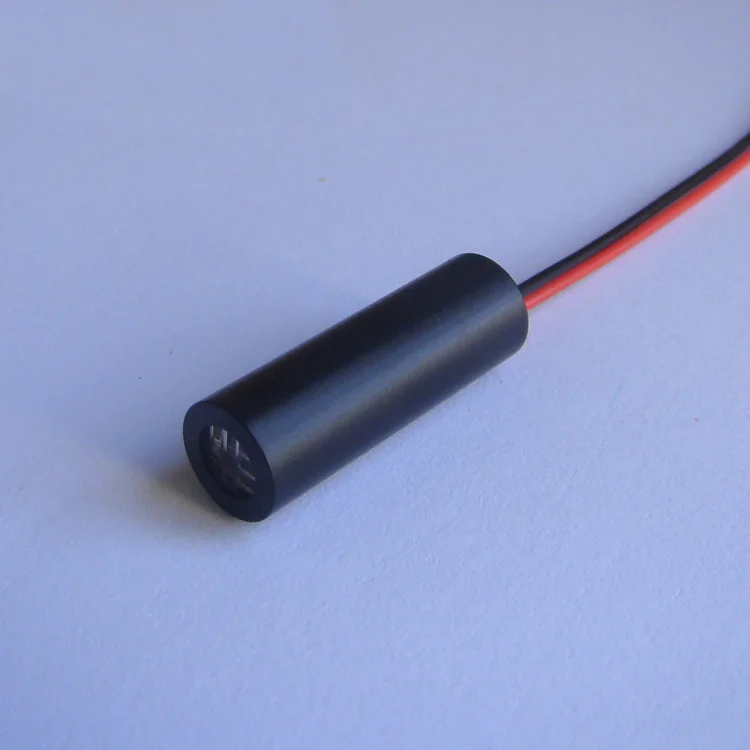

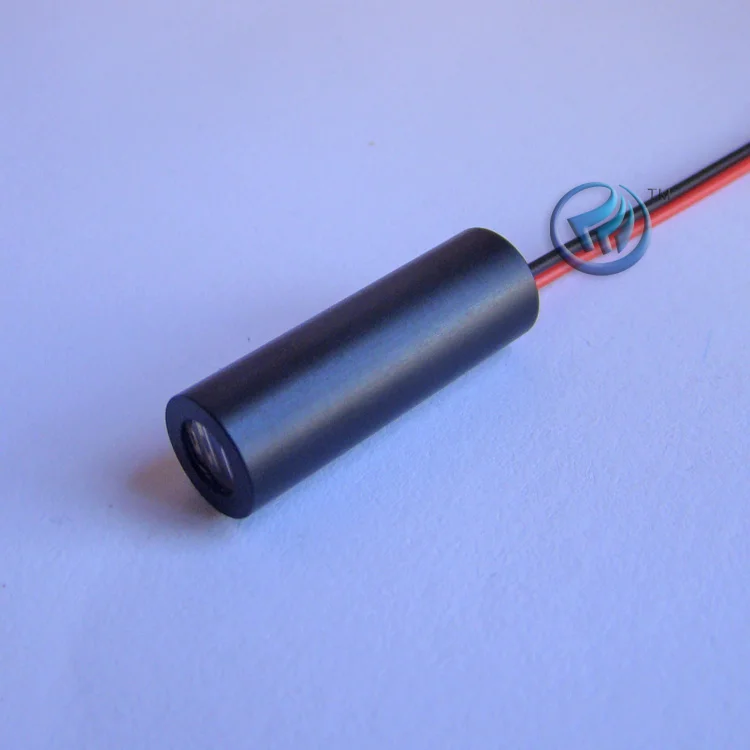

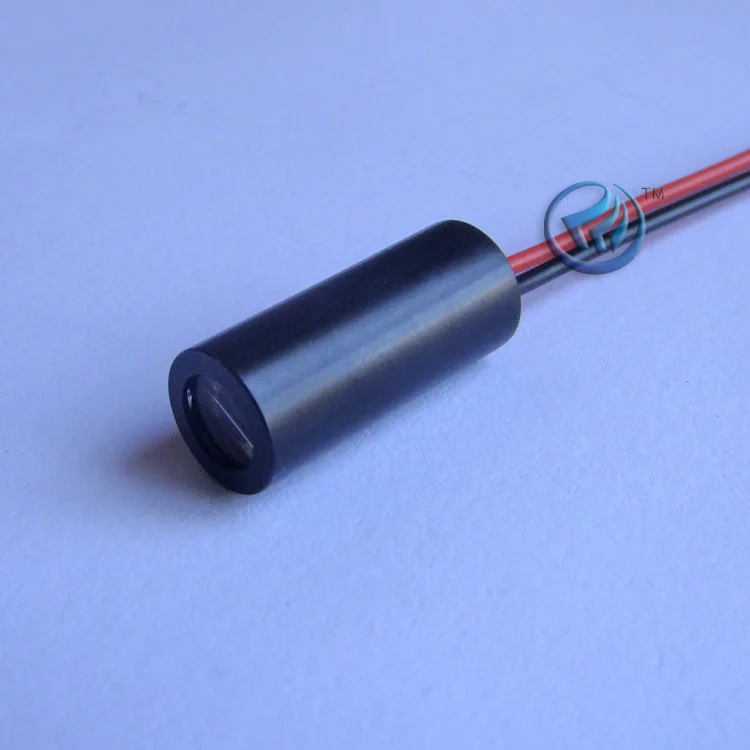

Cross Line Red Laser Module 635nm 1mW/5mW/10mW/30mW/50mW

This cross laser module has high brightness, standard 635nm wavelength, high stability, and small size. The red cross line is uniform, and the power is optional: 1mW, 5mW, 10mW, 30mW, 50mW. For product customizations and other questions, please contact us via email. We will reply to you as soon as possible.

Buying Tips
1) The default operating voltage is 3V. 5V/12V/24V is customizable.
2) The module size can be customized: Φ9×26mm, Φ10×22mm, Φ10×30mm, Φ12×30mm, Φ12×50mm (size customization is free). We will send Φ10×30mm by default.

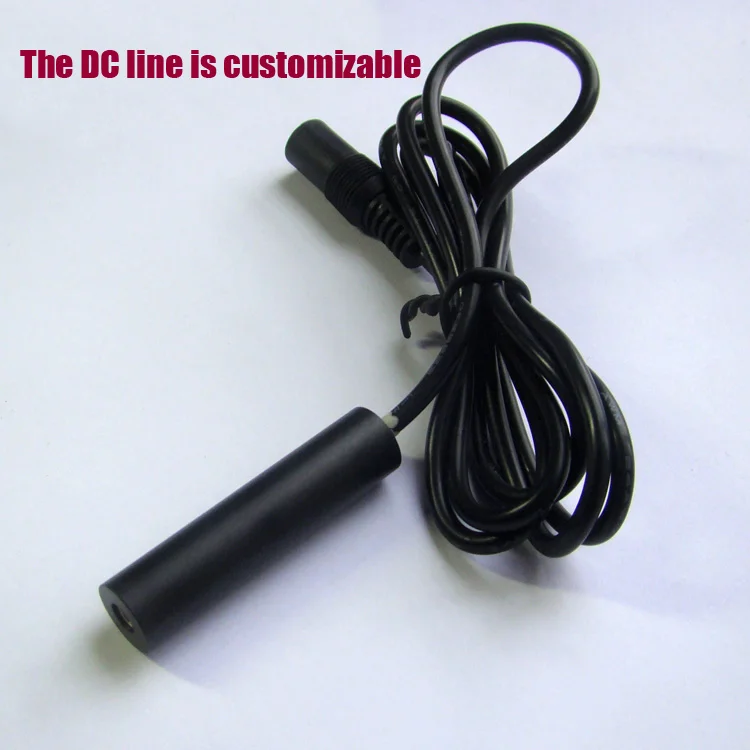

3) The DC line is customizable.

Specifications
• Wavelength: 635nm (red)
• Laser shape: cross line
• Dimensions: Φ10 x 30 mm
• Power: 1mW / 5mW / 10mW / 30mW / 50mW
• Focus: adjustable/fixed (optional)
• Useful life: > 8000 hours (continuous output)
• Housing material: copper + aluminum
• Circuit control: APC line
• Operating voltage: DC= 3V (2 x AAA batteries)
• Operating temperature: -10℃～＋50℃
• Storage temperature: -40℃～＋80℃
