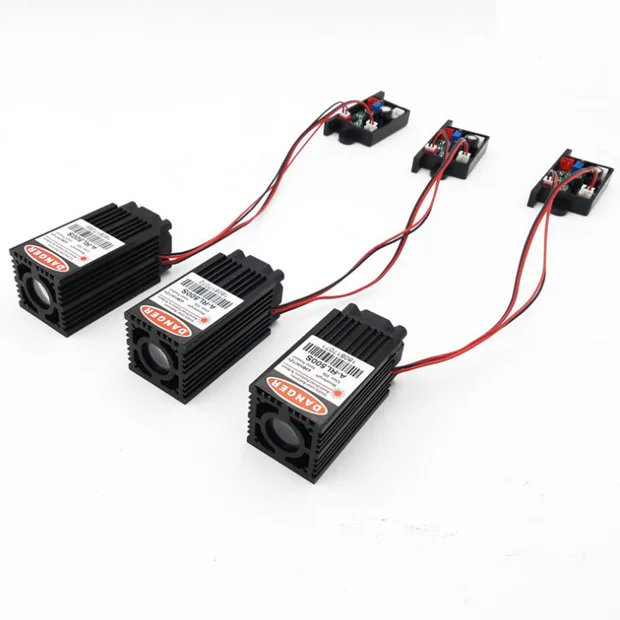

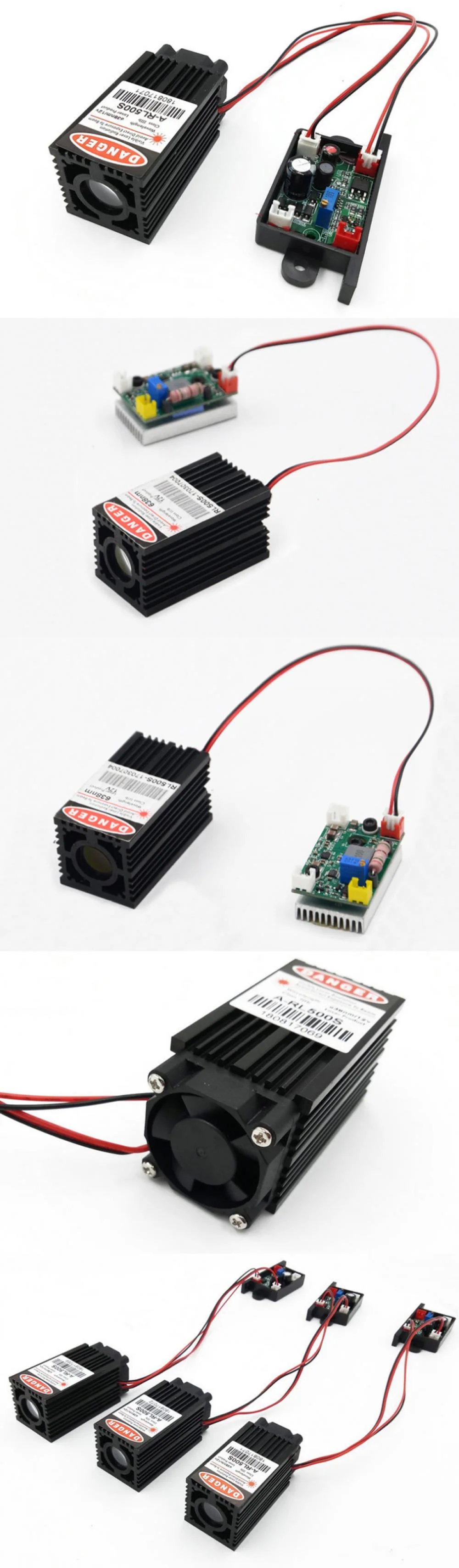

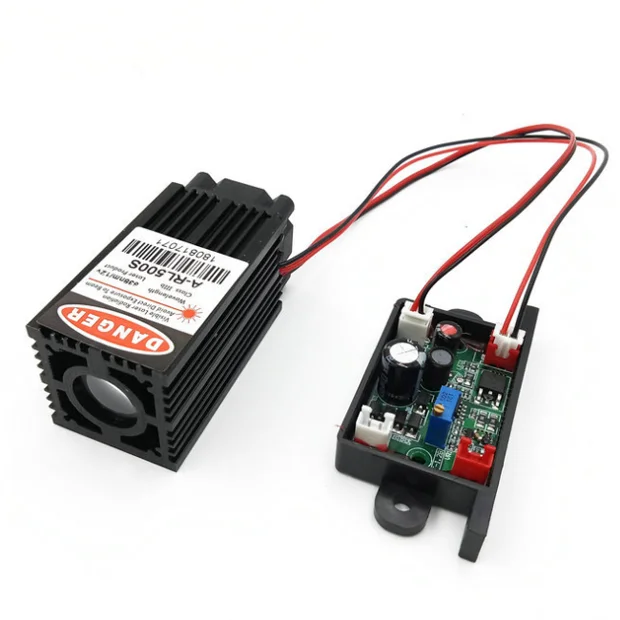

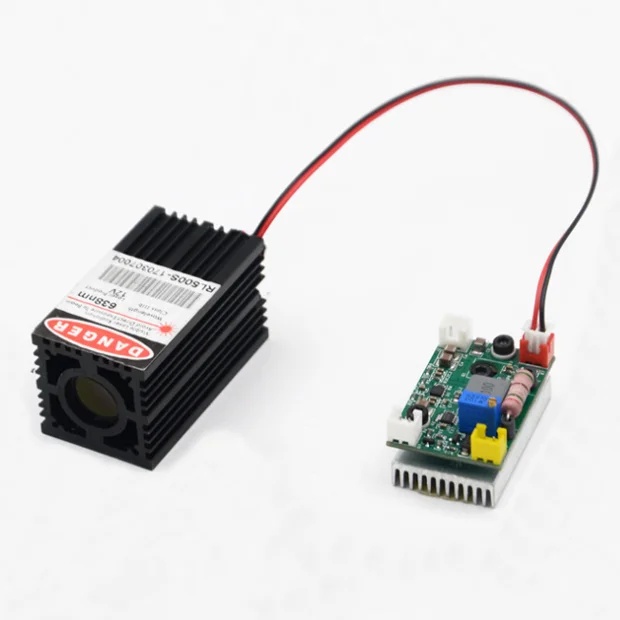

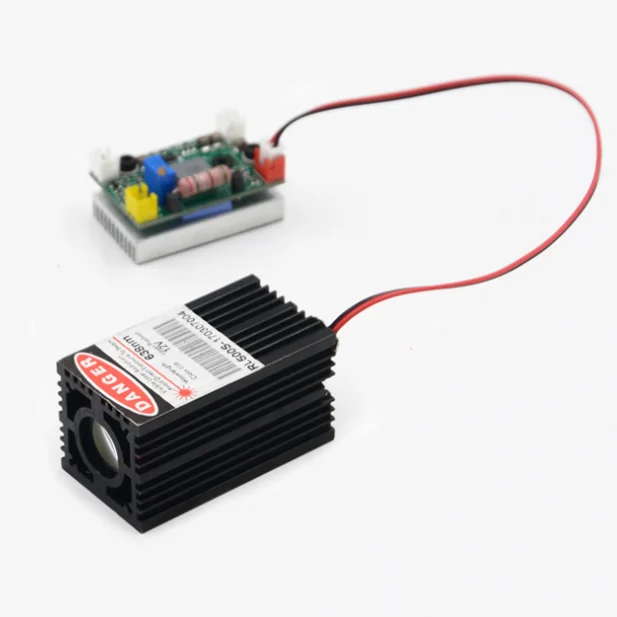

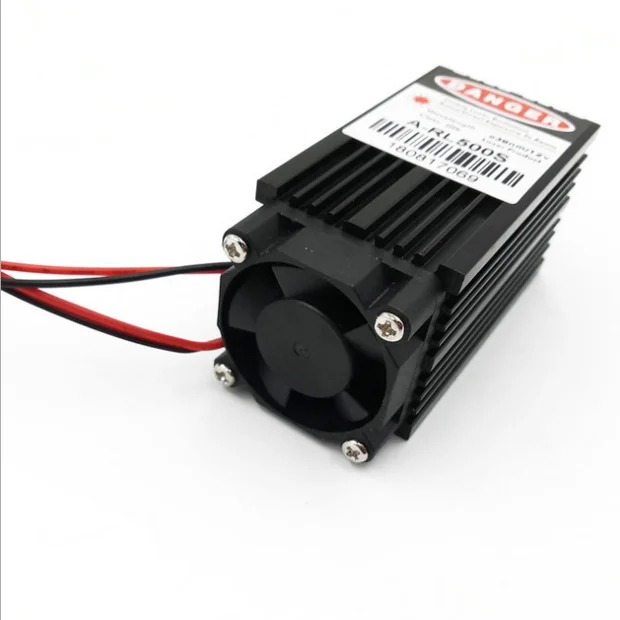

High-Brightness Red Laser Module 638nm 700mW

This laser module has high power, high brightness, and a reliable structural design. The red light is bright, the divergence angle is low, the collimation is good, and the product volume is small. Temperature control, drive, and laser are fully integrated with the external DC power supply. This model has passed tests of high and low/high-temperature storage and vibration shock. It has a precise and scientific heat dissipation design, two-way temperature control, and perfect temperature protection function, which can extend the life of the laser module as much as possible.

Specifications
• Wavelength: 638nm (red)
• Output power: 700mW
• Spot shape: round spot
• Divergence angle: ≤ 1mRad
• Modulation mode: TTL modulation / analog modulation
• Input stability: ±5%
• Input voltage: 3.3V
• Operating current: 900mA
• Rated power consumption: 10.8W
• Useful life: 10000h
• Wire length: 100mm
• Dimensions: 33 x 33 x 75 mm
• Weight: 101 g

Packing List
• 1 x 638nm 700mW Red Laser Module
• 1 x Power Adapter
• 1 x Warranty Card
