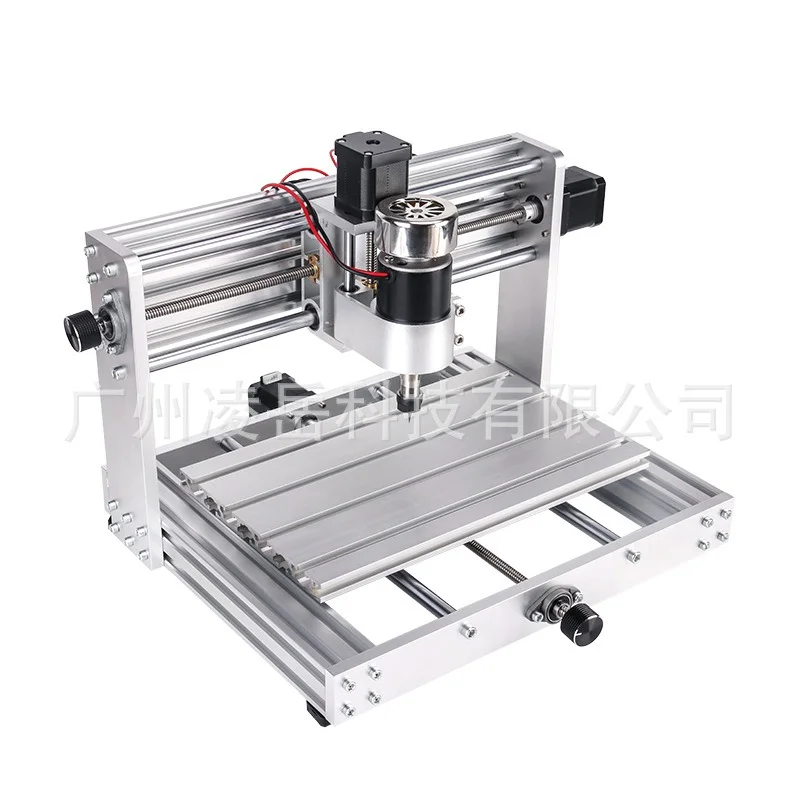

This CNC laser engraving machine is made of aluminum alloy, which is wear-resistant and corrosion-resistant. It can engrave plastic, wood, acrylic, PVC, PCB, metal, copper, soft aluminum, stone, etc.

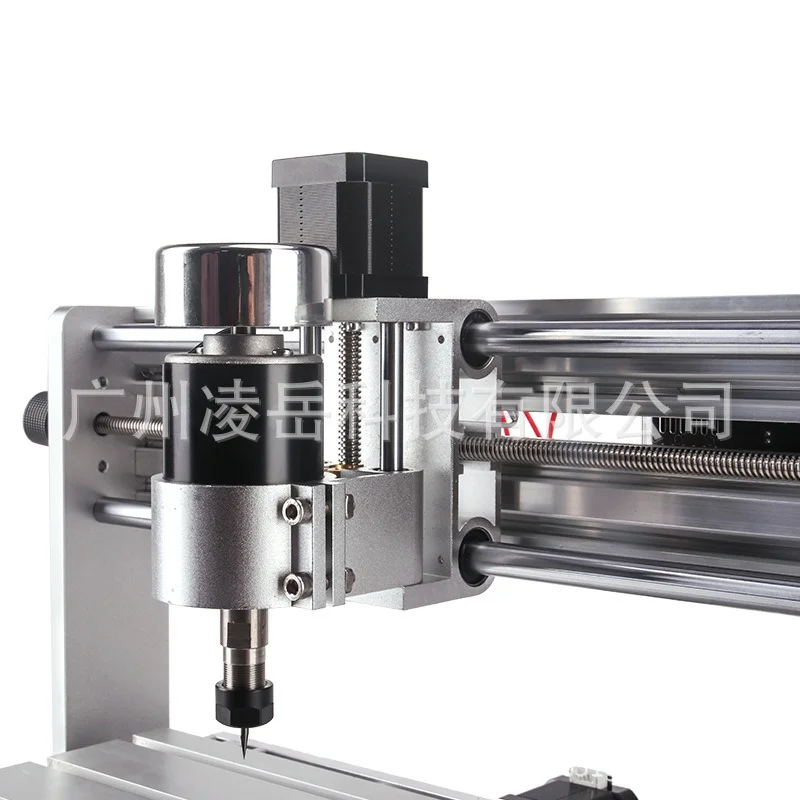

200W High Power Spindle
The spindle adopts a 52mm diameter, 12000 rpm professional air cooling, 150W rated power, and the maximum power can reach 200W.

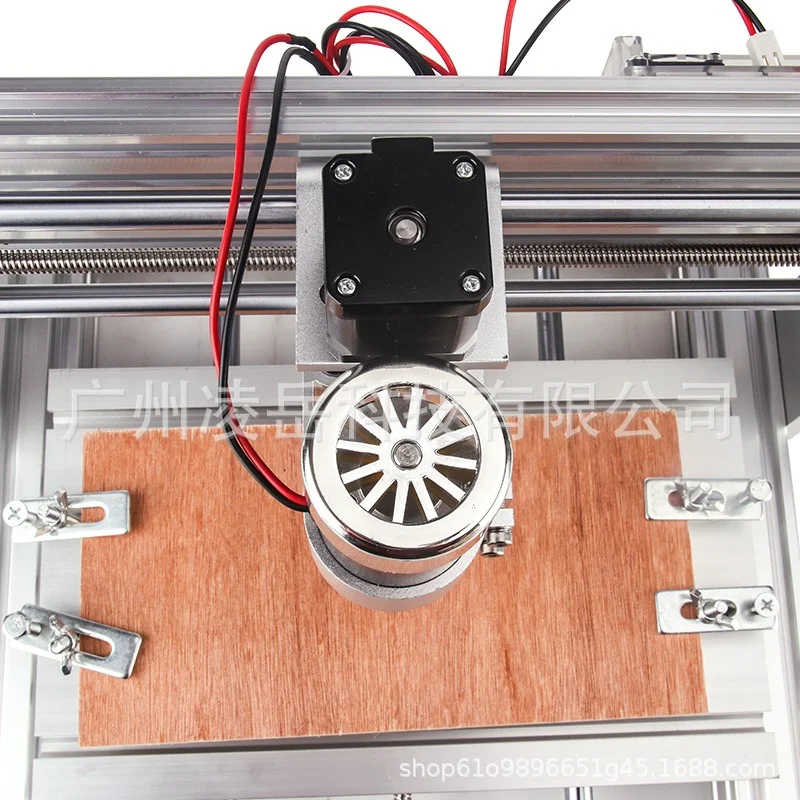

42 Stepper Motor
This 3-axis laser engraver with the 42-stepper motor is professional and practical. Compared with previous products, the engraving range is larger, and the all-aluminum alloy body is more durable.
T8 Spiral Screws
We use a texture knob design, which is easy to turn without hurting your hands. The high-quality T8 screws are fully ergonomic.
3-Axis GRBL Control
This engraving machine adopts an aluminum alloy body, and the XYZ components are processed by CNC, with high precision and high strength.
Engraving range: 300 * 180 * 45 mm (Suitable for carving plastic, PCB, stone, jade, leather, bones, etc.)
Specifications
• Control Software: GRBL control
• Rack Material: aluminum
• Effective Stroke: 300 x 180 x 40mm / 11.81 x 7.09 x 1.57in
• Dimension: 400 x 330 x 240mm / 15.75 x 12.99 x 9.45in
• Drive Motor: 42 stepper motor 1.68A 0.55N.M.
• Turning Screw: T8 Screw
• Supporting System: Windows XP / Win7 / Win8 / Win10 / Linux
• Engraving Materials: plastic, wood, acrylic, PVC, PCB, copper, soft aluminum, stone, etc.
• Spindle: spindle motor 24V 150W 12000 RPM
• Machining Instructions:
Laser: G CODE, JPG, Dxf file.
CNC: G CODE, TAB, NC, NCC file.
Offline controller module:
Without an offline controller module: You need to connect the laser engraving machine to the computer to work.
With an offline controller module: The laser engraving machine can work directly. No need to connect to a computer.

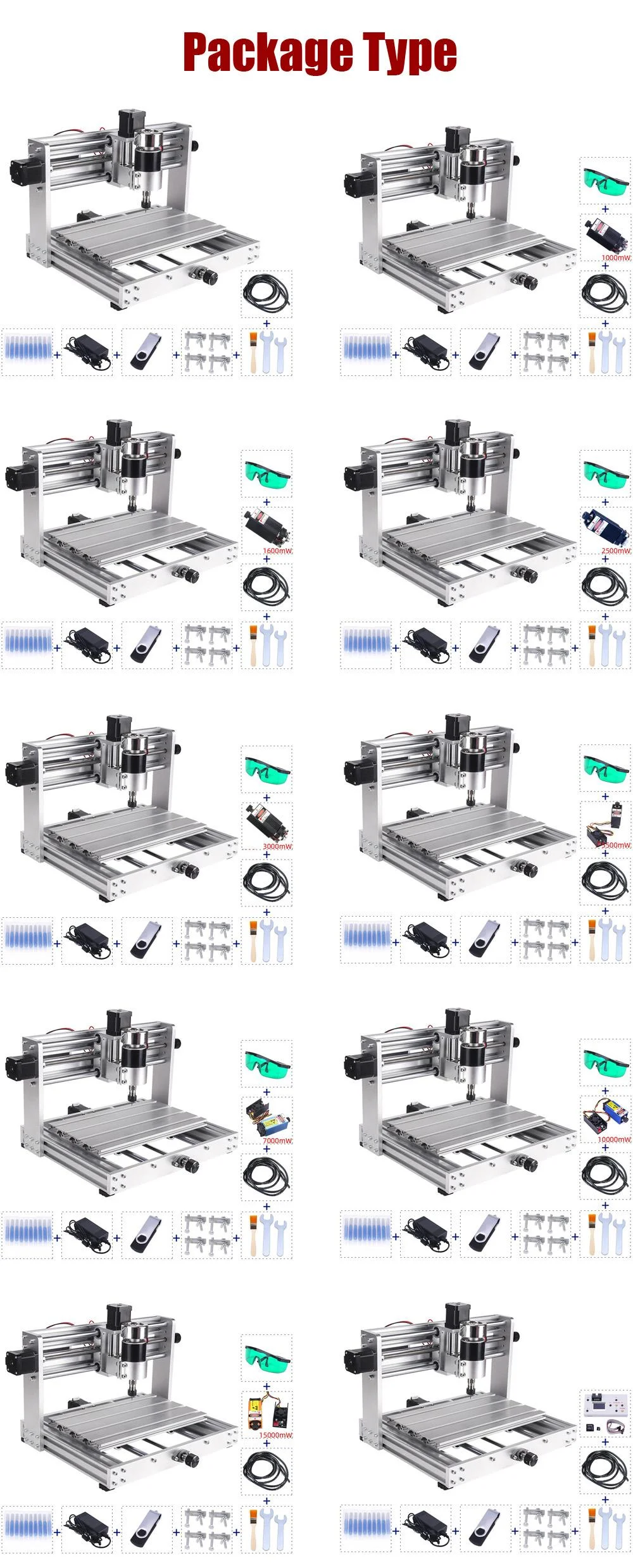

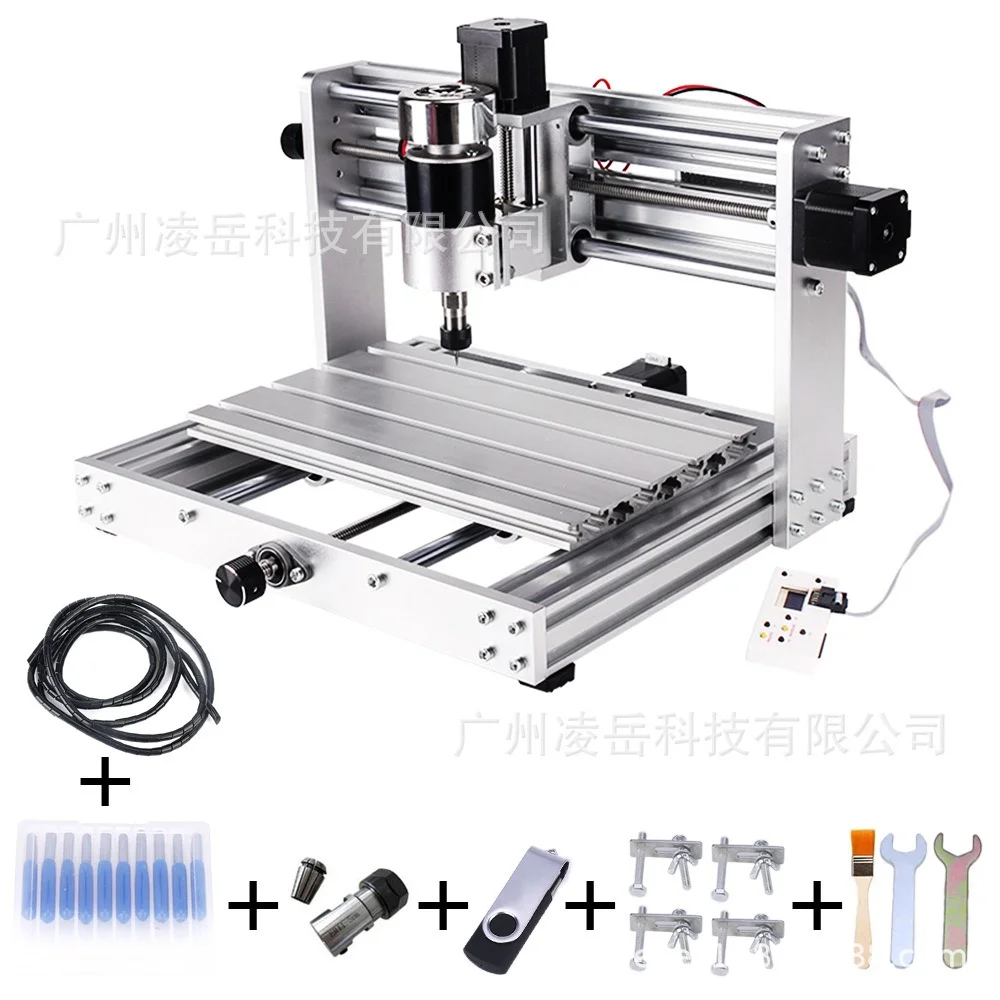

Package Contents
• 1 x CNC Router Laser Engraver
• 1 x Laser Module (Optional)
• 1 x Offline Control Module (Optional)
• 1 x USB Cable
• 2 x Wrenches
• N x Screws and Nuts
• 1 x U Disk
• 10 x Milling Cutter
• 1 x Power Adapter
• 1 x User Manual |
