Powerful Laser Engraving Module

Super Powerful 10W Laser Engraving Module with Compressed Spot

( 1 review )

For product customizations, please contact us by mail. We will reply to you within 24 hours.

Price: $299.63

Quantity:

Product Details

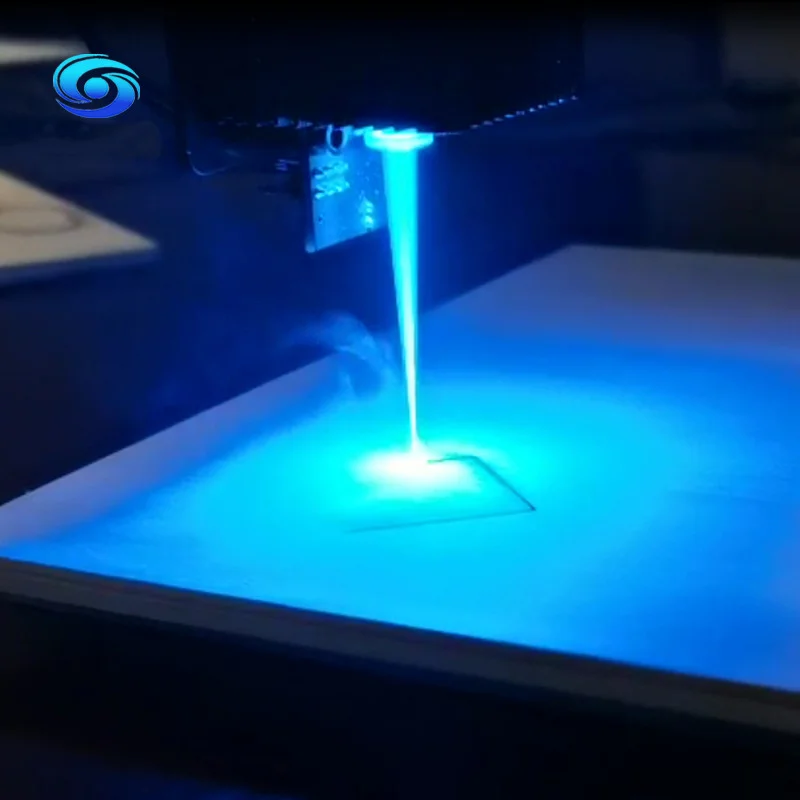

This laser module has 10W ultra-high power and compressed spot (LD+FAC+LENS), which can quickly engrave stainless steel and cut wood. It comes with a uniform light spot, high brightness, high efficiency, high precision, and good stability. This model has passed strict power tests and aging tests. If you're looking for a super powerful laser engraving module, it will be a perfect choice.

Specifications
• Output wavelength: 450nm
• Output power: 10W (9000-10000mW)
• Spot type: compressed spot
• Spot size: 45mm<1mm
• Housing material: 6061 aluminium
• Optical lens: Φ9 / glass
• Cooling fan: available
• Input voltage: DC 12V
• Input current: 2.9-3.2A
• Electric power: 34.8-38.4W
• Working mode: pulse work
• Useful life: > 10000 hours
• Working temperature: 0℃~70℃
• Storage temperature: -40℃~85℃

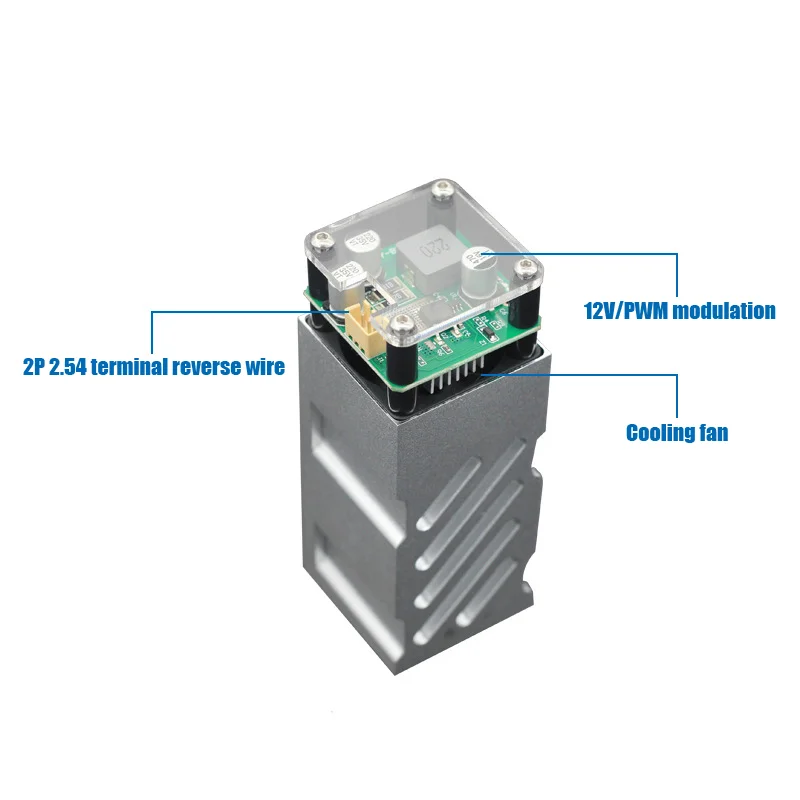

• Circuit board: 12V / PWM modulation board

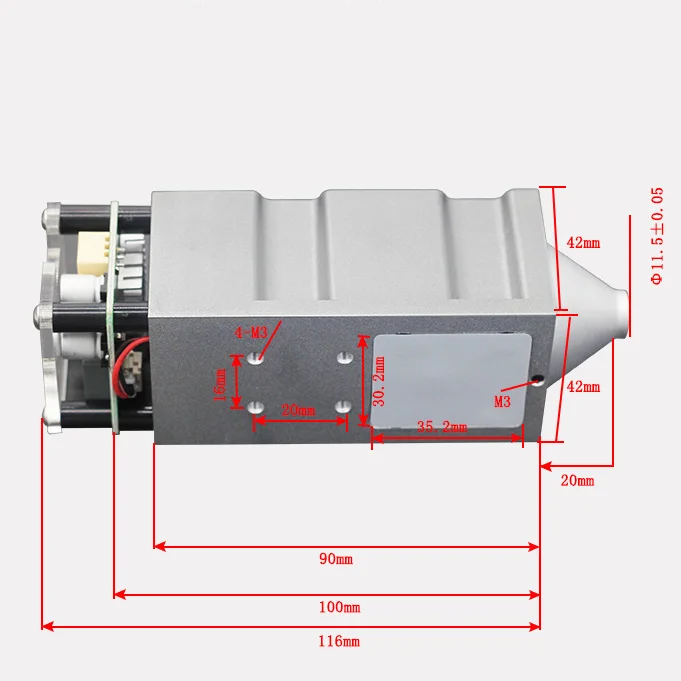

• Housing dimensions: 42 x 42 x 90 mm
• Circuit board dimensions: 40 x 40 mm
• Net weight: 257 g
• Wire: 22# 2P 2.54 terminal reverse wire (80mm)

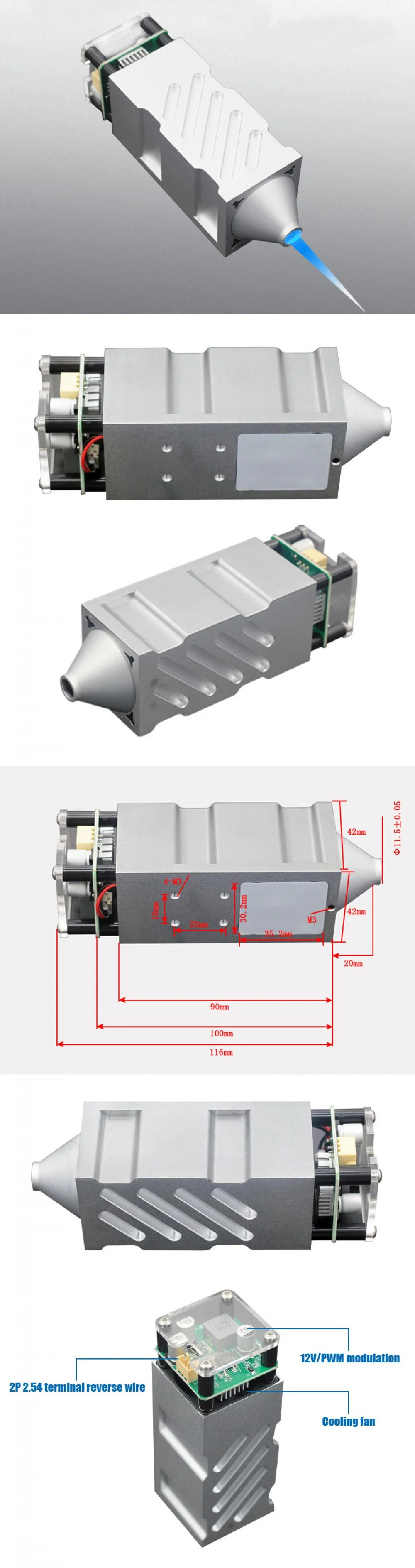

10W Laser Engraving Module

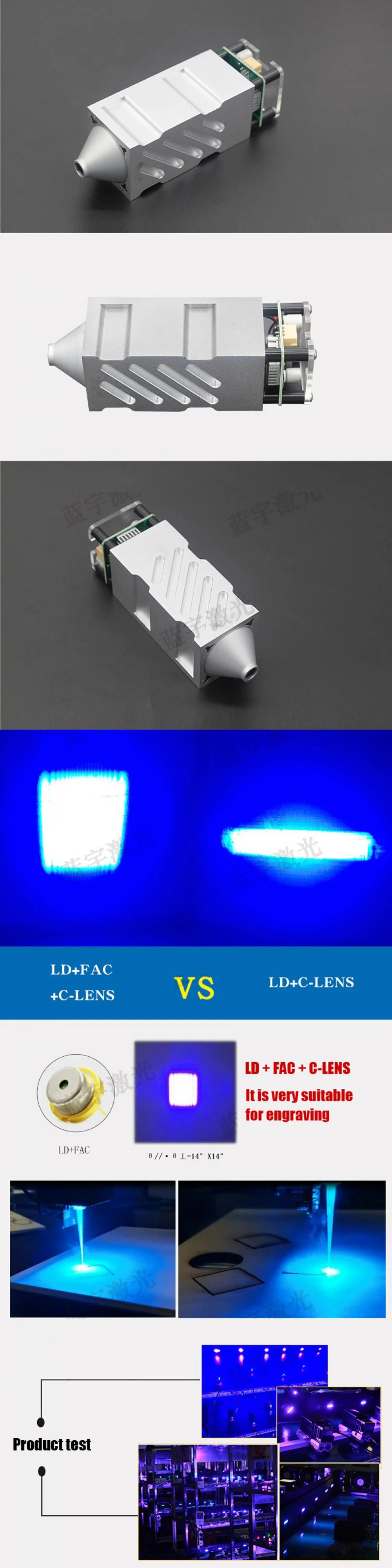

Super Powerful Laser Engraving Module

Product Reviews


Added by A. O. D. on May 11, 2026
It works with lots of materials (metal, wood, acrylic, etc.), and the engraving precision is excellent. The cooling system is well-designed, so it runs smoothly and reliably.
