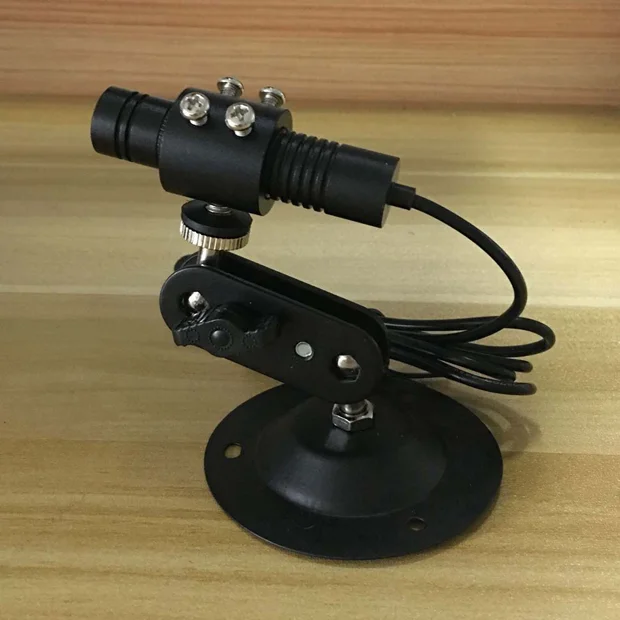

Adjustable 488 nm Laser Module Dot / Line / Cross with Power Adapter

The 488 nm wavelength laser beam is bright, clear, and uniform. It does not require preheating, with power saving, low heat generation, and can work well in the temperature range of -10℃-60℃. The focus is adjustable so that you can adjust the spot size and the length of the line (or crosshair) as needed. If you choose the spot shape, the maximum distance of the laser beam is up to 2 km at night. The product housing is aerospace aluminum-plated insulating varnish, which can fully dissipate heat, and it is shockproof and anti-static. This laser module adopts the diode imported from Germany, which has high stability and can work continuously 24 hours a day.

Specifications
• Laser light shape: dot / line / cross
• Wavelength: 488 nm
• Output power: 130-150mW
• Divergence angle: ≤ 1mRad
• Diode useful life: 8000 hours
• Housing material: aviation aluminum
• Cooling method: aluminum heat dissipation
• Focus: adjustable focus
• Circuit control: constant current
• Reverse polarity protection: available
• Operating voltage: DC = 3-4.5V
• Operating current: I < 290mA
• Warm-up time: no
• Operating temperature: -10℃~55℃
• Dimensions: Φ16 x 68 mm

Precautions:
* This product should be used in a dry and static-free environment.
* Overvoltage or overcurrent can damage the laser module.

Packing List
• 1 x 488 nm Laser Module
• 1 x Power Adapter
• 1 x Dedicated Bracket
