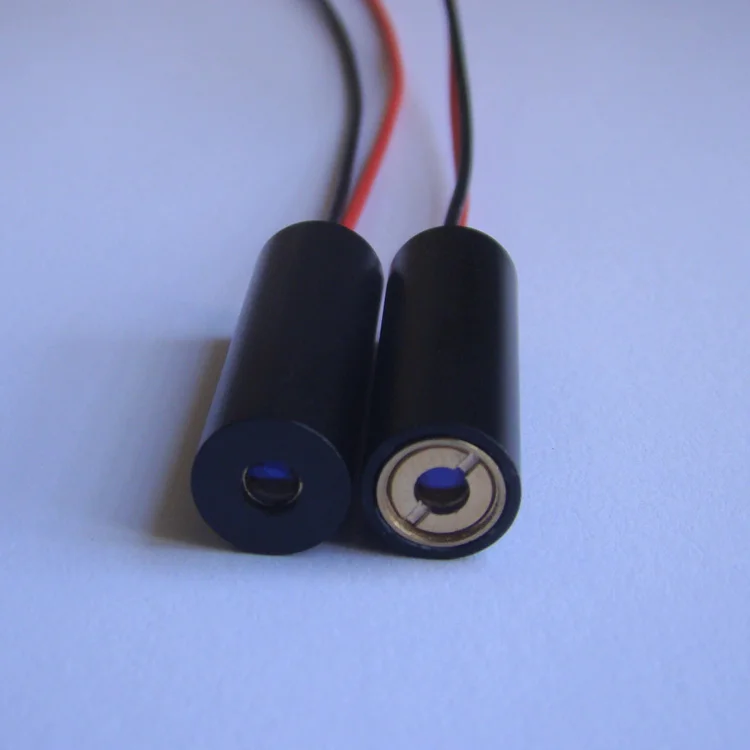

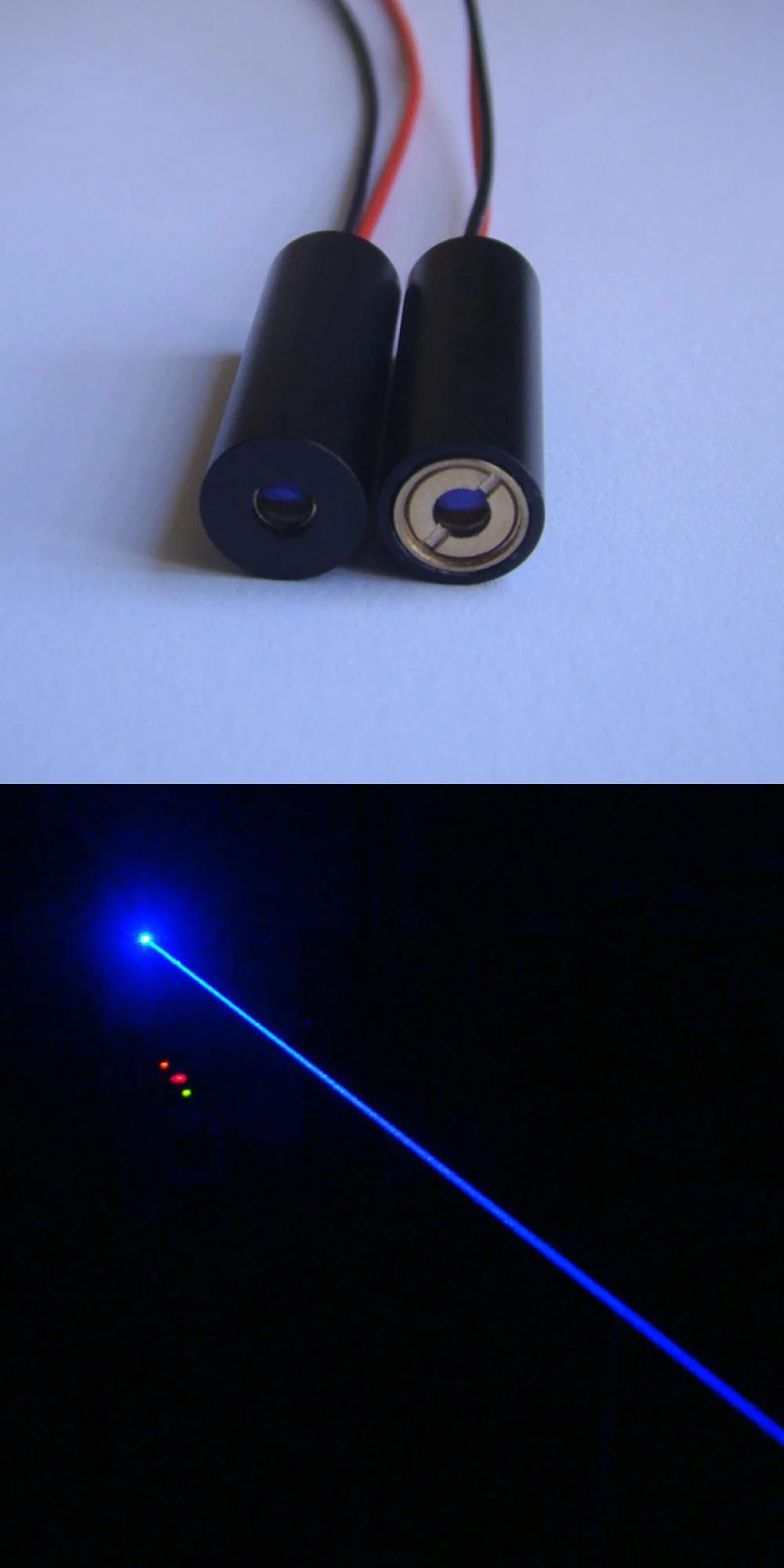

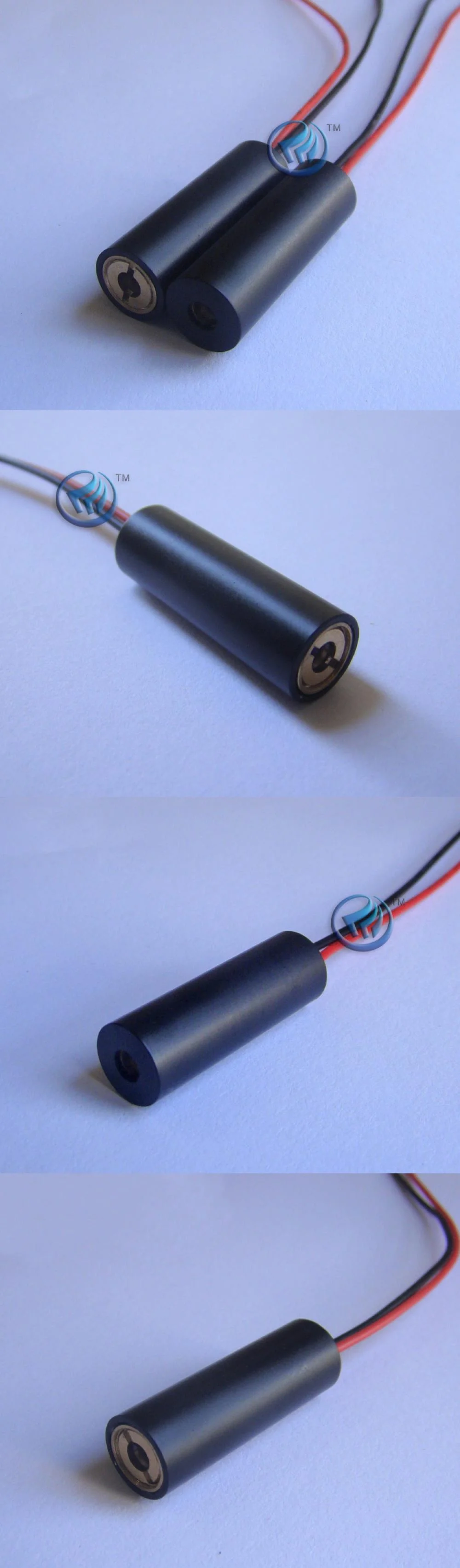

High-Precision 450nm Dot/Line/Cross Blue Laser Module 1mW-100mW

This laser module comes with high precision and high stability. It adopts the standard 450nm wavelength and optional power: 1mW / 5mW / 10mW / 30mW / 50mW / 100mW. If you are looking for a small and high-precision blue laser module, this is a perfect choice. For product customizations or other questions, don't hesitate to contact us by email. We will reply to you within 24 hours.

Buying Tips
1) The default operating voltage is 5.5V-7.0V. 12V/24V is customizable.
2) The module size can be customized: Φ9×26mm, Φ10×22mm, Φ10×30mm, Φ12×30mm, Φ12×50mm (size customization is free). We will send Φ10×30mm by default.
3) The fixed focus is customizable. If you need the fixed focus, please contact us before purchasing.

Specifications
• Wavelength: 445nm/450nm
• Laser shape: dot/line/cross
• Dimensions: Φ10 x 30 mm
• Power: 1mW/5mW/10mW/30mW/50mW/100mW
• Focus: adjustable focus
• Useful life: > 8000 hours (continuous output)
• Housing material: copper + aluminum
• Circuit control: APC line
• Operating voltage: DC= 5.0-7.0V
• Operating temperature: -10℃～＋60℃
• Storage temperature: -40℃～＋80℃
