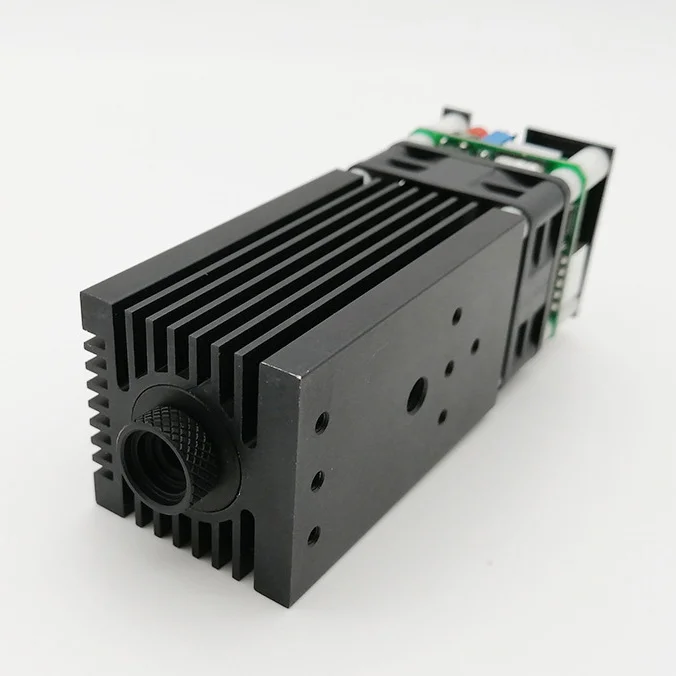

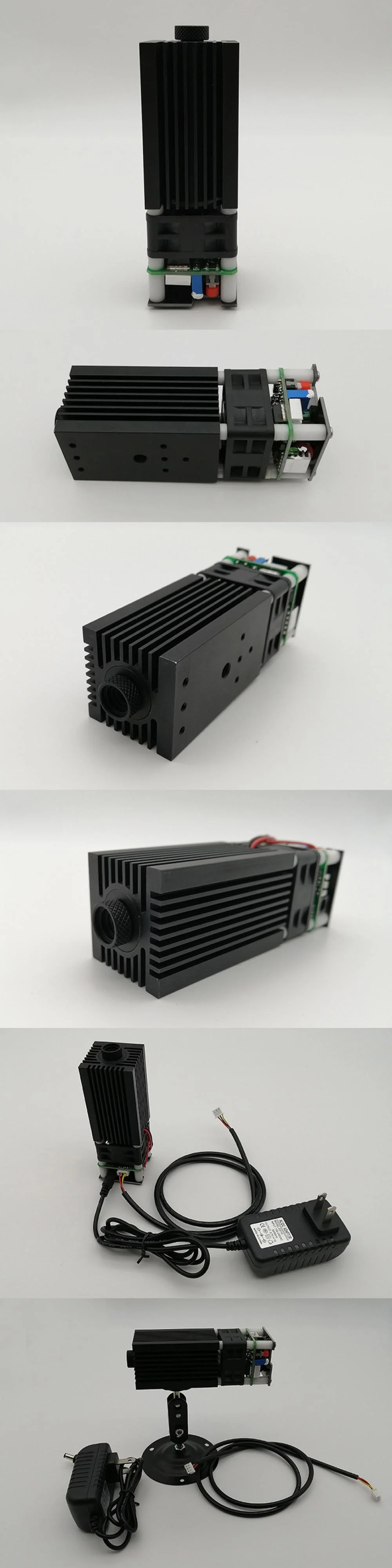

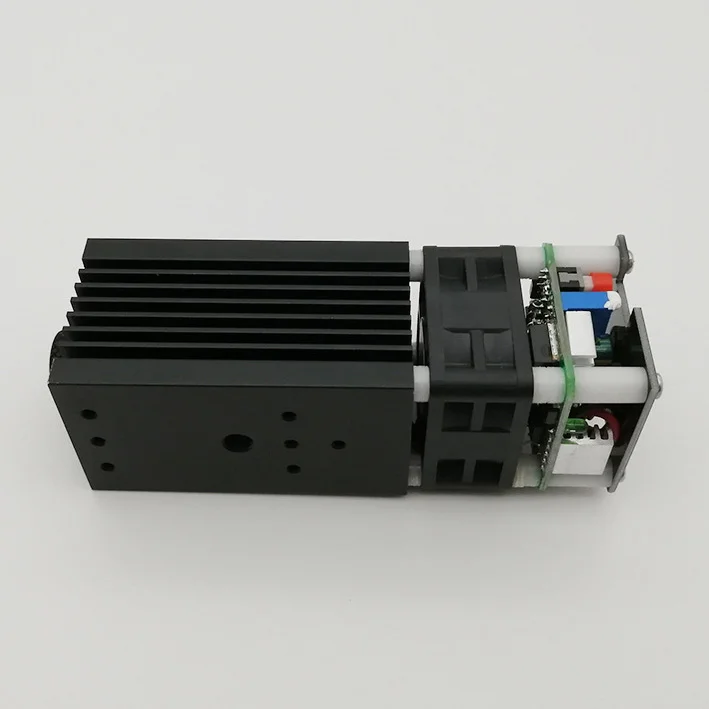

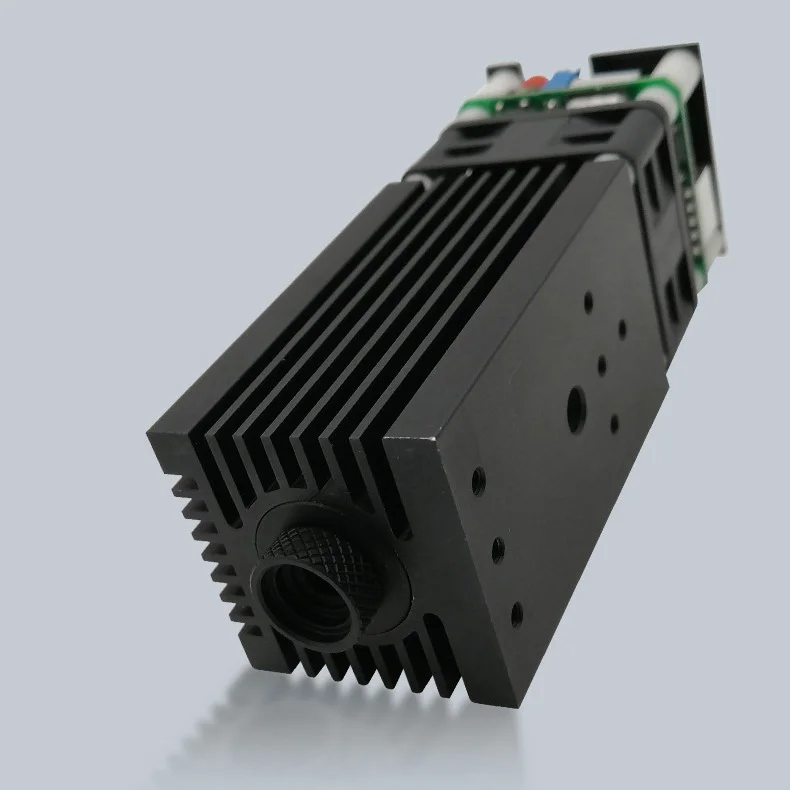

Powerful Line/Cross Purple Laser Module 405nm 500mW / 1000mW

This purple laser module has ultra-high power and stable output. It can work continuously with a cooling system, and PWM or TTL modulation is available. The visibility at 405nm wavelength is low, but stability is good. If you are looking for a powerful 405nm line/cross laser module, this will be a reliable choice. For product customizations, please contact us by e-mail. We will reply to you as soon as possible.

Package Type
1) Without accessories: only a purple laser module

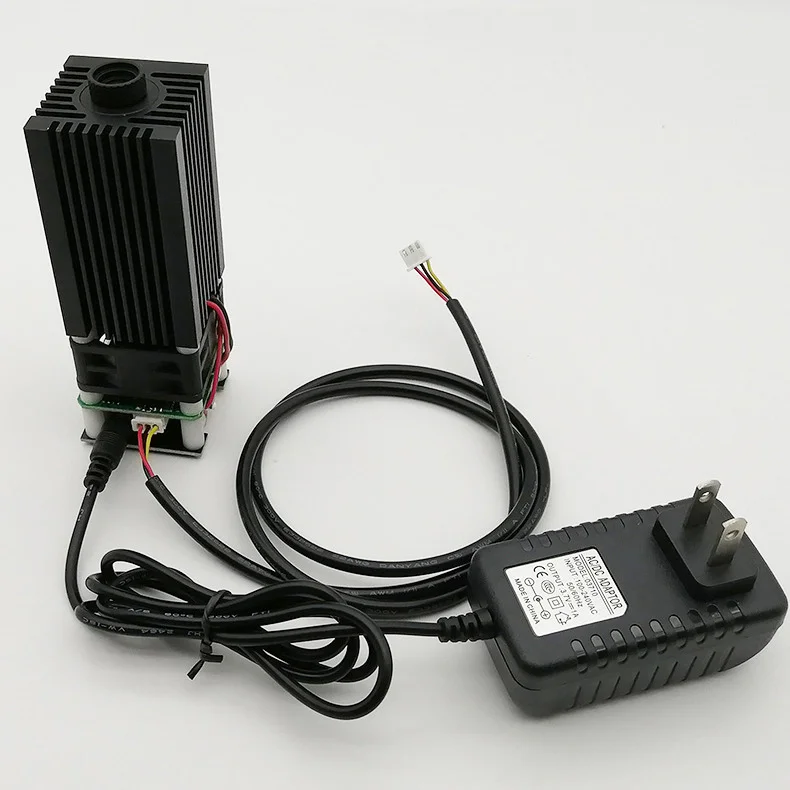

2) Standard package: purple laser module + 12V adapter

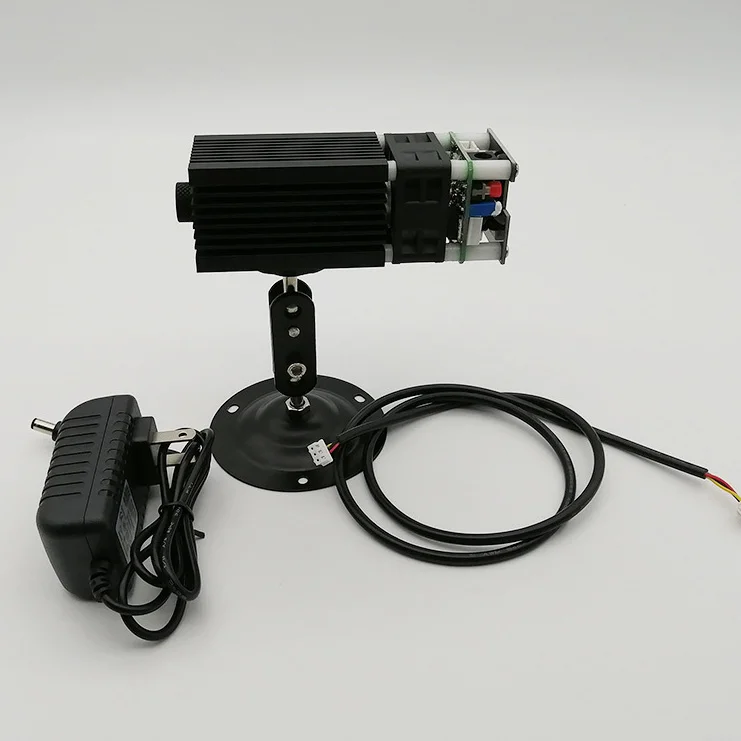

3) Professional package: purple laser module + 12V adapter + bracket

Specifications
• Laser type: line/cross
• Laser wavelength: 405nm purple
• Output power: 500mW / 1000mW
• Drive mode: ACC constant current external drive
• Focus: adjustable focus
• Heat dissipation method: forced air cooling
• Working voltage: 12V DC
• PWM/TTL modulation: available (2.54-3P)
• Housing material: aluminum
• Module material: copper
• Lens material: glass
• Working temperature: -10℃～+50℃
• Storage temperature: 0℃～+40℃
• Dimensions: 40mm x 40mm
• Net weight: 208g
