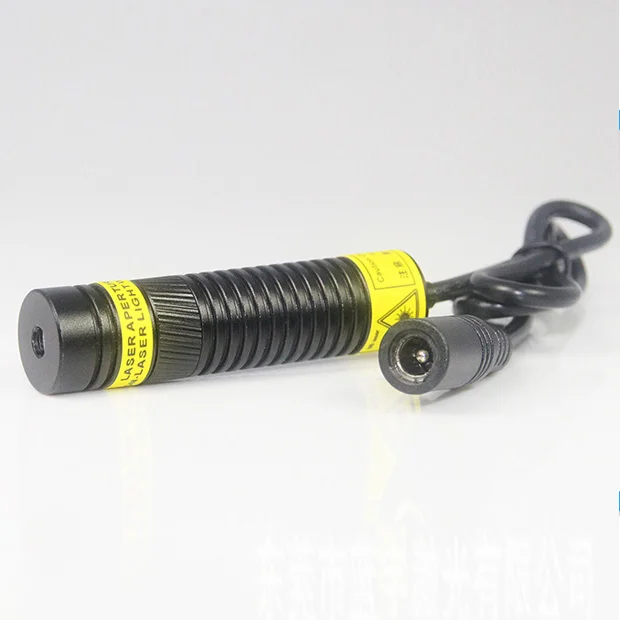

Adjustable 450nm 80mW Blue Laser Module with Mounting Bracket

This laser module adopts the diode imported from Germany. It has high stability and can work continuously 24 hours a day. Three laser types are optional: dot, line, and cross. With the intelligent driver IC board, this laser can be powered by an ultra-wide range of 2.8-5.2V (other voltages can be customized). The 450 nm wavelength laser is pure blue; the laser light is clear and bright. The angle of the line lens is optional, from 5 degrees to 120 degrees, and the length of the blue light is changeable according to your needs. The product housing comes with aerospace aluminum-plated insulating varnish, which can fully dissipate heat, shockproof and anti-static and anti-static. The DC plug wire is resistant to high temperatures and corrosion and is suitable for all-weather use. This 450nm 80mW laser module is customizable and ideal for OEM customers.

Specifications
Dimensions: 16 × 66mm (customizable)
Wavelength: 450nm ± 10nm
Output power: 80mW
Laser type: dot / line / crosshair
Input voltage: 3.7–5V
Input current: 300-350mA
Useful life: > 8000 hours
Storage temperature: -40°C ~ 80°C
Operating temperature: -10°C ~ 60°C
Wire length: 60cm
Adjustable focal length: yes
Lens angle: 90°

The line and spot can be adjusted.

Maximum distance
Normal line: > 8 meters indoors, > 4 meters outdoors.
Crosshair line: > 6 meters indoors, > 3 meters outdoors.
Dot: > 300 meters at day, > 1500 meters at night.

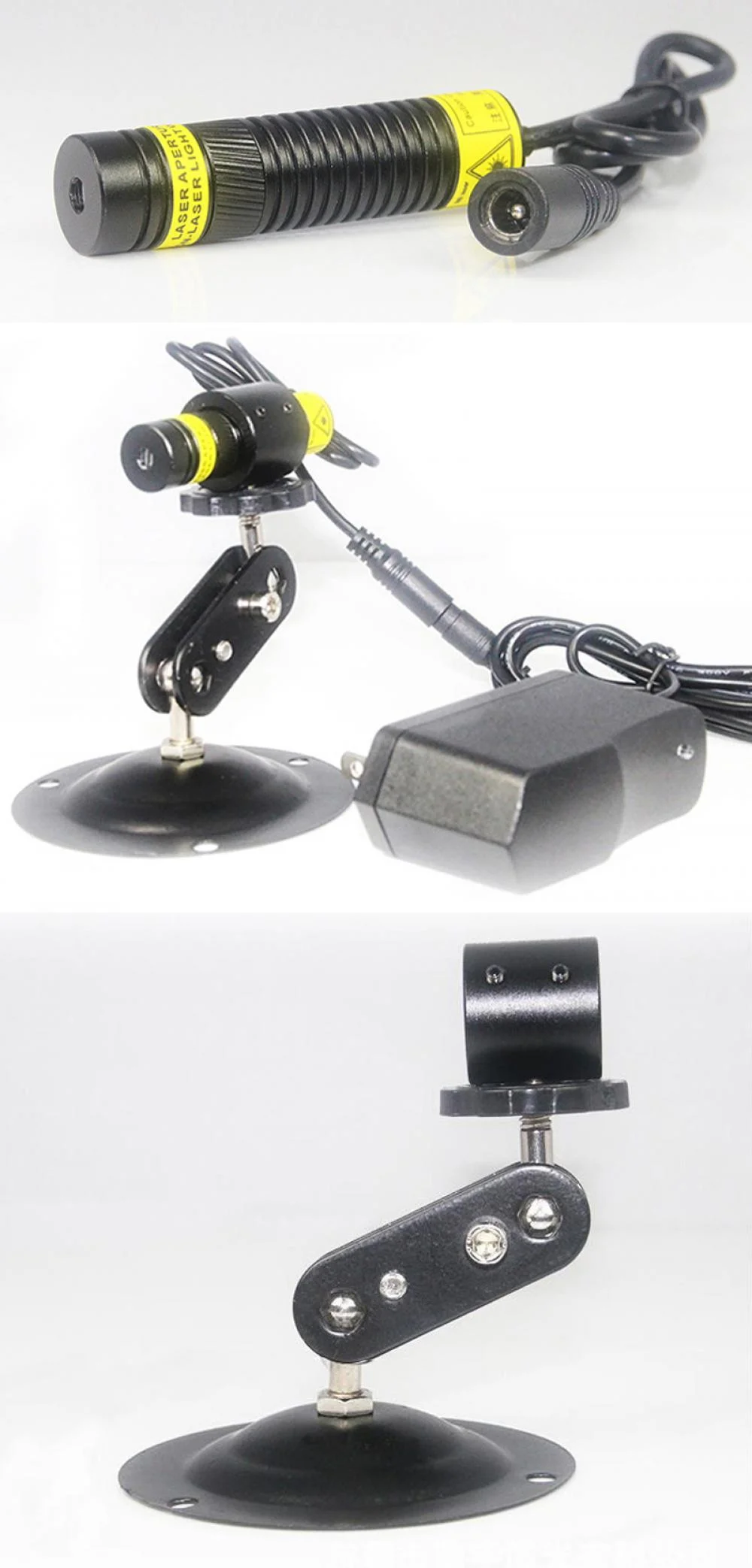

Packing List

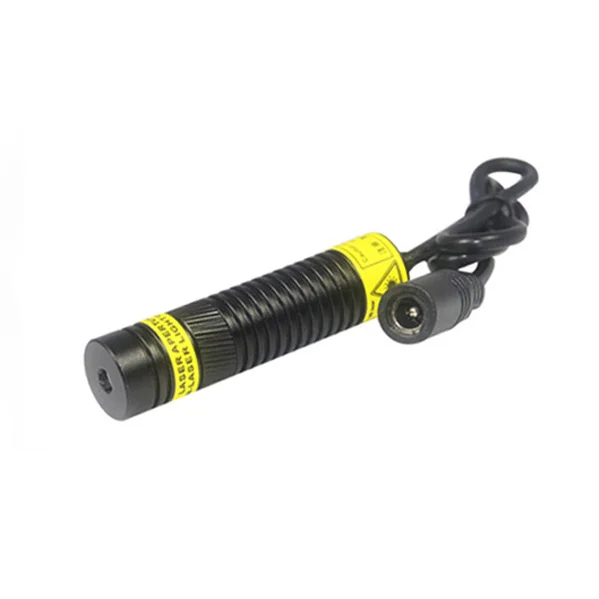

• 1 x 450nm Blue Laser Module Dot / Line / Crosshair

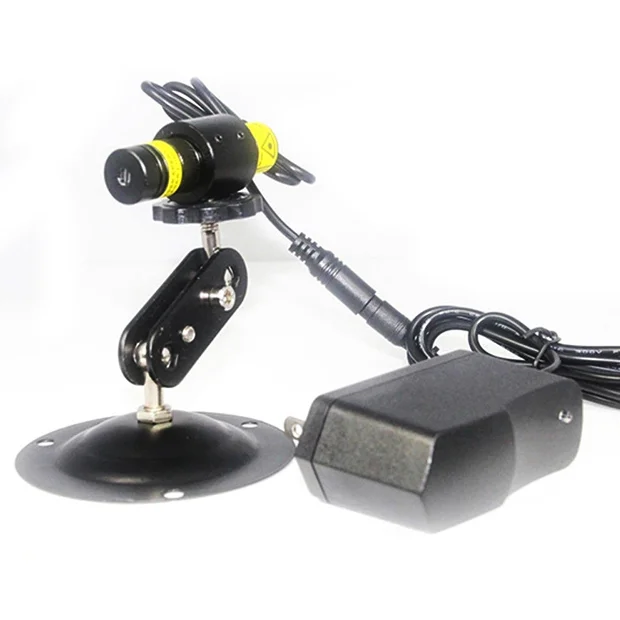

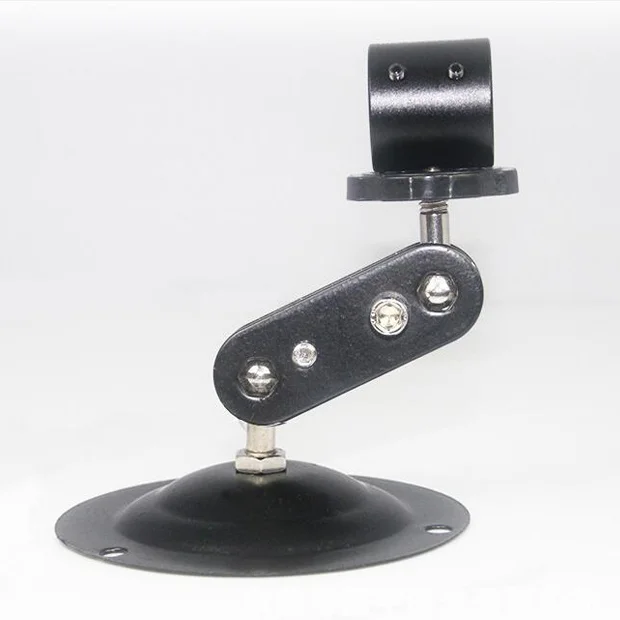

• 1 x Adjustable Mounting Bracket

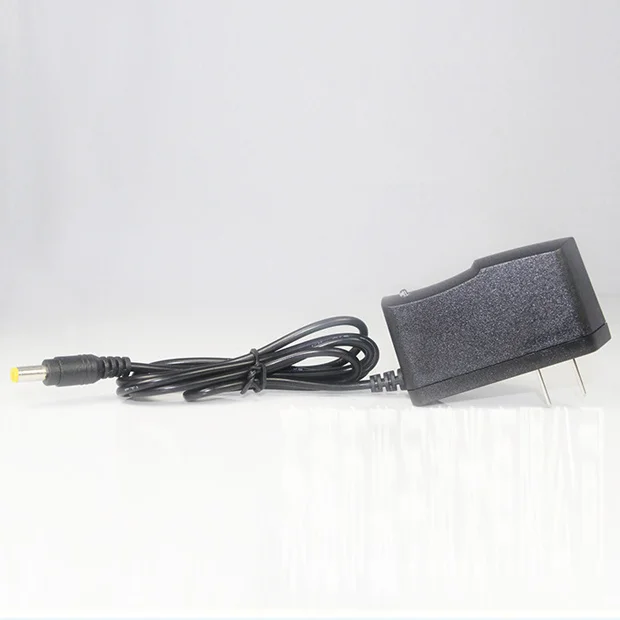

• 1 x Power Adapter
