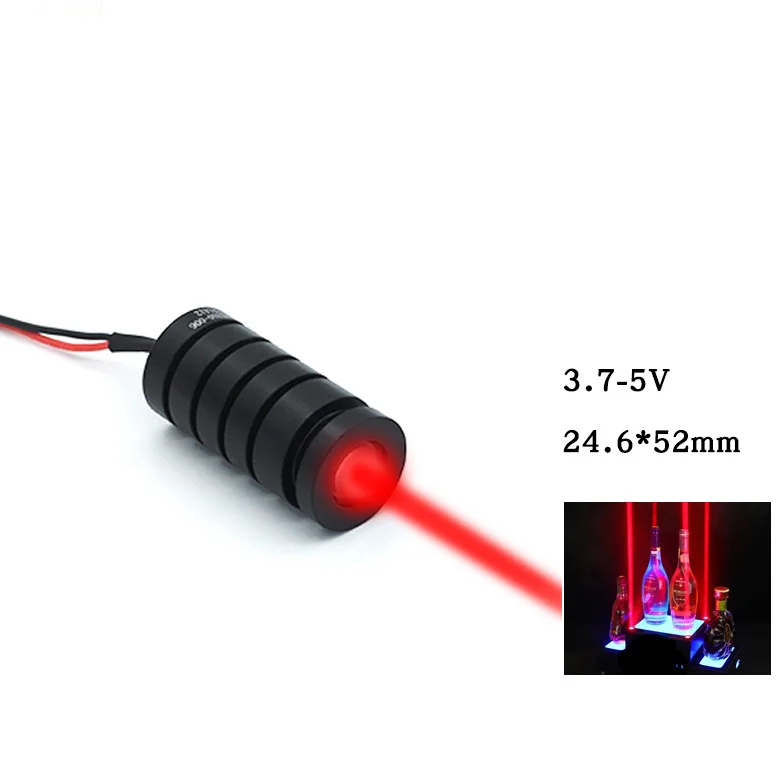

Thick Beam Red Laser Module 650nm 100mW/200mW for Wine Booth

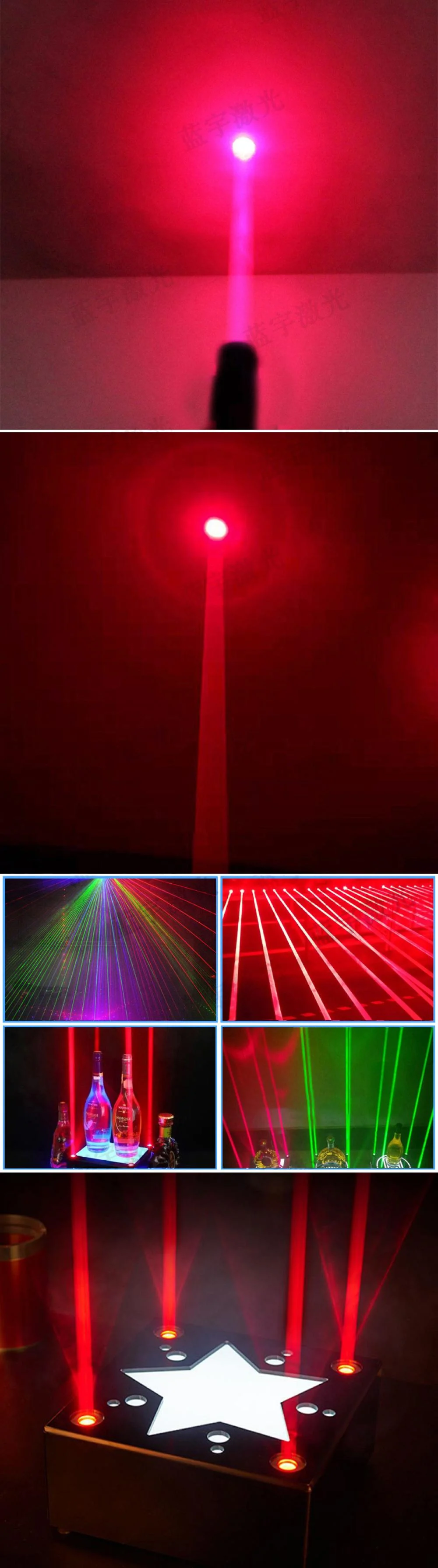

This 650nm laser module comes with a thick red beam and high brightness, which can be used for stage, wine booth, KTV, etc. Although the product size is small, it can work continuously with good heat dissipation. 100mW/200mW is optional - you can choose according to your needs. If you are looking for red laser modules for wine booths, this model will exceed your expectations!

Specifications
• Output wavelength: 650nm
• Output power: 100mW / 200mW
• Laser type: dot (thick beam)
• Spot size: 34-38mm from 8 meters
• Housing material: aluminum
• Input voltage: DC 3.7-5V
• Input current: > 500mA
• Useful life: > 8000 hours
• Working temperature: 10℃～40℃
• Storage temperature: -40℃～80℃

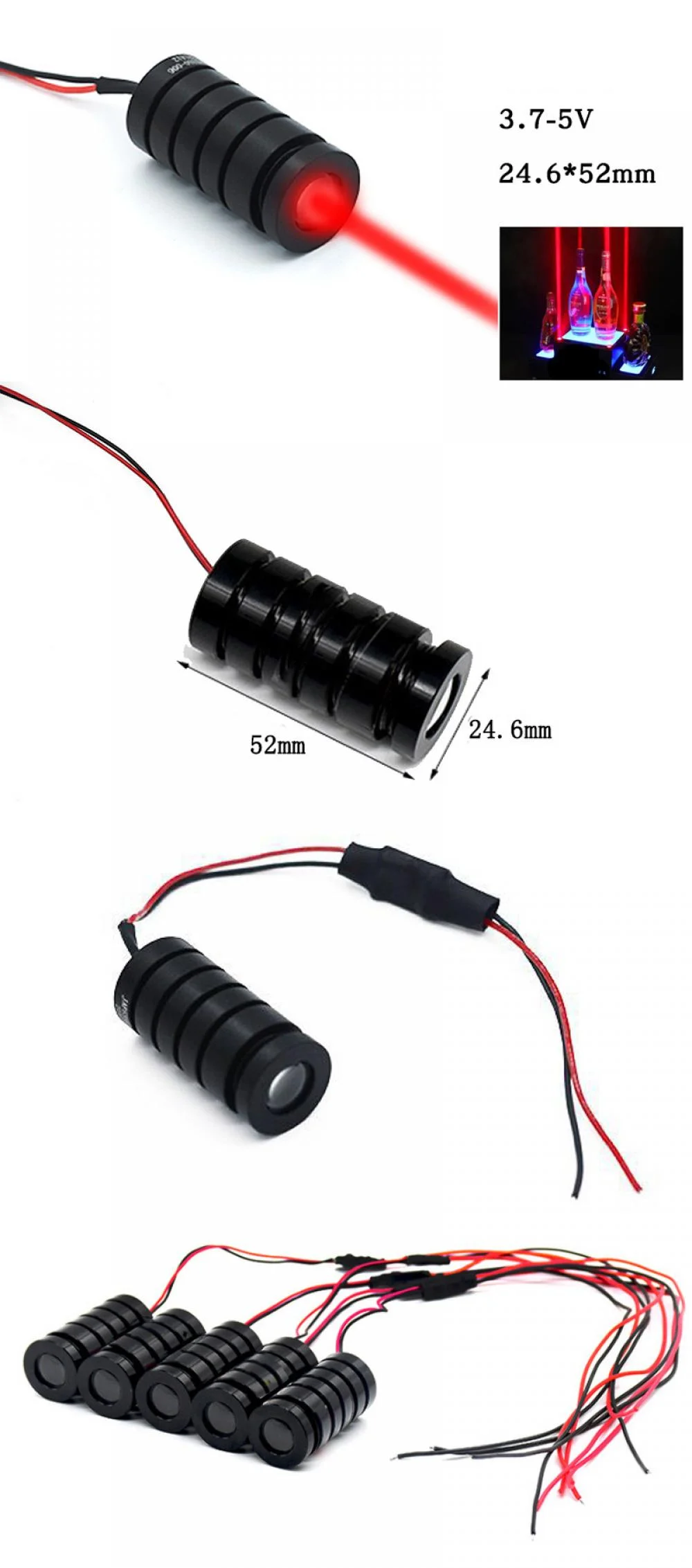

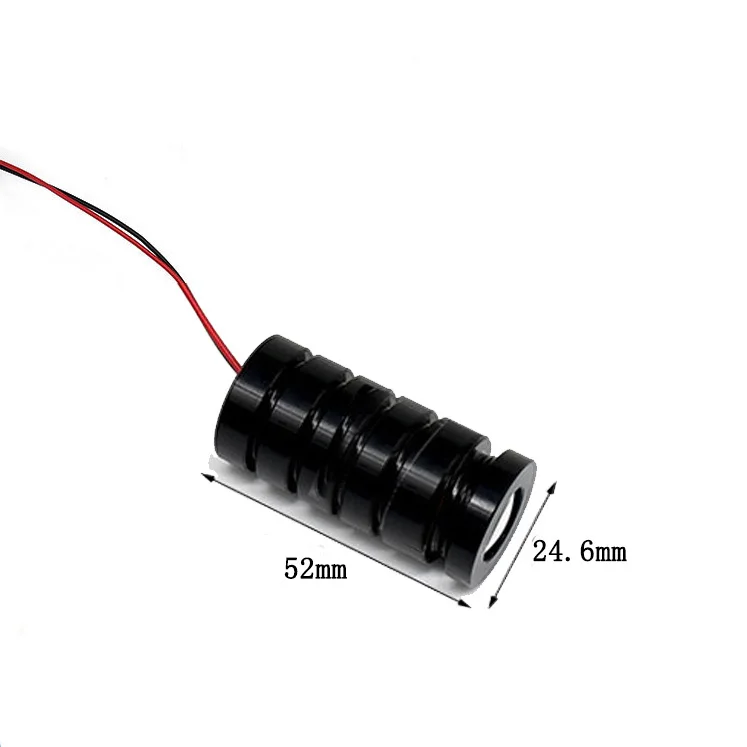

• Housing dimensions: ⌀24.6 x 52 mm
• Wire length: 120mm

CAUTIONS
1) The red laser light emitted by this laser module is likely to injure human eyes, so do not directly gaze at its end surface and wear appropriate safety glasses to prevent laser light when it is working.
2) The laser module needs an appropriate laser driver (PCB). Please set the output voltage to zero when the laser module connects with the power supply. The adjustment of current should be slowly increased or decreased to avoid damage.
3) Keep the device working or store it in a dry environment. The anti-dust grade is over one million to prevent dust inside the lens from affecting the laser dot shape.
4) Working at high temperatures will increase the threshold current, reduce conversion efficiency and speed up the device's ageing.
5) When the output power is higher than the specific operation parameter, it will accelerate the device's ageing.
6) When the operating temperature of the laser diode is over 40 degrees, please do well with heat dissipation.
7) This laser module is an electrostatic-sensitive device. Please ensure to ground yourself or wear an antistatic wrist strap before taking it. Static voltage is less than 1V.
