Product advantages

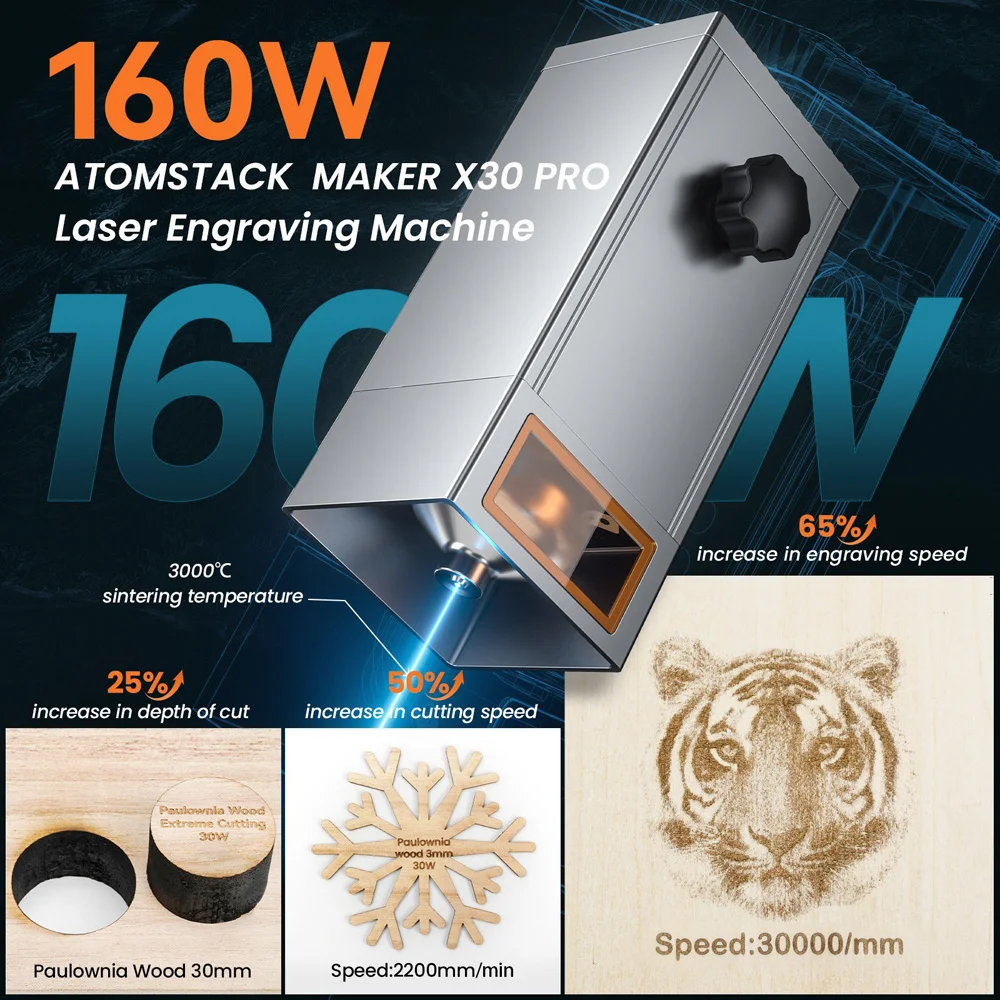

1) Engraving can be done without adjusting the focal length; the newly upgraded compressed spot increases the energy concentration by 200%, and the spot size is only 0.16mm*0.19mm, which can consider both precision engraving and high-energy cutting. At the same time, the laser power of a fixed-focus laser is more stable than that of a focusable laser.
2) The flame-retardant panoramic glass can filter 97% of the ultraviolet light, perfectly protecting your eyes. You do not need to wear laser goggles.

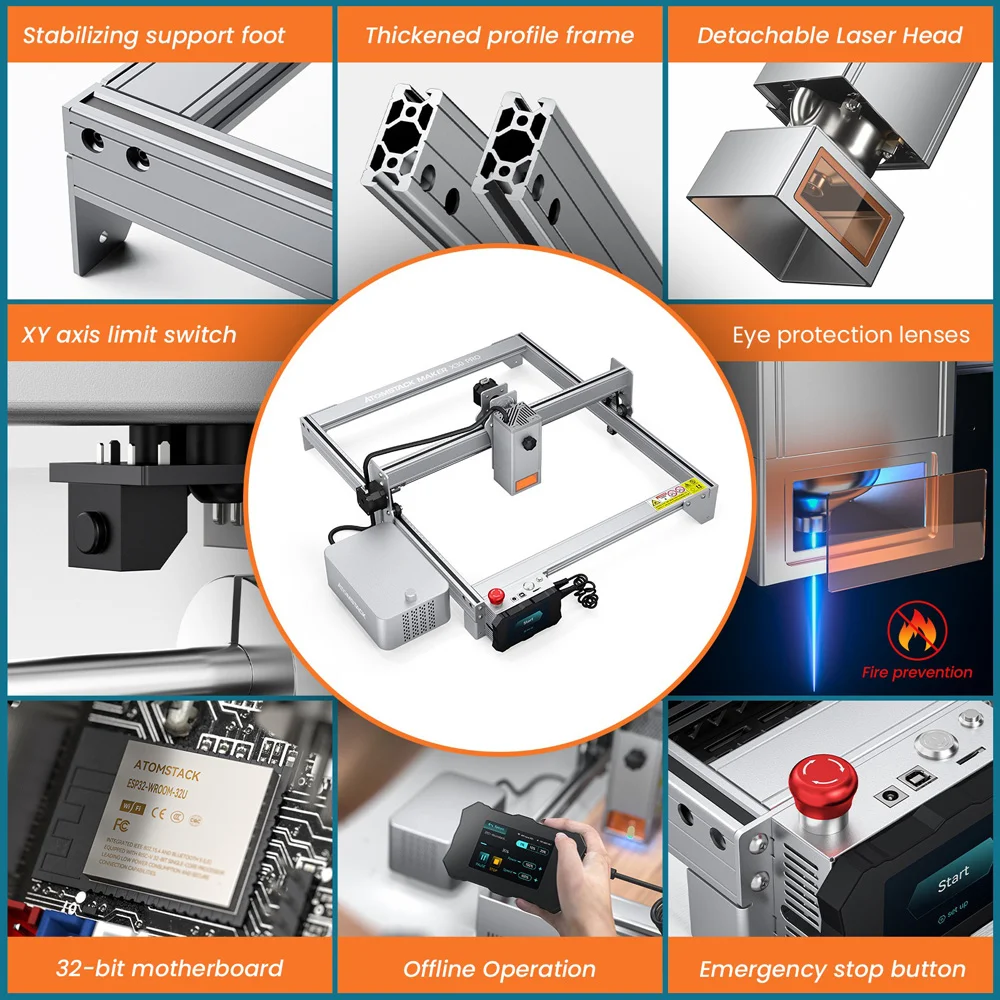

3) This laser engraver is sturdy and easy to install: the all-aluminum alloy anodized structure design makes the machine more durable and improves engraving accuracy. The portable all-metal structure, 85% pre-assembly, can be installed in 5 minutes.
4) Newly upgraded ultra-fine compression laser: the laser adopts 4-fold lens group collimation and focus technology, the optical power is 4.5~5.5W, and the laser focus area is reduced to 0.02mm².

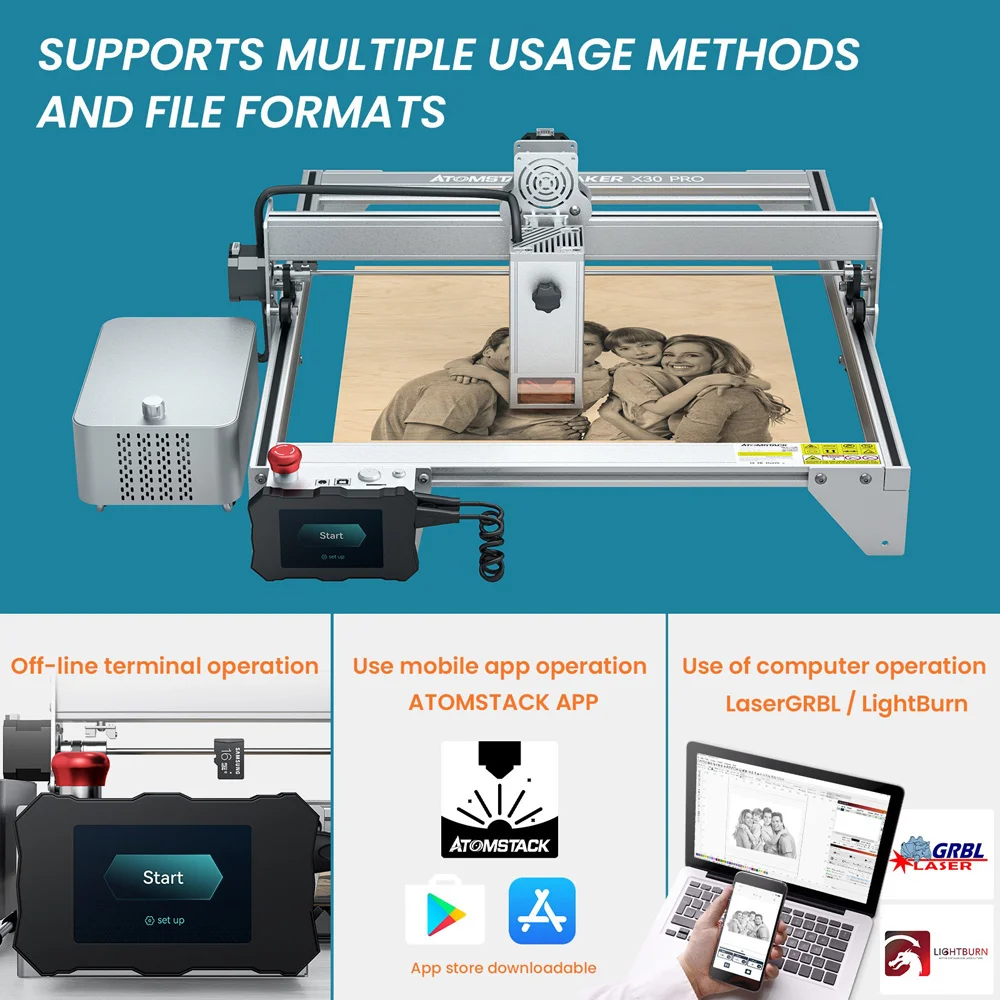

5) The machine can be compatible with various mature engraving software, such as LaserGRBL and LightBurn. It supports Win XP / Win 7 / Win 8 / XP / Win 10 / Mac OS. The engraving file format supports NC, BMP, JPG, PNG, DXF, etc.
6) Emergency stop button: If there is an accident, stop the machine at any time so that the engraving is safe.
Specifications
• Machine power: 160W
• Electric power: 120W
• Laser power: 33-36W
• Laser wavelength: 455±5nm
• Engraving precision: 0.01mm
• Engraving area: 410mm x 400mm
• Engraving speed: 3000mm/min
• Focusing method: fixed focus laser
• Operating software: LaserGRBL, LightBurn
• Operating system: Win XP / Win 7 / Win 8 / XP / Win 10 / Win 11 / Mac
• Supported graphic formats: DXF, BMP, DXP, JPG
• Data transmission: USB connection, TF card
• Emergency stop button: available
• Limiter: available
• Reset switch: available
• Power input: 100-240V AC, 50/60HZ
• Power output: 24V 5A
• Certification: CE FCC RoHS FDA PSE
• Size (LxWxH): 60 x 35 x 13 cm
• Weight (kg): 12 kg
• Engraving materials: acrylic, leather, metal, paper, plastic, plywood, rubber, wood

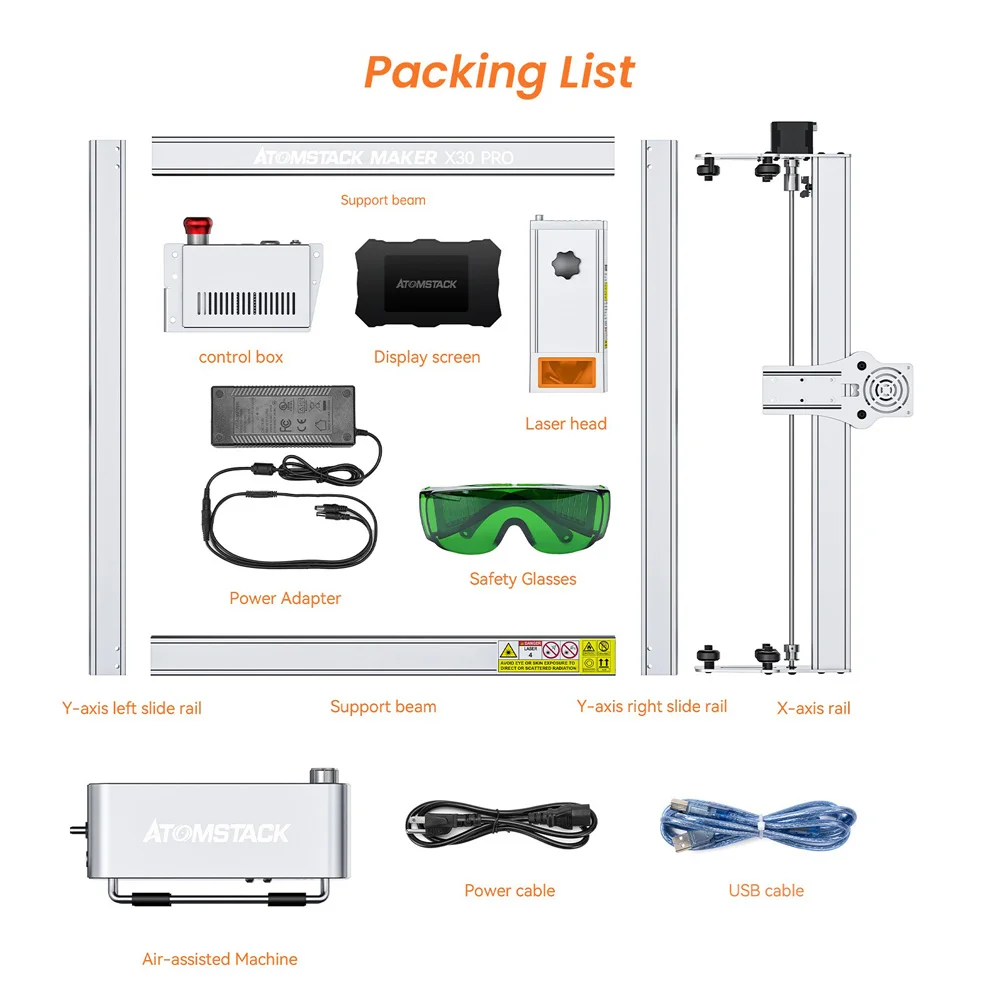

Packing list
1 x Installation screws
1 x Kit
4 x Foot pad foam
1 x Focusing sheet
3 x Acrylic sheet
3 x Wooden sheet
10 x Wire ties
1 x Desiccant
1 x Brush
1 x Dustless cloth
1 x Card reader
1 x TF card
1 x Power adapter
1 x Manual
1 x Data cable
1 x Touch screen assembly
1 x HDMI cable
1 x Laser module
1 x X-axis assembly
1 x Y-axis left profile
1 x Y-axis right profile
1 x Base upper profile
1 x Bottom profile
3 x Foot bracket |
