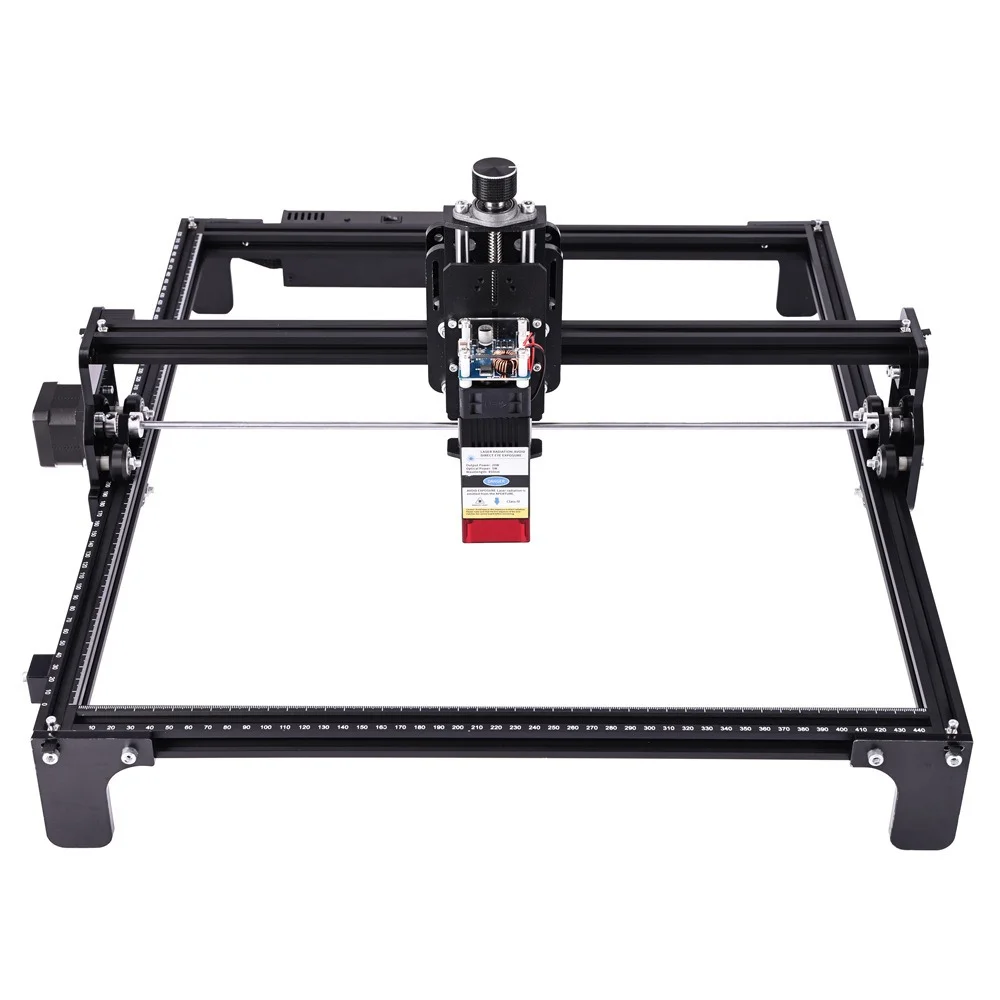

20W/40W Laser
This laser engraver has a high-power 20W/40W laser module (electrical power). It comes with a compressed laser spot and stable output.
Auto & Fast Focus
The fixed focus knob is available, so this engraver can autofocus and complete the engraving work quickly.
High Precision
This engraving machine has high sensitivity and high precision. The laser module adopts the technology of compressing the light spot. The highest accuracy is about 0.01mm.
Easy to Install
It is easy to install, use and DIY. We pre-install some parts, and installation instructions are available. The installation process takes less than 30 minutes.

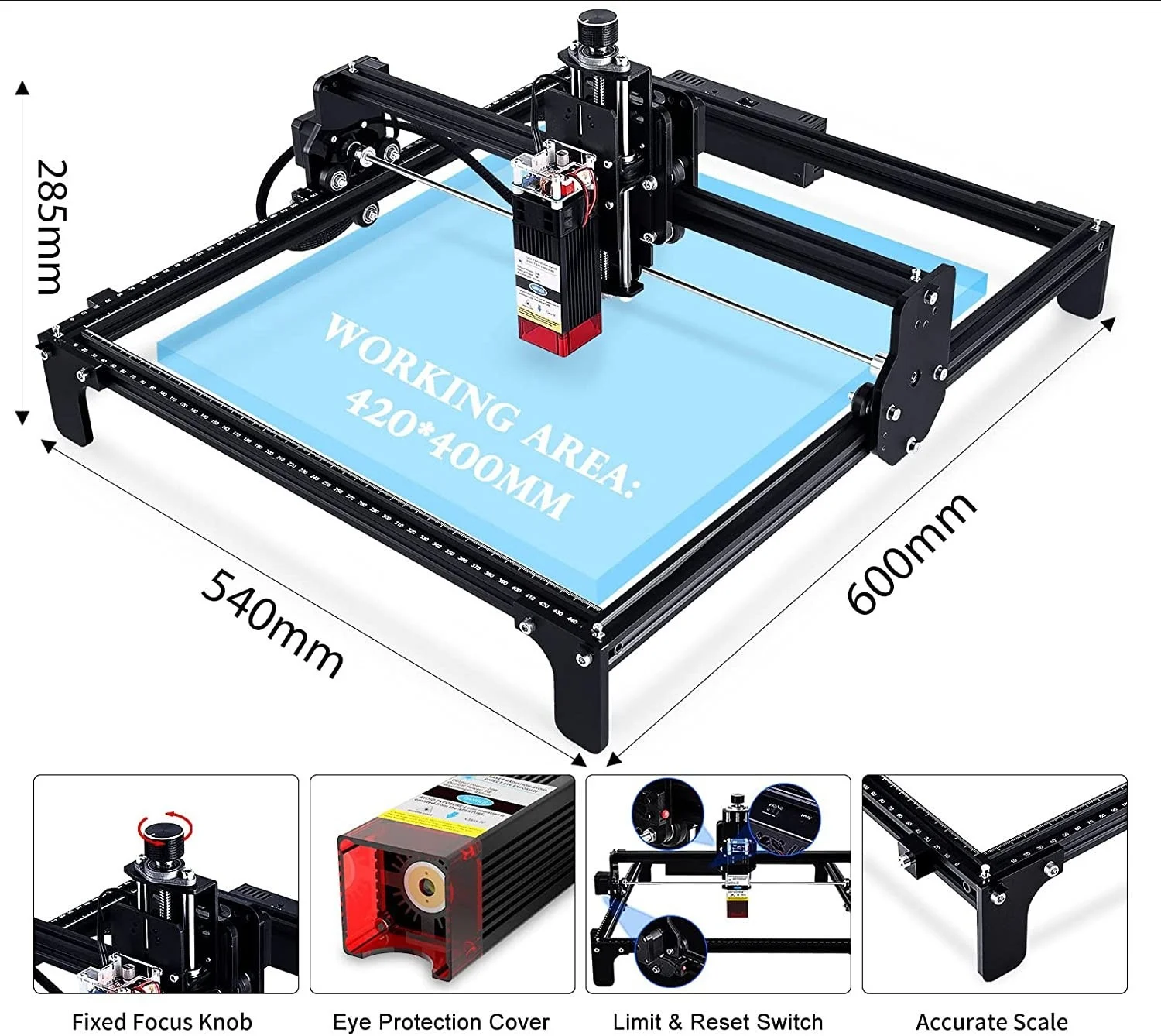

Large Engraving Area
The engraving area of 42x40cm gives you enough space for engraving! The frame is sturdy and durable, ensuring durability and stability.

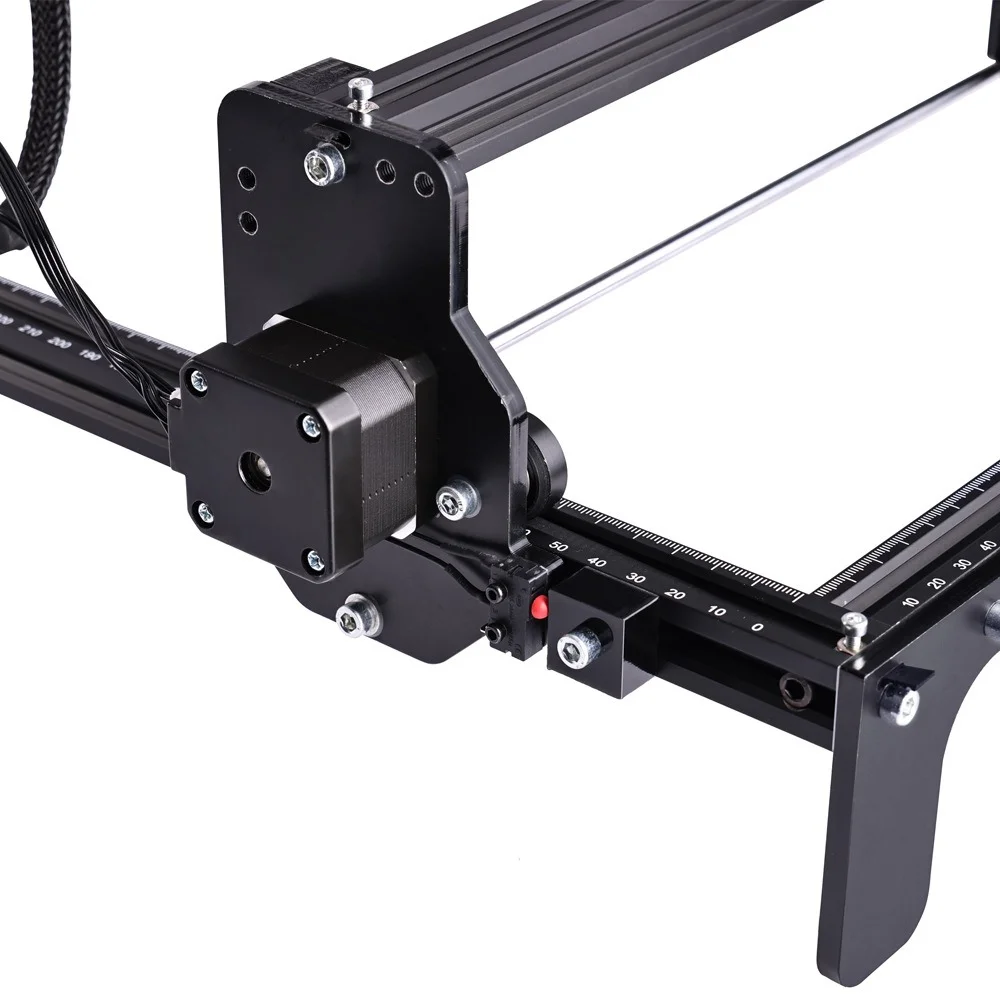

Double Limit Switch
The dual limit switches ensure the safe operation of the machine, effectively increasing its durability and stability.

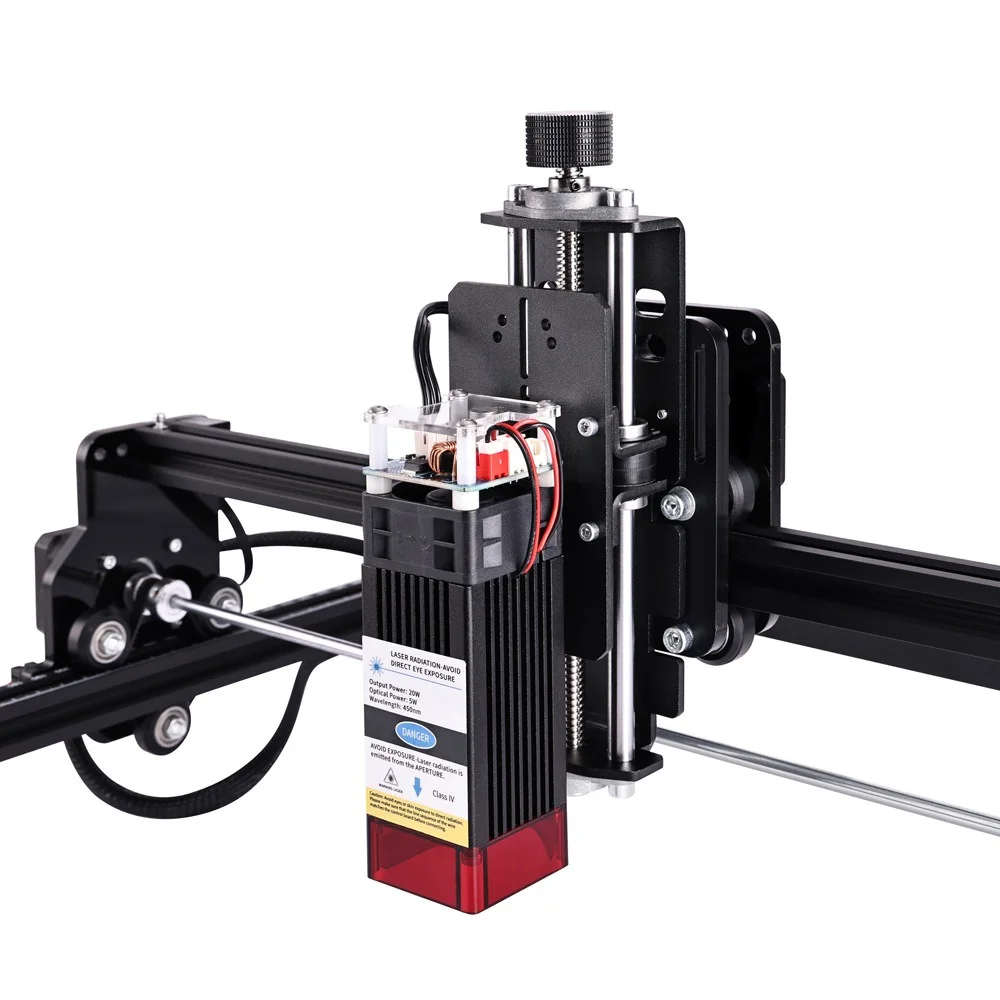

Eye Protection Cover
The laser module has an eye protection design, increasing safety during engraving. At the same time, we also give you a pair of laser safety goggles for free.
Specifications
• Optical power: 5W / 10W
• Electric Power: 20W / 40W
• Power Supply: 24V 2A
• Laser Wavelength: 445 ± 5nm
• Engraving Accuracy: 0.01mm
• Engraving Area: 420×400mm
• Software Support: GRBL (free, for Win XP / Win 7 / Win 8 / XP / Win 10), LightBurn (paid software, for Mac and Linux)
• Input File Format: NC, BMP, JPG, PNG, SVG, TAP, GIF
• Operating System: Windows XP/7/8/10, Mac systems (LightBurn only)
• Engraving Objects: Painted metal, glass, stainless steel, ceramic, acrylic, white paper, all wood, cardboard, plastic, leather, PCB board, alumina, non-reflective coated, etc
• Cutting Objects: Plastic sheet, cardboard, non-woven fabric, light wood, acrylic material, high-density can easily cut 6mm black acrylic and thick wood
• Stepping Motor: 42×48mm
• Interface: 3pin(12V, GND, PWM)
• Product Size: 600×540×285mm
• Light Point: 0.12 × 0.12 mm
• Milling Speed: 0~10000mm/min

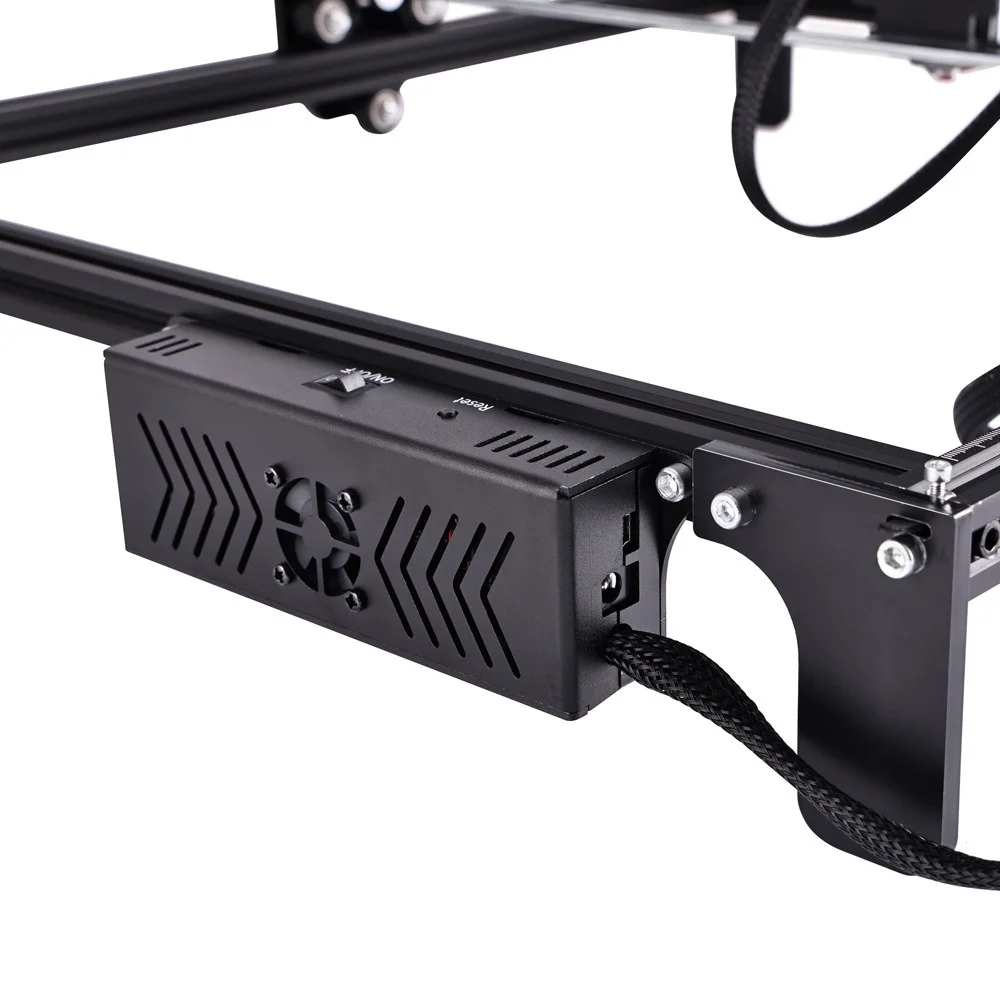

Offline controller module:
Without an offline controller module: You need to connect the laser engraving machine to the computer to work
With an offline controller module: The laser engraving machine can work directly. No need to connect to a computer.
Notes
1) This laser engraving machine cannot replace the laser module (the module and other connecting parts are integrated).
2) 20W refers to electrical power (optical power is about 5000mW).
3) The 20W or 40W marked on the market is electrical power, not optical power!
4) We are the manufacturer, so please don't trust the same pictures from other companies. That's plagiarism!
5) Our engraving machine has the compressed laser spot, the best lens, complete functions, and the best structural materials. Please don't compare our lasers with other cheap products! Many low-quality products on the market have no compressed spots or structural optimizations.
Package Contents
• 1 x 2-Axis 20W/40W Laser Engraver
• 1 x Power Adapter
• 1 x Power Cord
• 1 x Screwdriver
• 6 x Rolled Belts
• 4 x Small Wood
• 1 x USB Cable
• 3 x Support Legs
• 1 x Fixed Focus Plate
• 1 x USB Flash Drive
• 2 x Metal Coins
• 1 x English Manual |
