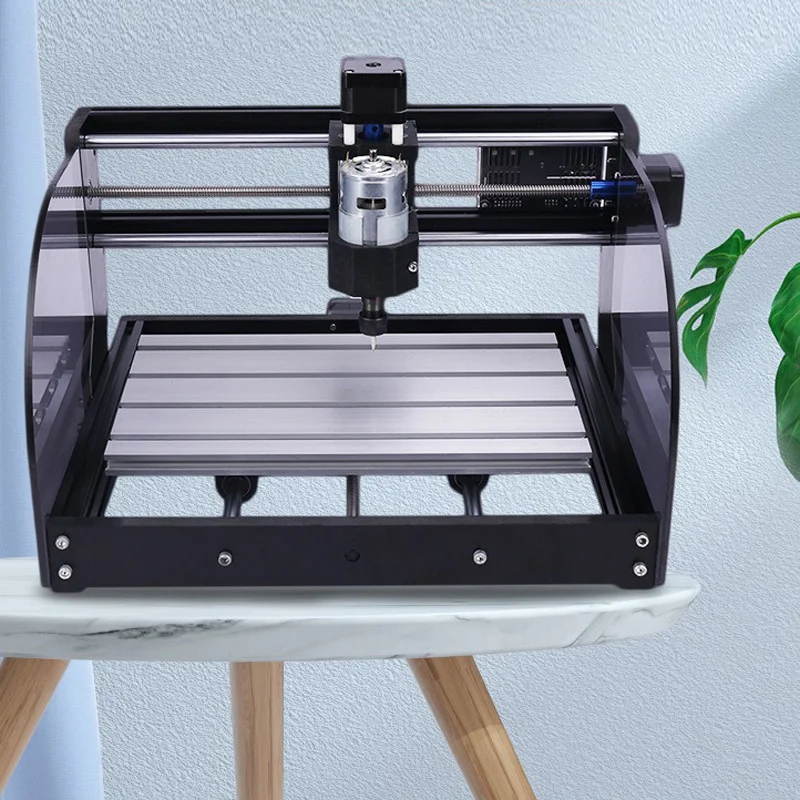

Easy and fast installation
This CNC laser engraving machine is X/Y axis parts pre-assembled. It will take around 30 minutes to finish assembling. It will save you time and reduce assembly difficulty tremendously.
Limit switches
This package includes 6pcs limit switches ( X-Axis 2pcs, Y-Axis 2pcs, Z-Axis 2pcs).

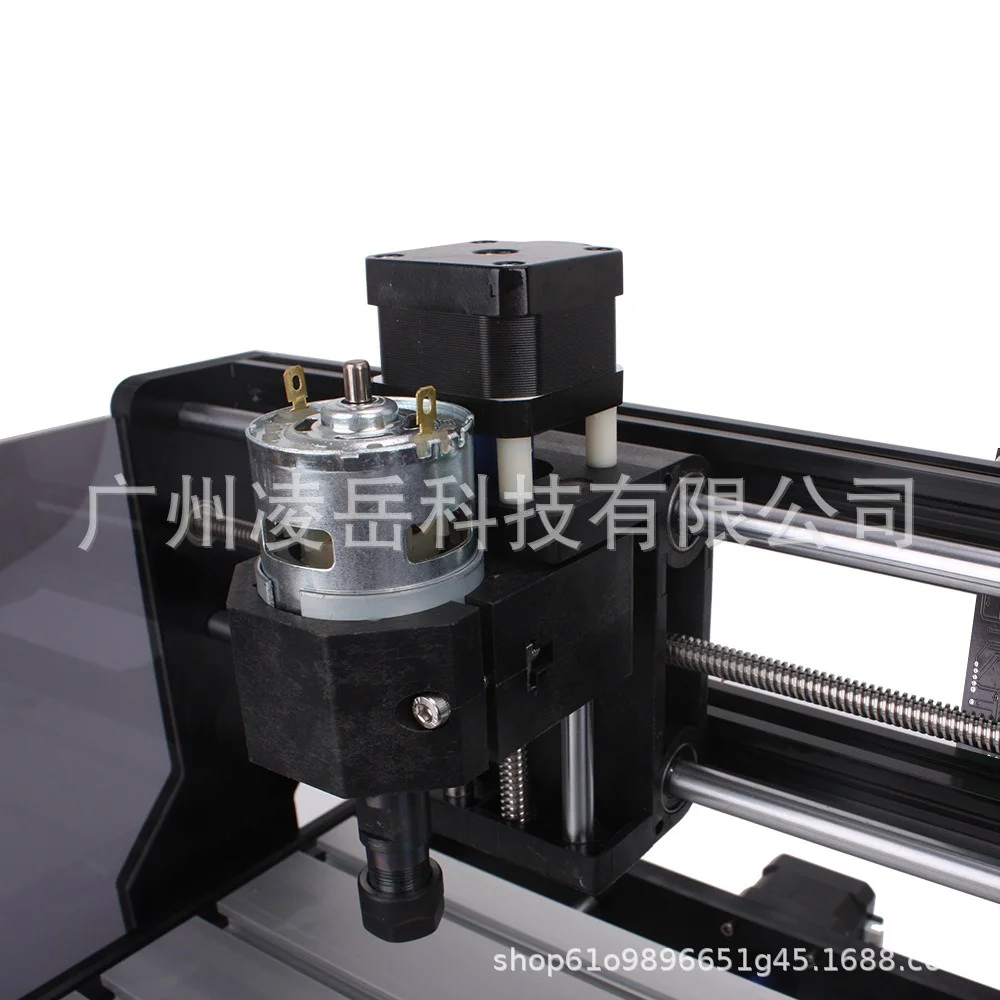

Powerful and low-noise motor
Powerful 775 Motor DC: 12-24V. Speed: 10000/min. You can do more engraving and drilling work with it. It also produces less noise during engraving work.
Safety partition
It includes an acrylic partition to reduce engraving fragments from getting all over your table and make it easier to observe your current work.
Hardness and durable material
This 3-Axis laser engraving machine has a 10-12mm aluminum frame body and ABS Z-Axis component materials, featuring corrosion resistance and high stability.
Emergency stop button
The emergency stop button can make the CNC engraving machine stop working when you meet any accident or engraving mistake.
Specifications

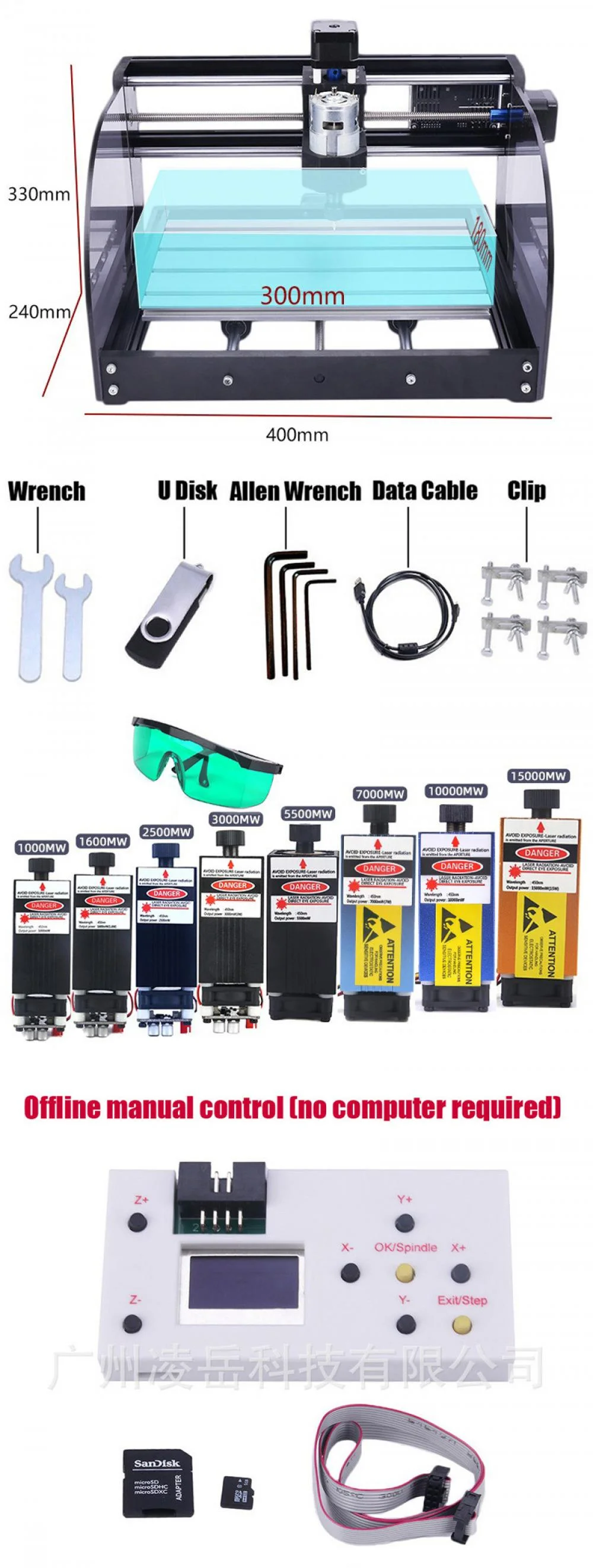

• Effective Engraving Area: 300x180x45 mm
• Dimensions: 400x330x240 mm
• Material: aluminum + PA6 Nylon
• Spindle Parameters: 775 spindle motor (12-36V) 24V:10000r/min
• Mounting Hole Diameter: M4 screw hole; Mounting hole pitch: about 29mm
• Spindle PWM Speed: 0-100% adjustable
• Drill Clamp Parameters: ER11-3.175mm ( can be replaced 0-7mm )
• Step Motor: Nema17 stepper motor 1.3A, 0.25N.m
• Processing Accuracy: about 0.2mm
• Drill Bits: Tip 0.1 mm, Diameter 3.175 mm 15 degrees(5pcs), 30 degrees(5pcs)
• Supported OS: Windows XP / Win7 / Win8 / Win10 / Linux
• Control Software: GRBL control
• Power Supply: 24V 5.6A power adapter (input voltage 110-240V)
• Machinable Materials: wood, plastic, soft metal, PCB, PVC, carbon fiber, acrylic, density board, etc
Offline controller module:
Without an offline controller module: You need to connect the laser engraving machine to the computer to work.
With an offline controller module: The laser engraving machine can work directly. No need to connect to a computer.

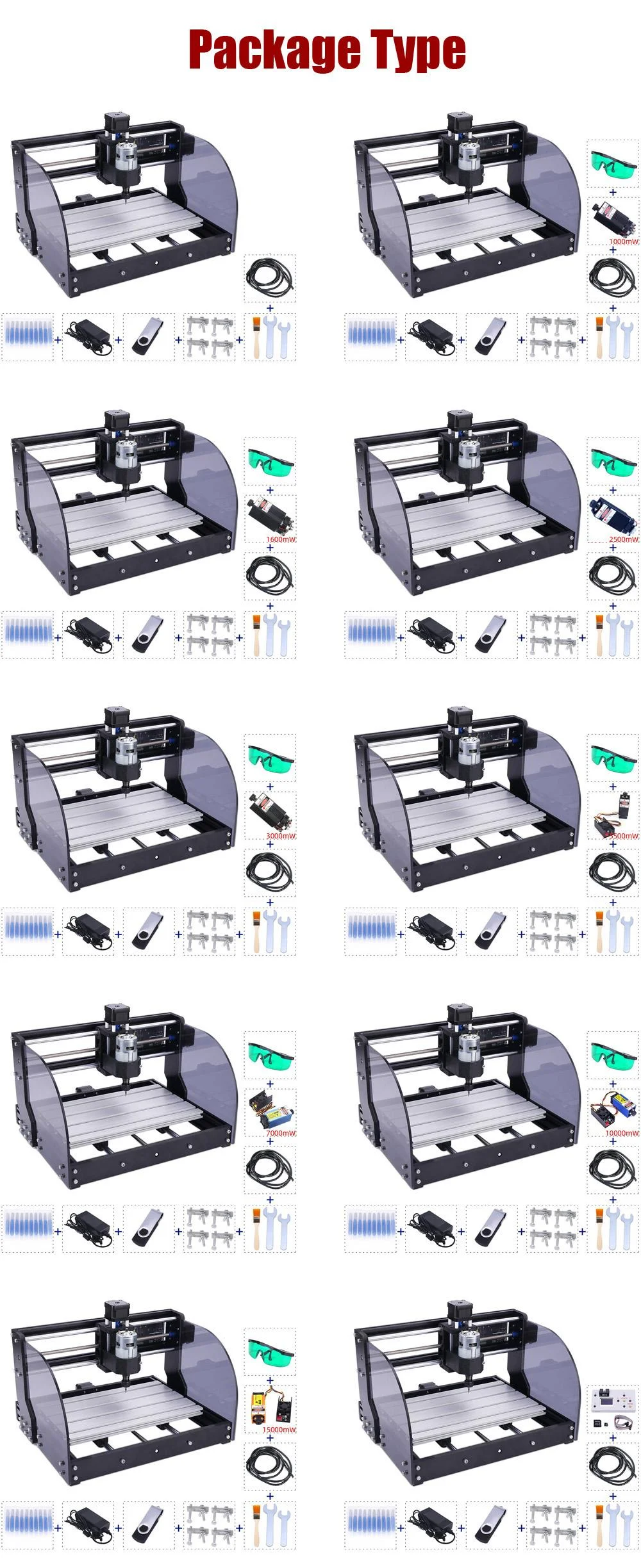

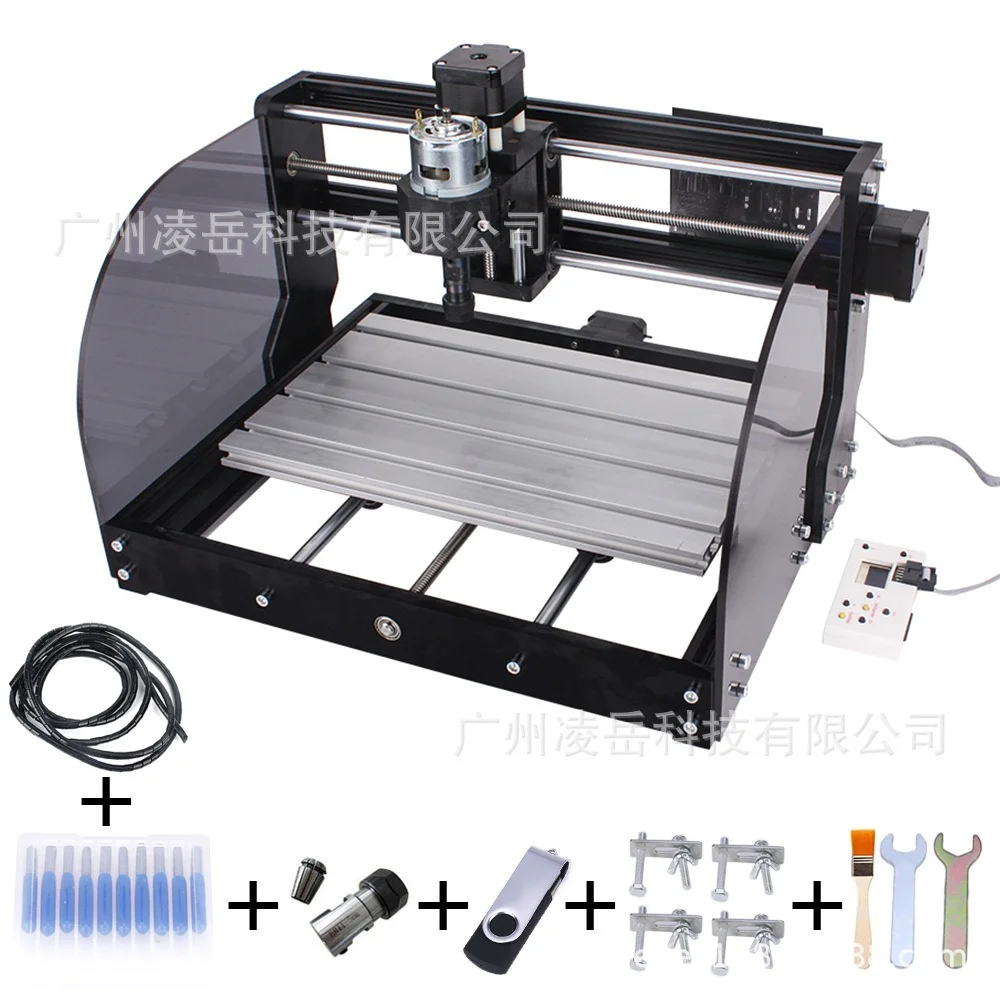

Package Contents

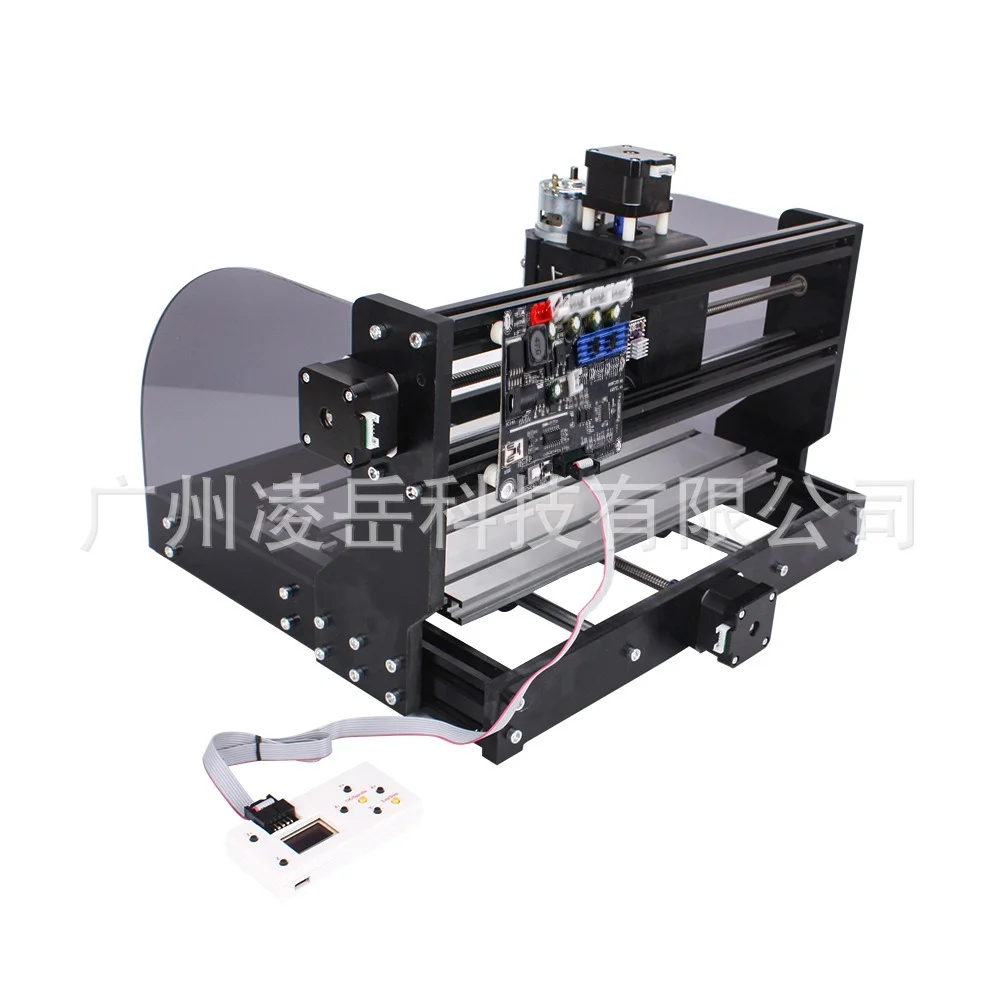

• 1 x 3-axis DIY CNC laser engraving machine
• 1 x 775 spindle motor / ER11 collet
• 1 x Laser module + safety goggles (optional)
• 1 x Offline hand controller (optional)
• 1 x USB cable
• 10 x 20°0.1mm drill bits
• 1 x GRBL 1.1F control board
• 1 x Set of Allen wrench
• 4 x Plate clamps
• 1 x Power Adapter
• 1 x U Disk
• 1 x User Manual |
