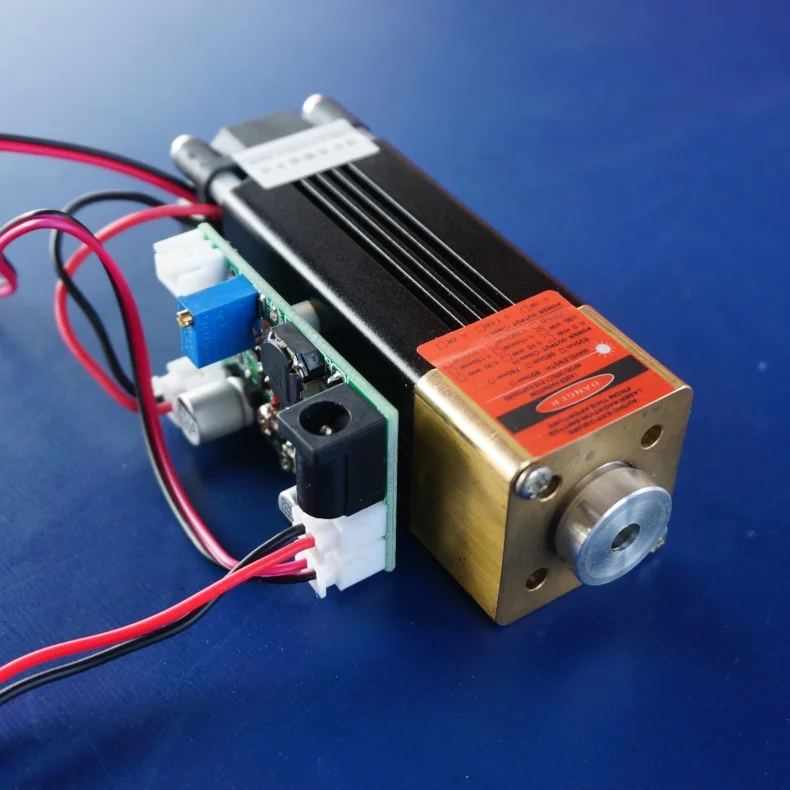

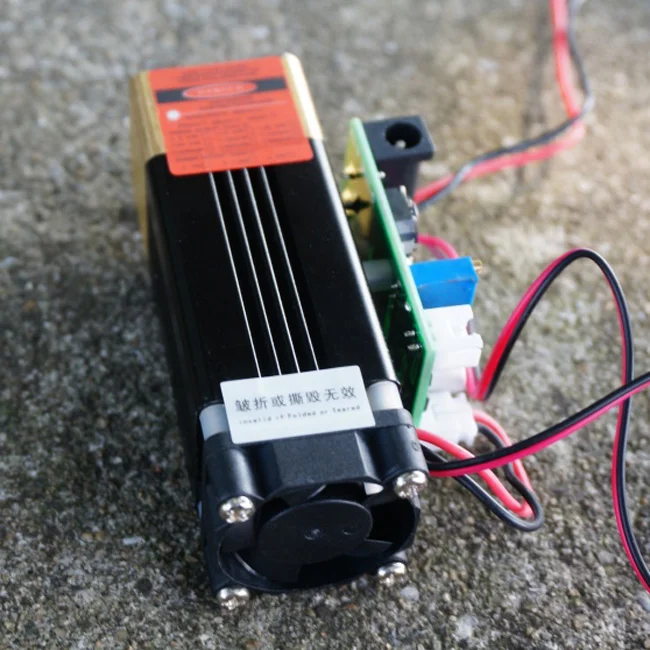

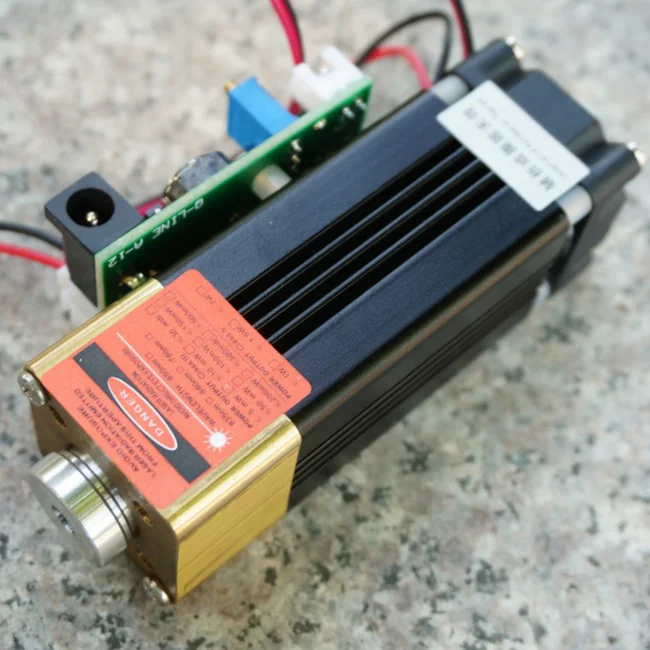

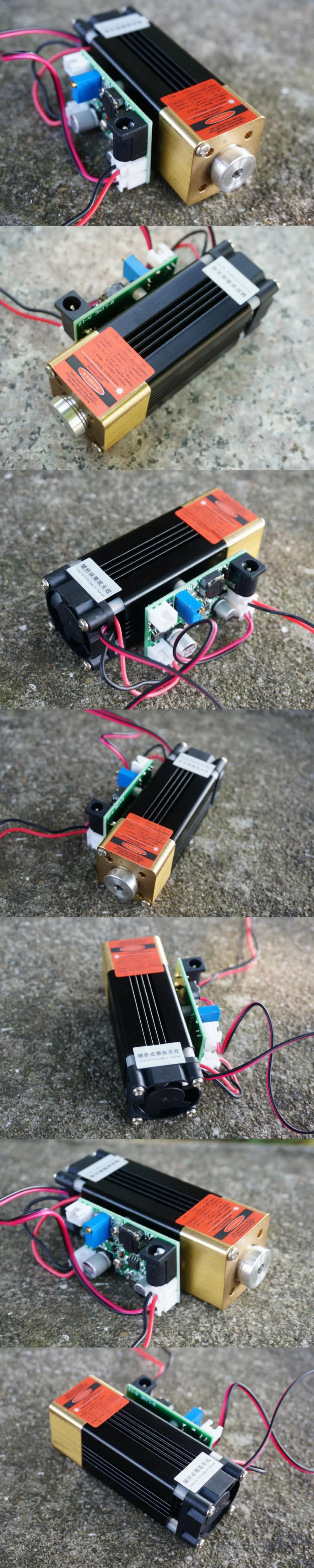

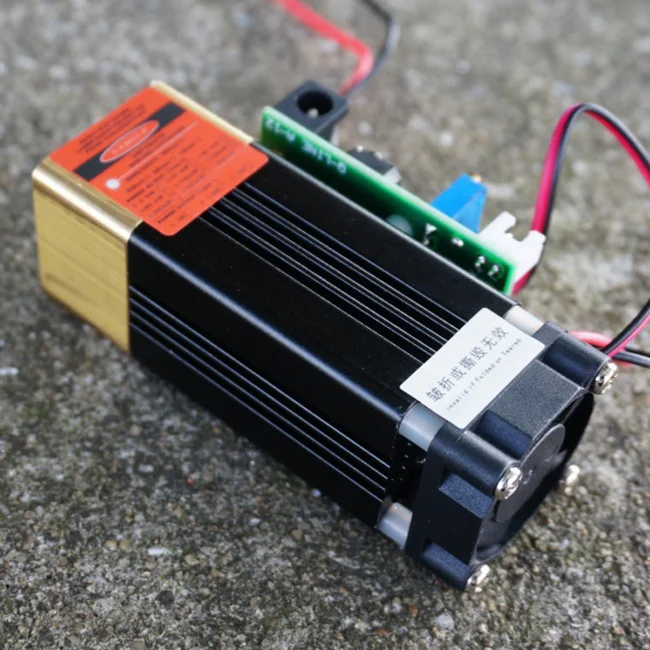

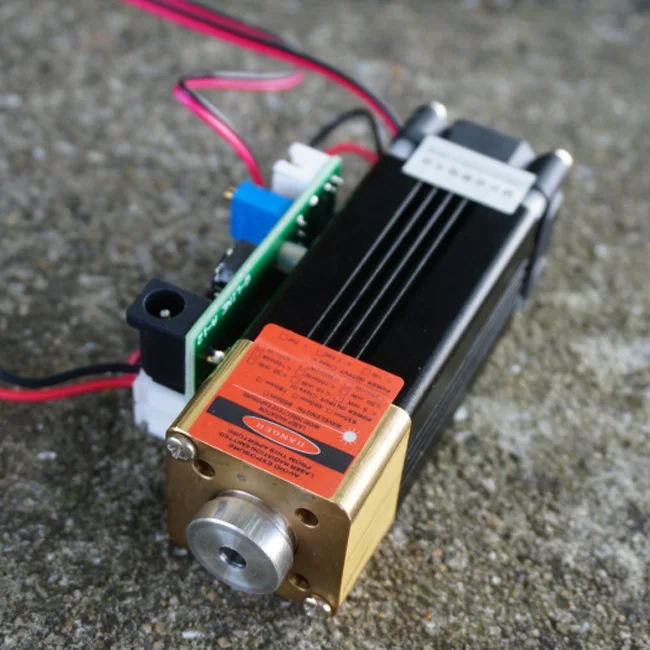

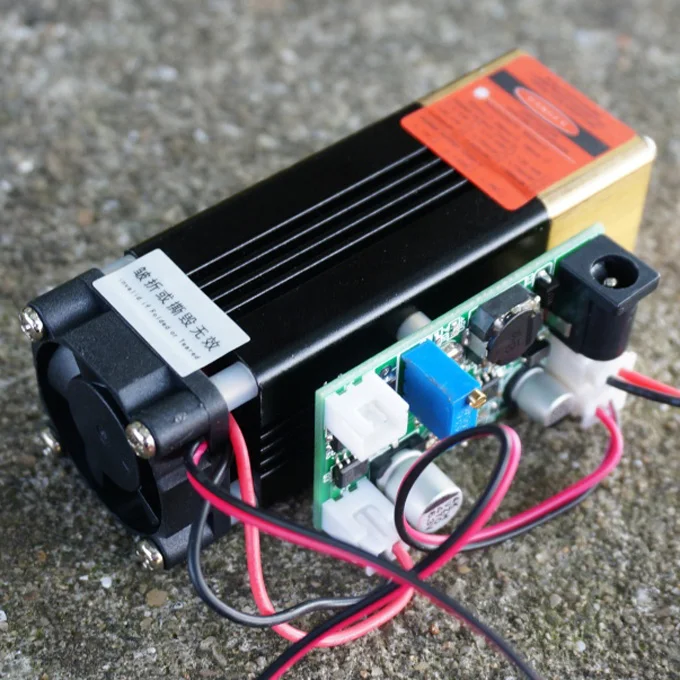

Adjustable Focus 1W Orange-Red Laser Module 638nm 12V

This model is an industrial-grade 638nm laser module. It comes with TTL modulation and a cooling fan, which can work continuously 24 hours a day - you don't need to worry about overheating. The orange-red laser is bright, stable, and long-range. The maximum power is up to 1W (1000mW), which is very rare for a red laser module.

Notes
1) The input voltage is 12V. Overvoltage will cause damage to the circuit and module.
2) If you have any technical questions, please contact us.

Technical Parameters
• Laser type: dot (orange-red)
• Laser body size: 69mm x 30mm x 30mm
• Circuit board size: 47.5mm x 35.5mm x 20mm
• Output wavelength: 635nm-638nm
• Output power: 1W (1000mW-1200mW)
• Cooling method: cooling fan
• Adjustable focus: yes
• TTL modulation: available (0-5V)
• Housing material: aluminum + copper
• Circuit control: constant current
• Reverse polarity protection: available
• Working voltage: DC=12V
• Warm-up time: none
• Working temperature: -10℃～+40℃
• Storage temperature: -10℃～＋40℃
