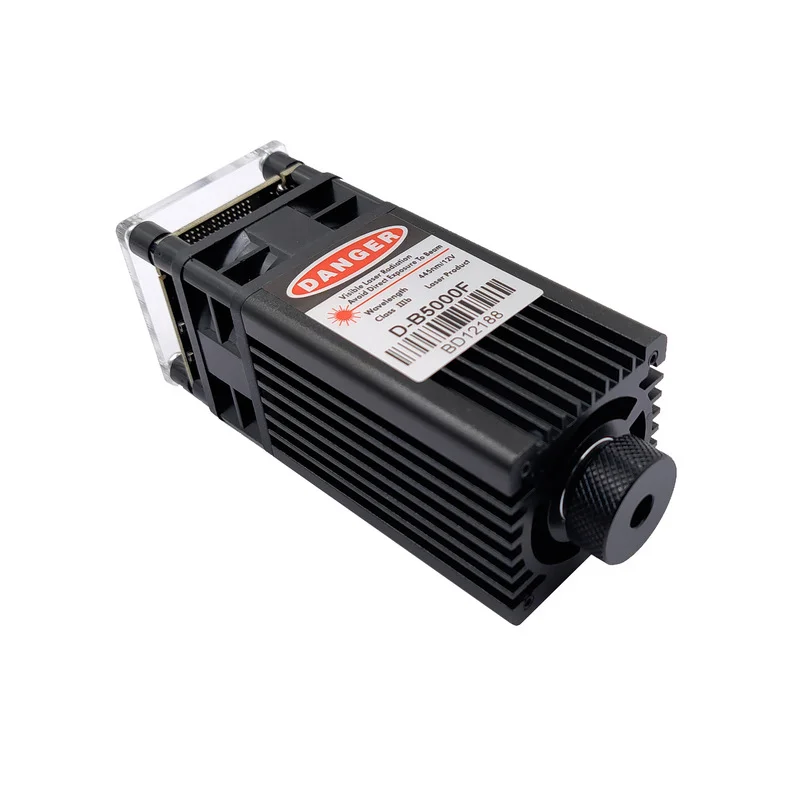

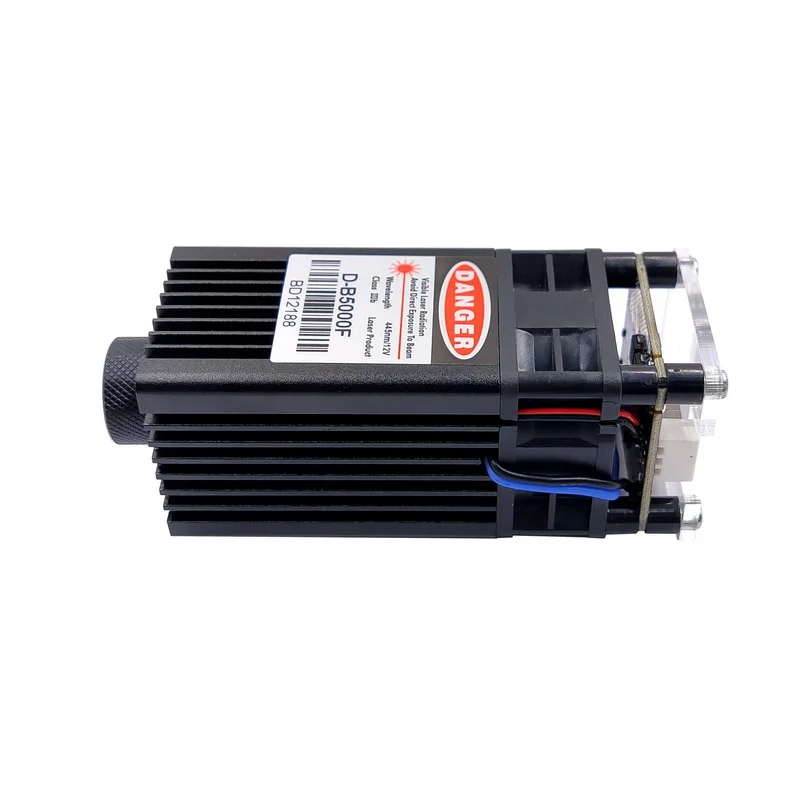

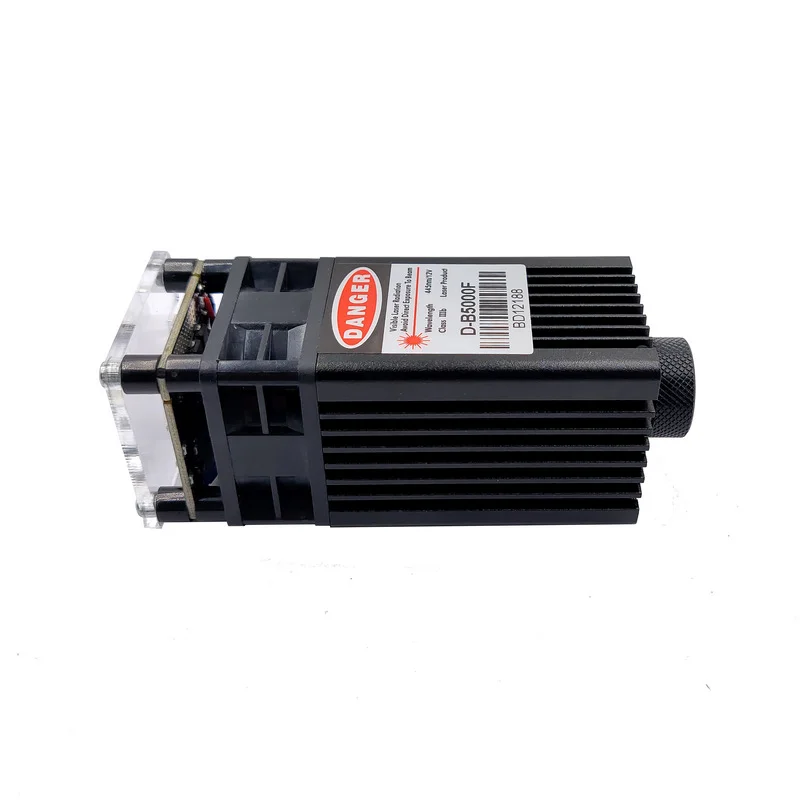

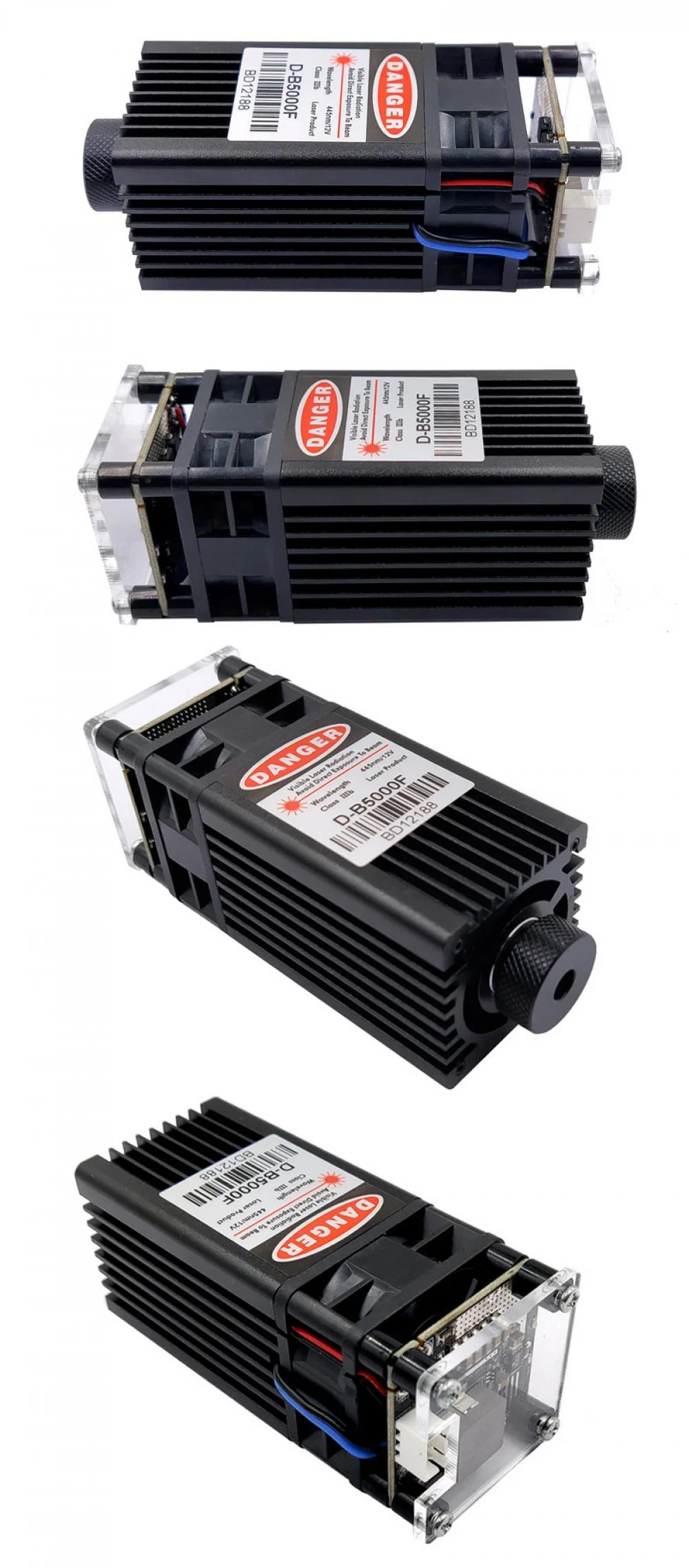

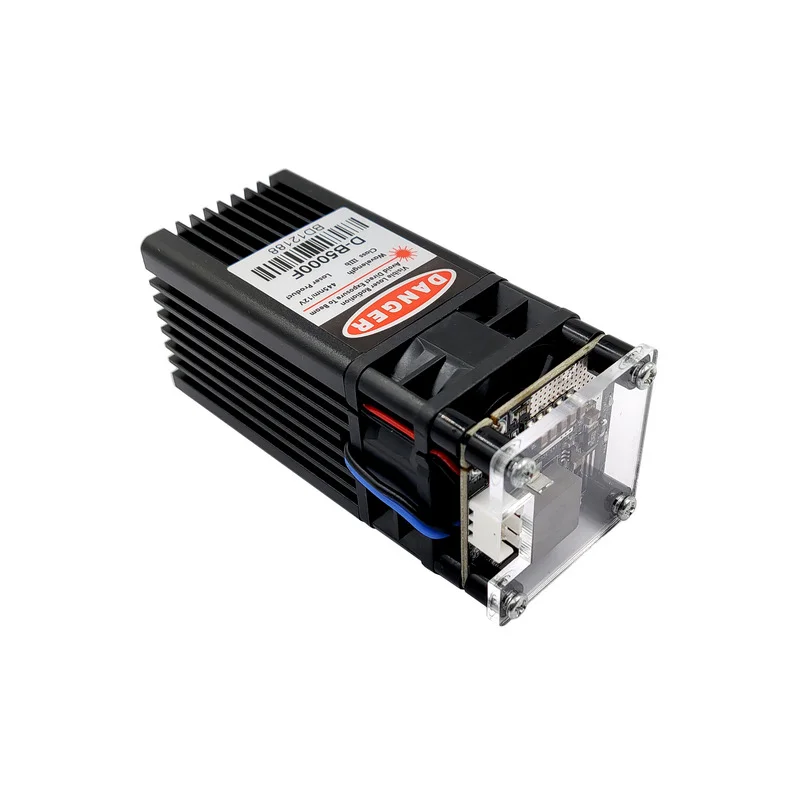

Powerful 3500mW Engraving Laser Module 445nm with Adjustable Focus

This 445nm laser module is one of our most popular products, with high power, high stability, adjustable focus, and a cooling system. It can work continuously 24 hours a day, and you don't need to worry about heat dissipation. It has the imported diode, a small laser spot, a slight divergence angle, and good collimation. The scientific heat dissipation design, two-way temperature control, and perfect temperature protection function can prolong the life of the laser module as much as possible. Temperature control, driver, and laser are perfectly integrated - you only need to provide DC power.

This model is tested for high/low-temperature storage and vibration shock. If you're looking for a powerful engraving laser module, it's a cheap and reliable option.

Specifications
• Laser wavelength: 445nm
• Output power: ≥ 3500mW
• Output stability: ±5%
• Laser class: class 4
• Spot shape: rectangle
• Focal length range: 2-8 cm
• Lens material: professional focusing optical lens
• Input voltage: DC 12V
• LD input voltage: 5V
• LD input current: 3.6A

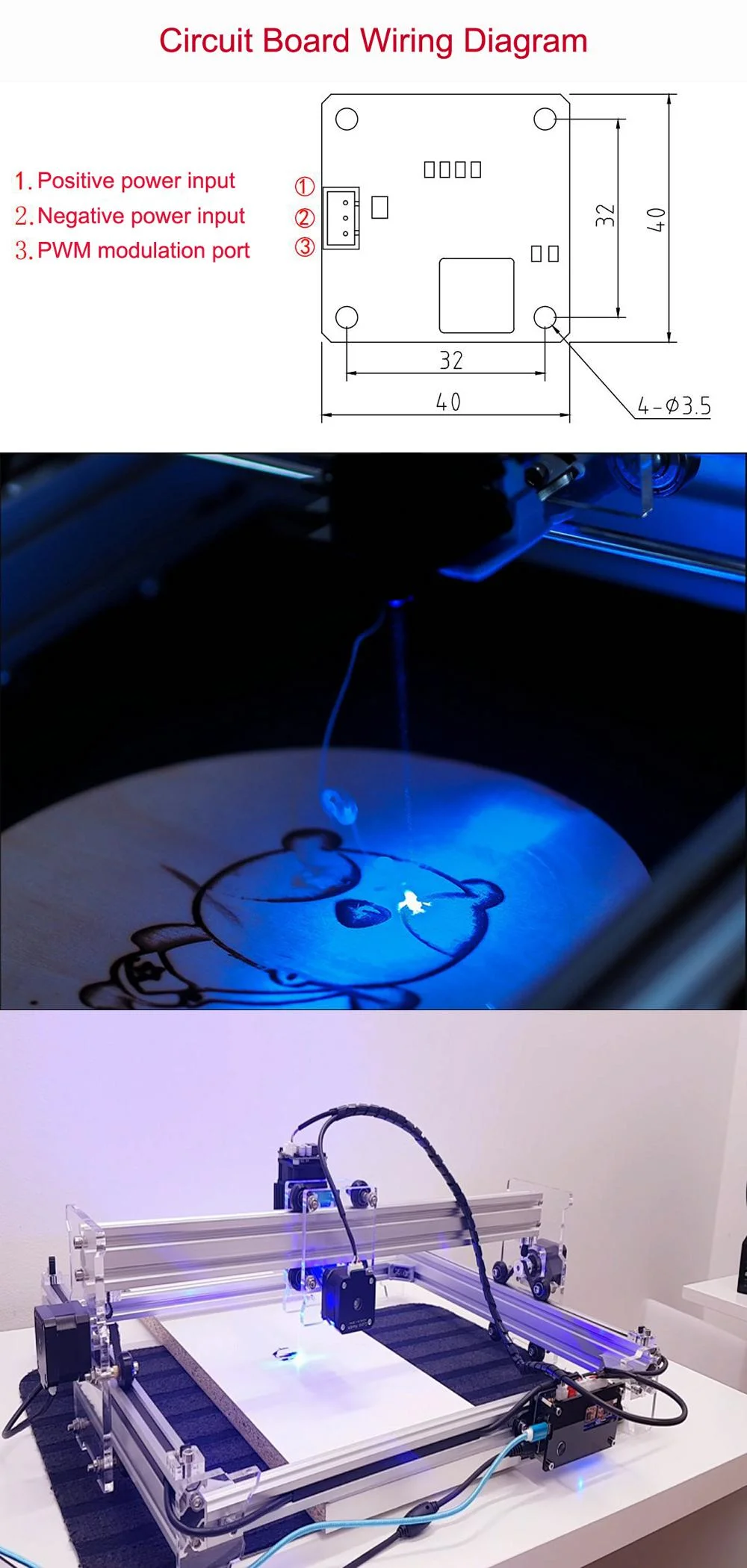

• Modulation mode: TTL/PWM control
• Input voltage control range: 0~5V
• Working frequency: ≤30KHz
• Recommended ambient temperature: -10~40℃
• Product size: 40x40x85mm
• Product weight: 245g
• Useful life: >8000 hours

Notice
1)The input voltage is 12V. Overvoltage will cause instantaneous damage to the circuit and module.
2)The 24V can be customized.
