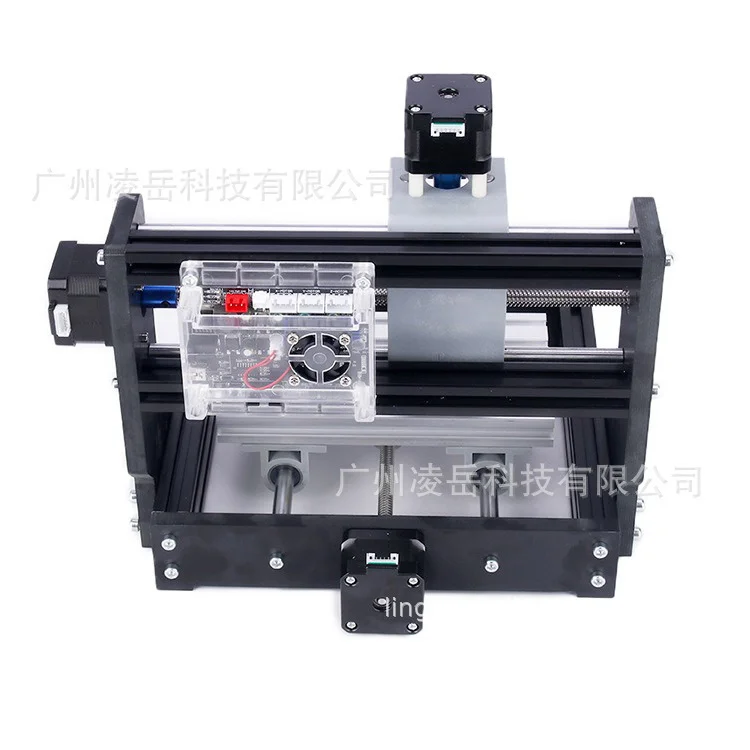

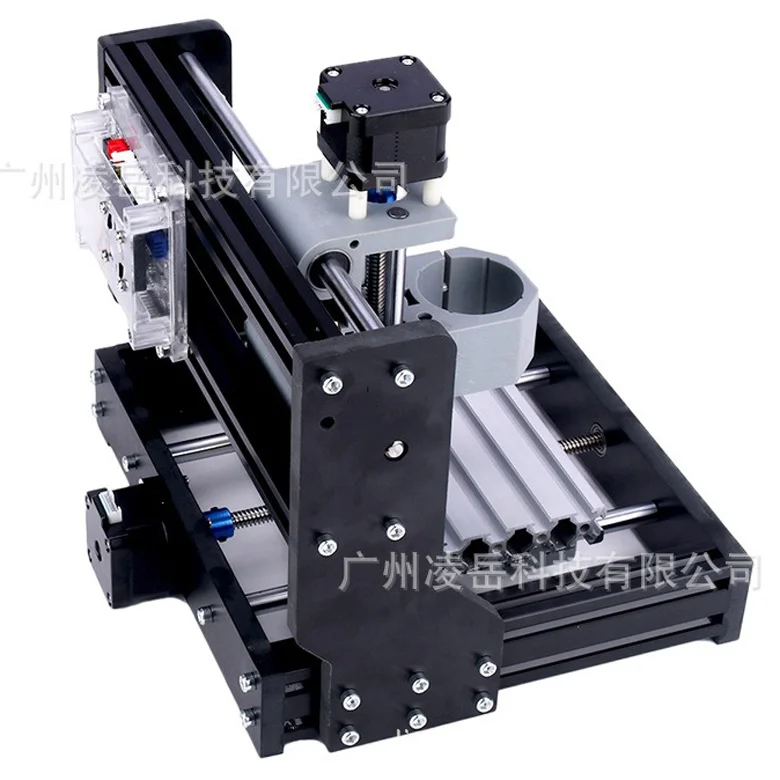

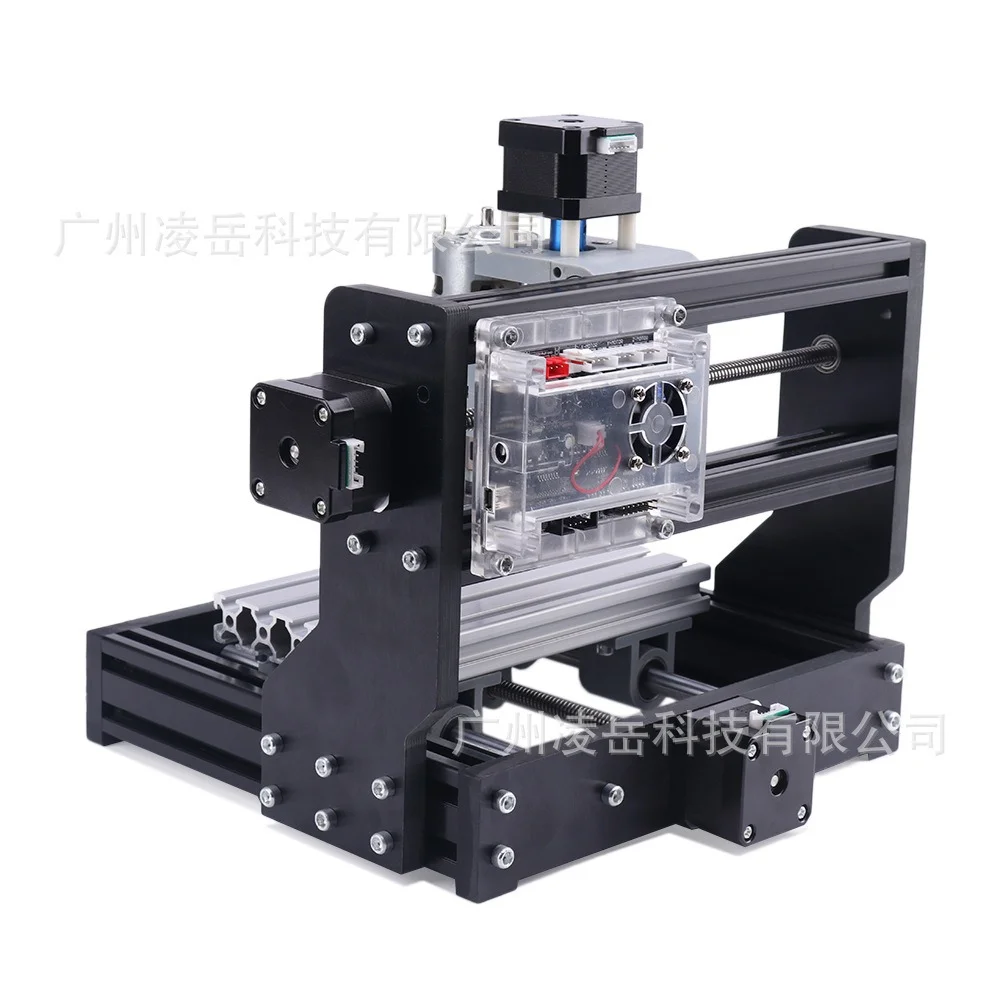

X&Y Axis parts pre-assembled
This mini CNC laser engraving machine is pre-assembled, so you can save much installation time, making it no challenge for beginners.

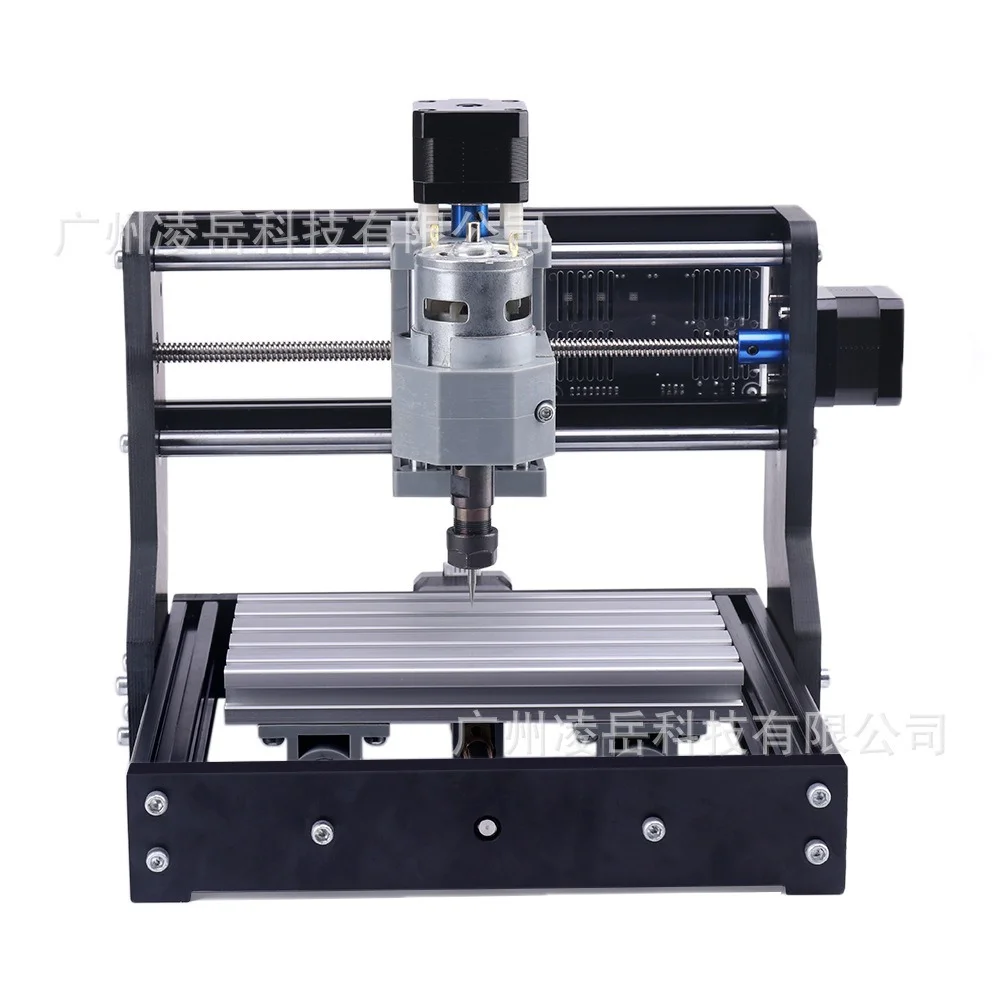

Powerful motor

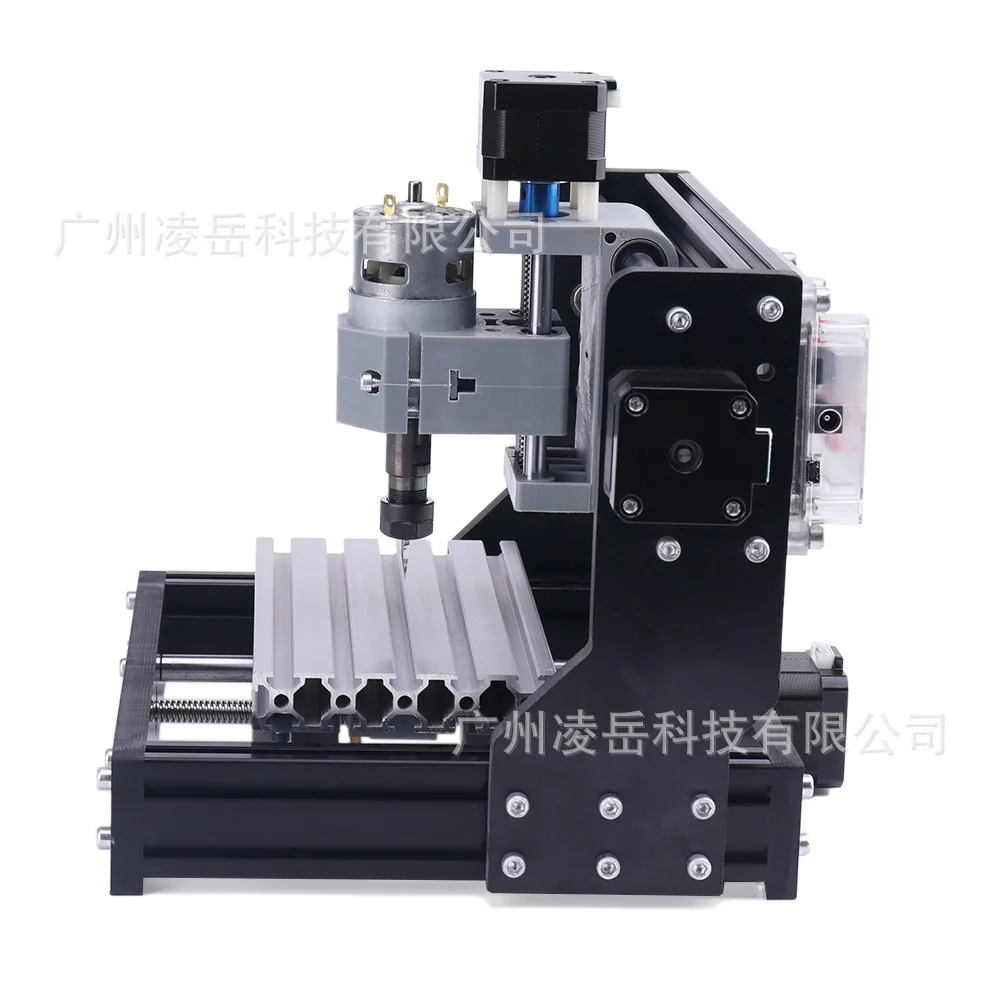

There are three stepper motors for smooth movement. The 775 DC(12-36V)24V spindle motor on the Z-axis can reach a speed of 10000r/min.

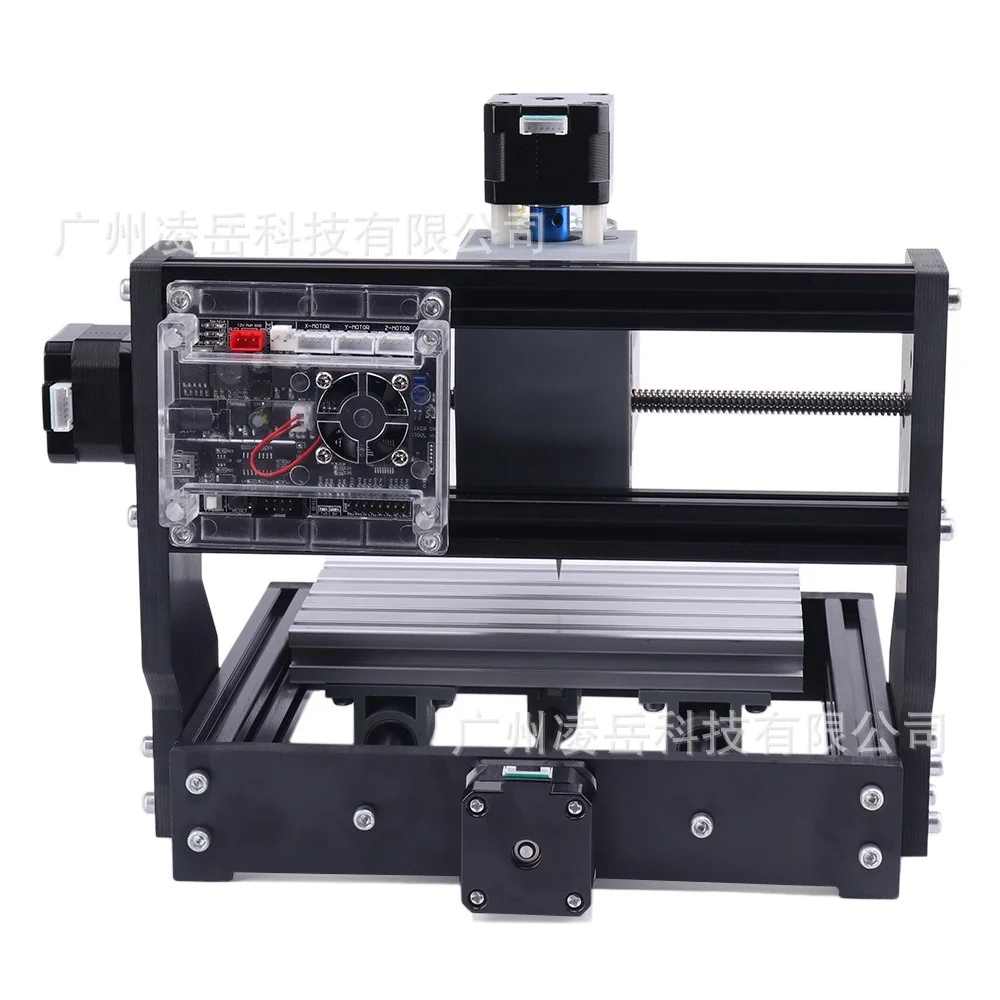

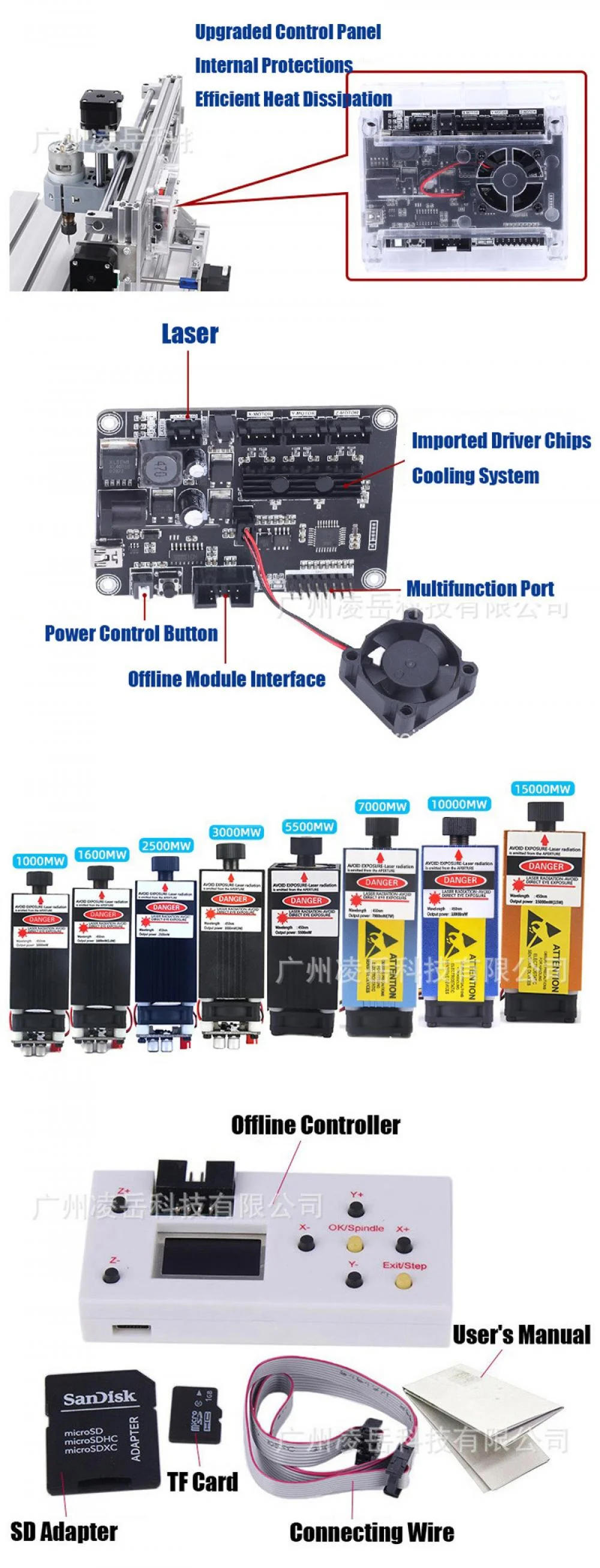

Controller
Based on open-source Grbl v1.1. It has stepped up to more powerful but silent drivers and added optocouplers to protect your mainboard from hard stops.
Effective engraving area
The effective engraving area of this engraving machine is 160x100x40mm, sufficient for most application environments.
Wide application
This DIY laser engraving machine is suitable for many drilling and engraving materials, such as plastics, soft aluminium, brass, acrylics, PVC, PCB, wood, plywood, nylon, etc.
Specifications
• Control Software: GRBL control
• Dimension: 260x240x220mm
• Effective Stroke: 160x100x40mm
• Screw Rod: T8 screw rod, lead 4mm, double copper nut backlash
• Drive Motor: 42 stepper motor 1.3A 0.25N.M.
• Spindle: 775 spindle motor (12-36V) 24V 10000r/min
• Spindle Chuck: ER11 Collet
• Body Material: aluminum + bakelite
• Power Supply: 24V 5A power adapter (input voltage 110-220V)
• Supporting System: Windows XP / Win7 / Win8 / Win10
• Connection: PC-USB connection
• Laser: 1W 1.6W 2.5W 3W 5.5W 7W 10W 15W optional
• Supporting File: G-code (.nc/.txt/.tape/.gcode)
• Processing Accuracy: about 0.2mm
• Spindle PWM Speed: support; power 0-100% adjustable
• Engraving Materials: plastic, wood, acrylic, PVC, PCB, copper, soft aluminium, stone, etc.

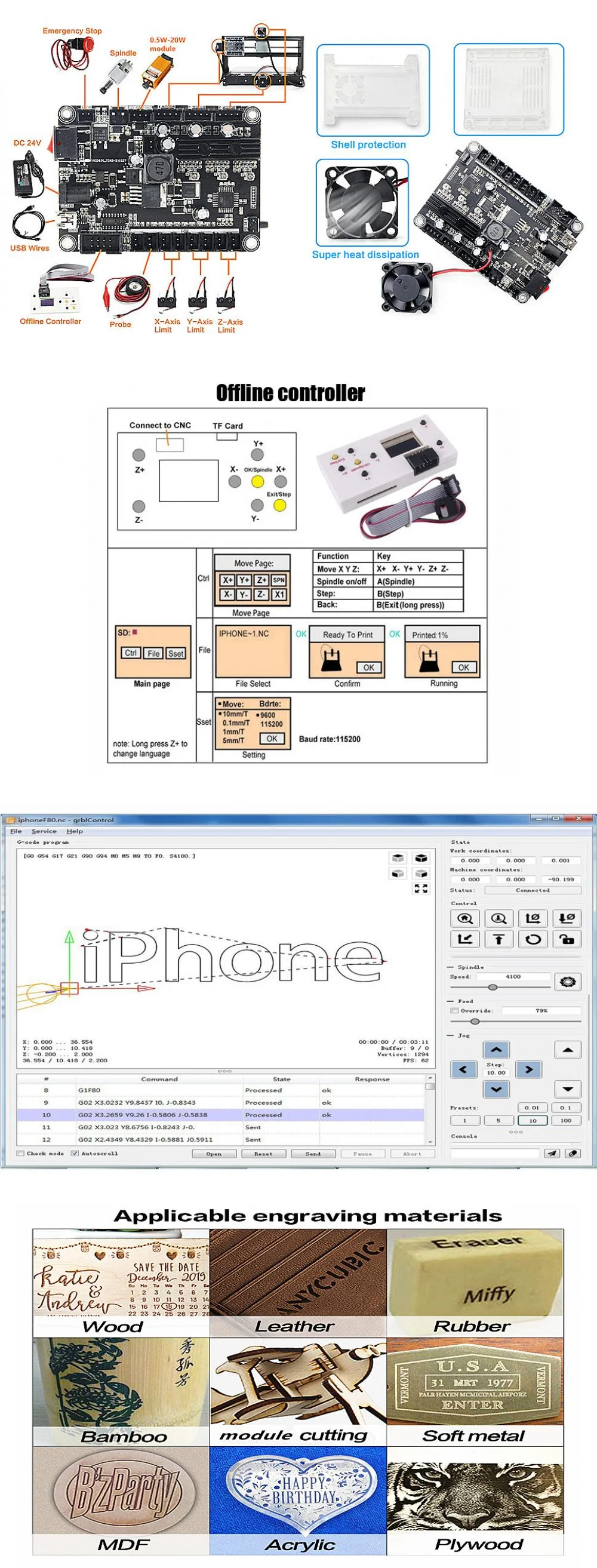

Offline controller module:
Without an offline controller module: You need to connect the laser engraving machine to the computer to work.
With an offline controller module: The laser engraving machine can work directly. No need to connect to a computer.

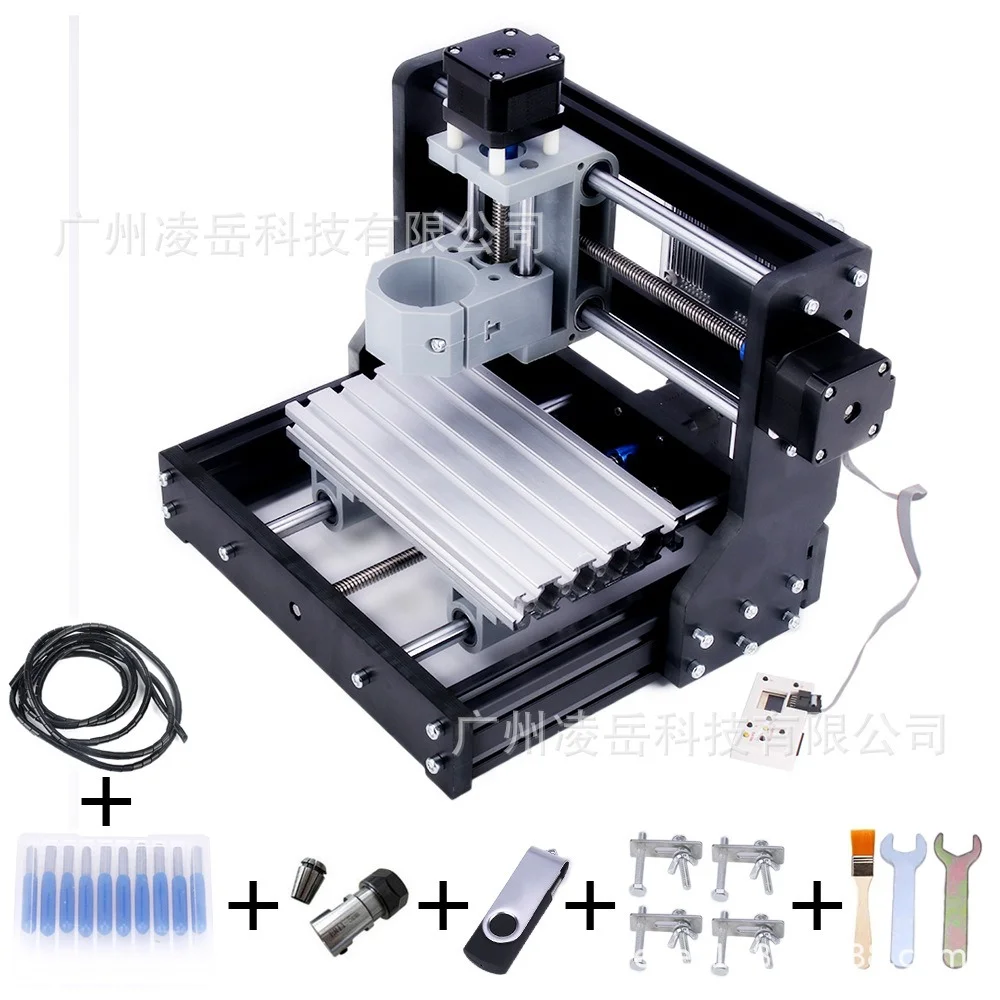

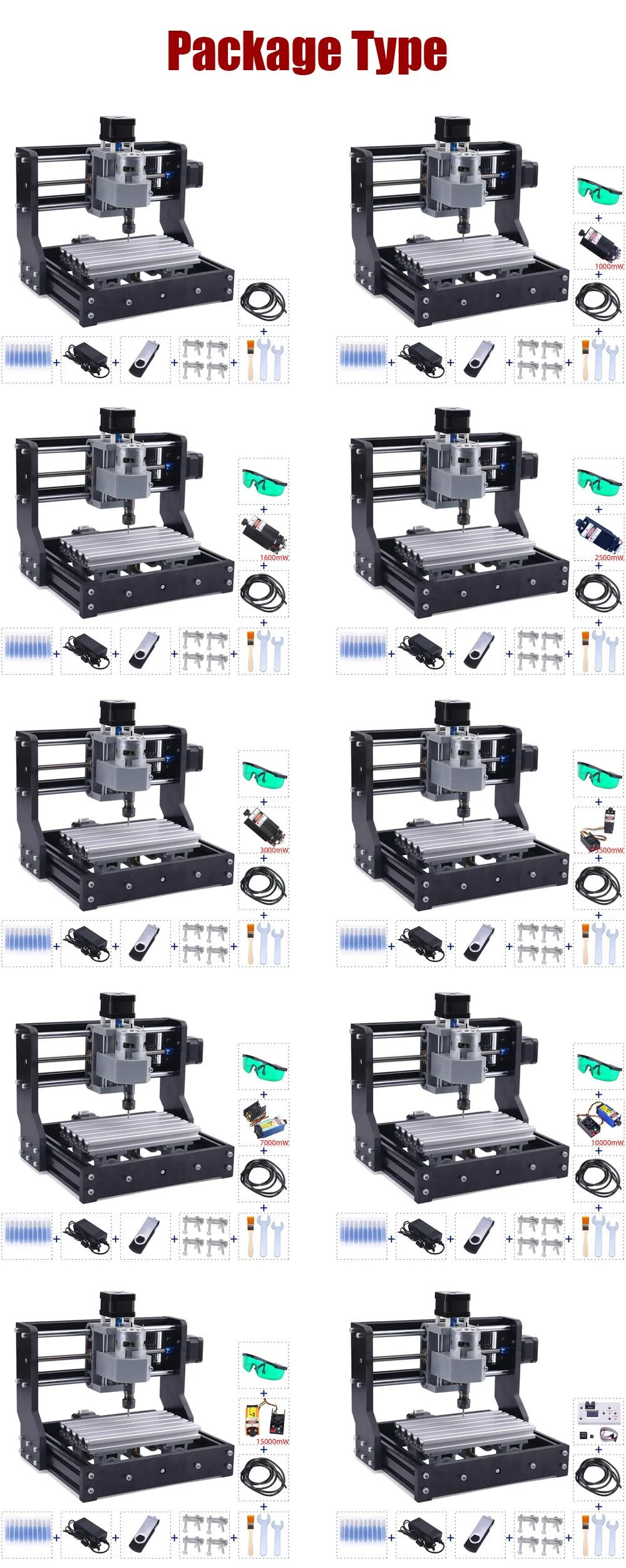

Package Contents
• 1 x 3-Axis CNC Laser Engraving Machine
• 1 x Laser Module + Safety Goggles (Optional)
• 1 x Offline Control Module (Optional)
• 1 x USB Cable
• 2 x Wrenches
• N x Screws and Nuts
• 1 x U Disk
• 10 x Milling Cutter
• 1 x Power Adapter
• 1 x User Manual |
