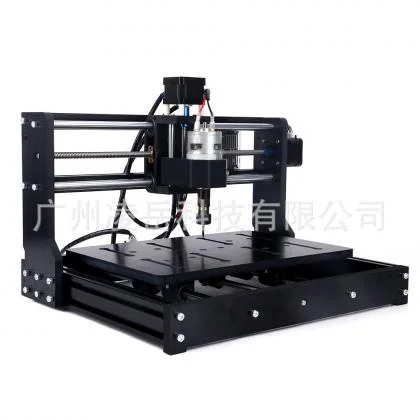

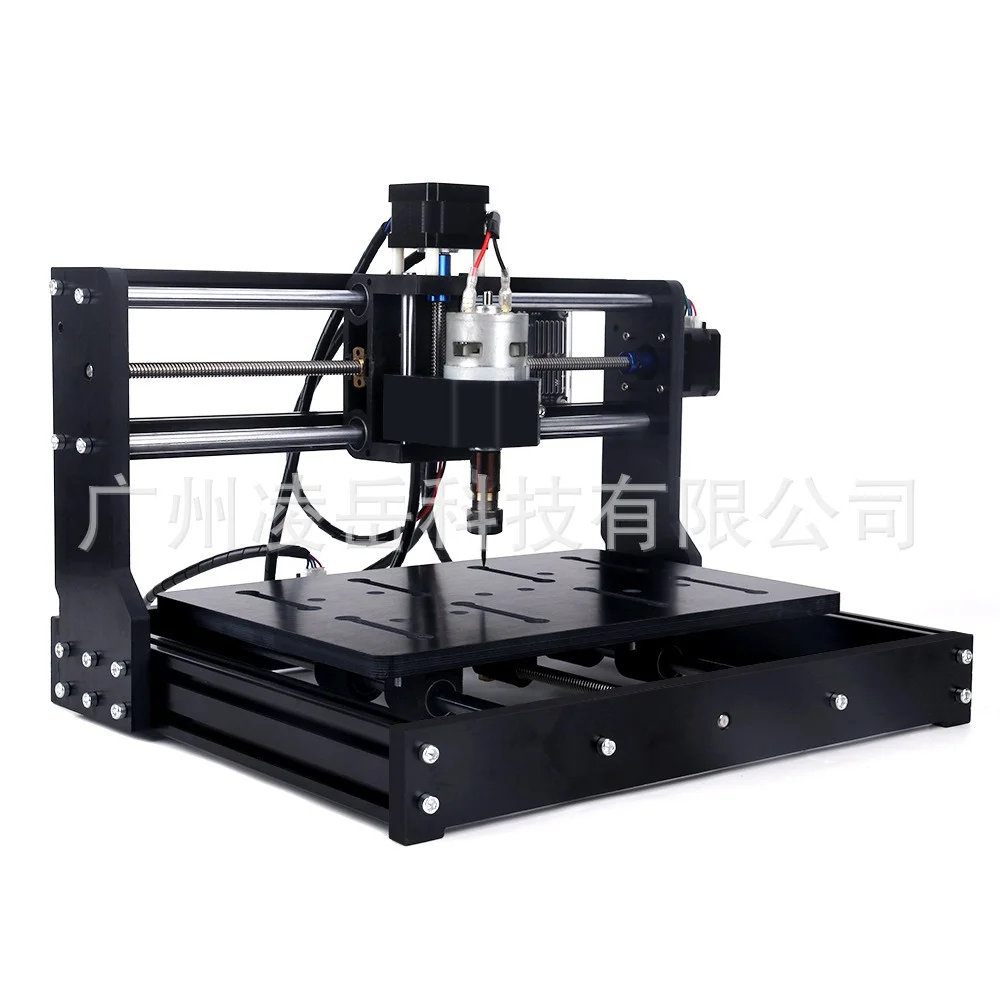

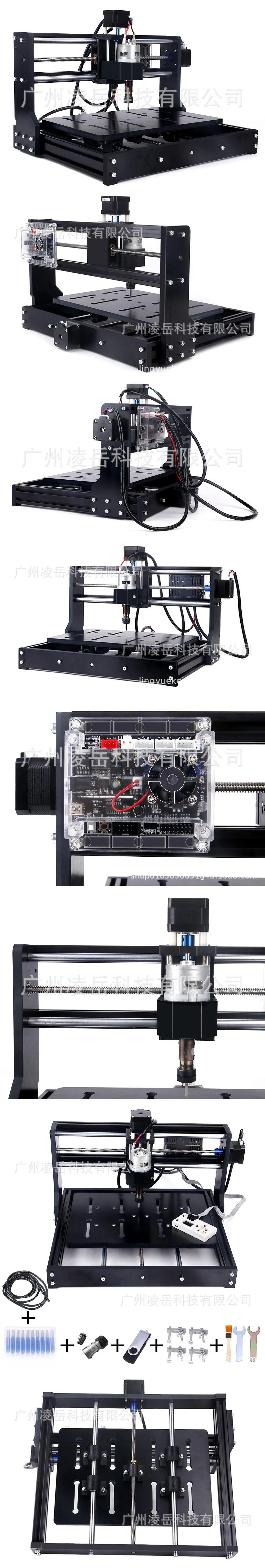

DIY Small CNC Laser Engraving Machine GRBL

This small CNC laser engraving machine comes with professional accessories and GRBL control software. The spindle supports 0% to 100% PWM adjustment. The stepper motor has over-current protection and an upgraded integrated driver chip, achieving high efficiency and good stability. Installation and use are simple: you don't need to code or design; you only need to import images.

This model has a heat sink and fan for cooling, which can be used continuously for a long time. It can engrave wood, plastic, soft metal, PCB, PVC, carbon fiber, acrylic, density board, etc.

Specifications
• Effective Engraving Area: 300x200x40 mm
• Dimensions: 390x320x230 mm
• Material: aluminum alloy + plastic

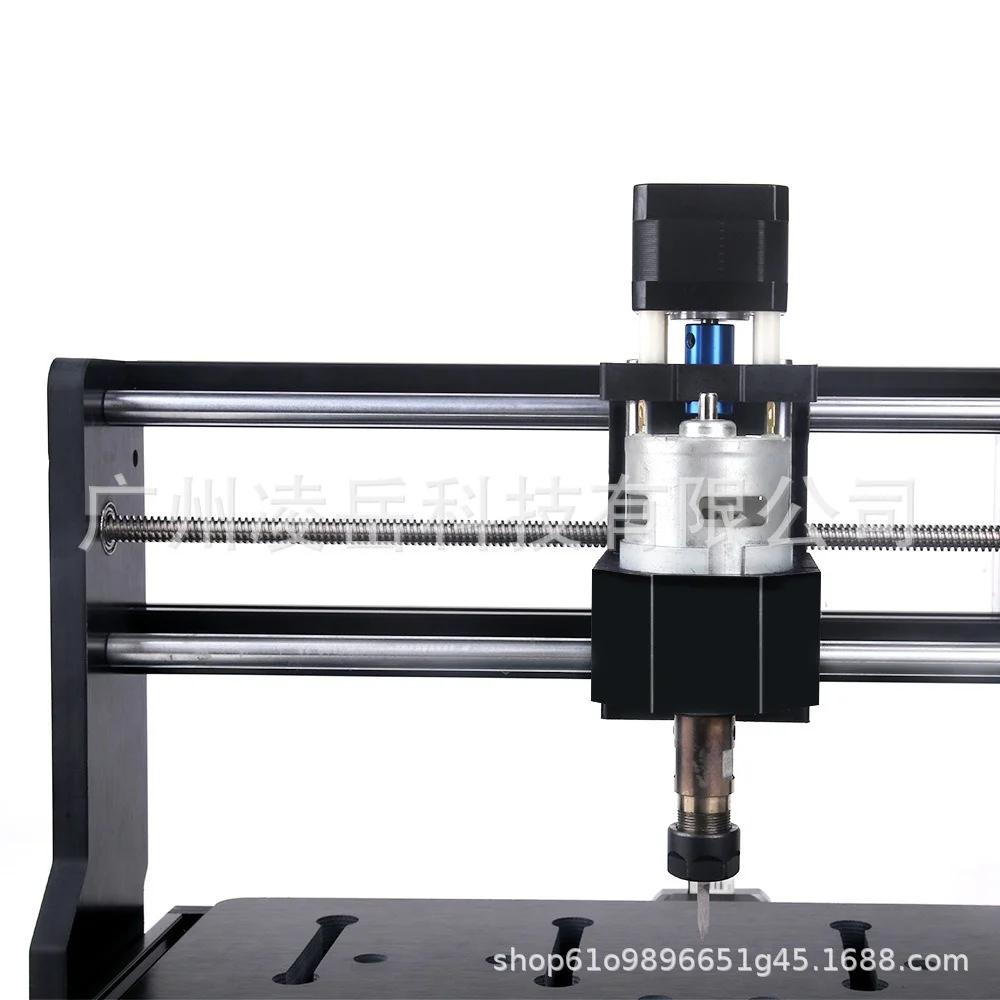

• Spindle Parameters: 775 spindle motor (12-36V) 24V:10000r/min
• Step Motor: 42 stepper motor 1.3A, 0.25N.m
• Spindle PWM Speed: 0-100% adjustable
• Drill: Tip 0.1mm 20 degree diameter 3.175mm (10pcs)
• Processing Accuracy: about 0.2mm
• Supported OS: Windows XP / Win7 / Win8 / Win10
• Control Software: GRBL control
• Port: Micro USB
• Power Supply: 24V 5A power adapter (input voltage 110-220V)
• Machinable Materials: wood, plastic, soft metal, PCB, PVC, carbon fiber, acrylic, density board, etc

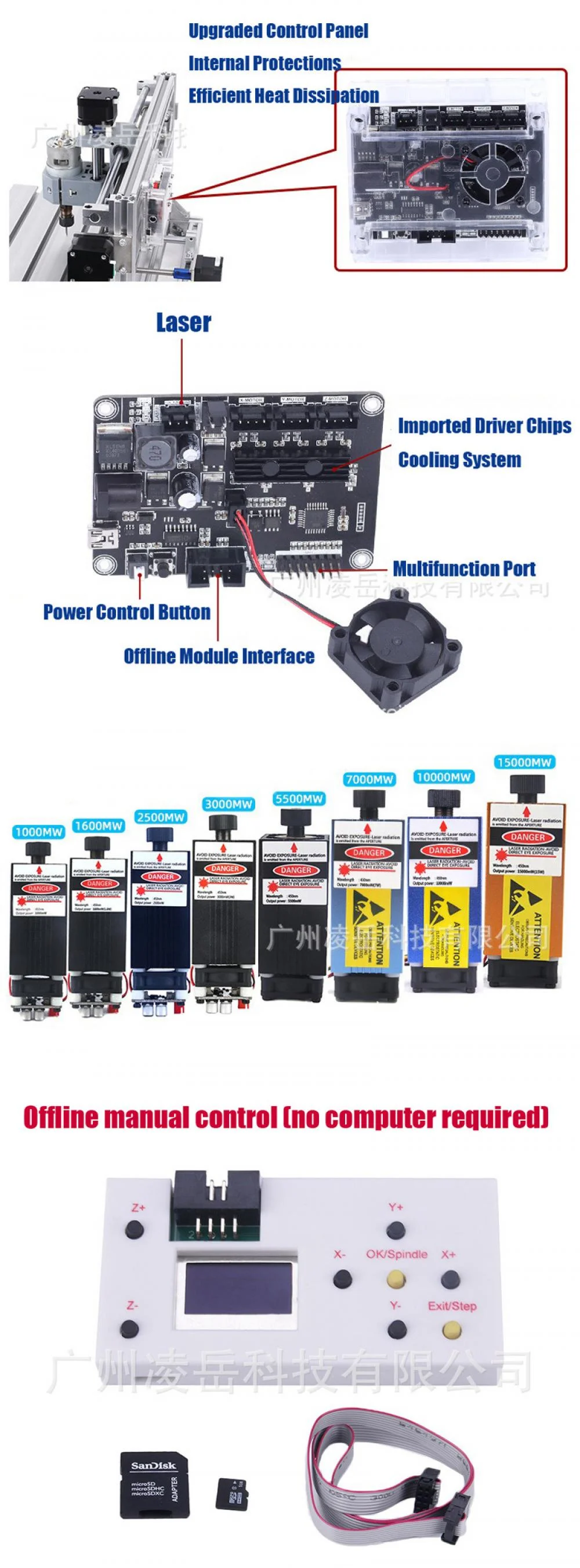

Offline controller module:
Without an offline controller module: You need to connect the laser engraving machine to the computer to work.
With an offline controller module: The laser engraving machine can work directly. No need to connect to a computer.

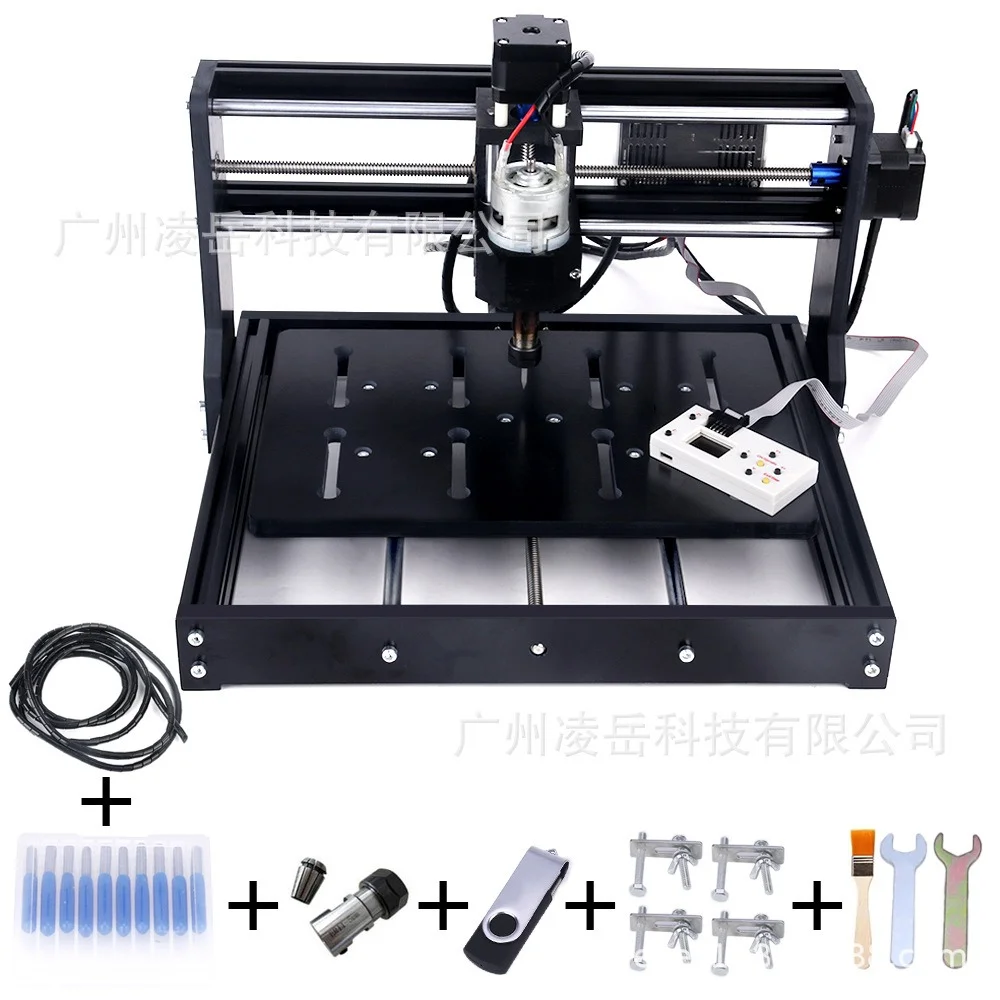

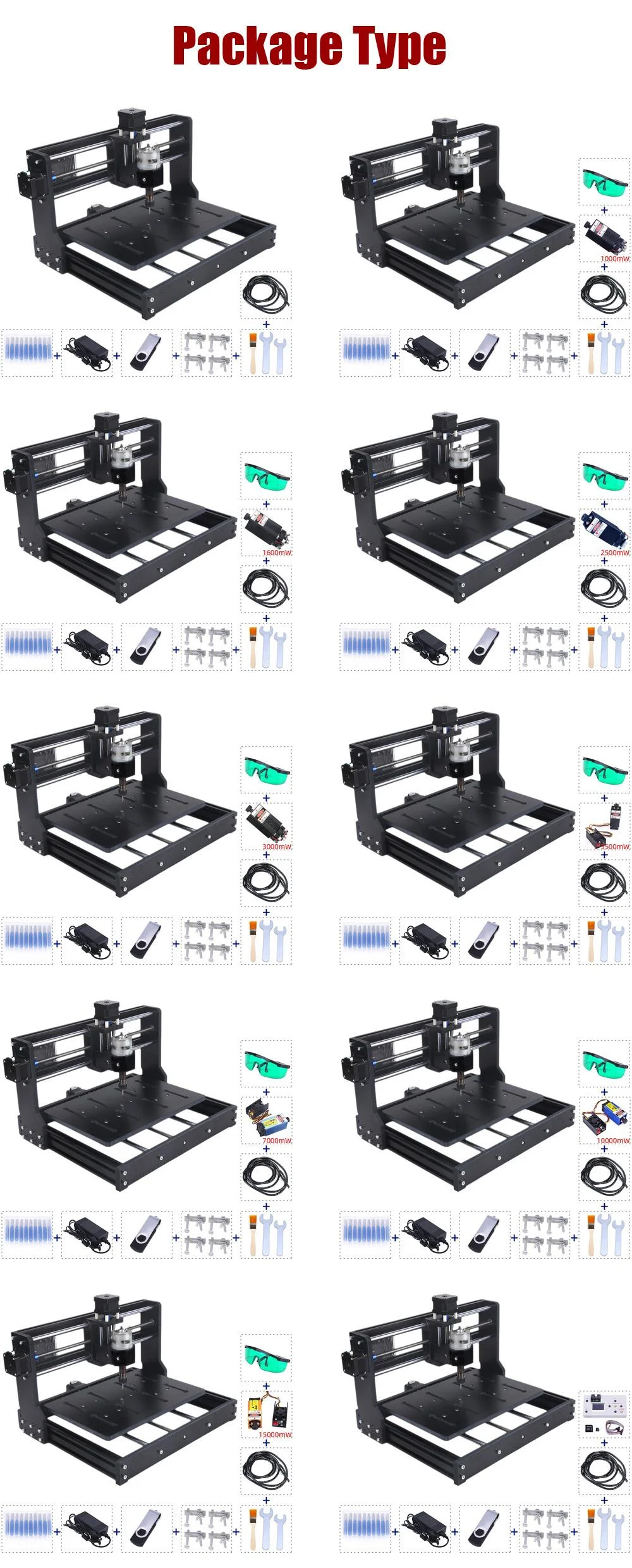

Package Contents
• 1 x DIY CNC laser engraving machine
• 1 x 775 spindle motor
• 1 x Laser module + safety goggles (optional)
• 1 x Offline hand controller (optional)
• 1 x USB cable
• 10 x Engraving bits
• 1 x GRBL 1.1F control board
• 1 x Set of Allen wrench
• 4 x Plate clamps
• 1 x Power adapter
• 1 x U disk with GRBL software
• 1 x English user manual
