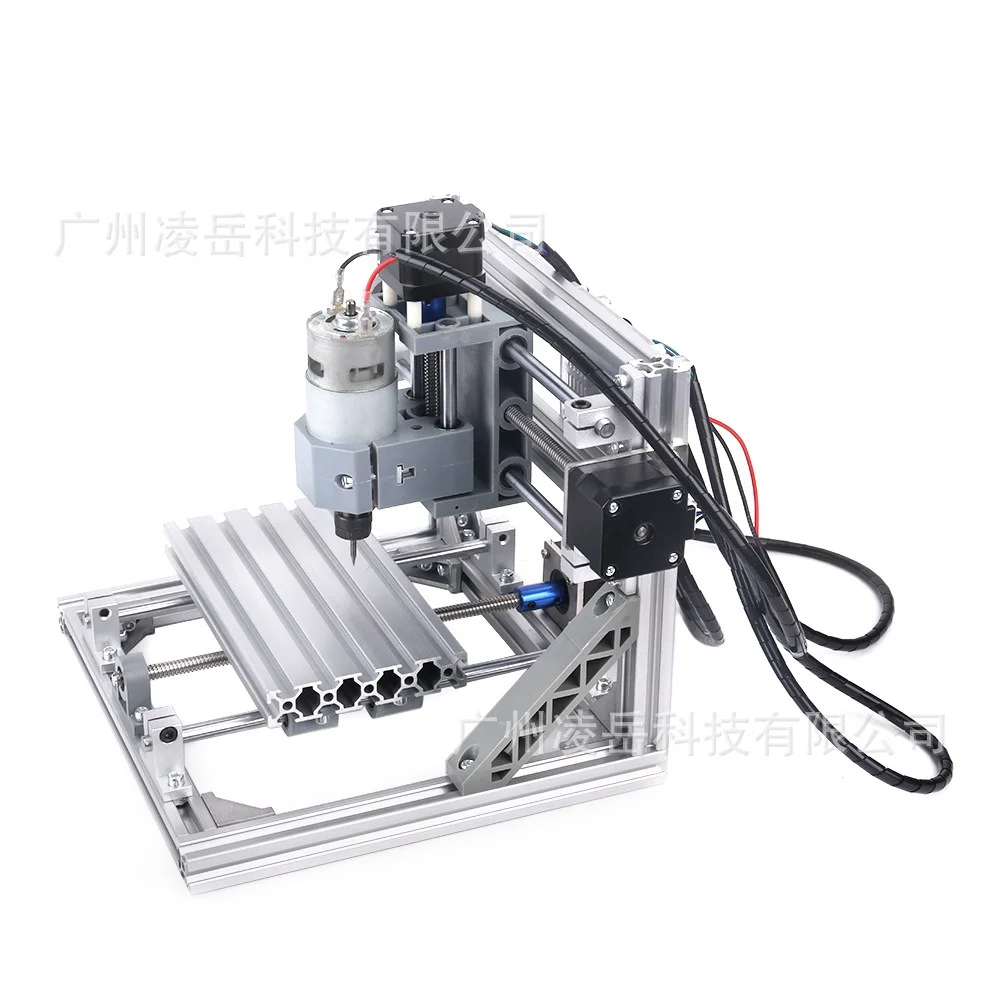

X&Y Axis parts pre-assembled
This desktop CNC laser engraver is pre-assembled, so you can save much installation time, making it no challenge for beginners.

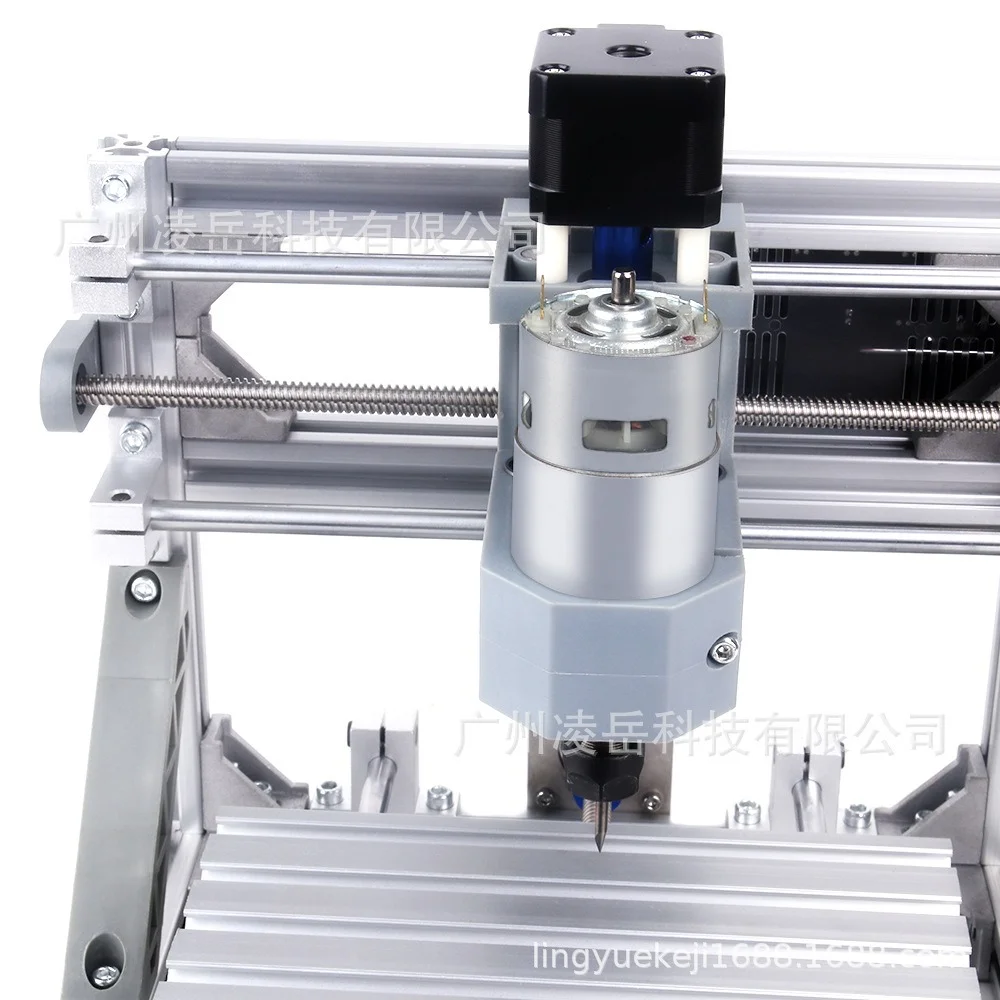

Powerful motor
There are three stepper motors for smooth movement. The 775 DC(12-36V)24V spindle motor on the Z-axis can reach a speed of 10000r/min.

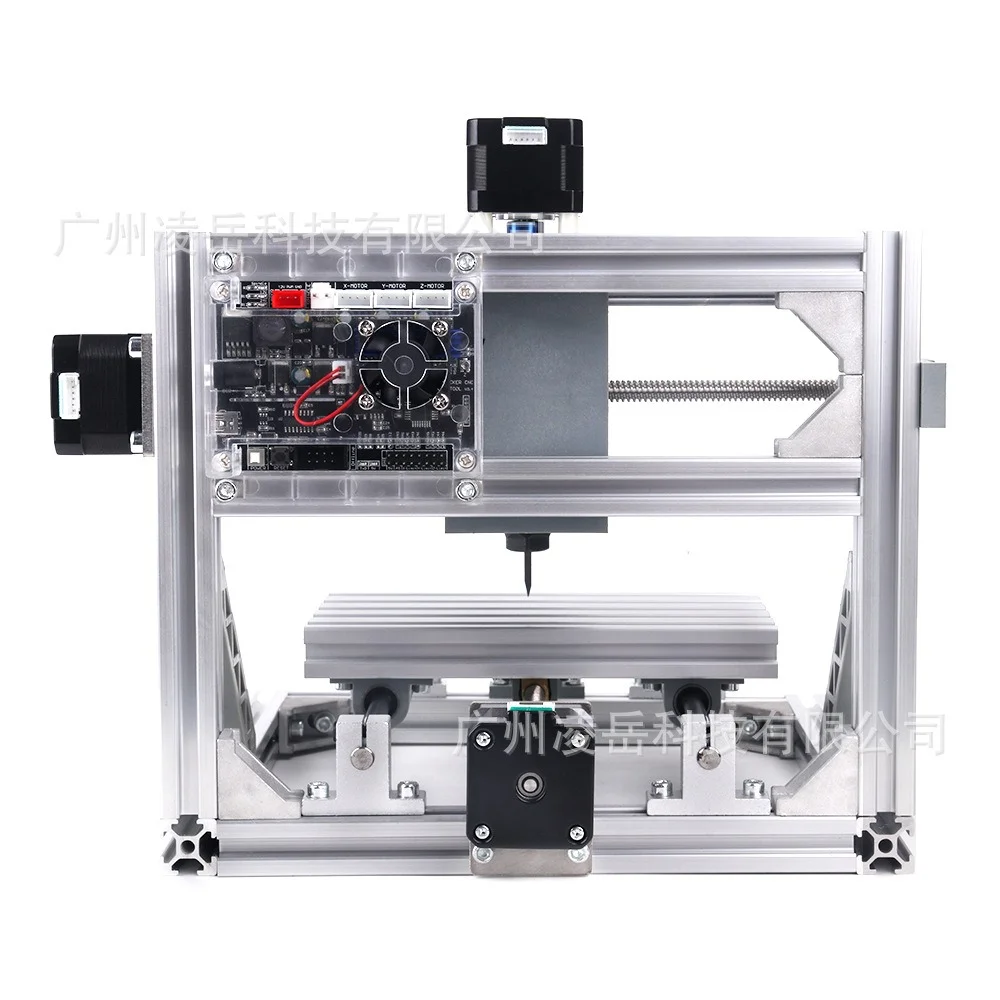

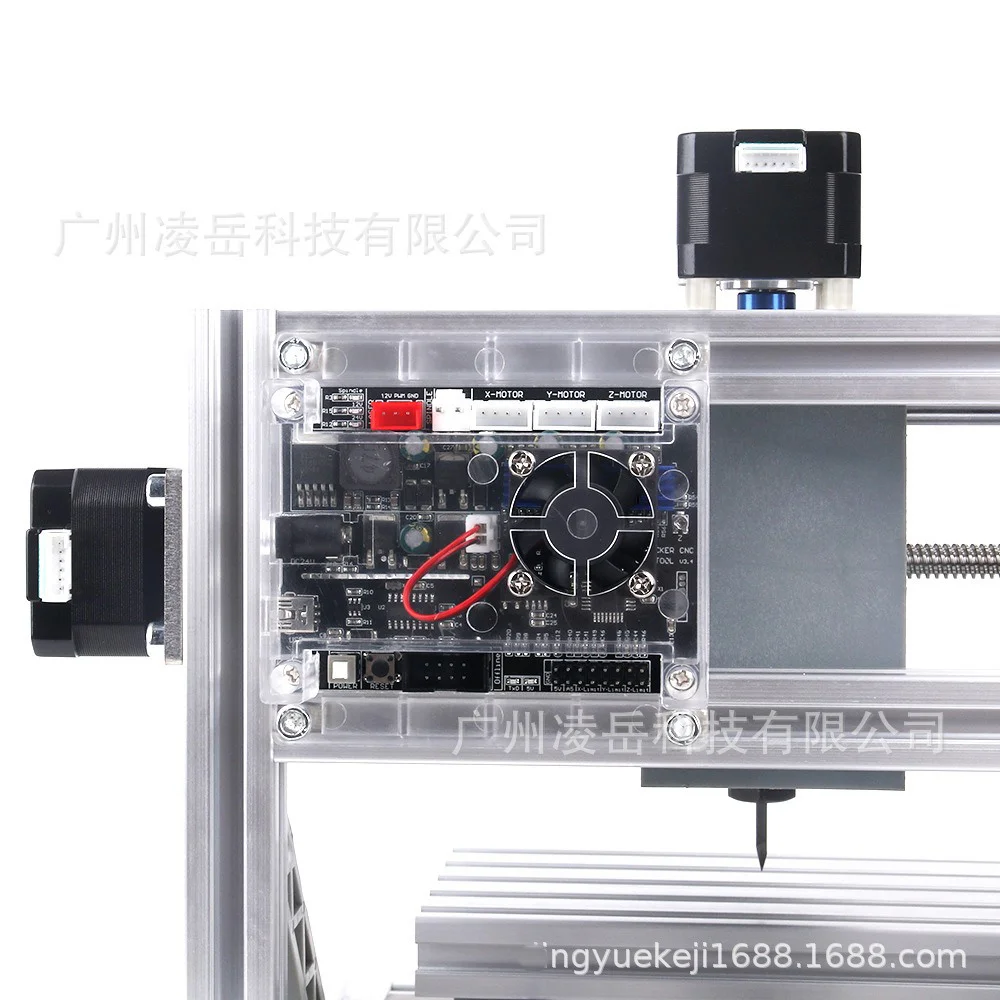

Controller
Based on open-source Grbl v1.1. It has stepped up to more powerful but silent drivers and added optocouplers to protect your mainboard from hard stops.
Effective engraving area
The effective engraving area of this engraving machine is 160x100x40mm, sufficient for most application environments.
Wide application
It is suitable for many drilling and engraving materials, such as plastics, soft aluminium, brass, acrylics, PVC, PCB, wood, plywood, nylon, etc.
Specifications
• Control Software: GRBL control
• Dimension: 260x240x220mm
• Effective Stroke: 160x100x40mm
• Screw Rod: T8 screw rod, lead 4mm, double copper nut backlash
• Drive Motor: 42 stepper motor 1.3A 0.25N.M.
• Spindle: 775 spindle motor (12-36V) 24V 10000r/min
• Spindle Chuck: ER11 Collet
• Body Material: aluminum + plastic
• Power Supply: 24V 5A power adapter (input voltage 110-220V)
• Supporting System: Windows XP / Win7 / Win8 / Win10
• Connection: PC-USB connection
• Laser: 1W 1.6W 2.5W 3W 5.5W 7W 10W 15W optional
• Supporting File: G-code (.nc/.txt/.tape/.gcode)
• Processing Accuracy: about 0.2mm
• Spindle PWM Speed: support; power 0-100% adjustable
• Engraving Materials: plastic, wood, acrylic, PVC, PCB, copper, soft aluminium, stone, etc.

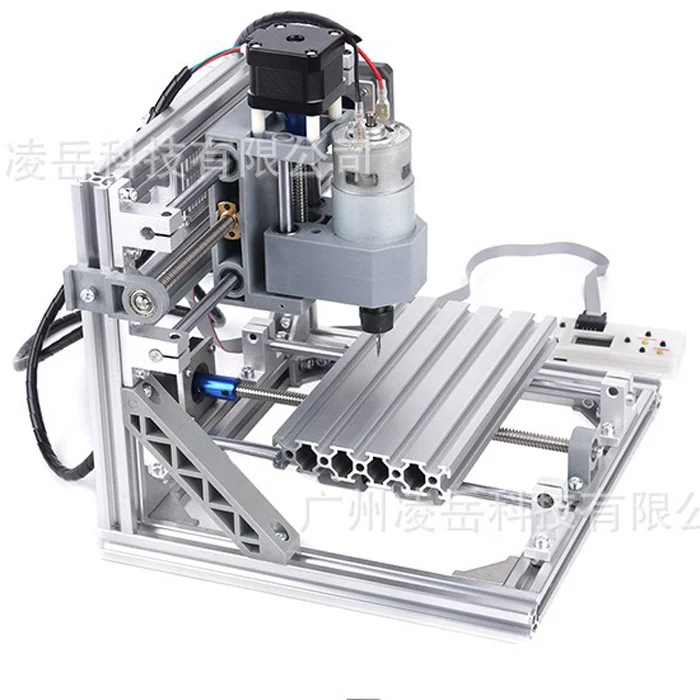

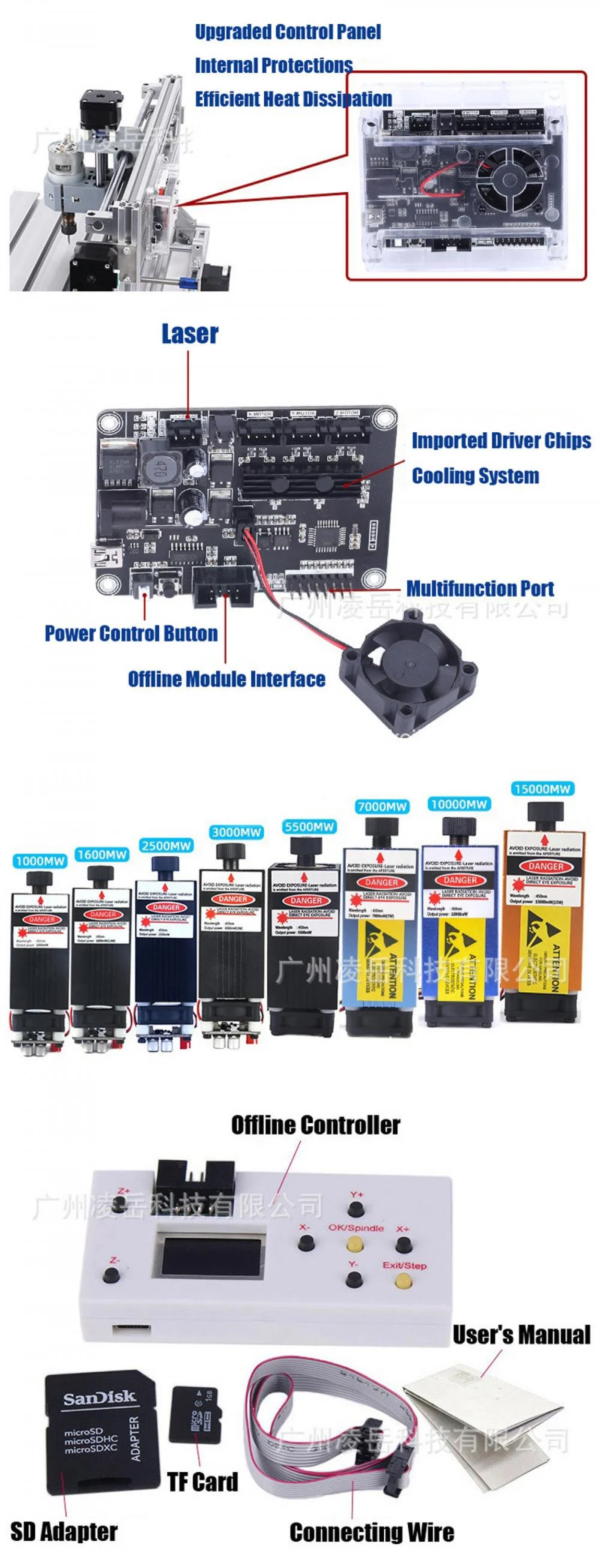

Offline controller module:
Without an offline controller module: You need to connect the laser engraving machine to the computer to work.
With an offline controller module: The laser engraving machine can work directly. No need to connect to a computer.

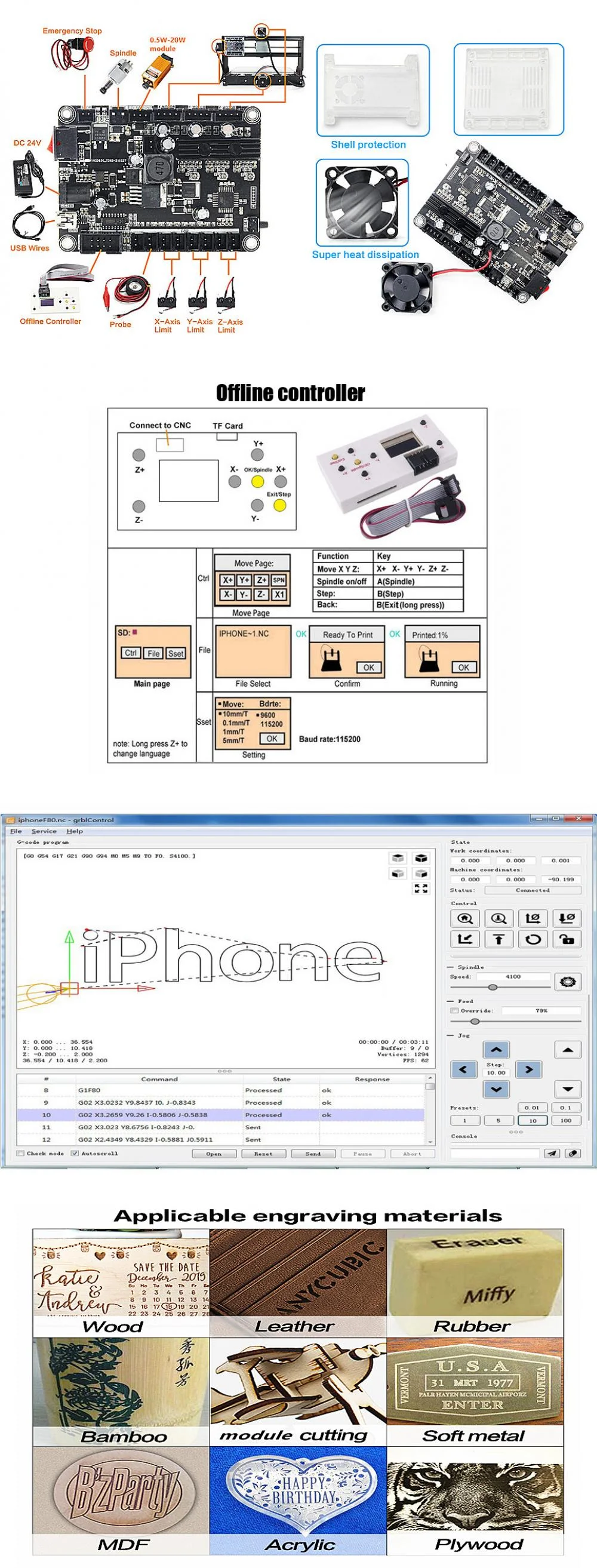

GRBL offline control
1) Support SD card and TF card at the same time.
2) This offline controller module lets you directly control the CNC router without connecting it to your computer.
3) After inserting the file into the SD card, the engraving file can be directly identified. You can also use the micro USB cable to connect the offline hand controller board to your computer and save the file.
4) Manually control: You can manually adjust XYZ axis location as an engraving starting point, manually open or close the spindle, manually open or close the cooling fan
5) File engraving: after the offline controller saves a file, it can connect the GRBL control board and process engraving, and you don't need to connect the PC.
6) Save file: after the offline controller connect to the PC, it will be recognized as USB and can access the engraving file directly.

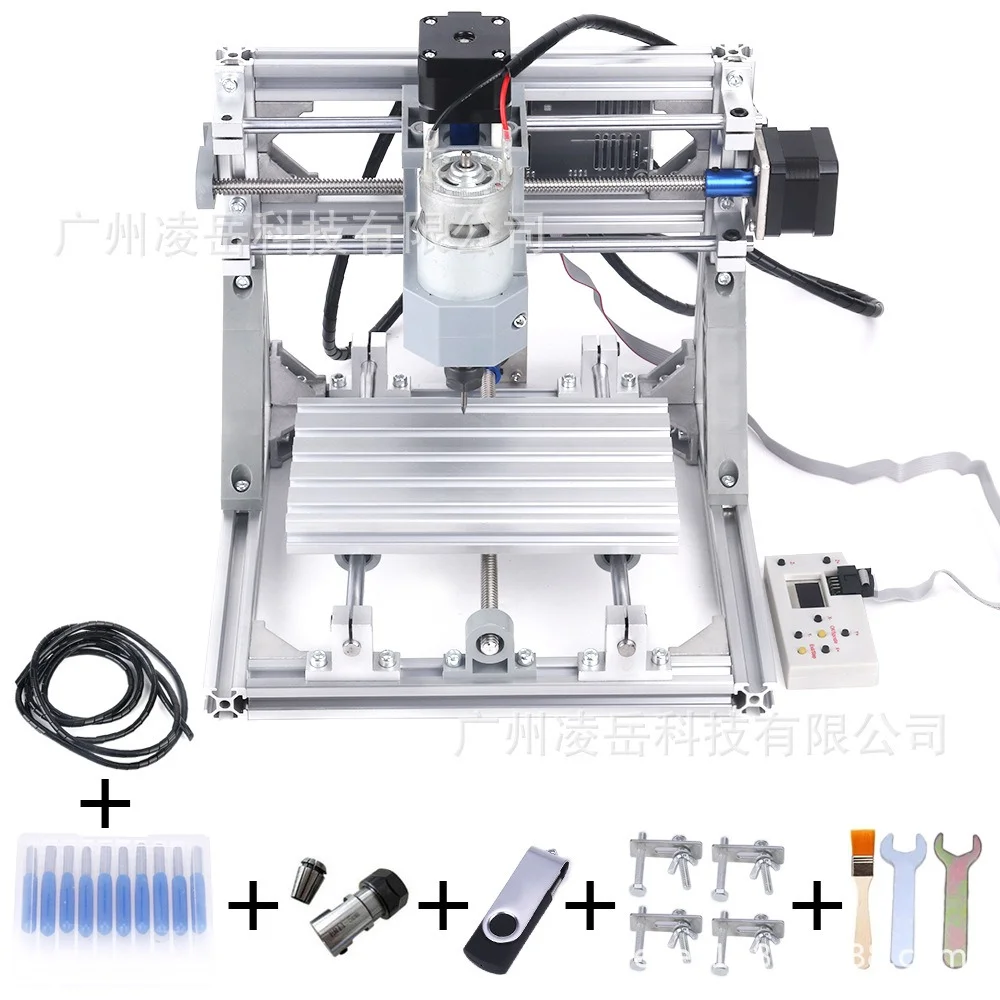

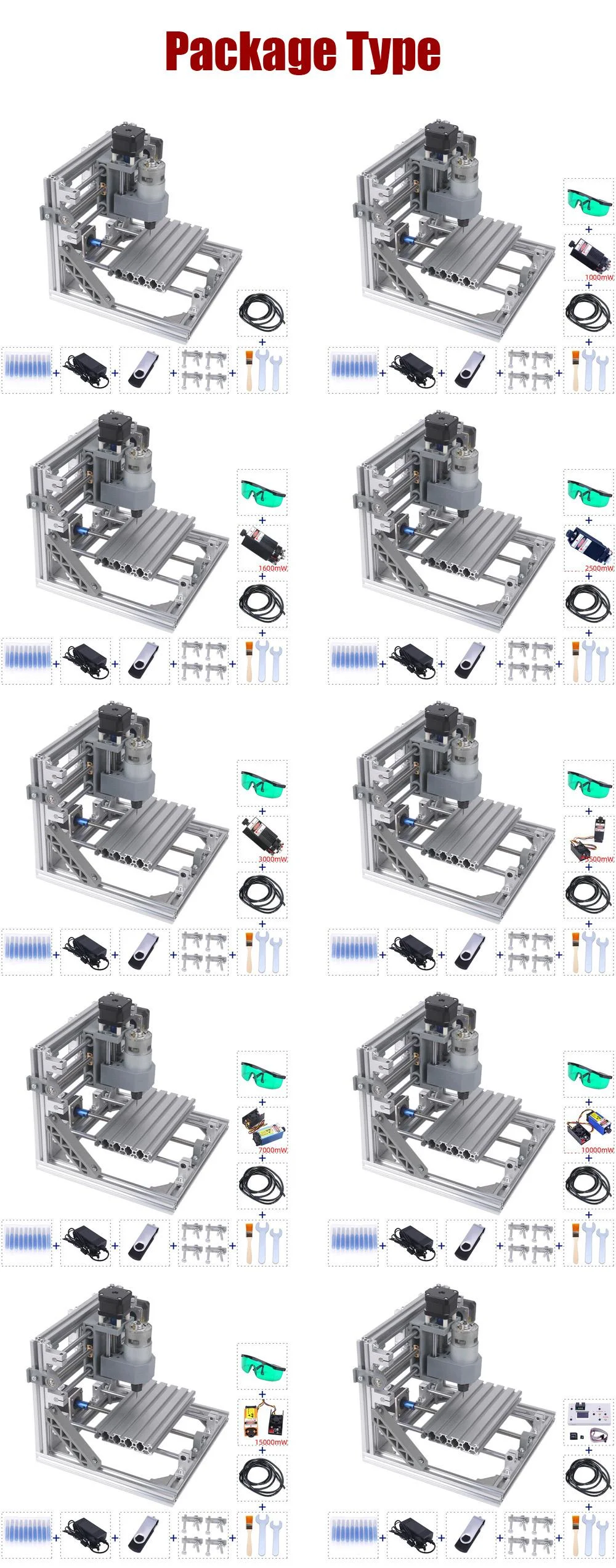

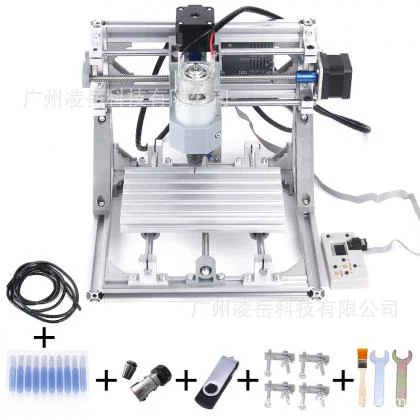

Package Contents
• 1 x CNC Router Laser Engraving Machine
• 1 x Laser Module + Safety Goggles (Optional)
• 1 x Offline Control Module (Optional)
• 1 x USB Cable
• 2 x Wrenches
• N x Screws and Nuts
• 1 x U Disk
• 10 x Milling Cutter
• 1 x Power Adapter
• 1 x User Manual |
