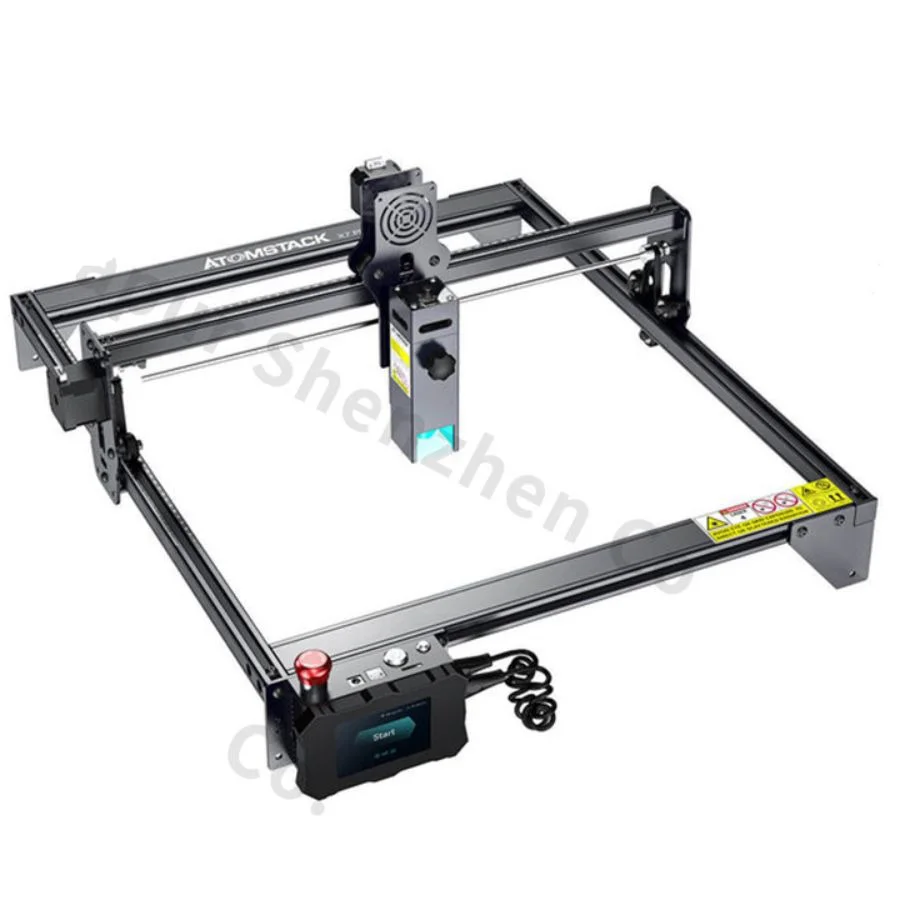

Product advantages
1) The panoramic filter glass protective cover perfectly protects your eyes, filtering 97% of the ultraviolet light. You do not need to wear goggles, and you can also watch laser engraving.
2) The all-aluminum alloy anodized structure design makes the machine durable and improves engraving accuracy. The entire structure has been designed for quick assembly, which can generally be completed within 10-20 minutes.

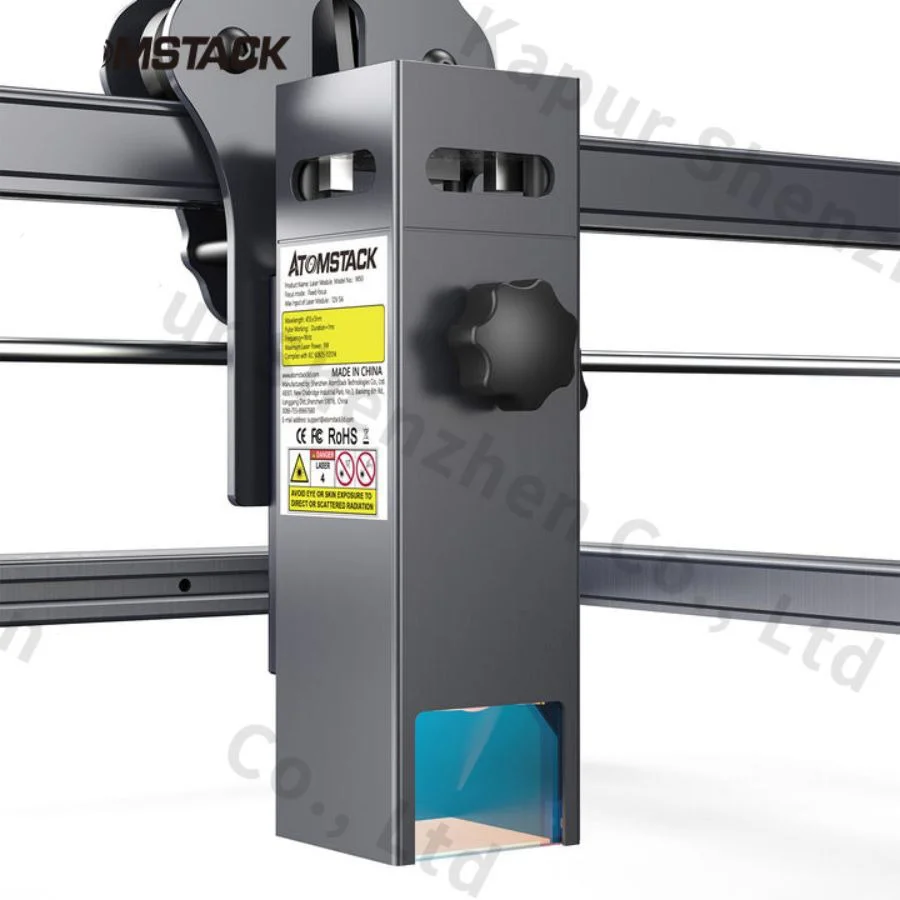

3) The fixed-focus laser can engrave without focal length adjustment, and the laser spot area is only 1/3 of the spot area of other ordinary lasers. The compressed spot ensures high energy, good stability, and high precision.
4) This laser engraver is compatible with various software, such as LaserGRBL and LightBurn. It supports Win XP / Win 7 / Win 8 / XP / Win 10 / Mac OS. The file format supports NC, BMP, JPG, PNG, DXF, etc.
5) There are scale lines on the X-axis and Y-axis, which is convenient for measuring the length quickly.
6) Integral screw rod: The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, making the laser movement more precise and the coupling more durable.

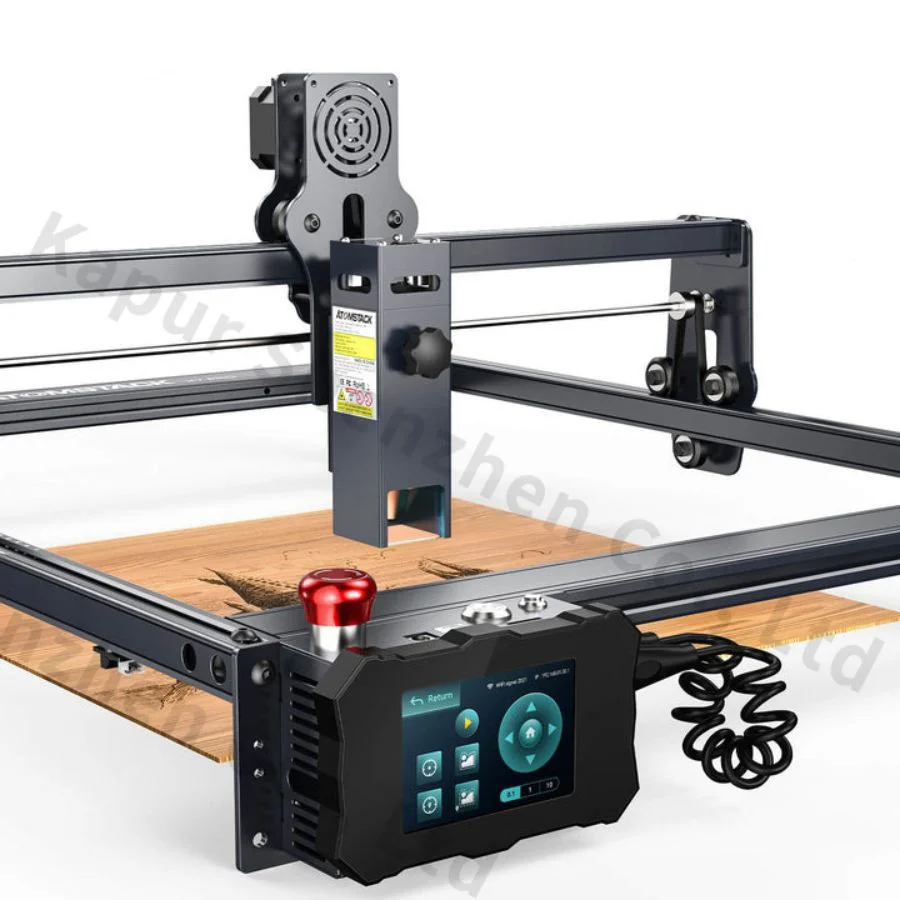

7) This engraving machine has a terminal control panel and supports offline engraving. You can carry out engraving operations anytime and anywhere without being restricted by the computer.
8) The laser sintering temperature is up to 1200℃.
9) Emergency stop button: If there is an unexpected situation, stop the machine at any time so the carving is safe.
10) The laser has a built-in horizontal gyroscope anti-tip protection device, and it stops working when the tilt angle is 20°.
11) The wind-collecting hood can clean the smoke and dust to protect the lens to avoid laser energy attenuation.
Specifications
• Engraving area: 410mm x 400mm
• Engraving speed: 3000mm/min
• Graphic formats supported: DXF, BMP, JPG, PNG, NC
• Dimensions (L*W*H): 49 x 27.5 x 13.5 cm
• Weight (kg): 4.5 kg
• Core components: motor, laser module
• Operating mode: continuous wave
• Air cooling material: aluminum alloy
• Software: LaserGRBL, LightBurn
• System: Win XP / Win 7 / Win 8 / Win 10 / Win 11 / Mac OS
• Laser power: 50W
• Laser output power: 10-11W
• Pulse width: 1ms
• Frequency: 1khz
• Laser wavelength: 445±5nm
• Engraving accuracy: 0.01mm
• Focus mode: fixed focus
• Data transmission method: USB connection / SD card
• Input voltage: AC100-240V, 50/60Hz
• Output voltage: DC12V, 5A
• Working temperature: 0℃~70℃
• Storage temperature: -40℃~85℃
• Sintering temperature: 1000~1200℃
• Compression laser spot: 0.06mm x 0.06mm
• Emergency stop button: available
• Limiter: available
• Reset switch: available
• Certifications: CE FCC RoHS FDA PSE

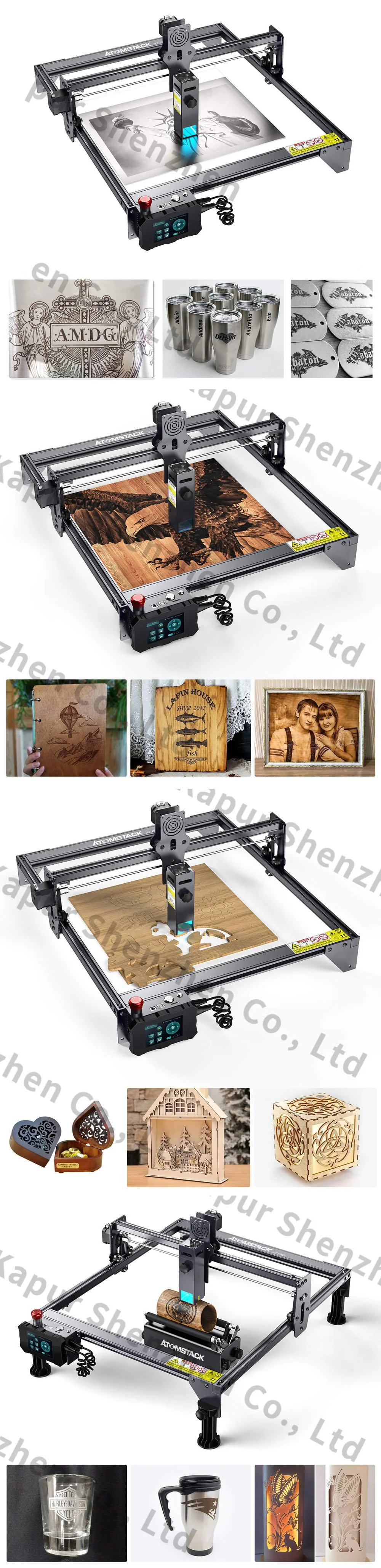

• Engraving materials: wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective plating and painted surface metal, 304 mirror stainless steel, glass, ceramics, cotton cloth, slate
• Cutting objects: cardboard, non-woven, wood, acrylic, some thin plastic sheets, sponge
Notes
1) Please install the laser protective cover When operating the laser engraving machine. If it is not installed, you need to wear goggles.
2) Please do not touch the laser emitter with your hand, or it may burn your hand.
3) Please avoid a strong impact on the machine.
4) Children under 14 are prohibited from using this product, and children over 14 need adult supervision.
5) The light engraving machine can not be directly applied to any mirror-reflecting object, which may cause injury to the operator or burn the laser. |
