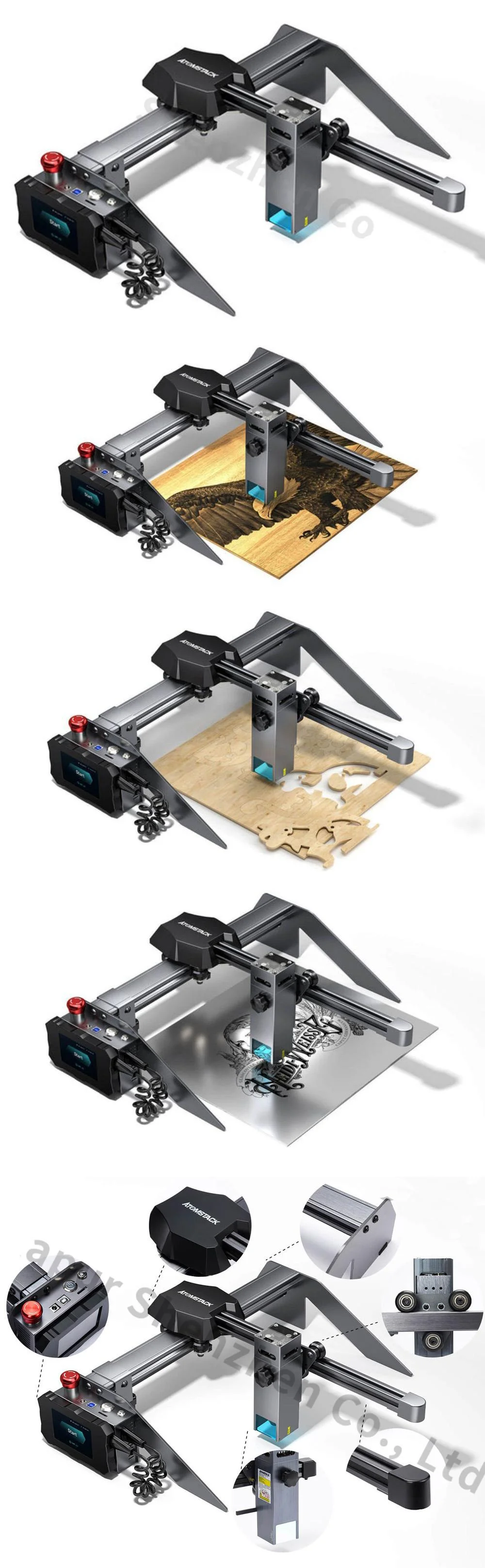

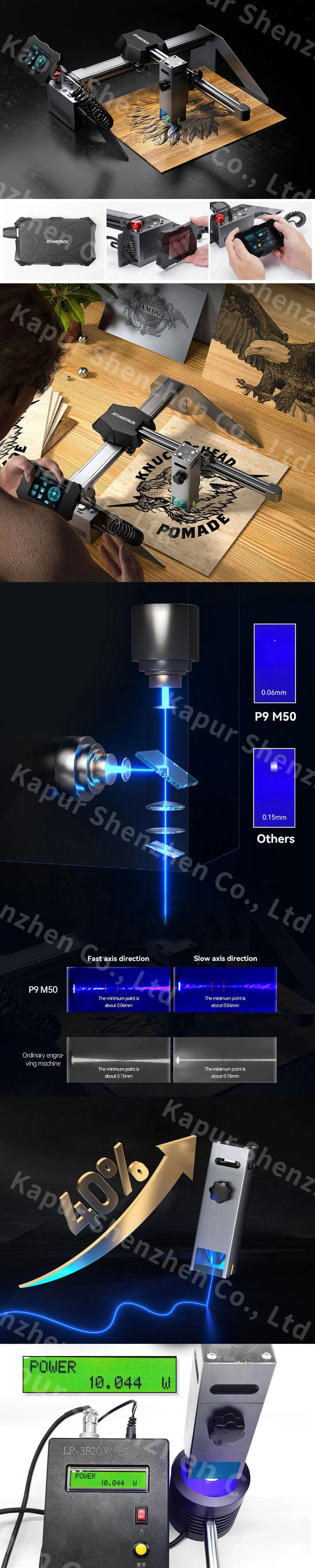

Product advantages

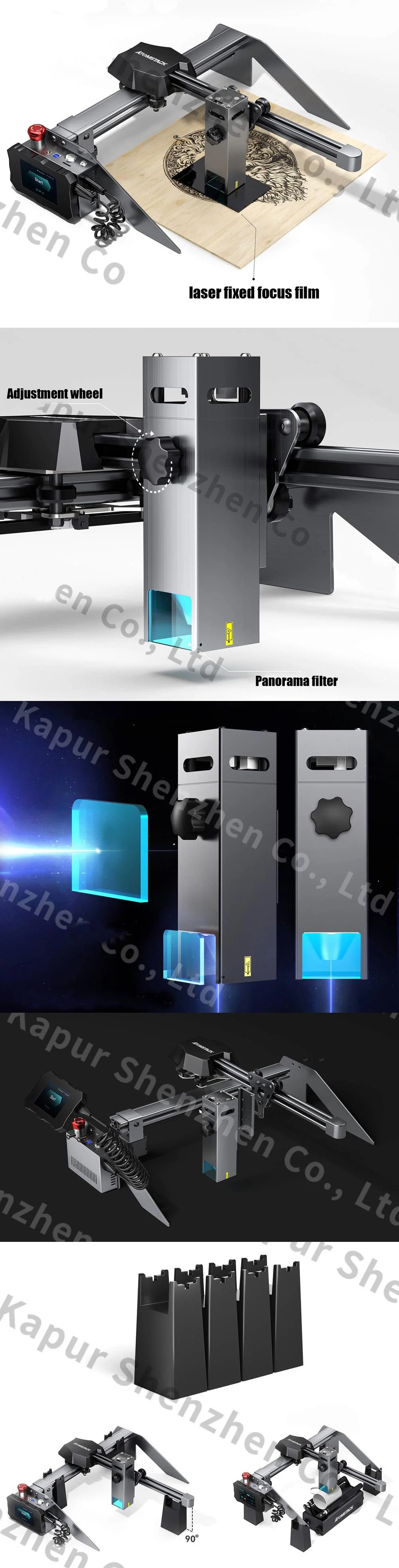

1) The panoramic filter glass protector can filter 97% of UV rays. It is safe to use, and you don't need to wear laser safety goggles.

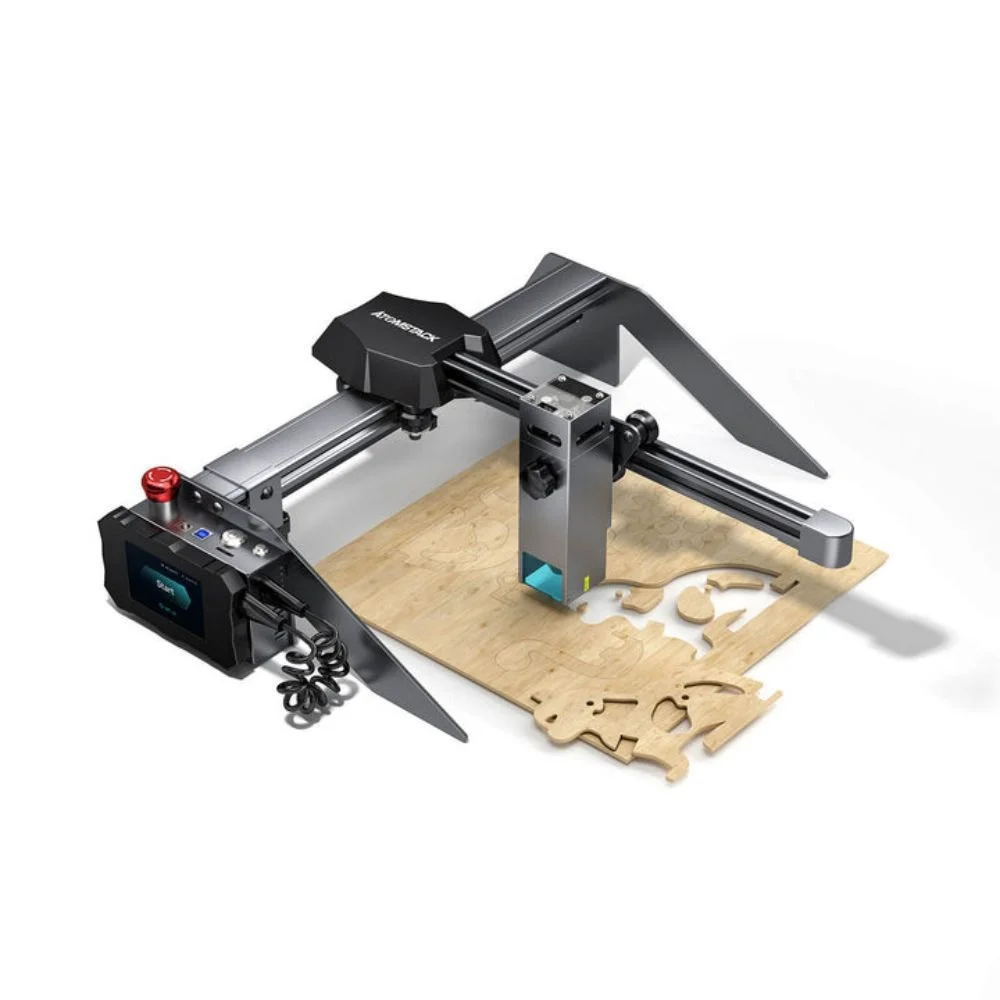

2) This engraving machine is easy to install. It adopts a sturdy and durable aluminium alloy design, which is not easily deformed.

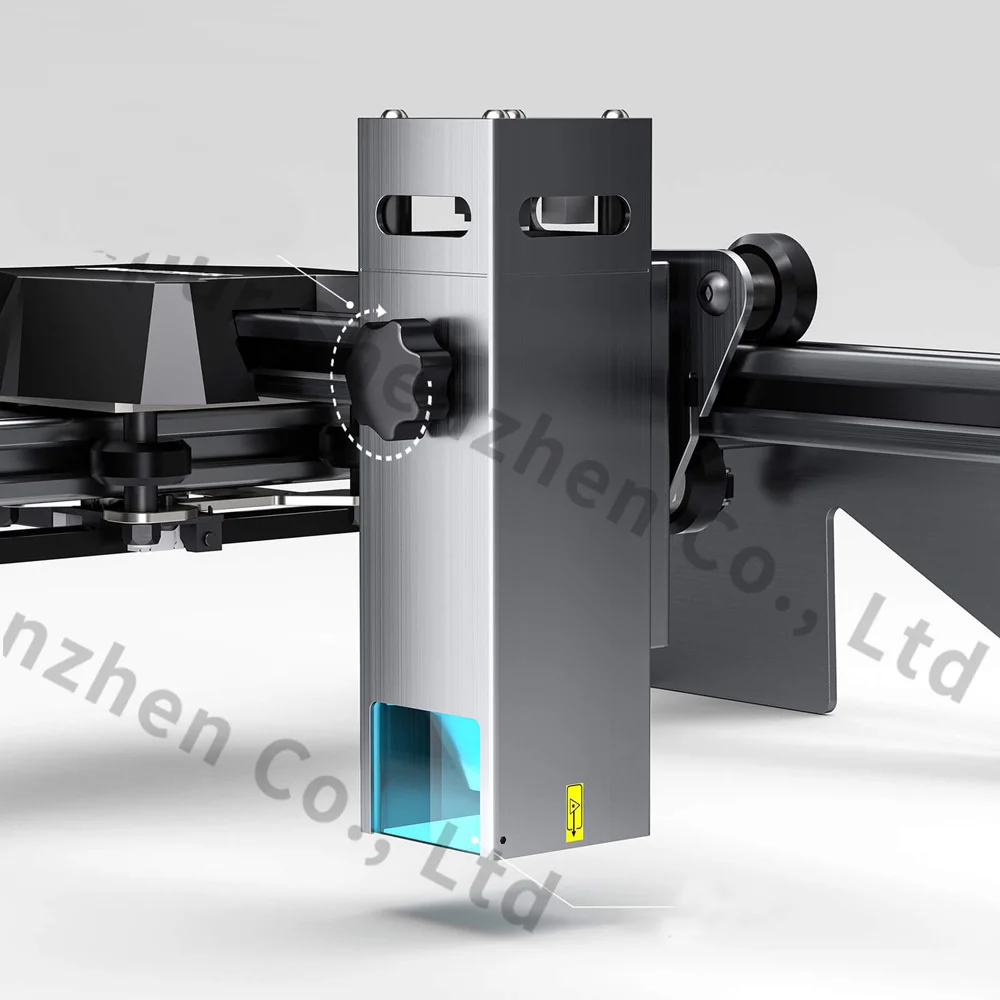

3) The fixed-focus laser can engrave without focal length adjustment, and the laser spot area is only 1/3 of the spot area of other ordinary lasers. The compressed spot ensures high energy, good stability, and high precision.
4) This model is compatible with various software, such as LaserGRBL and LightBurn. It supports Win XP / Win 7 / Win 8 / XP / Win 10 / Mac OS. The file format supports NC, BMP, JPG, PNG, DXF, etc.
5) There are scale lines on the X-axis and Y-axis, which is convenient for measuring the length quickly.

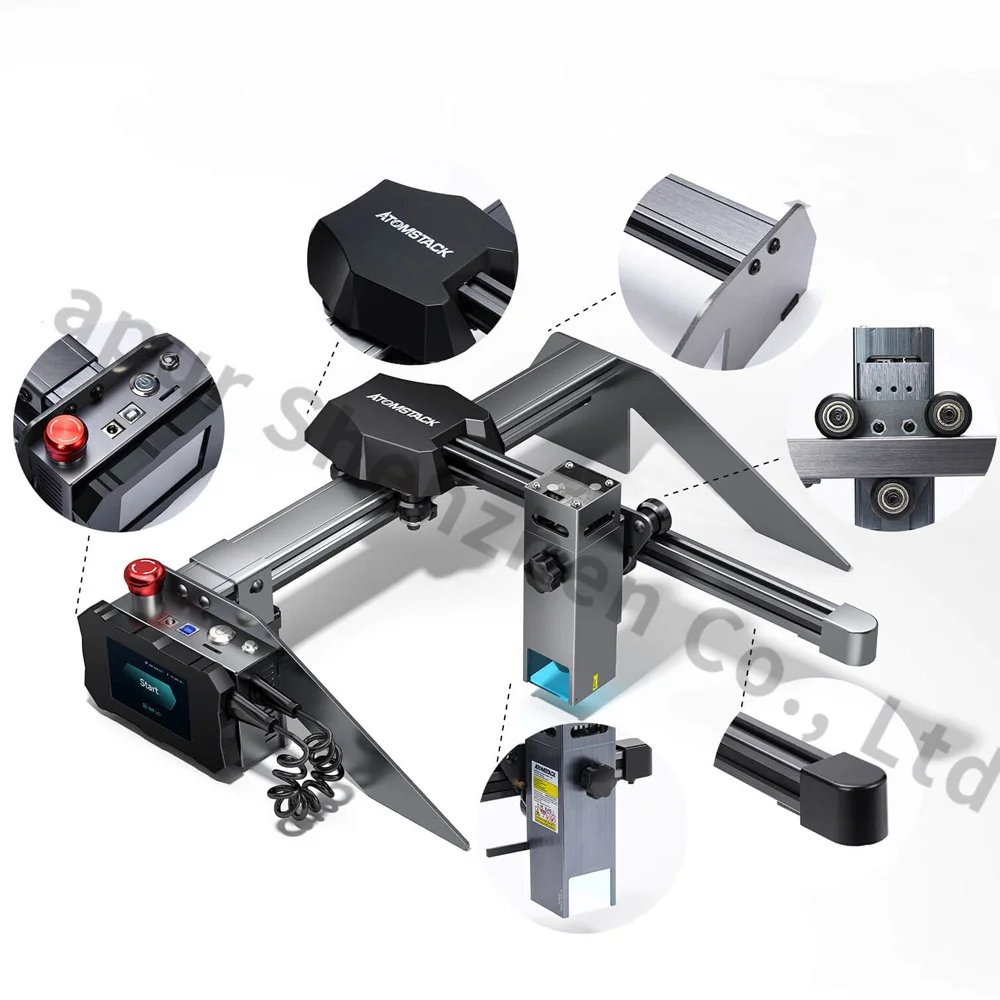

6) It adopts an integrated lead screw instead of a combined coupling. The stepping motor and the lead screw are integrated, making the laser movement more accurate and the coupling more durable.

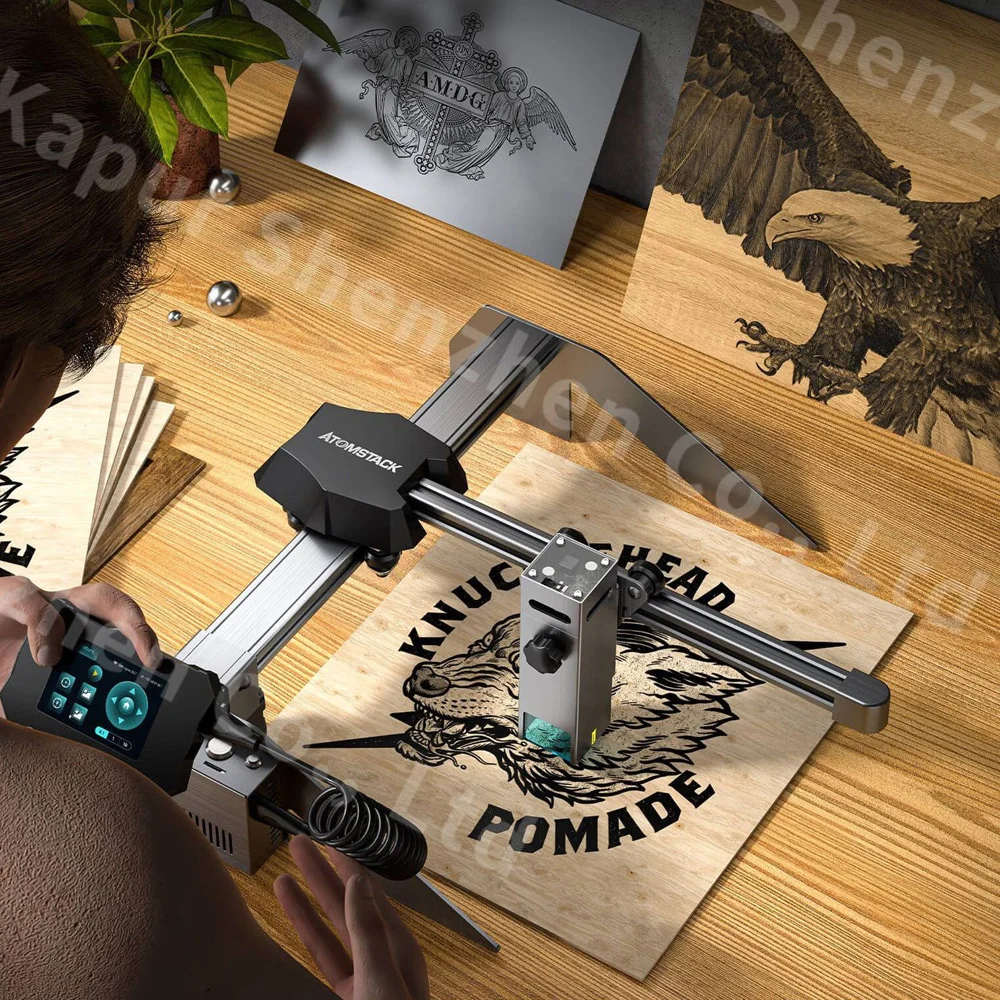

7) This laser engraving machine has a terminal control panel and supports offline engraving. You can carry out engraving operations anytime and anywhere without being restricted by the computer.
8) The laser sintering temperature is up to 1200℃.

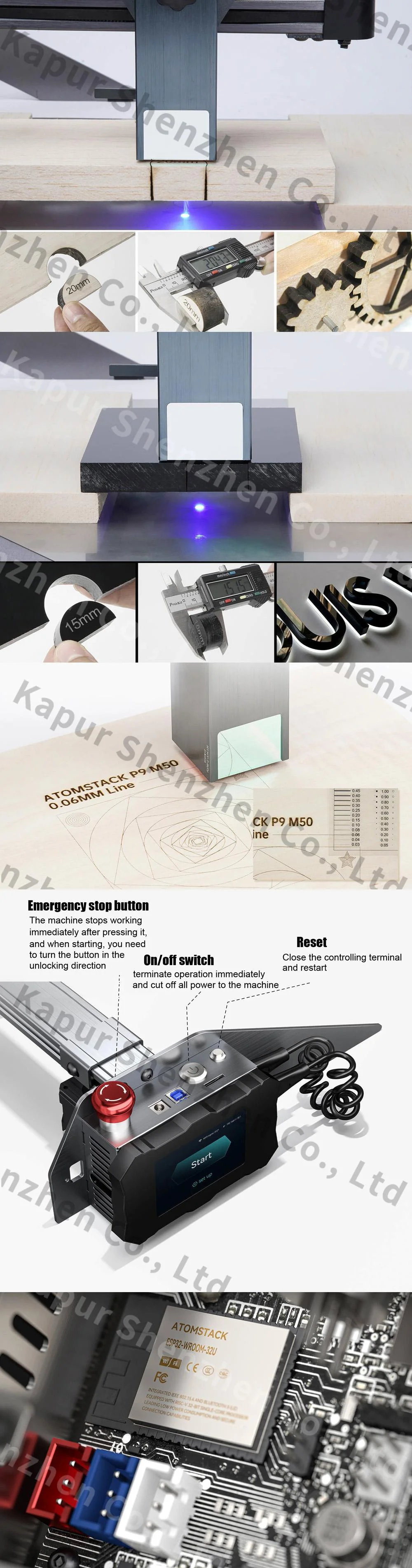

9) Emergency stop button: If there is an unexpected situation, stop the machine at any time so the carving is safe.
10) The laser has a built-in horizontal gyroscope anti-tip protection device, and it stops working when the tilt angle is 20°.
11) The wind-collecting hood can clean the smoke and dust to protect the lens to avoid laser energy attenuation.
Specifications
• Engraving area: 410mm x 400mm
• Laser type: diode
• Engraving speed: 3000mm/min
• Graphic formats supported: DXF, BMP, JPG, PNG, NC
• Dimensions (L*W*H): 49 x 27.5 x 13.5 cm
• Weight (kg): 4.5 kg
• Core components: motor, laser module
• Operating mode: continuous wave
• Air cooling material: aluminum alloy
• Software: LaserGRBL, LightBurn
• System: Win XP / Win 7 / Win 8 / Win 10 / Win 11 / Mac OS
• Laser power: 50W
• Laser output power: 10-11W
• Pulse width: 1ms
• Frequency: 1khz
• Laser wavelength: 455±5nm
• Engraving accuracy: 0.01mm
• Focus mode: fixed focus
• Data transmission method: USB connection / SD card
• Input voltage: AC100-240V, 50/60Hz
• Output voltage: DC12V, 5A
• Working temperature: 0℃~70℃
• Storage temperature: -40℃~85℃
• Sintering temperature: 1000~1200℃
• Compression laser spot: 0.06mm x 0.06mm
• Emergency stop button: available
• Limiter: available
• Reset switch: available
• Certifications: CE FCC RoHS FDA PSE
• Engraving materials: acrylic, glass, leather, MDF, metal, paper, plastic, plywood, rubber, stone, wood
• Cutting objects: cardboard, non-woven fabric, wood board, acrylic, some thin plastic board, sponge
Packing list
1 x Screw parts
1 x Dust-free cloth
1 x Tool kit
1 x Fixed focus film
3 x Acrylic sheet
3 x Wood chips
1 x Card reader
5 x Cable tie
1 x Accessories package
1 x Display assembly
1 x Display cable
1 x Power adapter
1 x Power cable
1 x Data line
1 x Metal cutting pad
1 x User manual
1 x Laser assembly
1 x X-axis assembly
1 x Y-axis assembly
2 x Support tripod
4 x Assembly block
1 x Desiccant |
