Product advantages

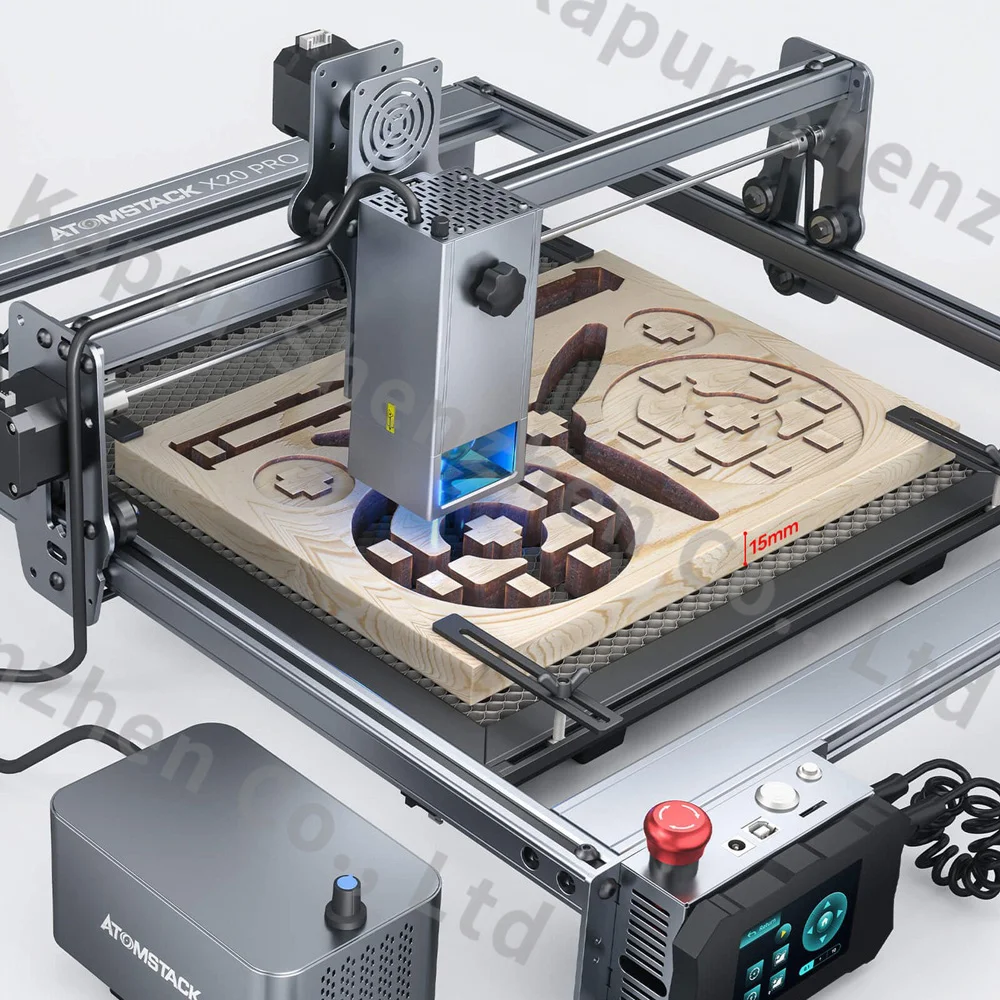

1) Ultra high power: the laser output power soars up with the latest generation of four 6W laser coupling technology, can cut off 12-15mm thick tungsten board as well as the 8mm thick black acrylic board with only one pass, and even cut the 0.05mm thick stainless steel sheet.
2) Self-developed 32-bit motherboard: built-in 256-bit color scale, achieving the finer engraving result and higher contrast effect. Now your projects are no longer in black only!

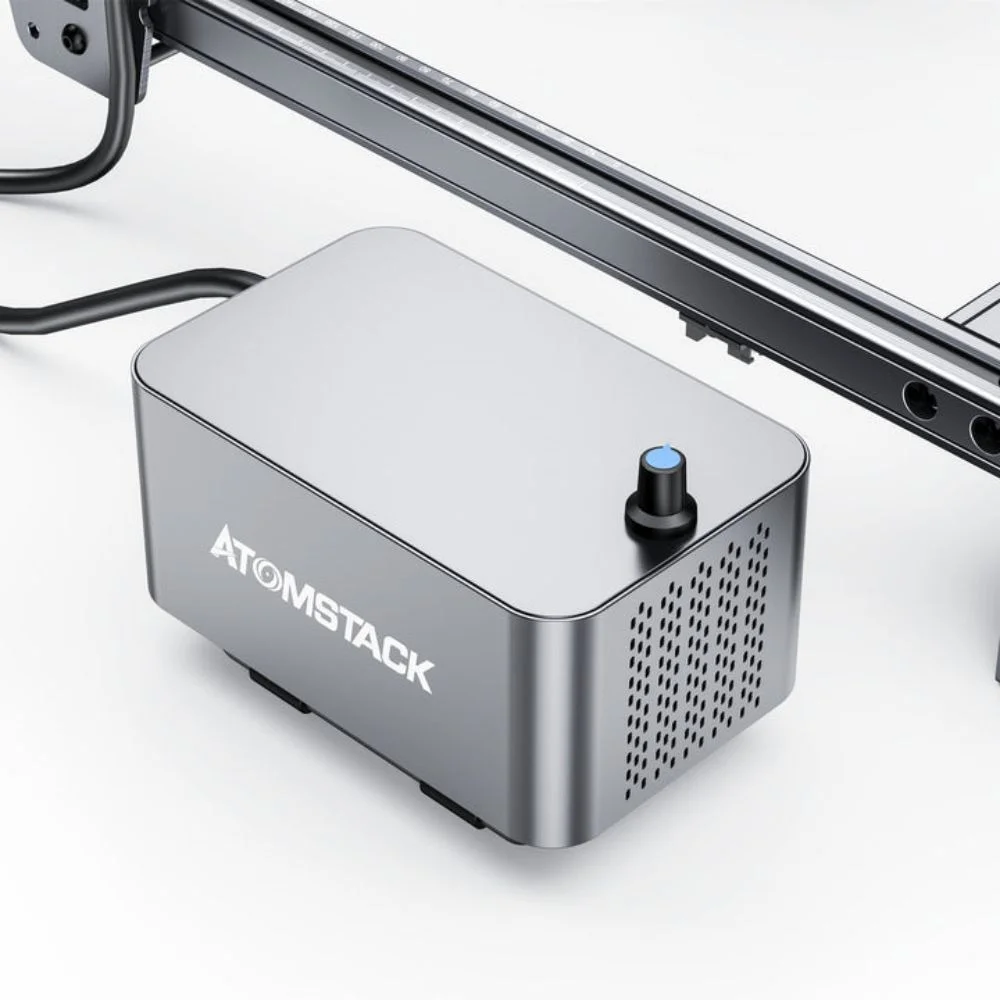

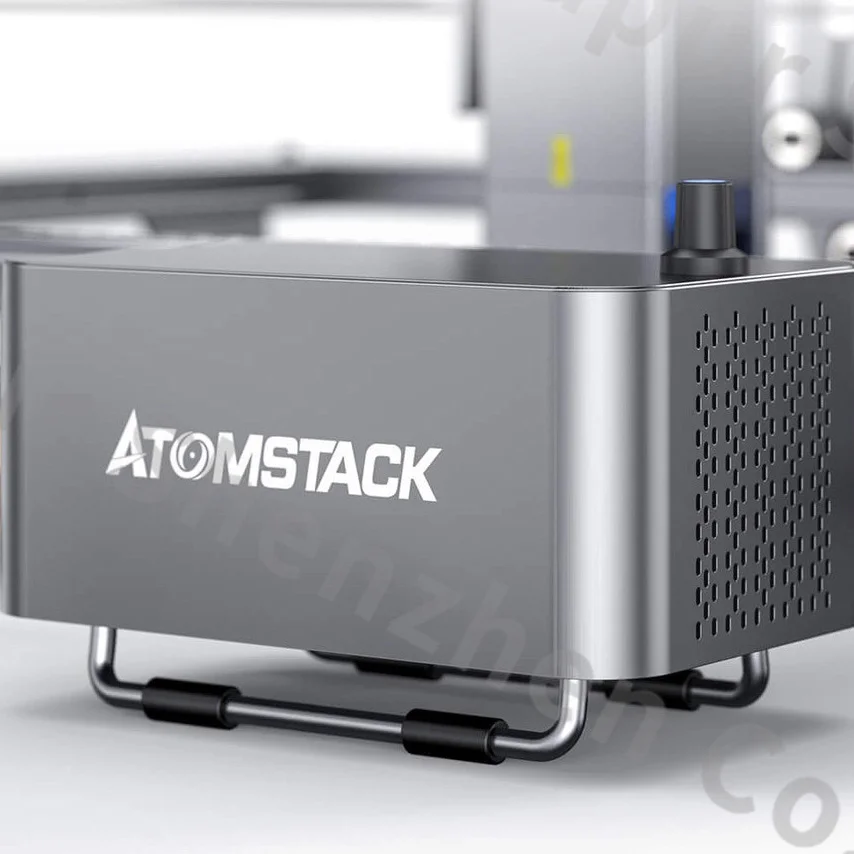

3) This laser engraving machine comes with an upgraded air assist kit: the cutting capacity is greatly improved, and the cutting accuracy and quality are optimized to a considerable extent.

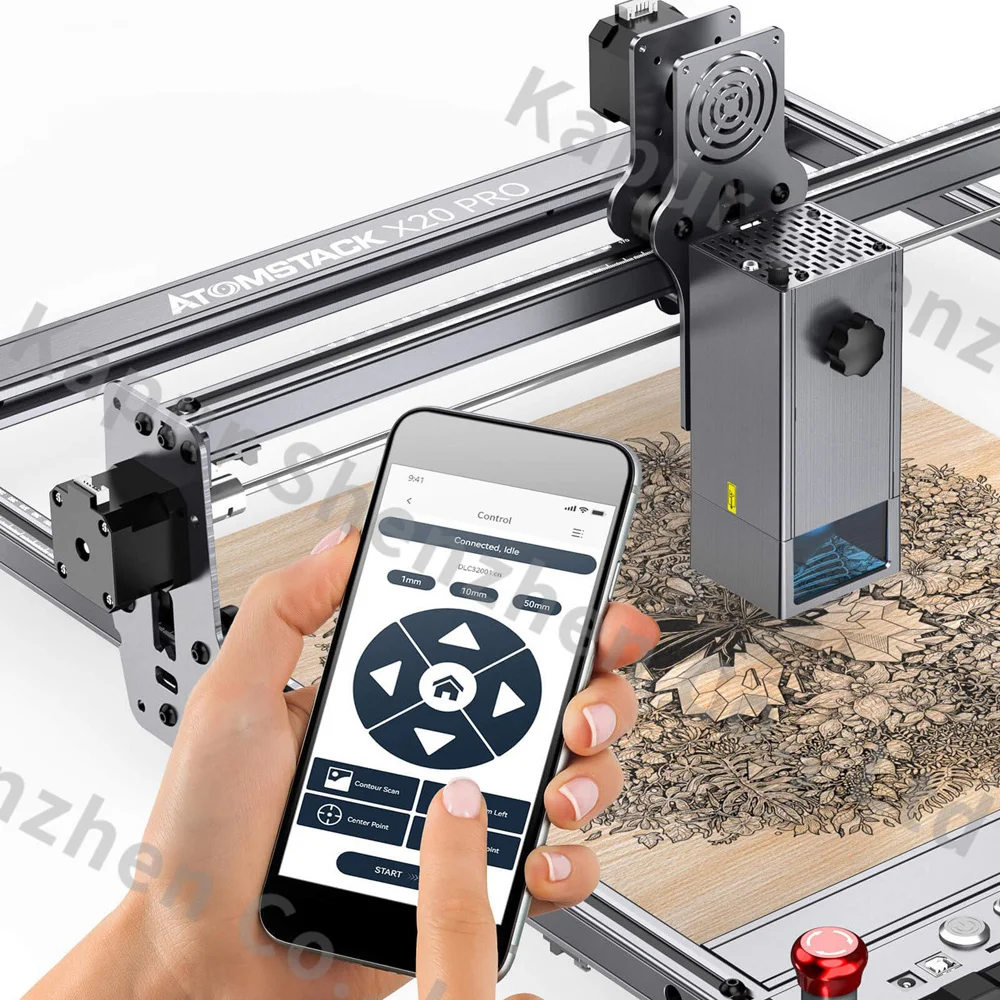

4) Our self-developed mobile phone APP is now available in major Android application markets and the Apple APP store (The APP is downloadable via scanning the QR code from the manual).
5) The panoramic filter glass protective cover perfectly protects your eyes, filtering 97% of the ultraviolet light. You do not need to wear goggles; you can also watch laser engraving.

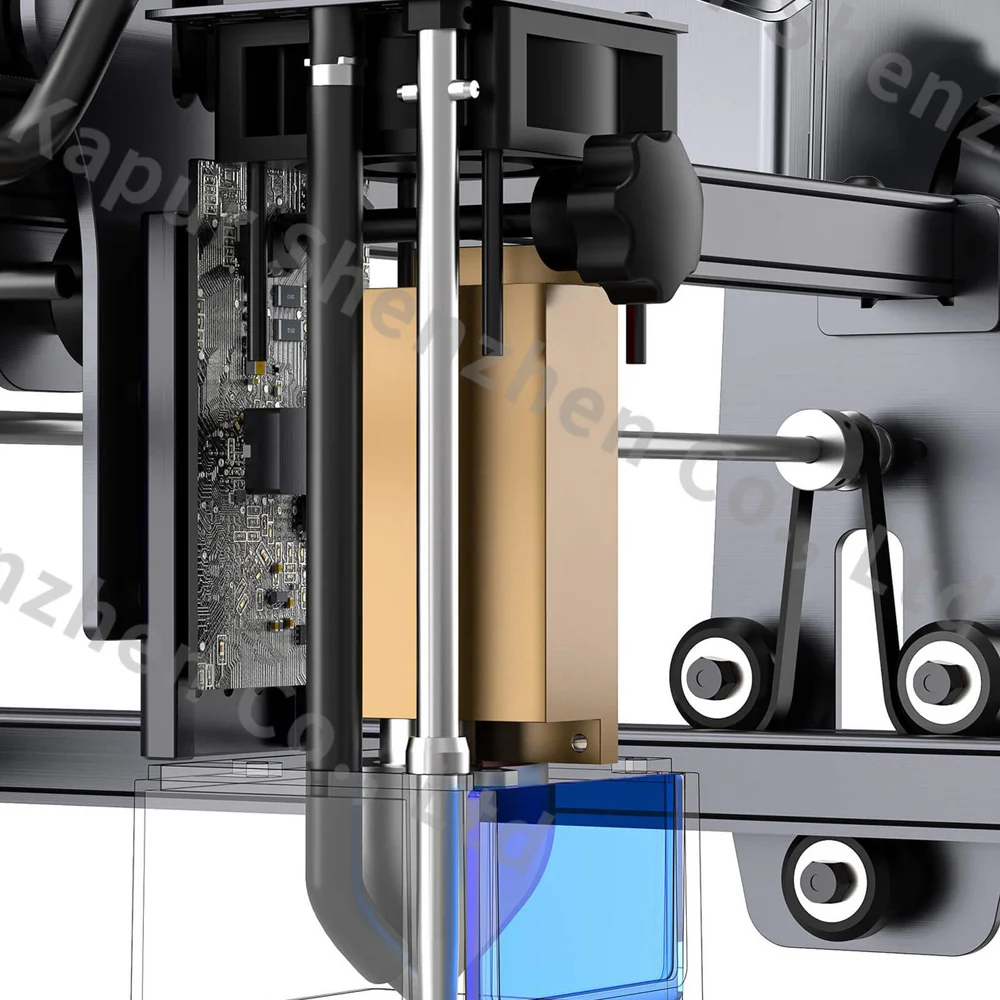

6) The fixed-focus laser can engrave without focal length adjustment, and the laser spot area is only 1/3 of the spot area of other ordinary lasers. The compressed spot ensures high energy, good stability, and high precision.

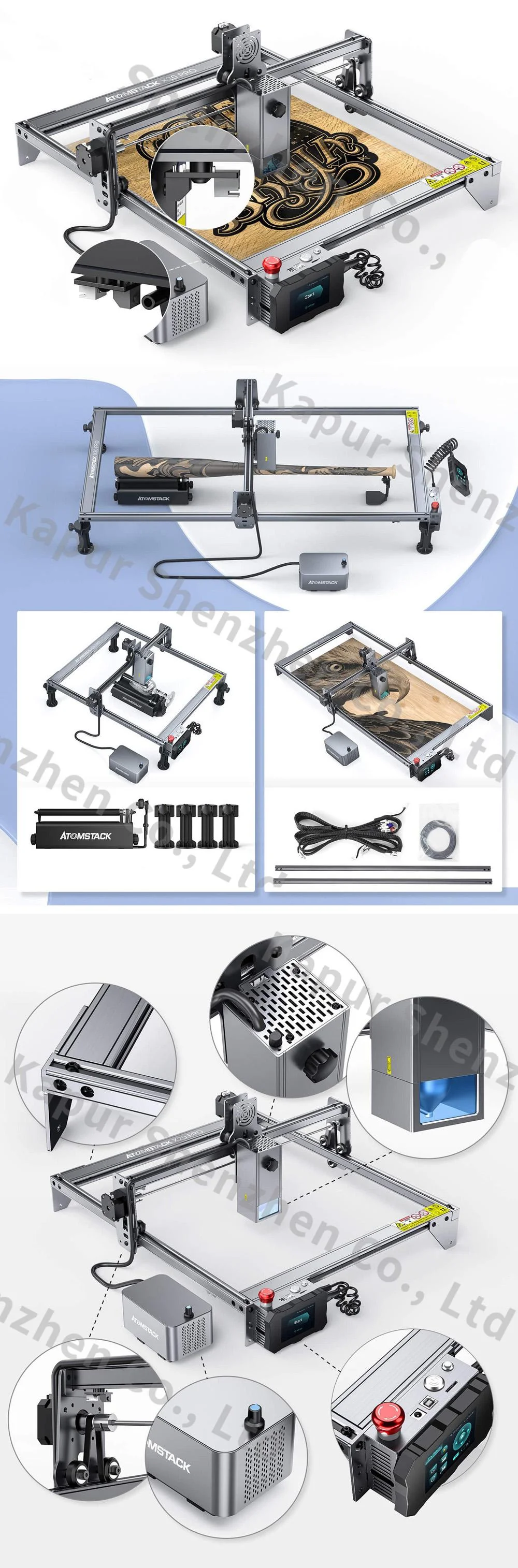

7) The all-aluminum alloy anodized structure design makes the machine durable and improves engraving accuracy. The entire structure has been designed for quick assembly, which can generally be completed within 10-20 minutes.
8) This laser engraver is compatible with various software, such as LaserGRBL and LightBurn. It supports Win XP / Win 7 / Win 8 / XP / Win 10 / Mac OS. The file format supports NC, BMP, JPG, PNG, DXF, etc.

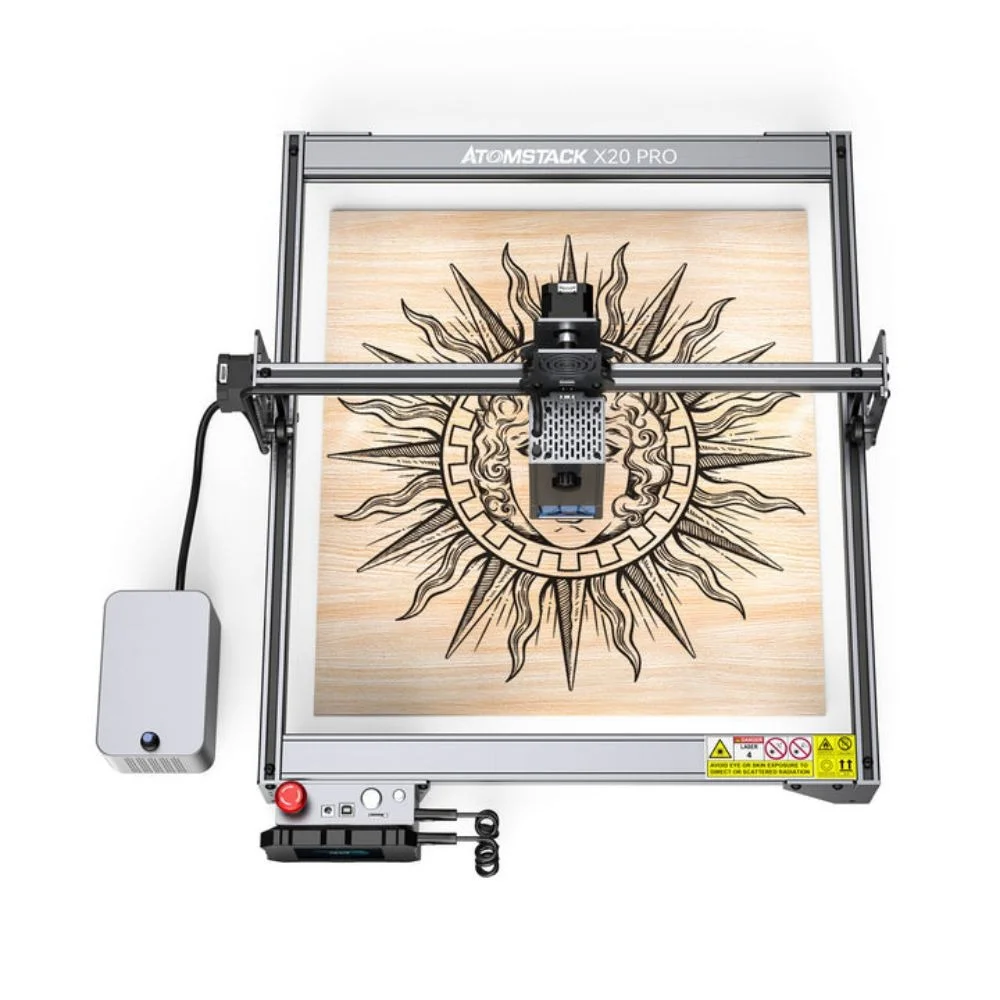

9) There are scale lines on the X-axis and Y-axis, which is convenient for measuring the length quickly. The 410x400mm large area engraving interval can meet your various engraving needs.
10) Upgraded compression spot coupling technology: ultra-fine laser focus area is reduced to 0.08x0.1mm. The high-density laser can easily cut 25mm thick wood and 30mm thick black acrylic. It can directly engrave mirror stainless steel metal, ceramics, and glass. The engraving speed is 40% higher than the ordinary model, which can be comparable to the effect of the 150W CO2 laser engraving machine.
11) Integral screw rod: this machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, making the laser movement more precise and the coupling more durable.

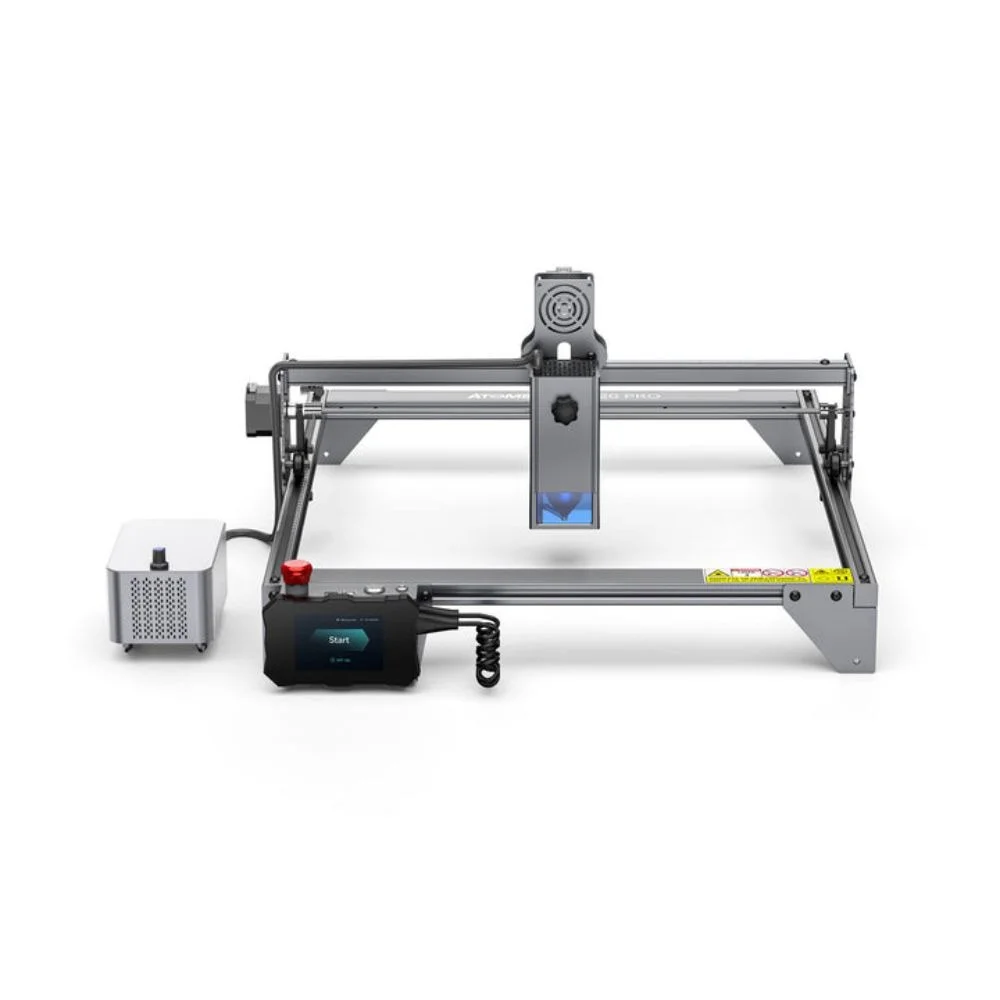

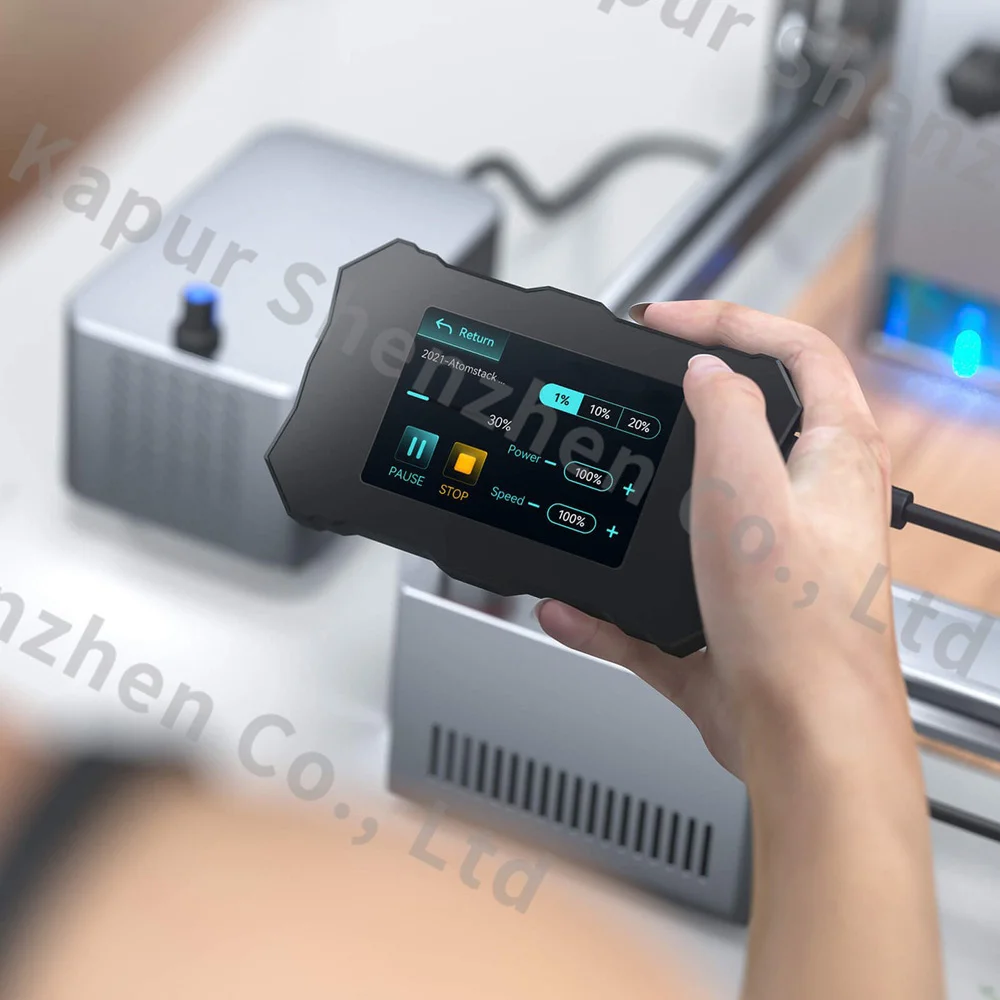

12) This laser engraving machine has a terminal control panel and supports offline engraving. You can carry out engraving operations anytime and anywhere without being restricted by the computer.
13) The laser sintering temperature is up to 2400℃.
14) Emergency stop button: if there is an unexpected situation, stop the machine at any time so the carving is safe.
15) The wind-collecting hood can clean the smoke and dust to protect the lens to avoid laser energy attenuation.
Specifications
• Engraving area: 410mm x 400mm
• Machine power: 130W
• Laser power: 20W
• Laser spot: 0.08x0.1 mm
• Laser wavelength: 455±5nm
• Routing speed: 12000 mm/min
• Voltage input: 100-240V 50-60HZ
• Connecting interfaces: USB, Offline Use, APP
• Operating systems: Windows, Mac OS, Linux
• Control software: LaserGRBL and Lightburn
• File type: SVG, DXF, JPG, JPEG, PNG, BMP, TIF, CR2, etc.
• Focus mode: fixed focus
• Certifications: CE, FCC, RoHS, FDA, PSE
• Engraving materials: acrylic, leather, MDF, metal, paper, plastic, plywood, rubber, wood
Notes
1) Please install the laser protective cover when operating the laser engraver. If it is not installed, you need to wear goggles.
2) Please do not touch the laser emitter with your hand, or it may burn your hand.
3) Please avoid a strong impact on the machine.
4) Children under 14 are not allowed to use this product.
5) This laser engraving machine can not be directly applied to any mirror-reflecting object, which may cause injury to the operator or burn the laser. |
