Precision Crosshair Red Laser Module 635nm / 658nm 100mW

This module adopts the imported laser diode, high-performance APC/ACC driver circuits, and optically coated glass lens. It has high reliability, high precision, excellent stability, strong anti-interference, high consistency, and long useful life. The 635nm / 658nm is optional, and the output is up to 100mW. With the adjustable focus, you can change the line width of the crosshair to fit different usage distances. This crosshair red laser module is mainly used for textile garment positioning, machining, tire production positioning, woodworking machinery, military equipment, industrial equipment, laser medical devices, power tools, laser positioners, etc.

Specifications

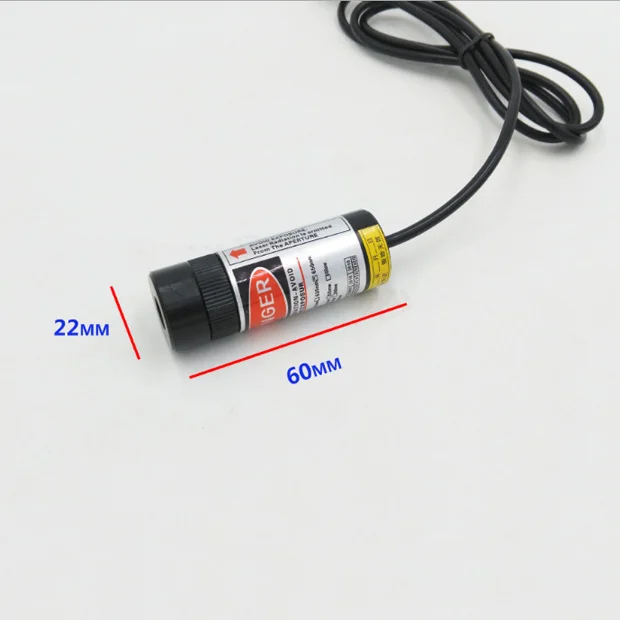

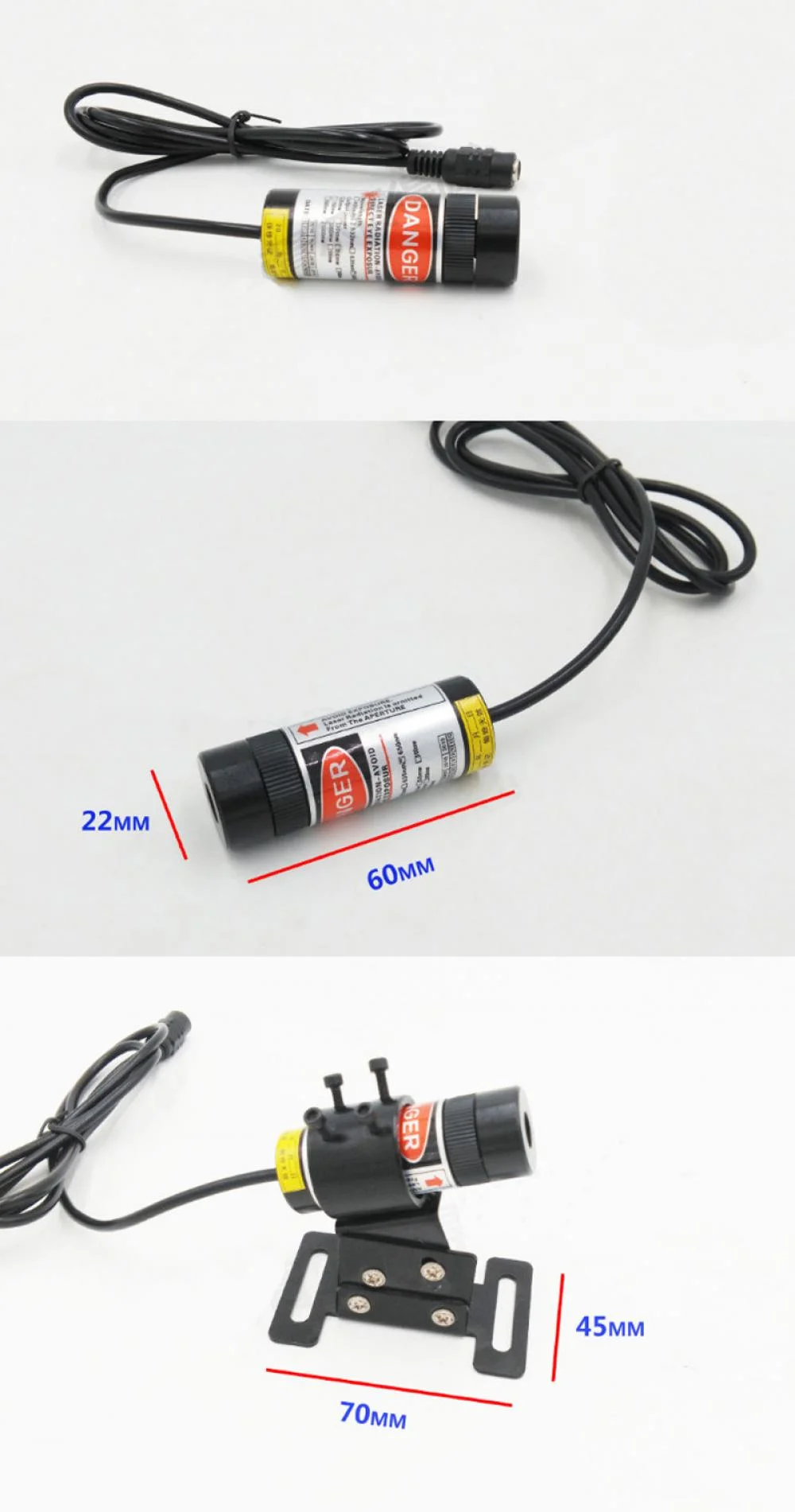

• Dimensions: 22 × 60mm (customizable)
• Wavelength: 658nm / 635nm
• Output power: > 100mW
• Operating voltage: 3V (customizable: 4.5V / 5V / 12V)
• Fan angle: 20° ~ 120°
• The thinnest line width: 0.4mm at 10cm, 0.5mm at 50cm, 1mm at 1.5m, 2mm at 6m, 4mm at 10m (the line width can be customized according to specific use)
• Straightness: < 1/5000
• Verticality: ≤ ±1.5 ́
• Storage temperature: -20°C ~ 85°C
• Operating temperature: -10°C ~ 55°C
• Adjustable focus: yes
• Lens angle: 90° (customizable)

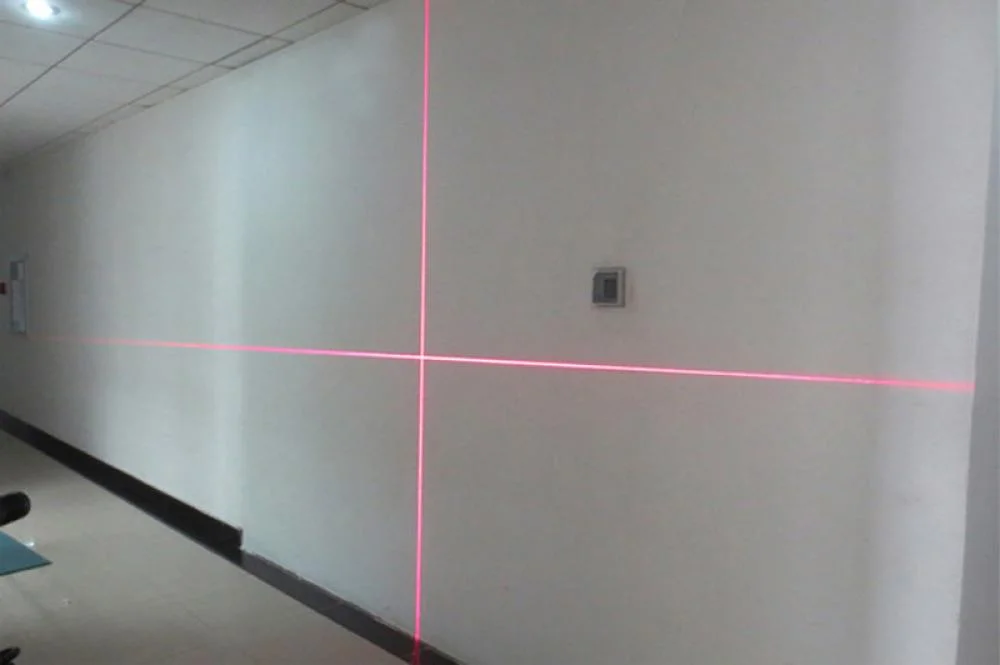

The crosshair can be adjusted to fit the distance in use.

Packing list
• 1 x Precision crosshair red laser module

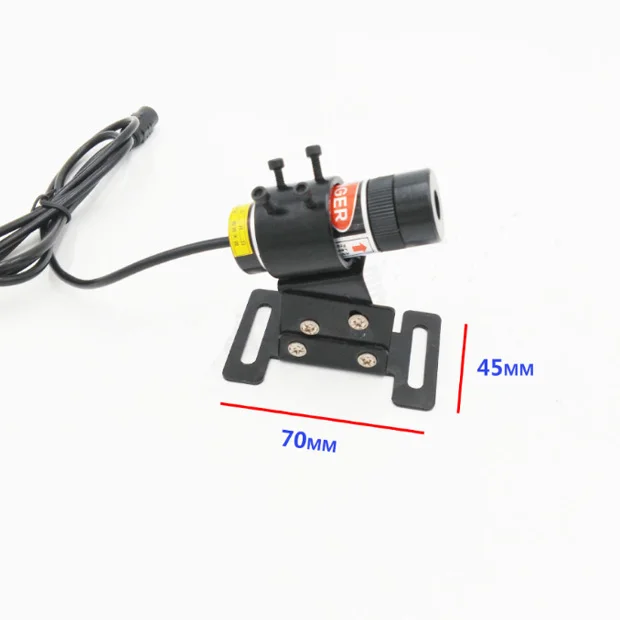

• 1 x Adjustable mounting bracket
• 1 x Power adapter
