532nm Green Laser Module 100mW / 200mW / 300mW AC/DC 12V

These green laser modules come with high power and low prices. Currently, 100mW, 200mW, and 300mW are optional, with different product dimensions for different powers. If you need the higher power (≤ 1500W), please contact us. The materials and structure may be changed for product customizations, and it may take 3-5 working days.

Please note: the 500mW version is not in stock now.

Specifications
• Laser wavelength: 532nm (green)
• Output Power: 100mW / 200mW / 300mW

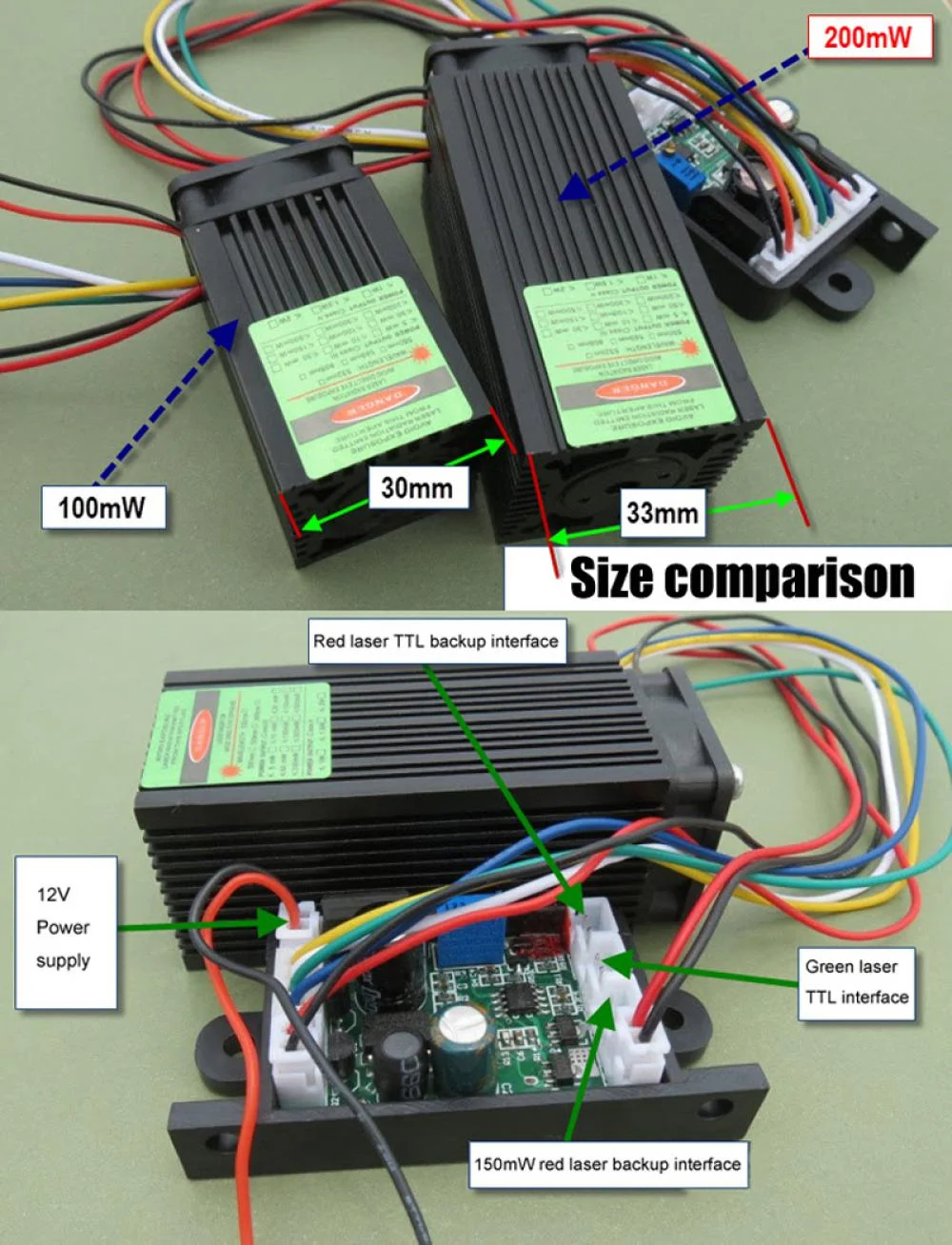

• Dimensions: 30 x 30 x 74 mm (100-300mW) / 33 x 33 x 82 mm (500mW)
• Cooling method: natural air cooling
• Frequency modulation: TTL 0-30 KHZ
• Output mode: CW (single point)
• Housing material: 7075 aluminum
• Surface treatment: surface oxidation, black rubber paint
• Control circuit: constant current
• Reverse polarity protection: automatic identification of positive and negative
• Operating voltage: AC/DC 12V
• Working current: I < 850mA
• Working temperature: 0 ℃ - 45 ℃

Attention!
The input voltage must not be more than 15V, or this laser module may be burned!
