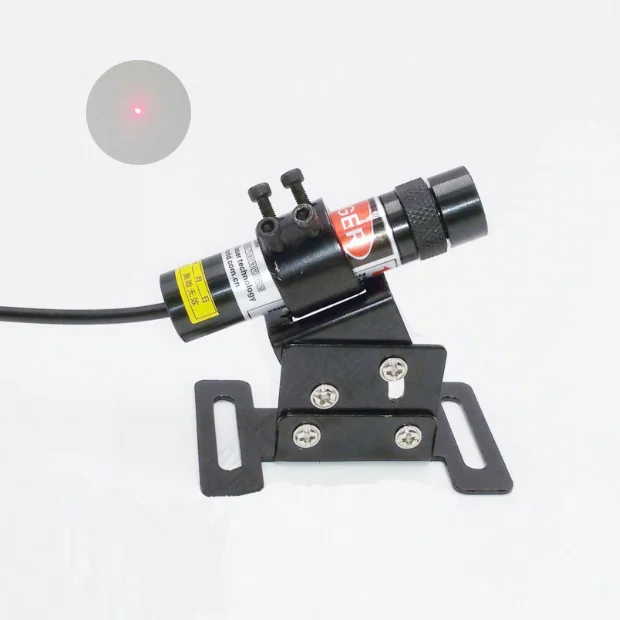

Professional and Adjustable Red Dot Laser Module 658nm 10mW

This dot laser module comes with the imported laser diode, high-performance APC/ACC driver circuits, and optically coated glass lens. The product housing adopts aerospace aluminum and black oxidation treatment, which has good anti-static and heat resistance. With the adjustable focus, you can change the size of the laser spot. The spot shape (circular or elliptical), output power, and wavelength are customizable according to different usage requirements.

This red dot laser module is widely used in various industrial markers, military equipment, leveling laser sources, laser range finders, laser thermometers, laser sights, laser medical instruments, presentation laser sources, positioners, etc. It has high reliability, excellent stability, high precision, strong anti-interference, high consistency, and long useful life.

Specifications
• Wavelength: 658nm
• Output power: 10mW
• Laser type: dot
• Operating voltage: 3V (customizable: 4.5V / 5V / 12V)
• The minimum diameter of the laser spot: Φ0.3mm
• Storage temperature: -40°C ~ 85°C
• Operating temperature: -10°C ~ 50°C
• Focus: adjustable

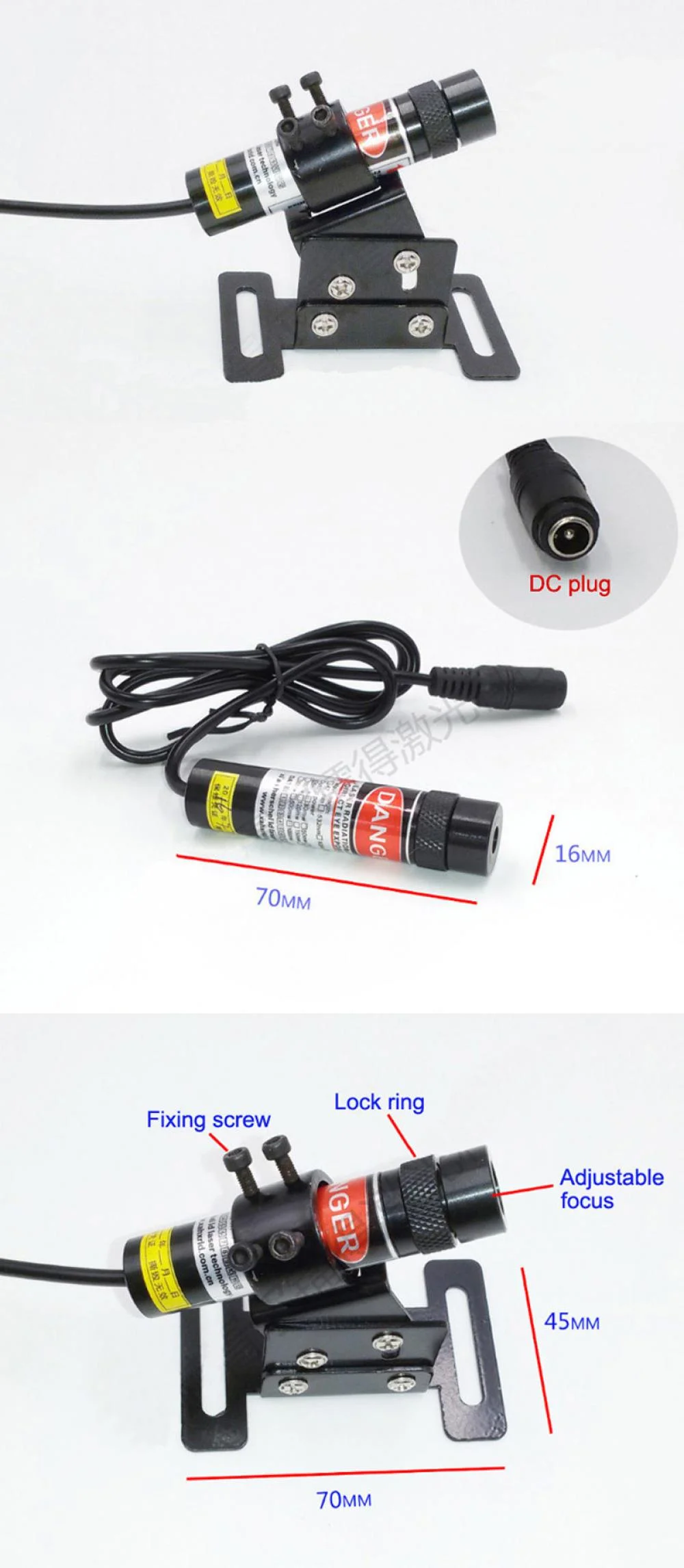

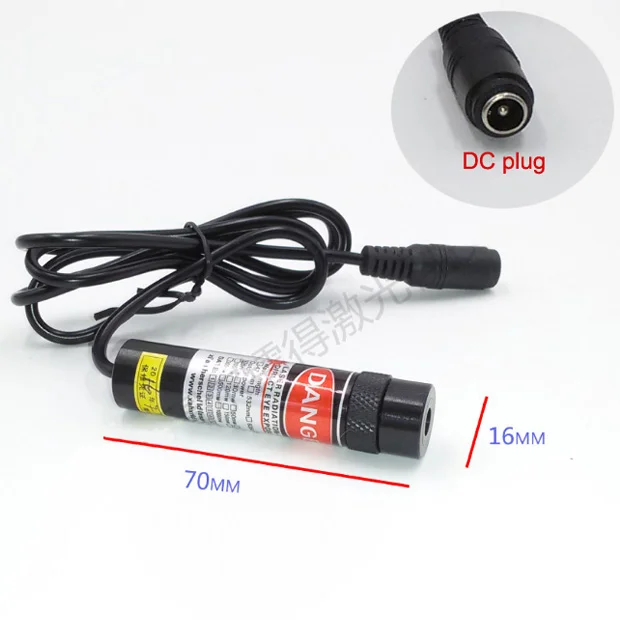

• Dimensions: 16 × 70 mm

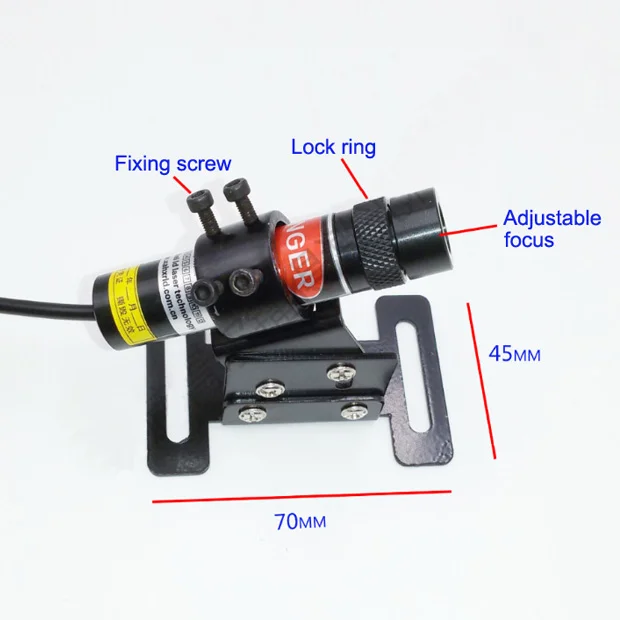

With adjustable focus, the size of the red dot can be adjusted.

Packing list
• 1 x Professional 658nm dot laser module
• 1 x Adjustable mounting bracket
• 1 x 3V power adapter
