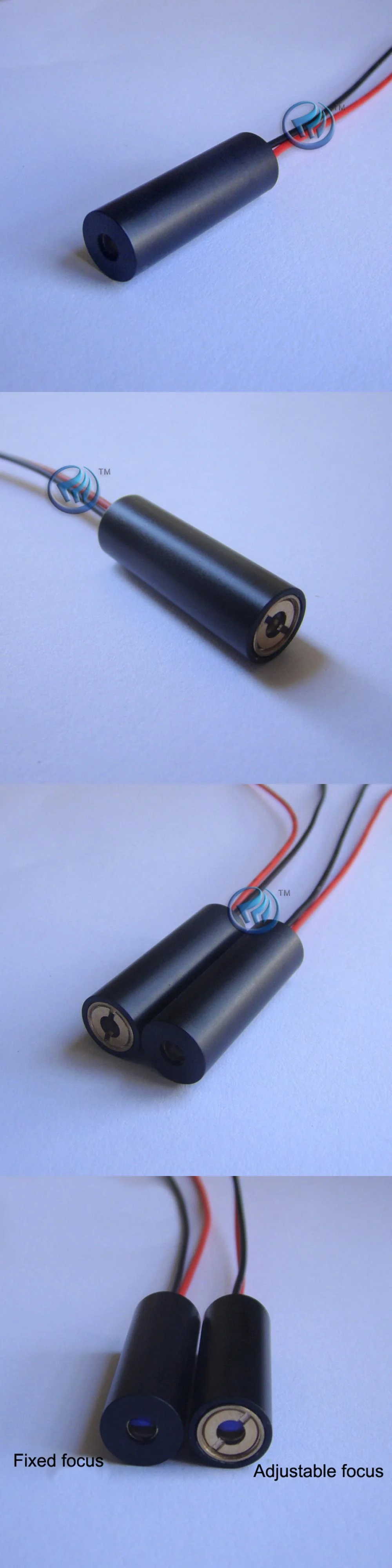

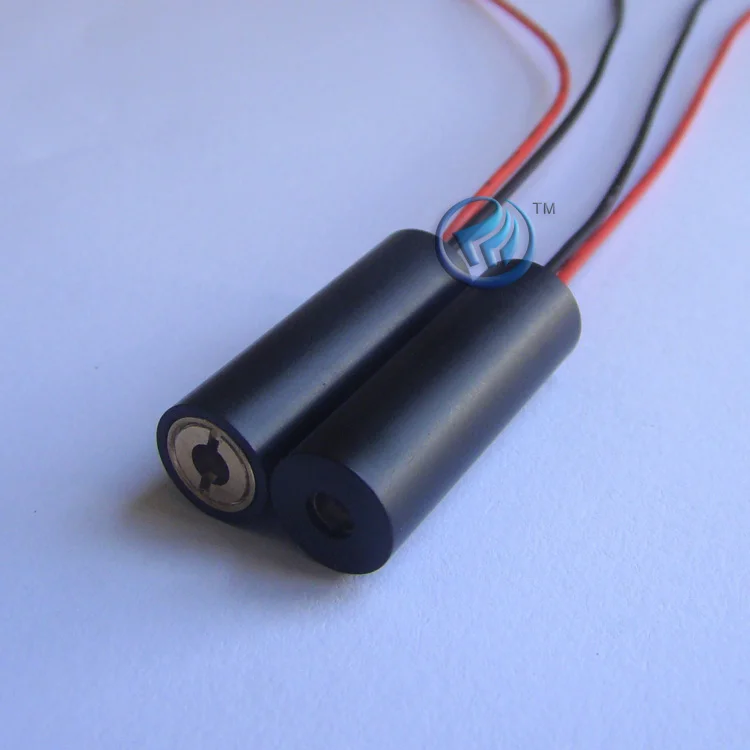

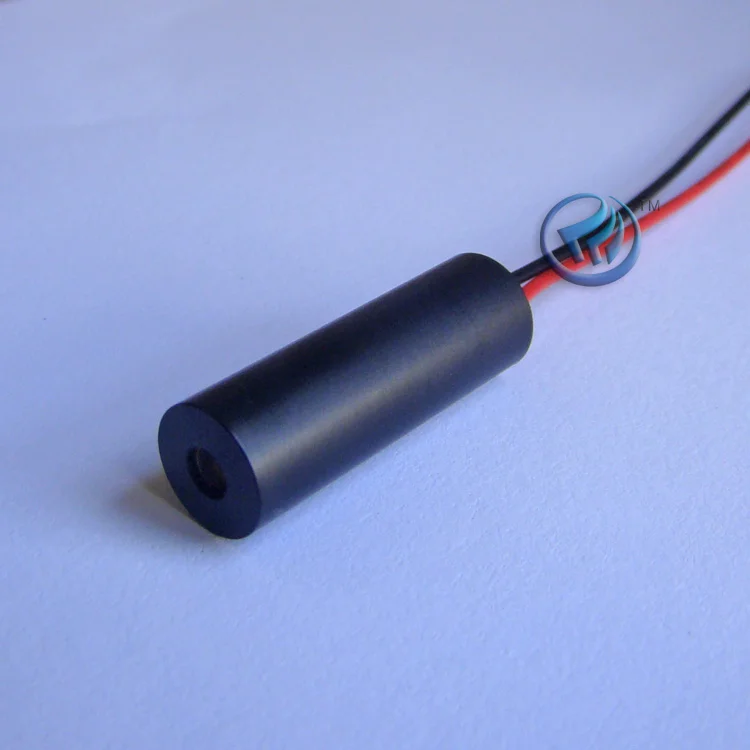

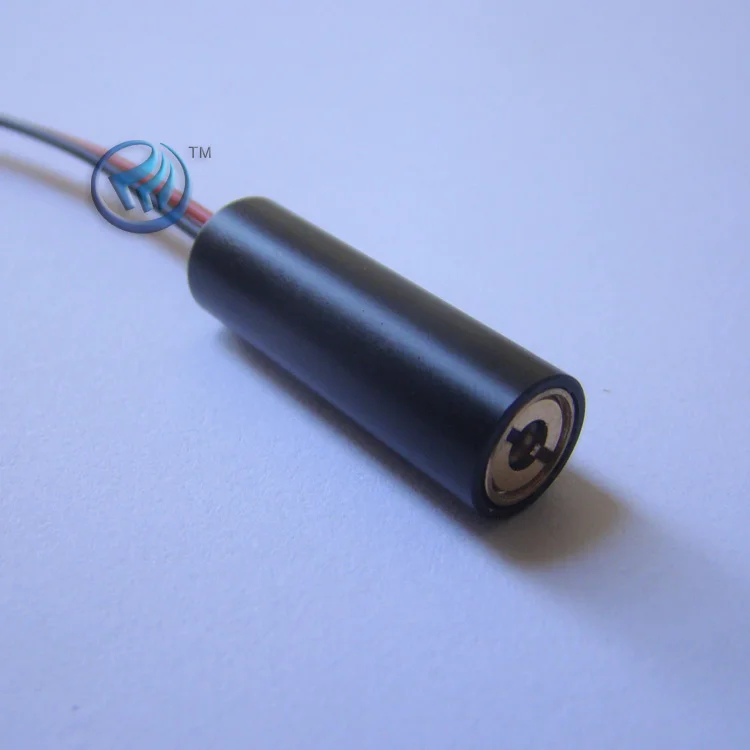

Red dot laser module 660nm 50mW / 100mW / 200mW

This laser module has a small size and high power. Its 660nm laser spot is bright and uniform. It can be used for red laser pointer, flashlight, laser positioning, rangefinder, medical equipment, etc. To ensure stability, the output power we recommend is no more than 200mW (50-200mW is optional). For product customizations, please contact us via email. We will reply to you within 24 hours.

Buying Tips
1) The line/cross is customizable.
2) The default operating voltage is 3.0V~5.0V. /12V/24V is customizable.
3) The module size can be customized: Φ9×26mm, Φ10×30mm, Φ12×30mm, Φ12×50mm (size customization is free). We will send Φ10×30mm by default.

Specifications
• Wavelength: 660nm (red)
• Laser shape: dot (line/cross is customizable)
• Dimensions: Φ10 x 30 mm (customizable)
• Output power: 50mW/100mW/200mW

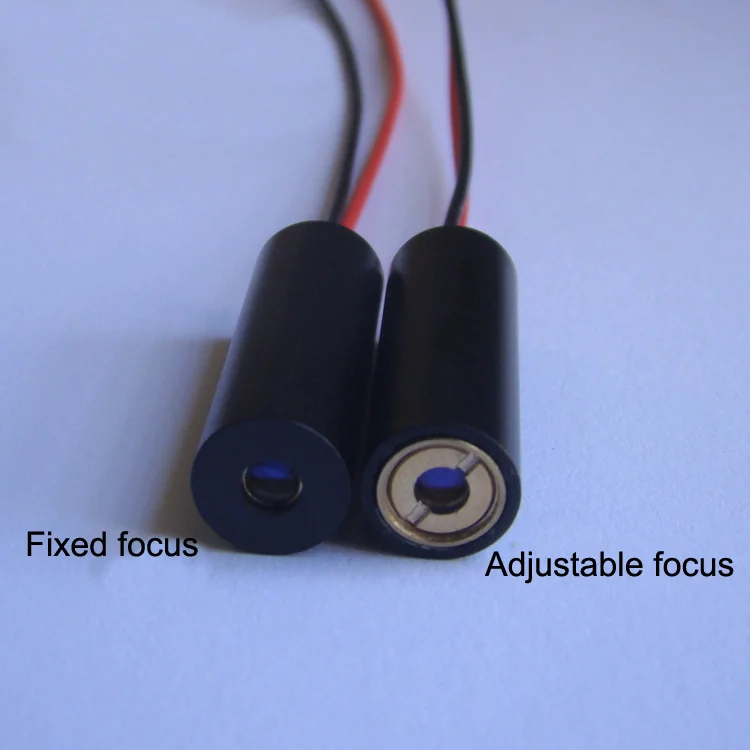

• Focus: adjustable/fixed (optional)
• Useful life: > 8000 hours (continuous output)
• Housing material: copper + aluminum
• Circuit control: APC line
• Working current: I<130mA @ 50mW, I<165mA @ 100mW, I<320mA @ 200mW
• Operating voltage: DC= 3-5V (customizable)
• Operating temperature: -10℃～＋50℃
• Storage temperature: -40℃～＋80℃
