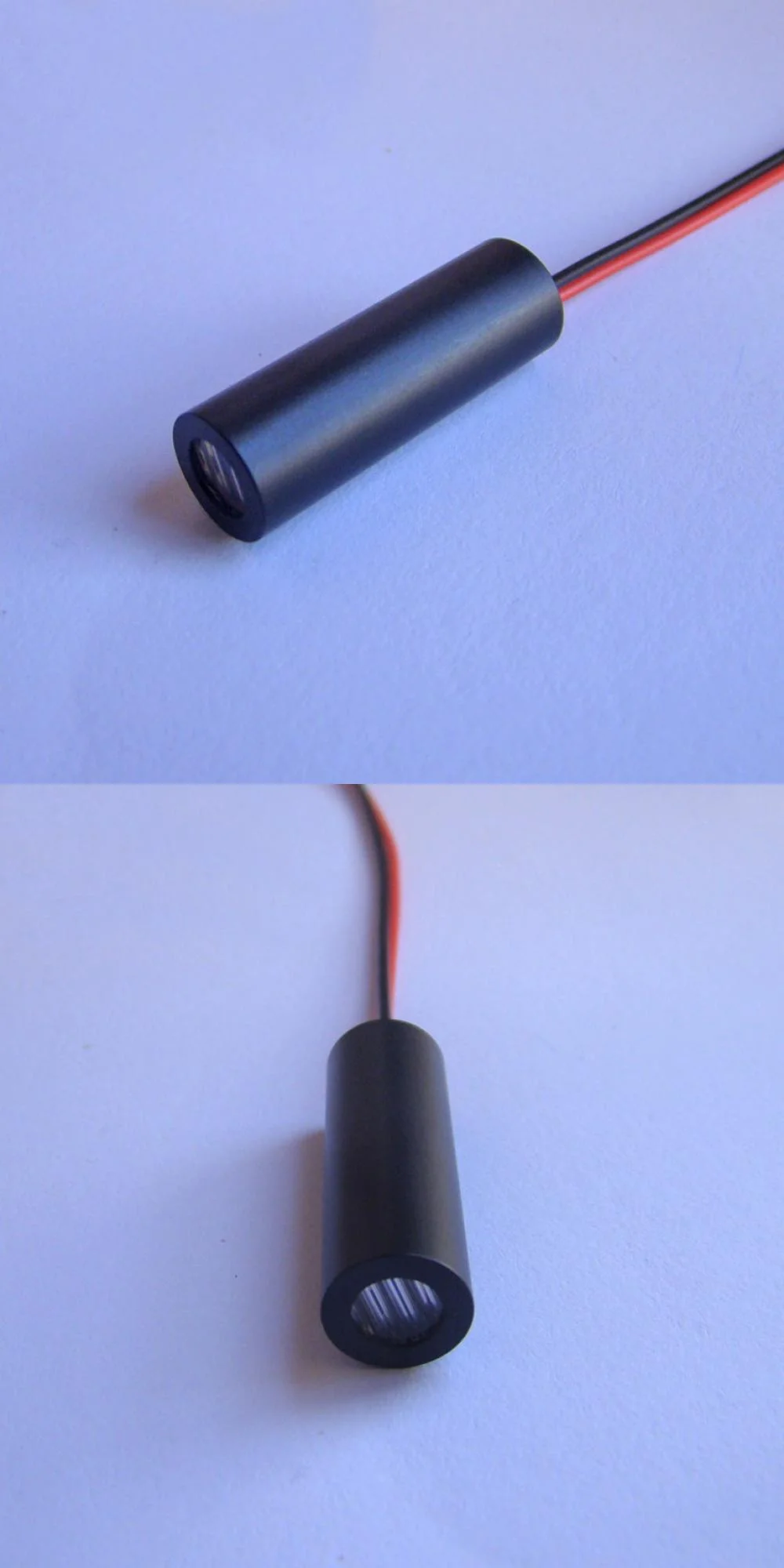

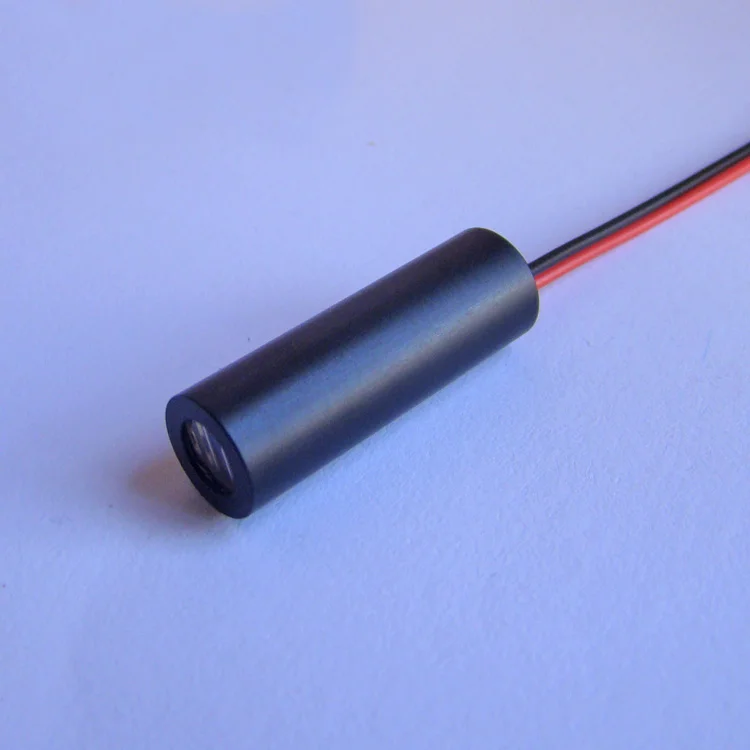

980nm Line Infrared Laser Module 10-100mW

This infrared laser module adopts the standard 980nm wavelength, which is invisible to the naked eye. The product size is relatively small, and the stability is much better than many other 980nm modules on the market. 10mW / 30mW / 50mW / 100mW is optional - you can choose according to your needs. If you need wholesale (more than 20 units), please contact us to get lower wholesale prices.

Buying Tips
The module size can be customized: Φ9x25mm, Φ10x30mm, Φ12x36mm, Φ12x50mm (size customization is free). We will send Φ10x30mm by default.

Specifications
• Laser shape: line
• Wavelength: 980nm±5nm
• Dimensions: Φ10x30mm (customizable)
• Output power: 10-100mW
• Focus mode: fixed focus
• Useful life: > 6000 hours (continuous output)
• Housing material: copper + aluminum
• Circuit control: APC line
• Beam divergence angle: 36.5°/60°/90°/110° is customizable
• Operating voltage: DC= 3.0V / 5.0V
• Operating temperature: -10℃～＋50℃
• Storage temperature: -40℃～＋80℃
