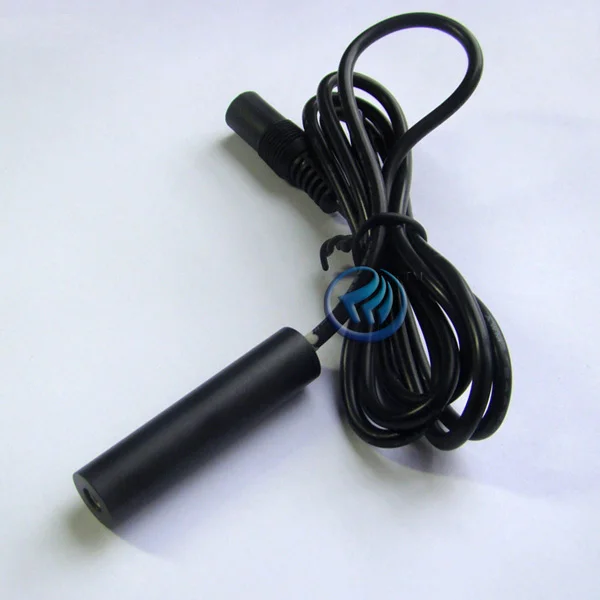

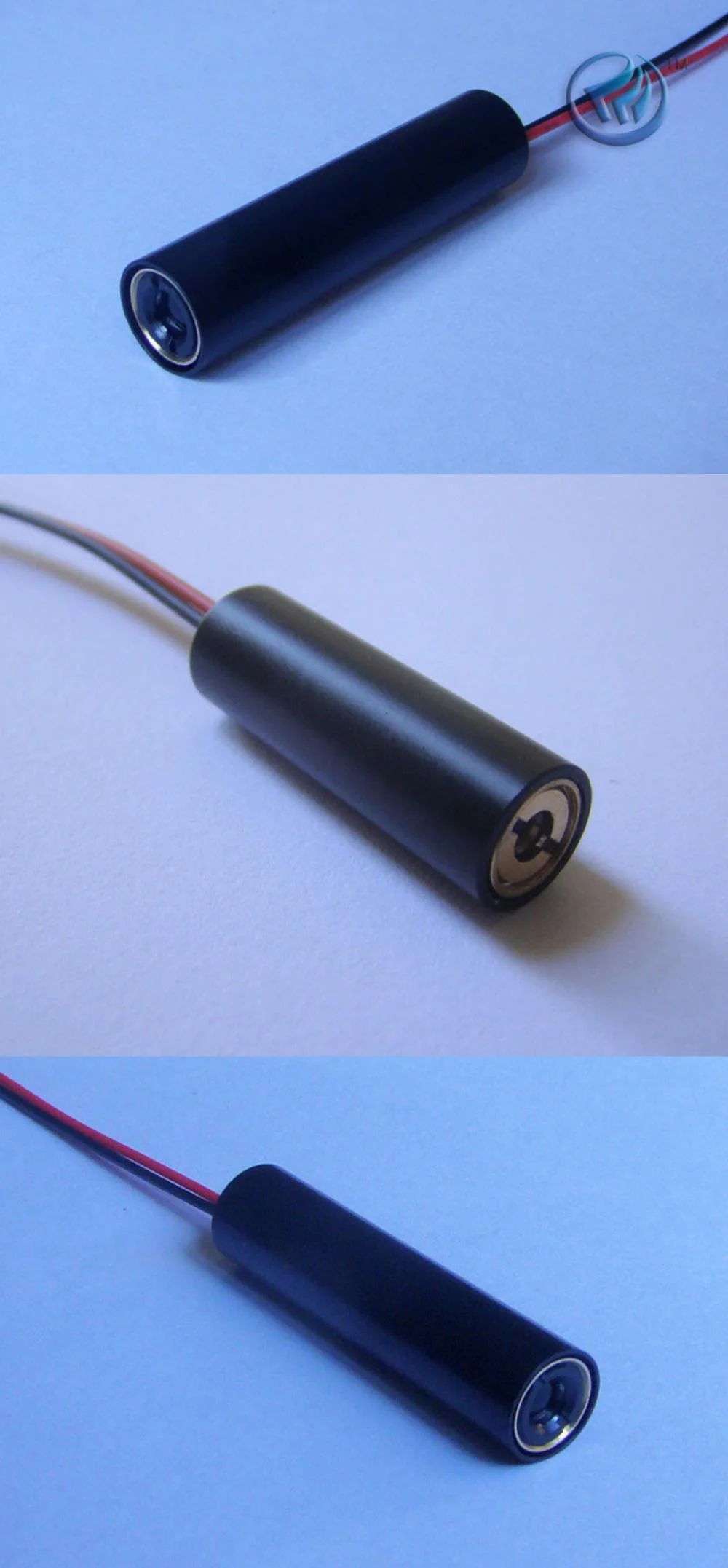

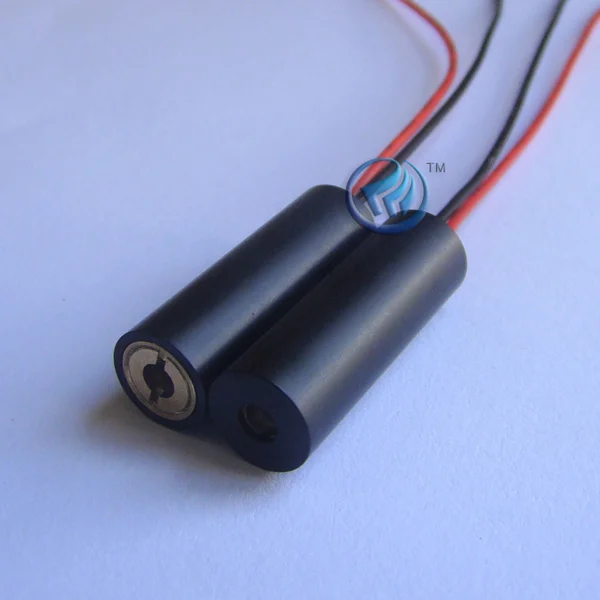

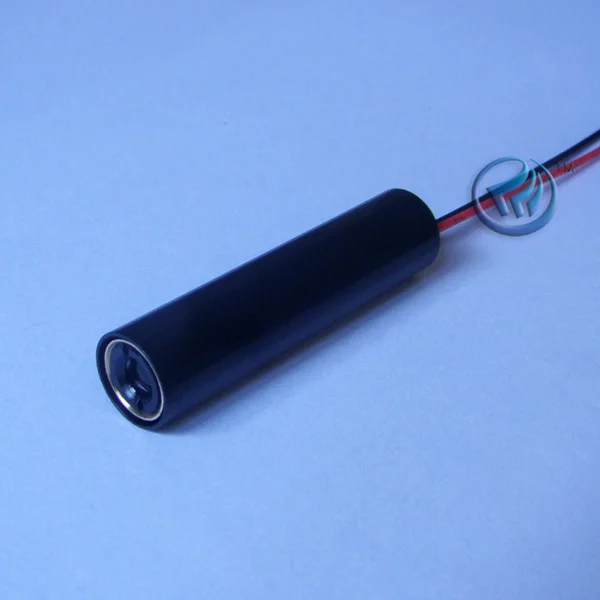

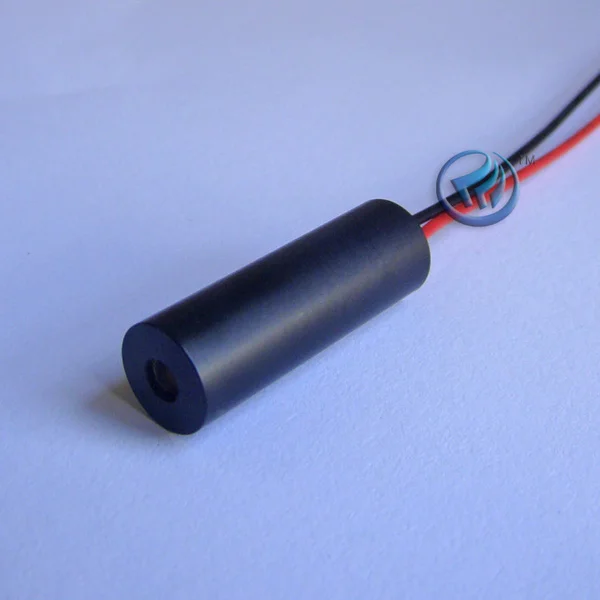

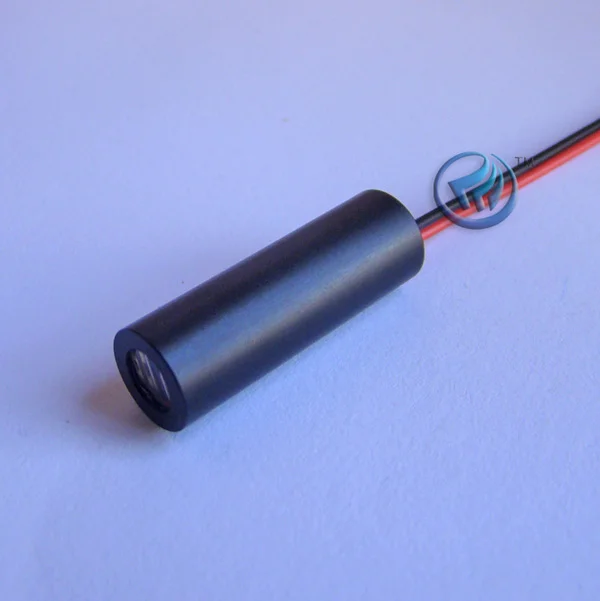

High Power and Cheap 980 nm Dot Infrared Laser Module

This model is our newest 980nm laser module. The output power is optional: 30mW, 50mW, 100mW, 200mW, 300mW, 500mW. It can be used for infrared testing tools, laser positioning, rangefinder, medical equipment, electronics enthusiasts, etc. If you need a cheap and high-power 980nm module, this will be a good choice.

Specifications
• Useful life: > 10,000 hours (continuous output)
• Wavelength: 980nm/±5nm
• Output power: 30mW - 500mW
• Housing material: copper
• Beam distance: 500-10000 meters
• Laser spot: < Φ25mm at 10m (minimum beam diameter ≤ Φ1.0mm)
• Focal length: adjustable (you can make a customization for fixed focus)
• Circuit control: APC Line
• Working voltage: DC=3.0V (2 x AAA batteries)
• Working current: < 360mA
• Working temperature: -10 ° C ~ +50 ° C
• Dimensions: Φ9×25mm (30-100mW), Φ10x30mm(200-300mW), Φ12x50mm(500mW)

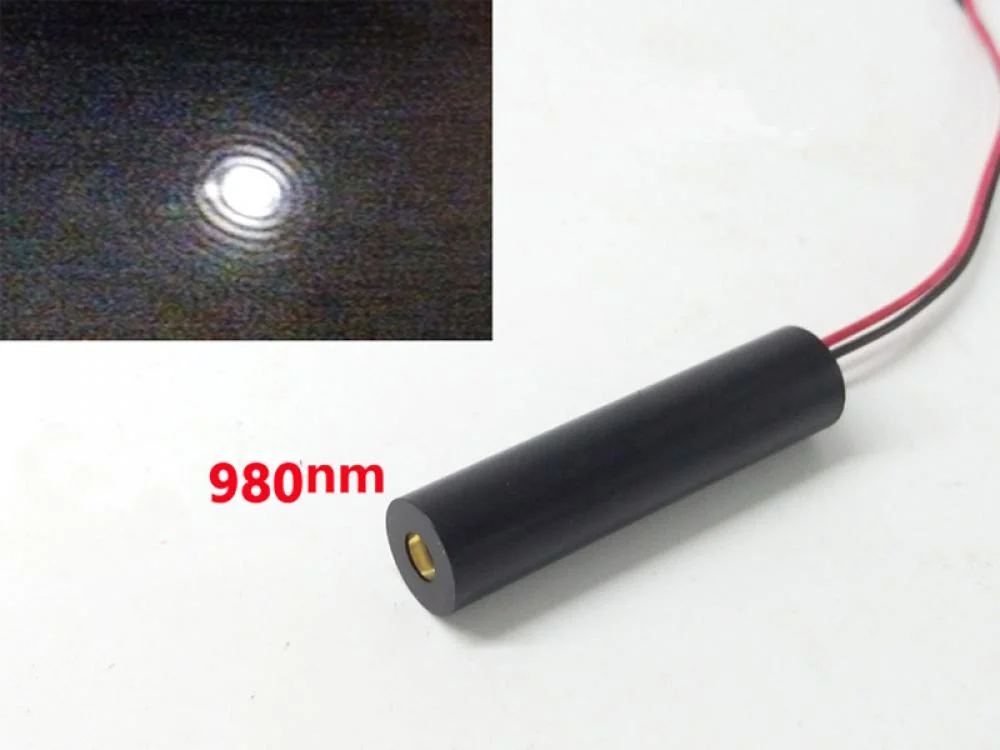

You can see the laser spot with the camera - it is a very uniform dot.

Precautions for use
1) Do not make the laser beam into the eyes! (the 500mW output can even cause damage to the skin.)
2) Keep this infrared laser away from children. When not in use, please take the batteries out of the laser.

What's in the box?
• 1 x 980 nm Dot Infrared Laser Module
• 2 x AAA Batteries (750mAh)
