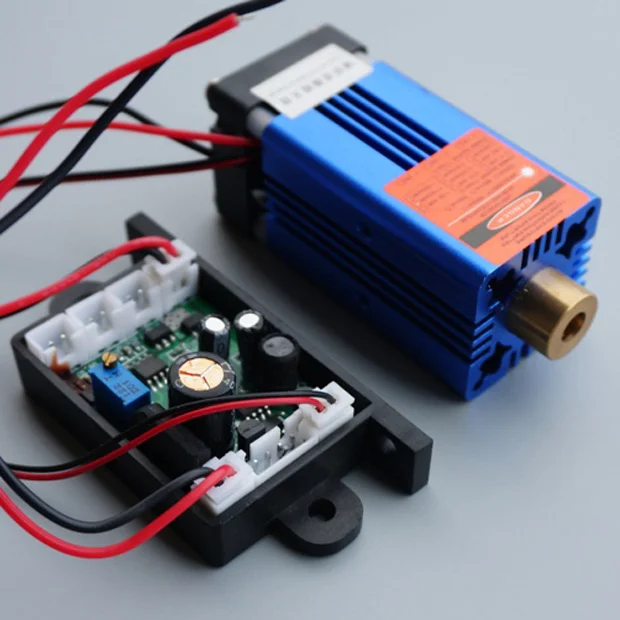

Very Powerful 850nm Infrared Laser Module 1W / 2W

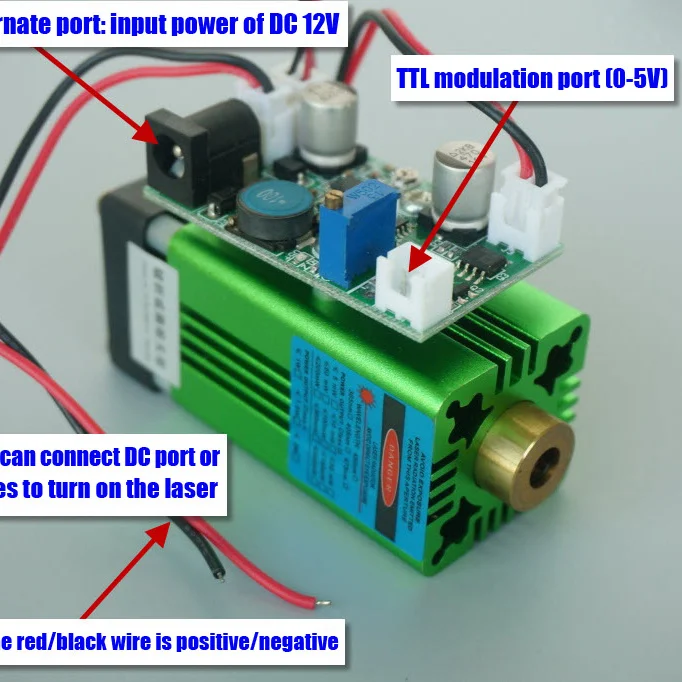

This model is our first infrared laser module, which has passed the quality test and aging test. It can work continuously for a long time. This industrial infrared laser has TTL modulation, adjustable focus, an external circuit board, and a cooling fan.

Notes
Please don't make the input voltage be more than 12V! Overvoltage will cause damage to the circuit board.

Specifications

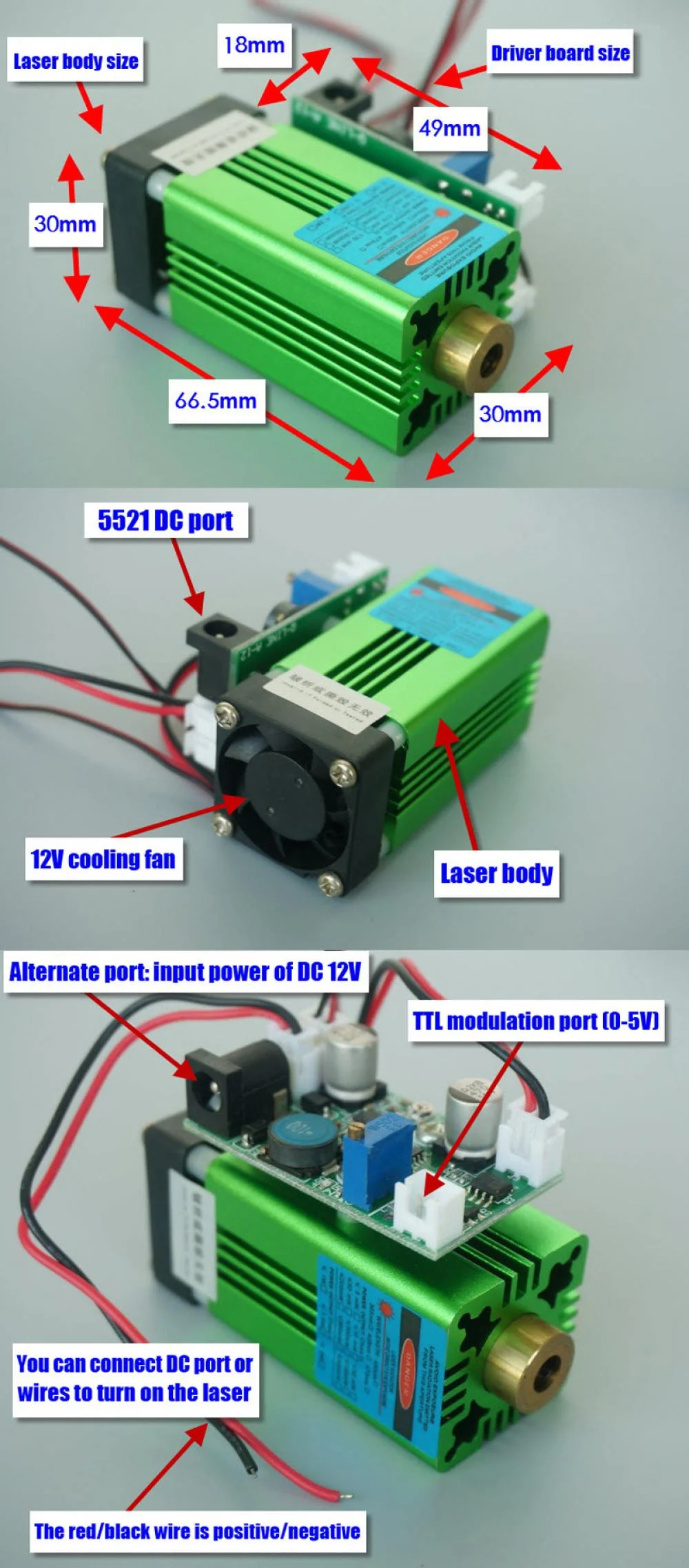

• Module size: 66.5mm x 30mm x 30mm
• External power supply: 58mm x 32.5mm x 20mm
• Output wavelength: 850nm
• Output power: 1W / 2W
• Housing material: aerospace aluminum
• Focus mode: adjustable
• Modulation frequency: available

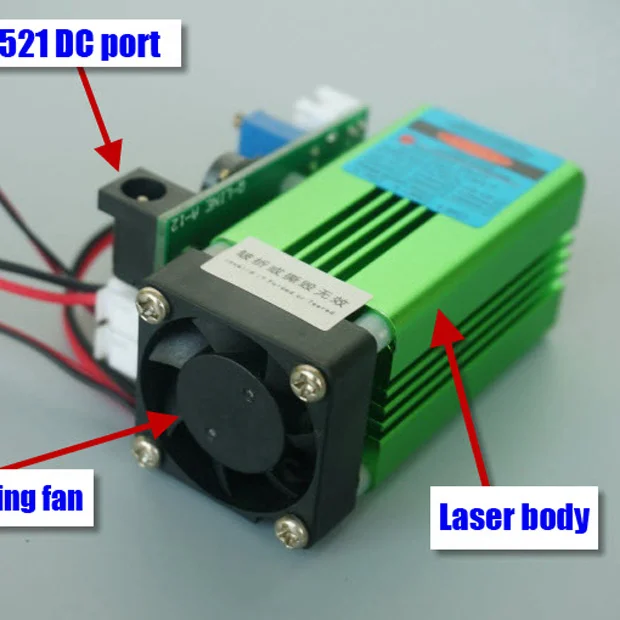

• Cooling method: fan
• Continuous work: yes
• Warm-up time: no
• Control circuit: constant current
• Reverse polarity protection: available
• Operating voltage: DC = 12V
• Operating current: I < 1200mA
• Operating temperature: -10 ° C ~ + 40 ° C
• Storage temperature: -10 ° C ~ + 40 ° C
• Structural characteristics: diode + lens + heat sink

Tips
1) The power supply is external-style.
2) The beam of the infrared laser module is invisible.

Package Contents
• 1 x Infrared Laser Module
• 1 x Instructions for Use
• 1 x Packing Box
