Powerful Near-Infrared Laser Module 808nm 830nm 850nm

We can provide customers with optoelectronic solutions and design laser modules that meet customer needs.

Product Details

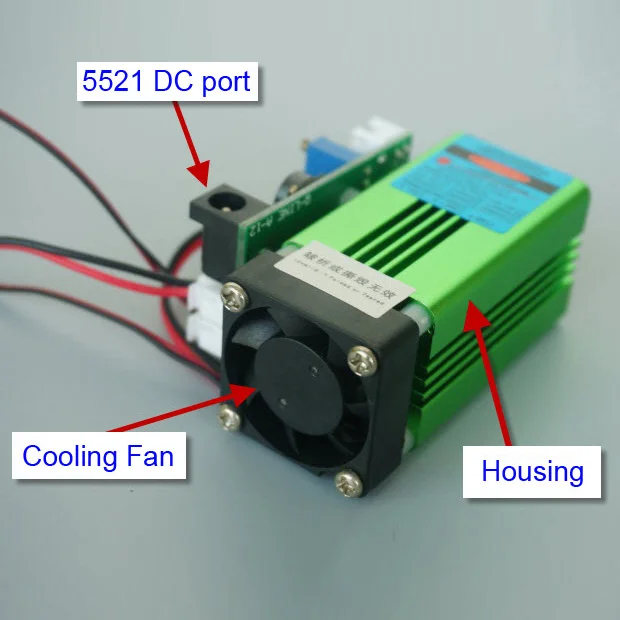

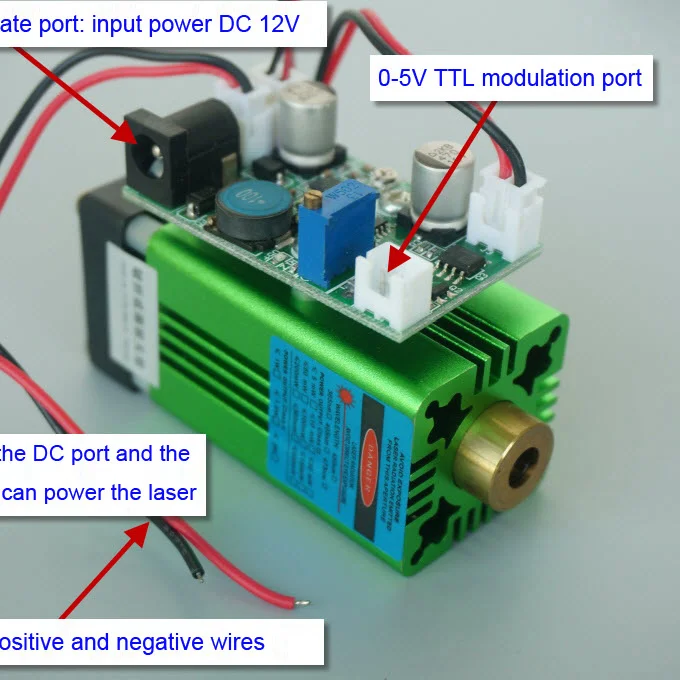

This near-infrared laser has high power and good stability, which can work continuously. It integrates a high-efficiency circuit board, a cooling fans, and the 0-5V TTL modulation. The wavelengths of 808nm/830nm/850nm are optional, and the maximum power is up to 1000mW. If you are looking for a powerful NIR laser module, this will be a recommended choice.

Notes
1) The input voltage is 12V. Overvoltage will cause damage to the circuit and module.
2) You can't see the laser beam from near-infrared lasers.

Technical Parameters
• Laser type: dot (infrared laser)
• Dimensions: 66.5mm x 30mm x 30mm
• Wavelength: 808nm 830nm 850nm
• Output power: 200-1000mW
• Cooling method: cooling fan
• TTL control: available (0-5V)
• Housing material: aluminum
• Circuit control: constant current
• Reverse polarity protection: available
• Working voltage: DC=12V
• Working current: I<120mA
• Warm-up time: none
• Working temperature: -10℃～+40℃
• Storage temperature: -10℃～＋40℃
