High-Stability Infrared Dot Laser Module 808nm 5-500mW 3V

This professional 808nm laser comes with small sizes, high stability, and 5-500mW power. Two AAA batteries can drive it by the voltage of 3V, and the adjustable/fixed focus is optional. This infrared dot laser module can be used for laser rangefinders, medical equipment, infrared testing tools, etc. If you have any questions, please contact us via info@lasersea.com.

Specifications
• Wavelength: 808nm/±5nm
• Laser shape: dot
• Dimensions: Φ9×25mm (5-100mW), Φ10x30mm(200-300mW), Φ12x50mm(500mW)
• Power: 5mW / 10mW / 20mW / 30mW / 50mW / 100mW / 200mW / 300mW / 500mW

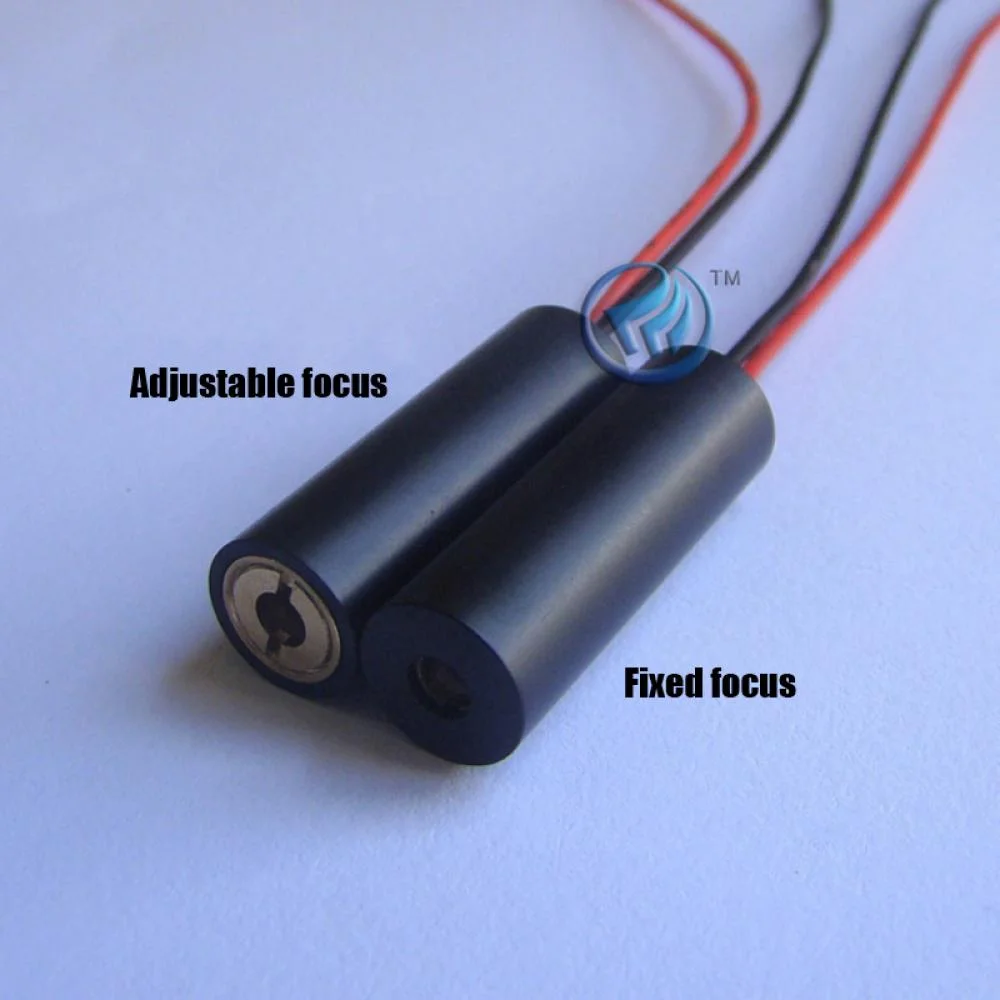

• Focus: adjustable/fixed (optional)
• Useful life: > 8000 hours (continuous output)
• Housing material: copper
• Circuit control: APC line
• Operating voltage: DC= 3V (2 x AAA batteries)
• Operating current: < 360mA (5-300mW), < 550mA (500mW)
• Operating temperature: -10°C ~ +50°C

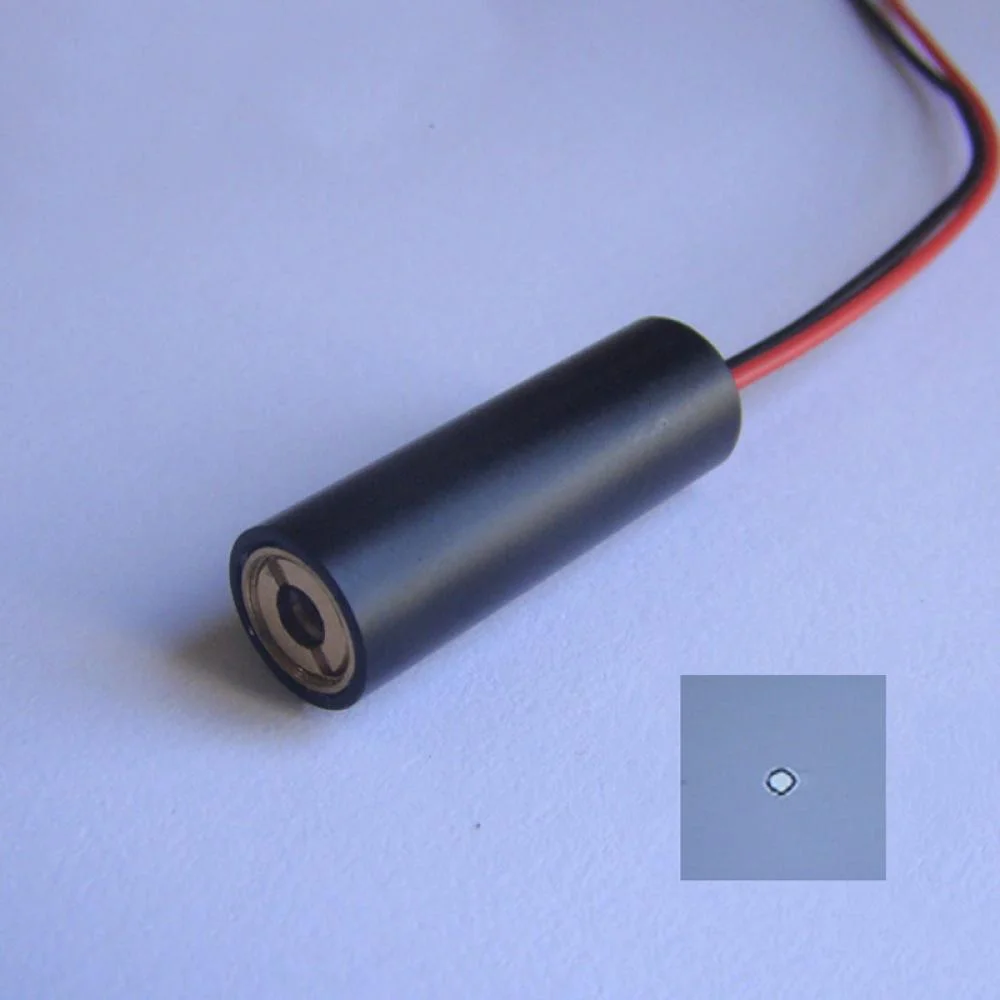

You can see the laser spot with the camera, which is a very uniform dot.

Precautions for use
1) Do not make the laser beam into the eyes!
2) Keep this 808nm laser away from children. When not in use, please take the batteries out of the laser.

Package content
• 1 x 808nm infrared dot laser module
• 2 x AAA batteries
