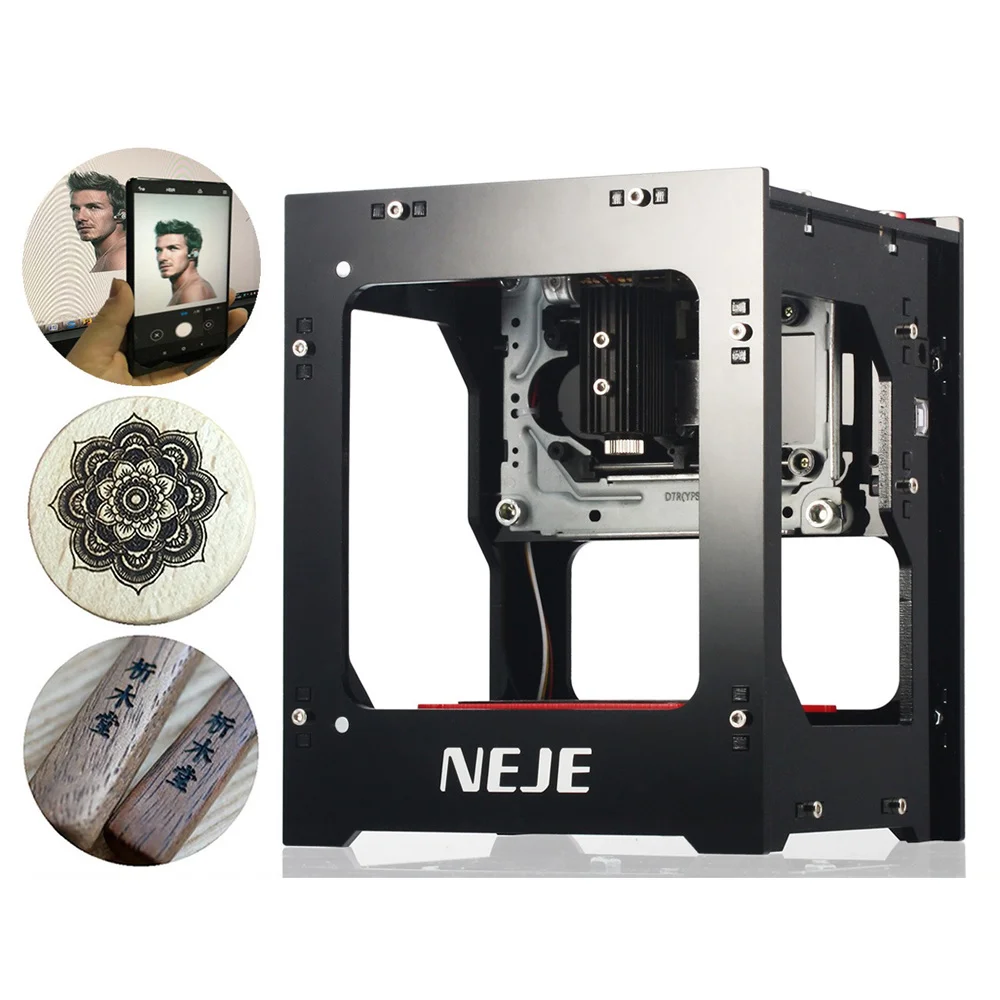

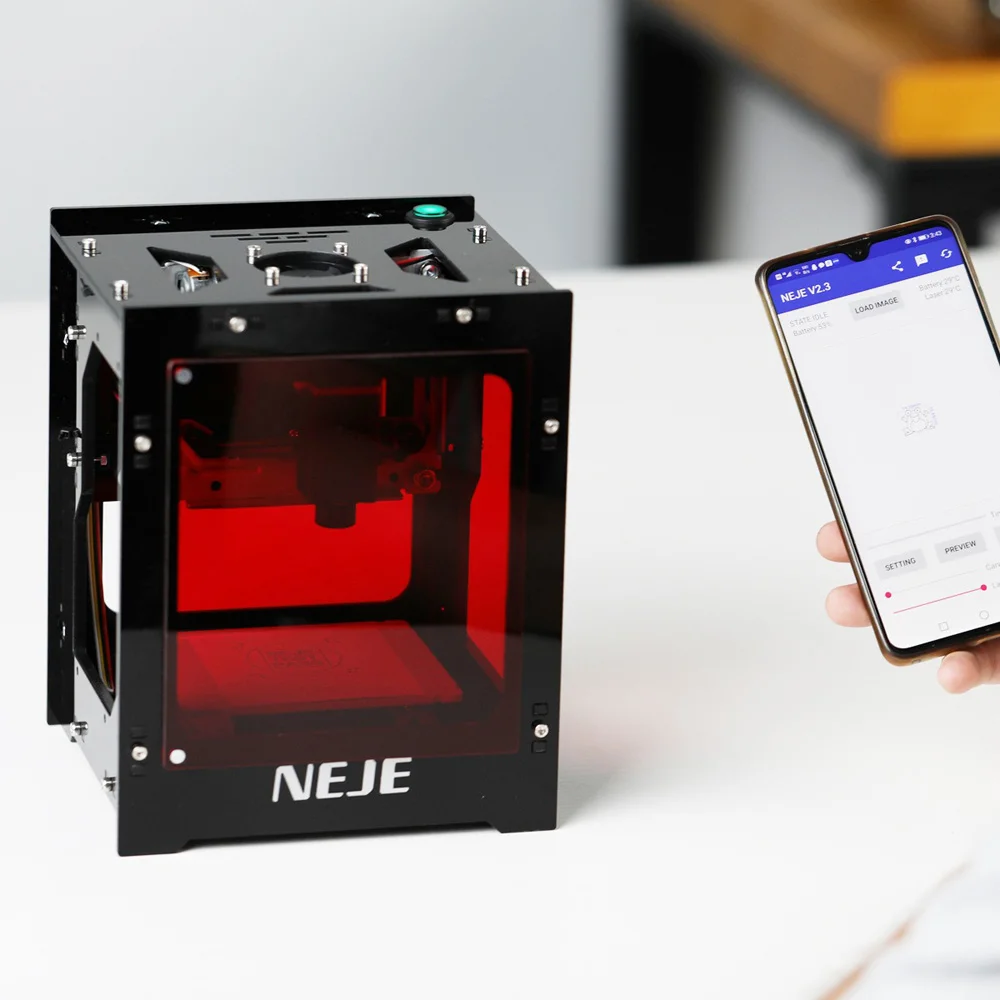

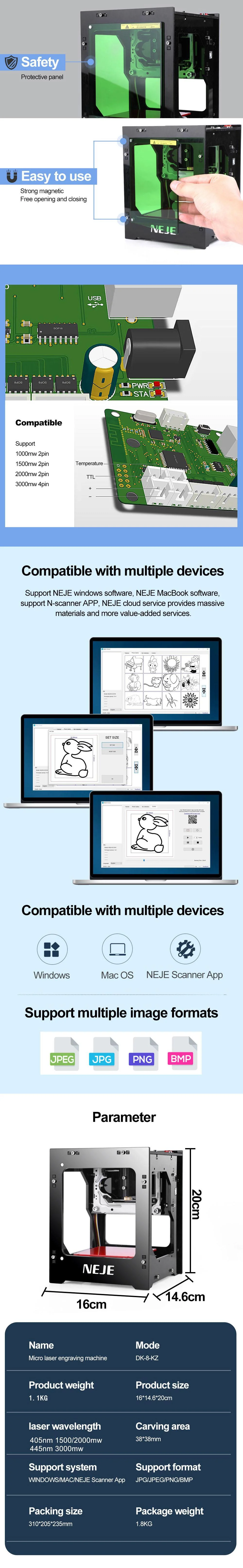

This model is one of our OEM products. It is a small and powerful laser engraver that can engrave pictures in various formats, such as BMP, JPG, PNF, etc. Customers can design their picture materials or use our Android app to collect and transfer materials for engraving. The laser's output is about 10W, which can engrave objects quickly and stably.
Product Features
1) The laser power is up to 10W, enough for home use.
2) Our professional software supports multiple languages: English, French, German, Spanish, Italian, Dutch, etc.
3) The engraving speed is 10 times faster than the previous version.
4) The 108 screws and alloy structures make it strong, with high precision and high stability.
5) With a unique frame and weak light automatic positioning. The frame positioning makes the image positioning easier. The weak light would not be difficult to engrave in toothpicks and make the engraving picture perfect with no excess residue, which is also safe to prevent fire.
6) This powerful laser engraver can be used offline. If you leave the computer, please connect the USB port to the charger or power bank (5V 2A), and then the engraving machine will continue to work well.
7) With 490 x 490 high-resolution engraving, the soft material can achieve the effects of 3D and gradient.
8) We developed a professional power IC and radiator so that the carving can last for a long time.
Specifications
• Material: acrylic + aluminum + stainless steel
• Laser power: 10W (10000mW)
• Laser wavelength: 445nm (blue)
• Image formats: JPG/JPEG/PNG/BMP
• Image size: 490 x 490 pixels ( 0.075mm point distance)
• Supply voltage: 4.2V-5V
• Supply current: 1A/2A
• Support system: XP, win7, win8, win10, Mac os
• Support software: NEJE software, NEJE Scanner app
• USB charging: available
• Power mode: dual USB powered
• Uses: marking/engraving
• Carving area: 38x38 mm
• Objects that can be carved: mahogany, bamboo, paper cards, ivory, leather, flammable plastic, PCBA, etc.

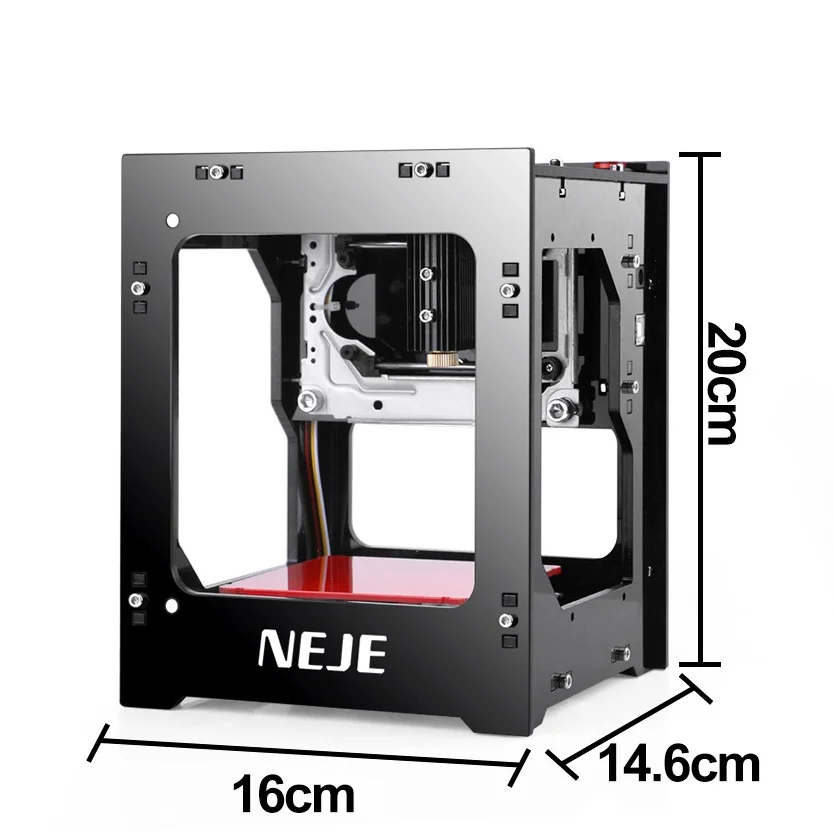

• Product size: 16x14.5x20 cm
• Net weight: 1100g
• Package size: 310x205x235 mm
• Package weight: 1800g
Tips for use
1. Please don't engrave metal, acrylic, or any other flame-retardant materials.
2. This product is only suitable for personal DIY. Due to the fast engraving speed, it is not recommended for industrial use.
3. When the powerful laser engraver is working, please do not look directly at the laser head and do not operate the laser head directly by hand.
4. The laser diode is a sensitive component. Please pay attention to prevent electrostatic damage (including electrostatic protection design, but there is a certain probability of damage).
Important notes
You might need to shut down the antivirus software before downloading the software temporarily. Otherwise, some files in the software would be mistaken for viruses and deleted by antivirus software. |
