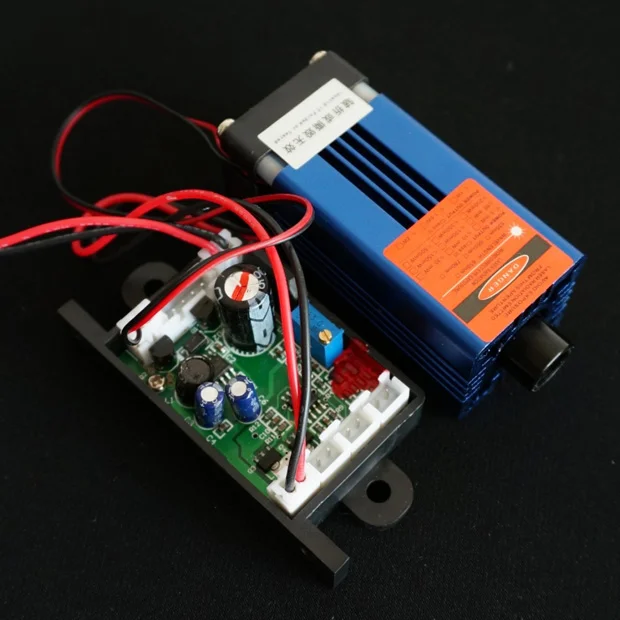

635nm-638nm Powerful Red Laser Module 300mW / 500mW

This laser is one of our best-selling products. It is a good choice for DIY customers.

Product Details

The output of this red laser module is very powerful, and it can work continuously with the latest cooling technology. Many outstanding features are available, including TTL modulation, adjustable focus, aluminum heat dissipation, reverse polarity protection, static protection, external power supply, etc. The power of 300mW / 500mW is optional. You can make your choice according to your needs.

Specifications
• Wavelength: 635nm / 638nm
• Output power: 300mW / 500mW
• Housing material: aeronautical aluminum
• Output mode: CW (it can work continuously)
• Cooling method: forced air cooling, aluminum heat dissipation
• Reverse polarity protection: automatic positive and negative identification
• Control circuit: constant current
• TTL modulation: available
• Operating voltage: DC = 12V
• Operating current: I <800mA
• Operating temperature: -10 ℃ - 40 ℃

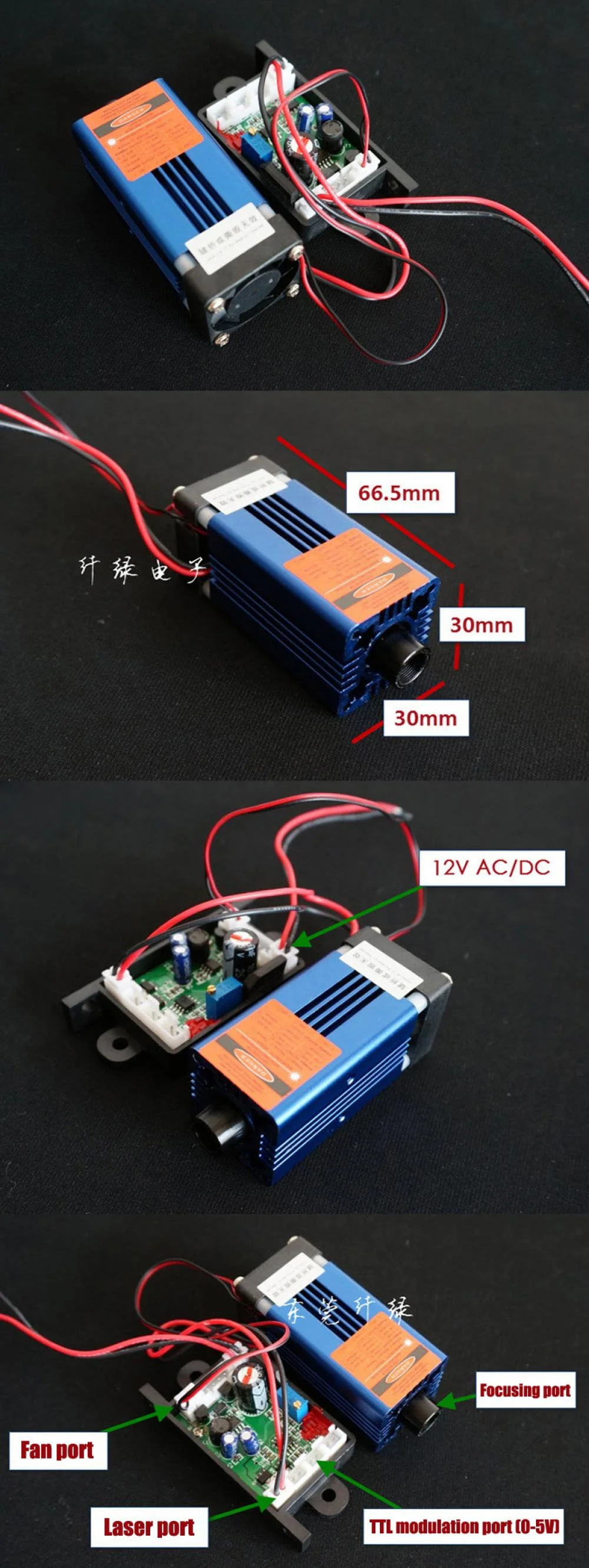

• Module dimensions: 30 x 30 x 66.5 mm
• Dimensions of the circuit board: 20 x 32.5 x 58 mm

Powerful Red Laser Module
