Small 532nm Green Dot Laser Module 10mW/20mW/30mW/50mW

This model has small sizes and a sturdy structural design. The green laser spot is bright and long-range, and it can work continuously 24 hours a day - you don't need to worry about overheating or overvoltage. If you are looking for a small and high-power 532nm laser module, this is a good choice. For product customizations, please contact us by email. We will reply to you within 24 hours.

Buying Tips
The module size can be customized: Φ6×22mm, Φ8×26mm, Φ9×26mm, Φ10×30mm, Φ10×34mm (size customization is free). We will send Φ10×34mm by default.

Specifications
• Wavelength: 532nm±5nm
• Power: 10mW/20mW/30mW/50mW
• Laser shape: green dot

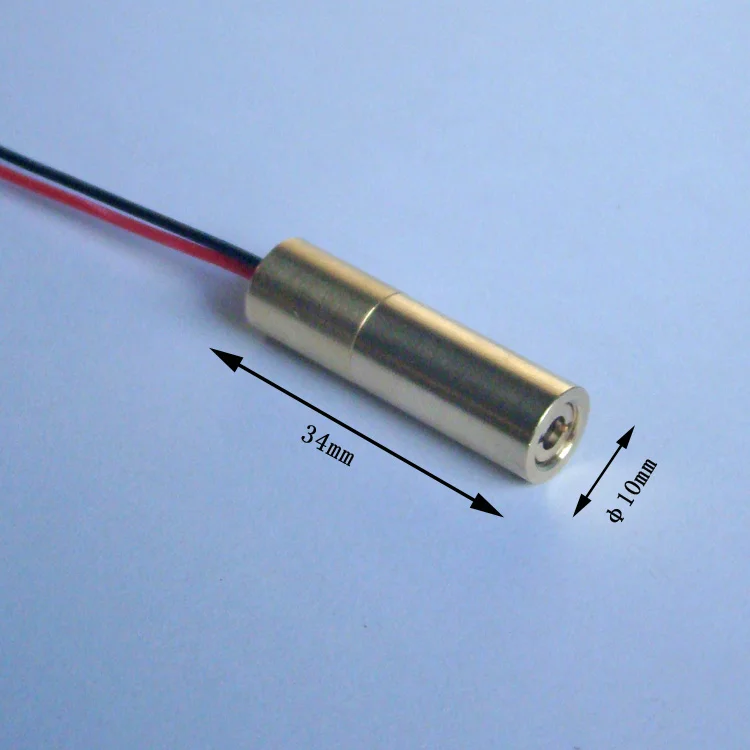

• Dimensions: Φ10 x 34 mm (customizable)

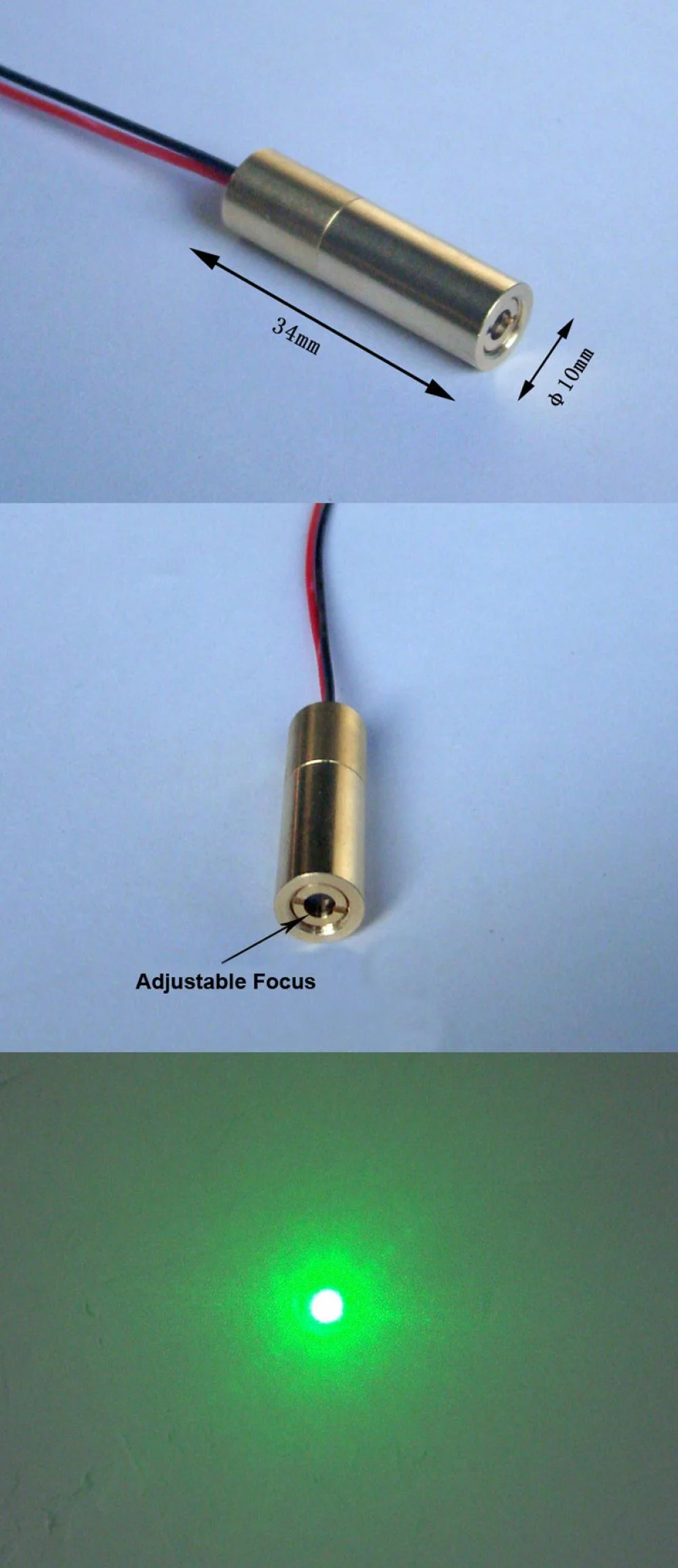

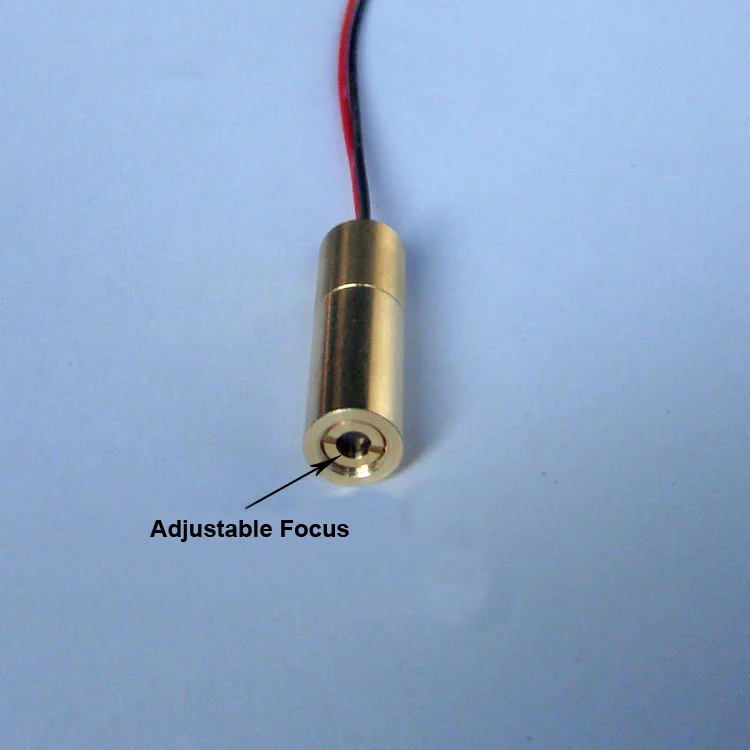

• Focus: adjustable/fixed focus (optional)
• Spot size: < 6mm from 10 meters away
• Useful life: > 10000 hours (continuous output)
• Housing material: brass
• Circuit control: ACC line
• Operating voltage: DC=2.8-3.5V
• Working current: I < 350mA
• Operating temperature: 10℃～＋35℃
• Storage temperature: -20℃～＋60℃
